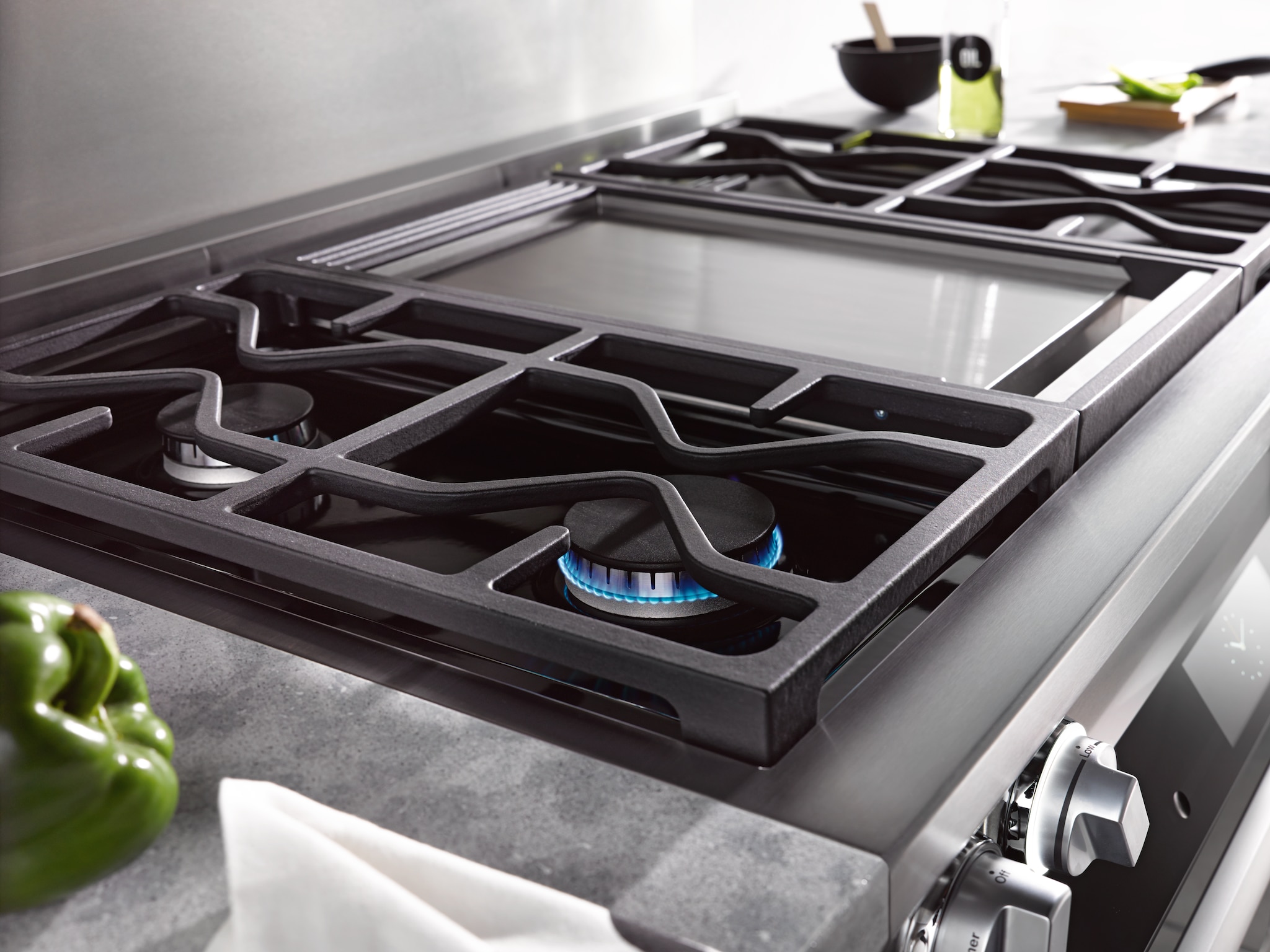

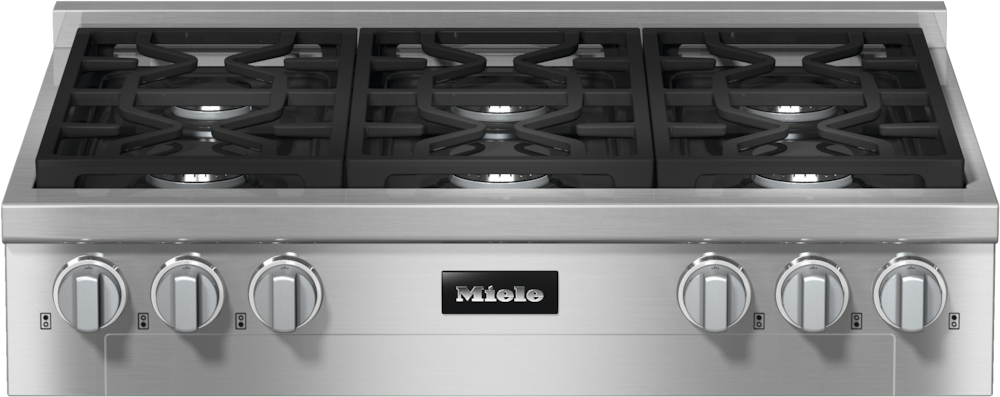

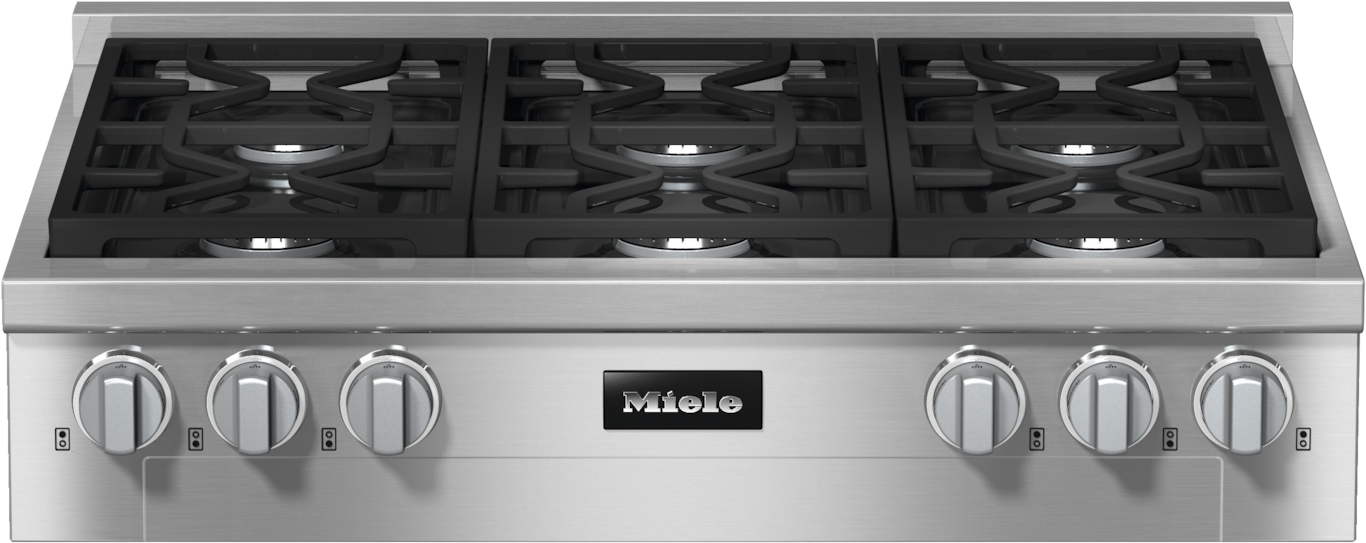

36-inch Range TopGOLD
KMR 1134-3 G EDST/CLST
with 6 burners for professional applicationssale price$5,399.00
Product details
- Professional design - 36 (914) in (mm) wide in stainless steel with Clean Touch Steel™ finishing
- Direct control - metal knobs with light ring
- Easy cleaning - ComfortClean dishwasher-safe grates
- Broad performance spectrum – burner w. up to19,500 BTU (5.7 kW)Loading...
- Convenient and safe - automatic re-ignition for all burners
- View manufacturer details:
- Safety information
Fuel type Gas
Rangetop
Casing Stainless steel
Front panel CleanSteel
Genuine metal knobs
Cast iron pot rests (matte black enameled)
Number of gas burners 6
Position front left
Type Ultra high-speed burner
Minimum power output in BTU/hr 1700
Maximum power output in BTU/hr 19500
Max. rating in W 5700
Position rear left
Type High-speed burner
Minimum power output in BTU/hr 1200
Maximum power output in BTU/hr 12500
Max. rating in W 3700
Position rear right
Type High-speed burner
Minimum power output in BTU/hr 1700
Maximum power output in BTU/hr 13600
Max. rating in W 4000
Position rear right
Type High-speed burner
Minimum power output in BTU/hr 1700
Maximum power output in BTU/hr 13600
Max. rating in W 4000
Position front right
Type Ultra high-speed burner
Minimum power output in BTU/hr 1700
Maximum power output in BTU/hr 19500
Max. rating in W 5700
Position front center
Type Ultra high-speed burner
Minimum power output in BTU/hr 1700
Maximum power output in BTU/hr 19500
Max. rating in W 5700
True Simmer function
Loading...

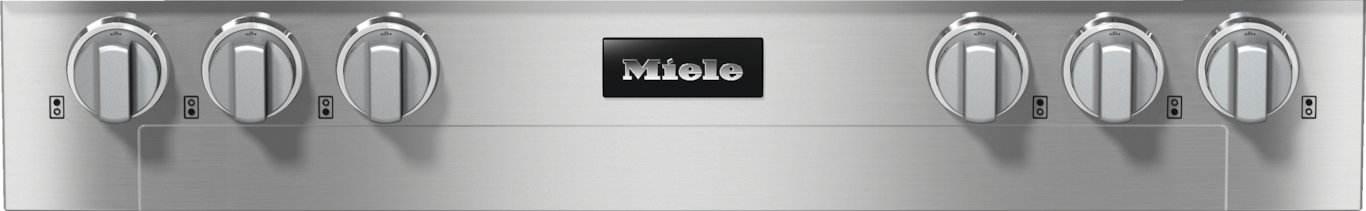

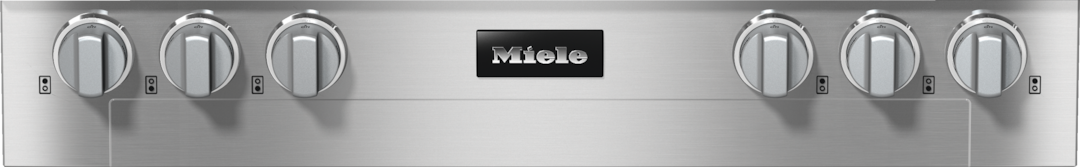

Operation via genuine metal knobs with backlit
Loading...
Dishwasher-safe trivets
Loading...
Single-piece cooktop surround
Automatic re-ignition
Dimensions (width) in in. (mm) 36 (914)
Dimensions (height) in in. (mm) 7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose 27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose 25 5/8 (650)
Weight in lbs. (kg) 121 (55)
Total output in BTU/hr 98200
Total connected load in kW 32.200
Voltage in V 120
Fuse rating in A 10
Number of phases 1
Power cord length in in. (m) 3 (1.2)
Plug type US earthed plug
EAN 4002516534969
Efficiently protects and makes cleaning easier

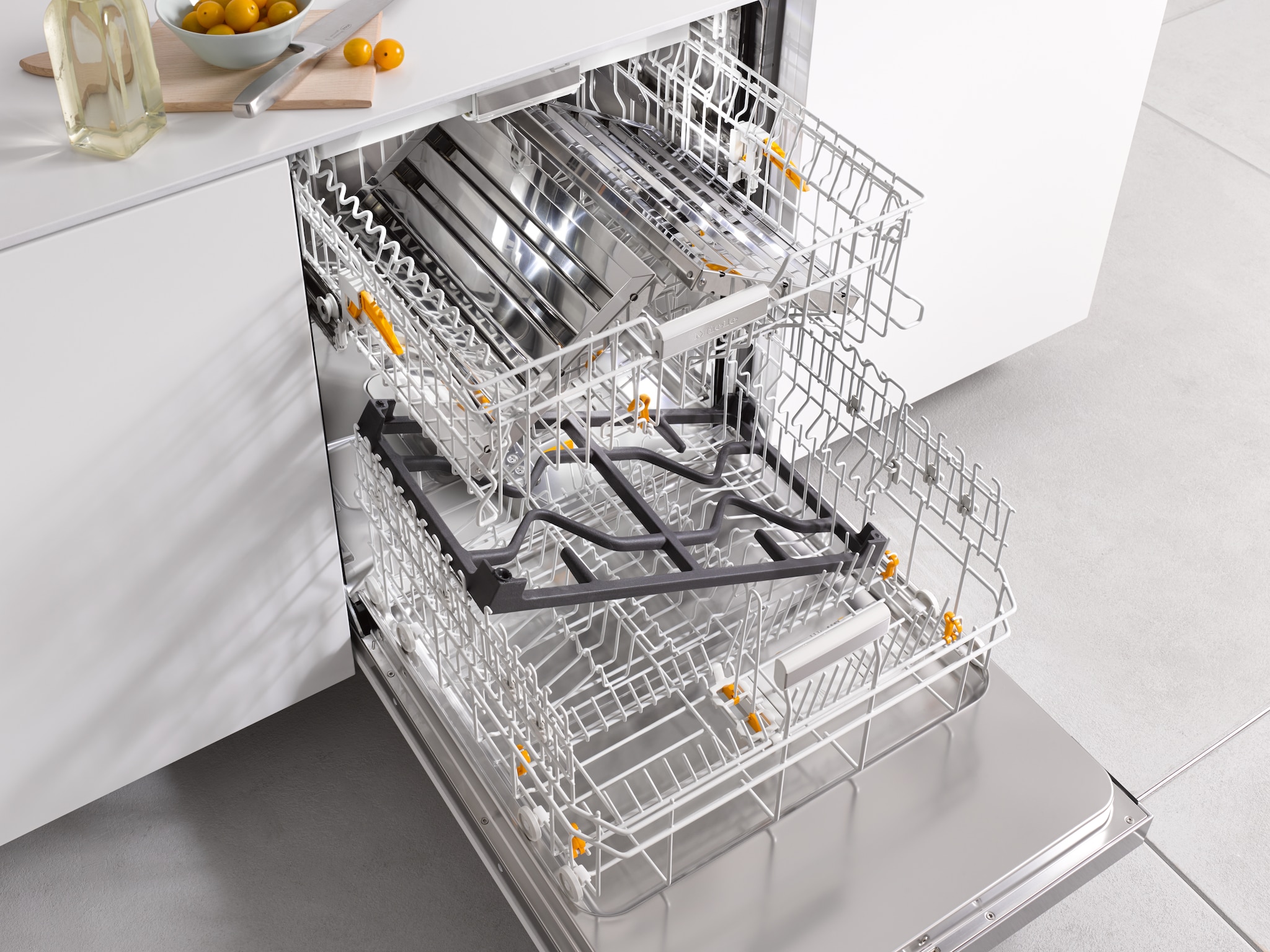

ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Perfect results with the simmer function
Continuous simmer
The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.
Elegant back-lighting

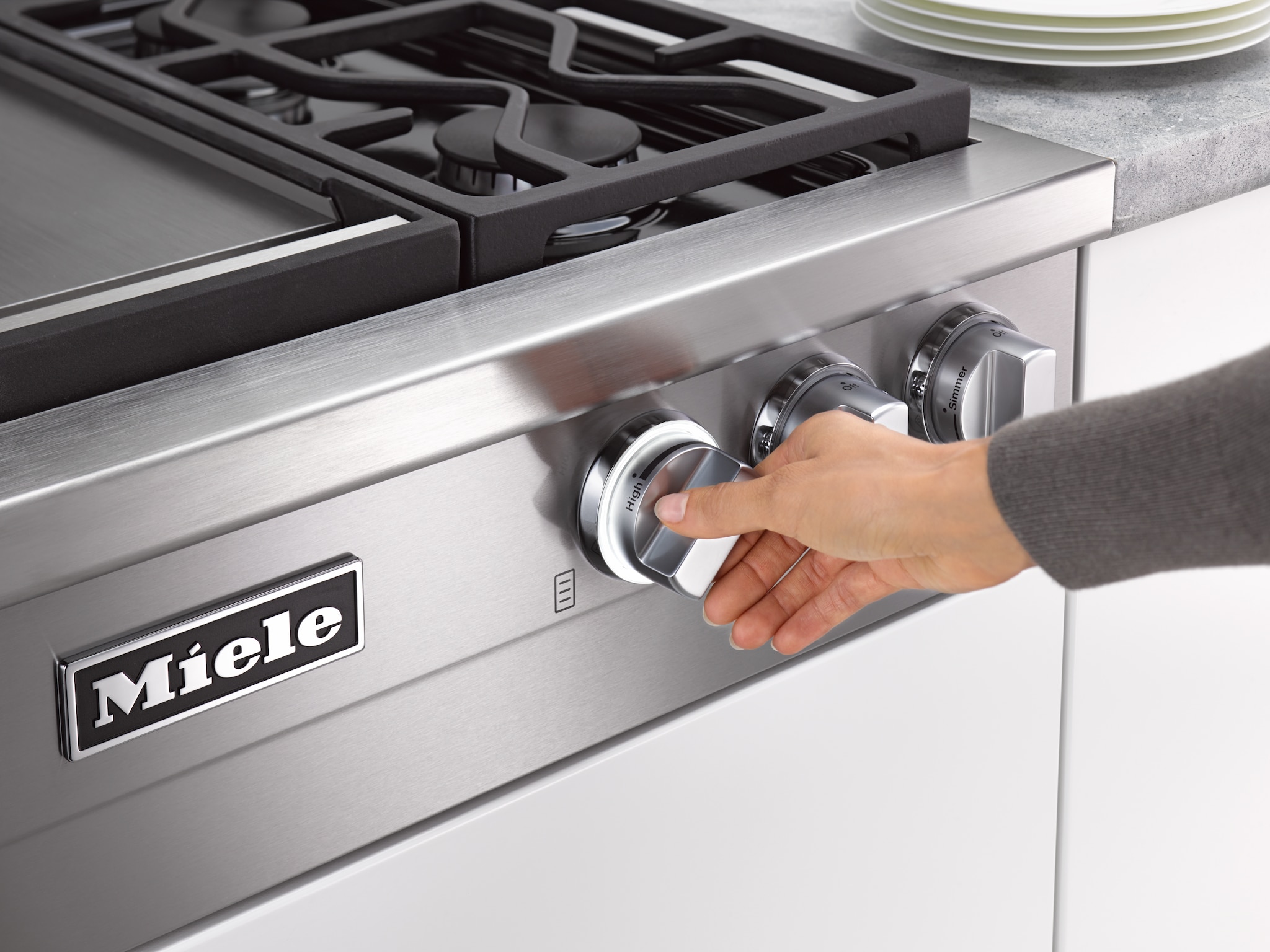

Backlit Precision Knobs
With QuickStart there's no need to press or hold the control in order to switch the burners on.
Protection for immaculate stainless steel surfaces
Clean Touch Steel™Front
No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.
ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.Clean Touch Steel™Front
No fingerprints on stainless steel: surface has special finish which keeps clean without special cleaning agents.Backlit Precision Knobs
With QuickStart there's no need to press or hold the control in order to switch the burners on.Continuous simmer
The perfect temperature and even heat for simmering: Whether you are melting chocolate or thickening a sauce.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
1) Side view, 2) Front view, 3) Rear view, 4) Gas Connection, 5) Electrical connection
1) Side view, 2) Front view, 3) Rear view, 4) Gas Connection, 5) Electrical connection POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
