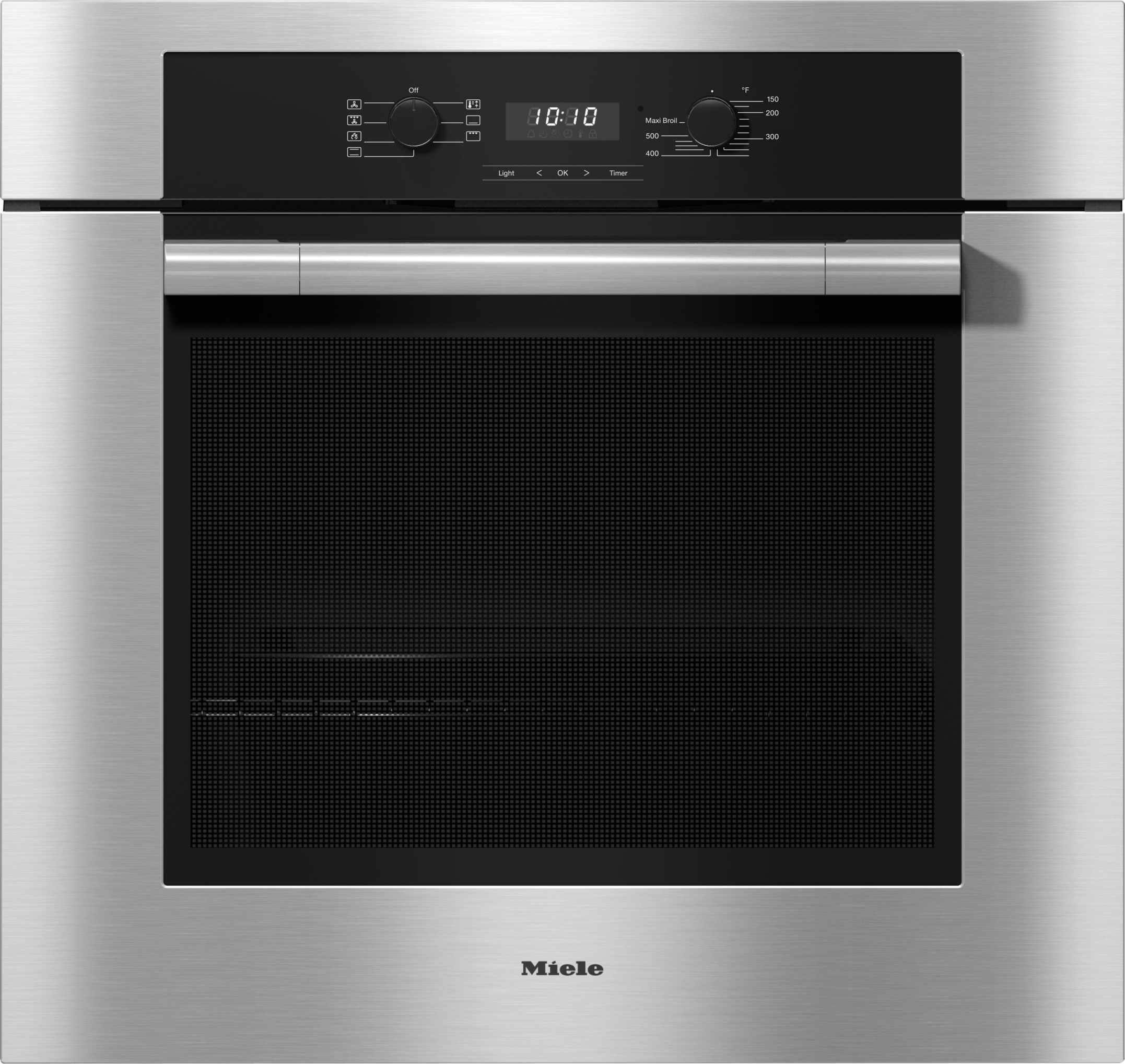

30 Inch Convection OvenSILVER

H 2780 BP Stainless steel/Clean Touch Steel

in a perfectly combinable design with Self Clean.
Color:Stainless steel/Clean Touch Steel
sale price$5,299.00


Product details

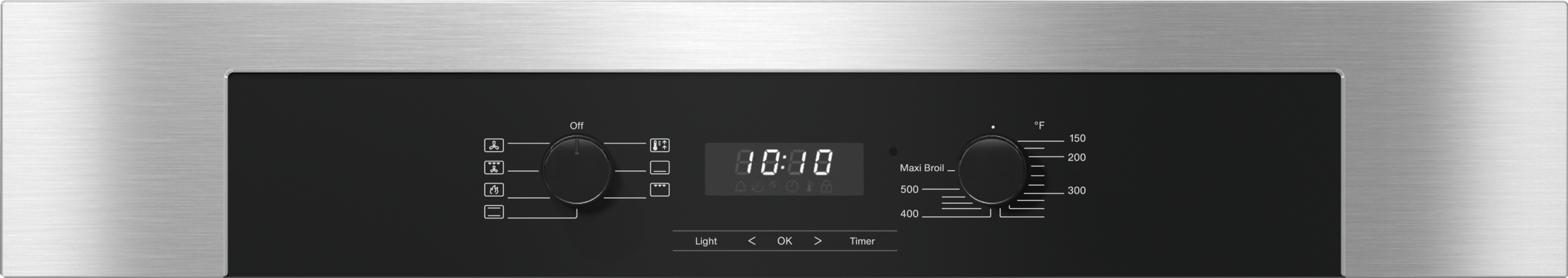

  • 7-segment display with knob –
    EasyControl
  • Minimal cleaning effort -
    Self-cleaning
  • Unlimited possibilities – volume of 4.59 cu. ft. on 6 levels
  • Gentle door movement –
    SoftOpen & SoftClose
  • Protects against burns –
    touch-cool fronts
  • View manufacturer details:
  • Safety information

Product data sheet

Built-in wall oven
ContourLine
Appliance color Stainless steel/Clean Touch Steel
Rapid PreHeat
Surround
Convection Roast
Maxi Broil
Broiling operating modes
Bake
Control panel
EasyControl
SoftOpen
SoftClose
Timers
Time of day display
Minute minder
Programming end of cooking duration
Programmable cooking time
Individual settings
Clean Touch Steel surface
Self-cleaning
Catalyzer
CleanGlass door
Appliance cooling system and cool touch front
System lock
Door lock during self cleaning
Cavity volume in cu.ft (l)
4.59 (130)
No. of rack levels 6
Labeling of rack levels
Oven interior lighting 2 halogen spots
TwinPower hot air fans
Temperatures in °F (°C) 85-575 (30-300)
Niche width min. in inches (mm) 28 1/2 (724)
Niche height min. in inches (mm) 28 1/4 (718)
Niche depth in in. (mm) 24 (610)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 28 5/8 (727) x 24 5/8 (626)
Appliance dimensions (W x H x D) in inches (mm) 29 7/8 (757) x 28 5/8 (727) x 24 3/4 (626)
Weight in lbs. (kg) 178 (80.5)
Total connected load in kW 6.500
Power Rating in V 120
Voltage in V 240/208
Frequency in Hz 60
Fuse rating in A 30
Number of phases 1
Plug type NEMA plug: 14–30
Length of power cord in in. (m) 1.80
Universal tray with PerfectClean 1
Baking and roasting rack 1
Removable side racks (pair) 1
EAN 4002516487234

What's included

Baking and roasting rack (1)
Removable side racks (pair) (1)
Universal tray with PerfectClean (1)

Maintenance

Fewer cooking odors
AirClean catalyzer

Better air quality during Self Clean: odors are removed from the cooking vapors.


A finish for flawless stainless steel surfaces
Clean Touch Steel

No fingerprints on stainless steel: The surface is protected and no special cleaning agents are required.


Cleaning with zero effort
Self Clean

The oven compartment cleans itself automatically at high temperatures.

User convenience

Gentle door movement
SoftOpen and SoftClose

Sophisticated and elegant: The door opens and closes with a gentle movement – right to the very end.


Let your oven take care of time management
Timers

Always on time: Set the start time, end time, and duration of the cooking process, or the kitchen timer.

Oven cabinets

From cold to hot
TwinPower convection fan

Exclusively for wide ovens: With two convection fans, the oven reaches operating temperature in no time.

Safety

Only the food gets hot
Touch-cool front

Protection against burns: The appliance stays relatively cool – including on the outside of the door.

Operating modes

Maxi Broil

Versatile function for indoors: so you can broil large quantities of steaks, sausages, kebabs, and more.


Surround

Multi-purpose, classic function: perfect results for all types of traditional baked and roasted dishes.


Bake

Individual requirements: for cooking food in a bain-marie or for browning from underneath.


Convection Broil

Crisp outside, succulent inside: ideal for chicken, duck, pork, rolled meat, and many other meat dishes.


Booster

For those who lead a busy life: If there's not much time for cooking, you will really appreciate this program.

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
