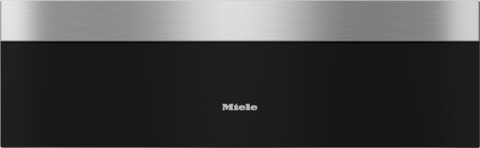

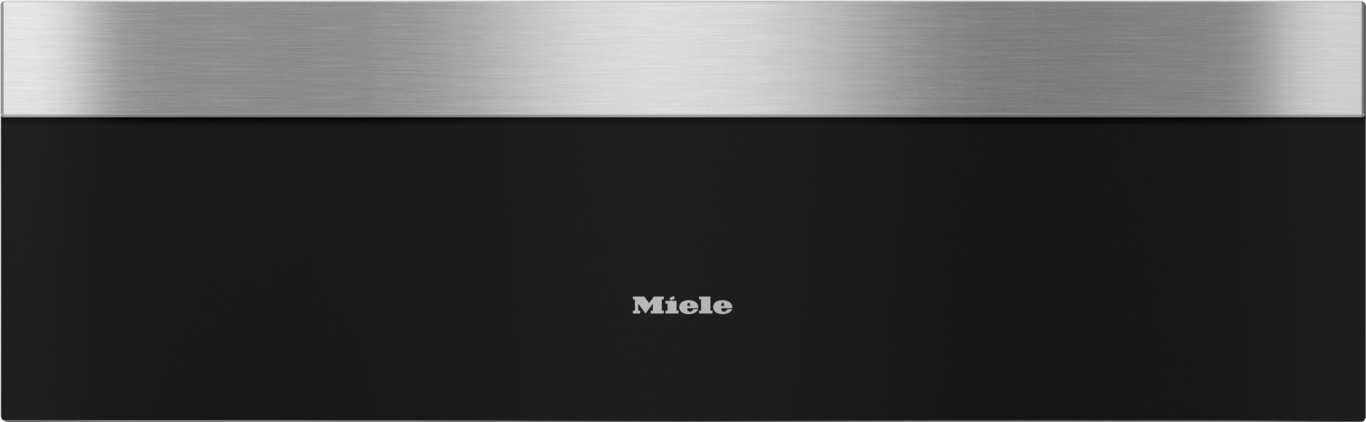

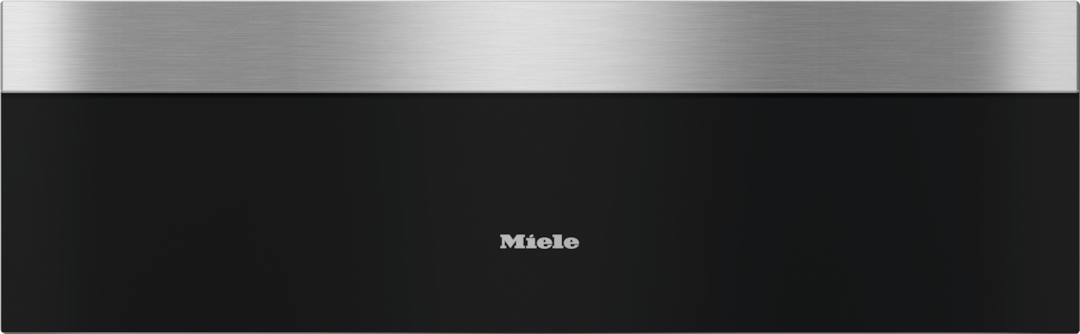

  • Miele - ESW 7670 Stainless steel/Clean Touch Steel - 1
Handleless Gourmet warming drawer, 30" width and 9 3/16" height

ESW 7670 Stainless steel/Clean Touch Steel

for preheating dishware, keeping food warm, and Slow Roasting.
Color:Stainless steel/Clean Touch Steel
sale price$2,899.00


Product details

  • The ultimate in enjoyment –
    Slow Roasting
  • Always at the right temperature –
    4 operating modes
  • Convenient and easy –
    Touch control
    and
    Miele@home
  • Push2open
    – opening the drawer couldn’t be easier
  • Better safe than sorry –
    timer
    with automatic switch-off
  • View manufacturer details:
  • Safety information

Product data sheet

Gourmet drawer
PureLine
No Handles
Color Stainless steel/Clean Touch Steel
Prewarming of dishware
Keeping food warm
Perfect cooking results at low temperatures
Warm cups
Warm plates
Keeping food warm
Slow roast
Miele@home
Capacity 12 place settings
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
Sabbath program
Clean Touch Steel surface
Flush control panel
Cool front
Anti-slip mat
Safety cut-out
Temperature in °F (°C) 105-185 (40-85)
Appliance width in in. (mm) 29 3/4 (757)
Appliance height in in. (mm) 9 3/4 (248)
Appliance depth in in. (mm) 23 7/8 (608)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 9 3/4 (248) x 23 7/8 (608)
Useable interior height in in. (mm) 6 3/4 (170)
Total connected load in kW 1
Voltage in V 120
Frequency in Hz 60
Fuse rating in A 16
Number of phases 1
Connection wire with plug Yes
Plug type NEMA plug: 5–15
Wire length in ft. (m) 6 (2.0)
Non-slip liner 1
Rack for increased capacity 1
EAN 4002516487449

What's included

Non-slip liner (1)
Rack for increased capacity (1)
  • Less heat for flavorsome results

    Less heat for flavorsome results

    Slow Roasting

    Professional results: Cooking at low temperatures turns every meat dish into a sumptuous delight.

  • Universal use

    Universal use

    Four functions

    4 in 1: Warm up cups or plates, keep food warm, or cook at low temperatures.

  • Intuitive and minimalist

    Intuitive and minimalist

    SensorTouch controls

    Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.

  • One touch is all it takes

    One touch is all it takes

    Push2open

    Open in no time: Light pressure on the drawer is all it takes..

  • Straightforward convenience

    Straightforward convenience

    Timer function

    For your flexibility: The drawer switches off automatically at the end of the programmed time.

  • Cleverly networked

    Cleverly networked

    Appliance networking with Miele@home1,

    Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.

User convenience

Universal use
Universal use

Four functions

4 in 1: Warm up cups or plates, keep food warm, or cook at low temperatures.
Intuitive and minimalist
Intuitive and minimalist

SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.
One touch is all it takes
One touch is all it takes

Push2open

Open in no time: Light pressure on the drawer is all it takes..
Straightforward convenience
Straightforward convenience

Timer function

For your flexibility: The drawer switches off automatically at the end of the programmed time.
Cleverly networked
Cleverly networked

Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.
Practical and ergonomic
Practical and ergonomic

Fully telescopic runners

So convenient: You can open the drawer fully so it is easy to load or unload.
Wide range of options
Wide range of options

Wide range of applications

The drawer is also ideal for drying fruit and herbs, proofing dough, or melting chocolate.

Convenience features

Less heat for flavorsome results
Less heat for flavorsome results

Slow Roasting

Professional results: Cooking at low temperatures turns every meat dish into a sumptuous delight.

Gourmet versatility

Veal and beef

Veal and beef

Slow Roasting gives meat an aromatic flavor and keeps it juicy and succulent.
Lamb and poultry

Lamb and poultry

Slow Roasting ensures gentle cooking of these meats and achieves succulent and tender results.
Fish

Fish

Cooking fish gently preserves its delicate structure and locks in vital nutrients – making it healthy and tasty.
Desserts

Desserts

Dessert provides the perfect end to any meal – a sumptuous meringue, for instance.
Side dishes

Side dishes

Potatoes, pasta, rice, or vegetables – a perfectly cooked side dish rounds off any meal.
Melting chocolate

Melting chocolate

Whether you’re making cake or muffins – you can melt chocolate at precise temperatures for baking.
Proofing dough

Proofing dough

Yeast dough is particularly suitable for bread, rolls, and pizza – it’s a breeze to prepare.
Making yogurt

Making yogurt

Make your very own yogurt from scratch – for dessert or to use in baking.
Allowing rice to swell

Allowing rice to swell

Soak rice to make it soft and light. Perfect in all variations, particularly puddings.
Dissolving gelatine

Dissolving gelatine

Desserts such as panna cotta are prepared to perfection with gelatin.
Defrost

Defrost

Defrost food gently, with no compromise on quality, to keep it fresh.

Features

Non-slip liner

Non-slip liner

The mat ensures that cups and plates stand securely in the Gourmet drawer.
Only the food gets hot
Only the food gets hot

Touch-cool front

Protection against burns: the appliance stays relatively cool – including on the outside of the door.
