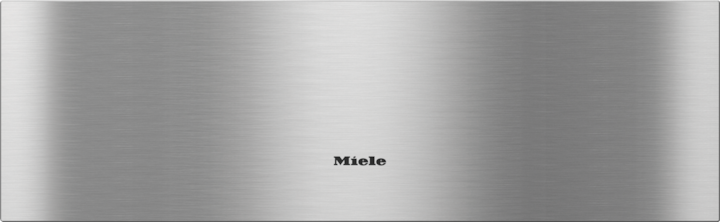

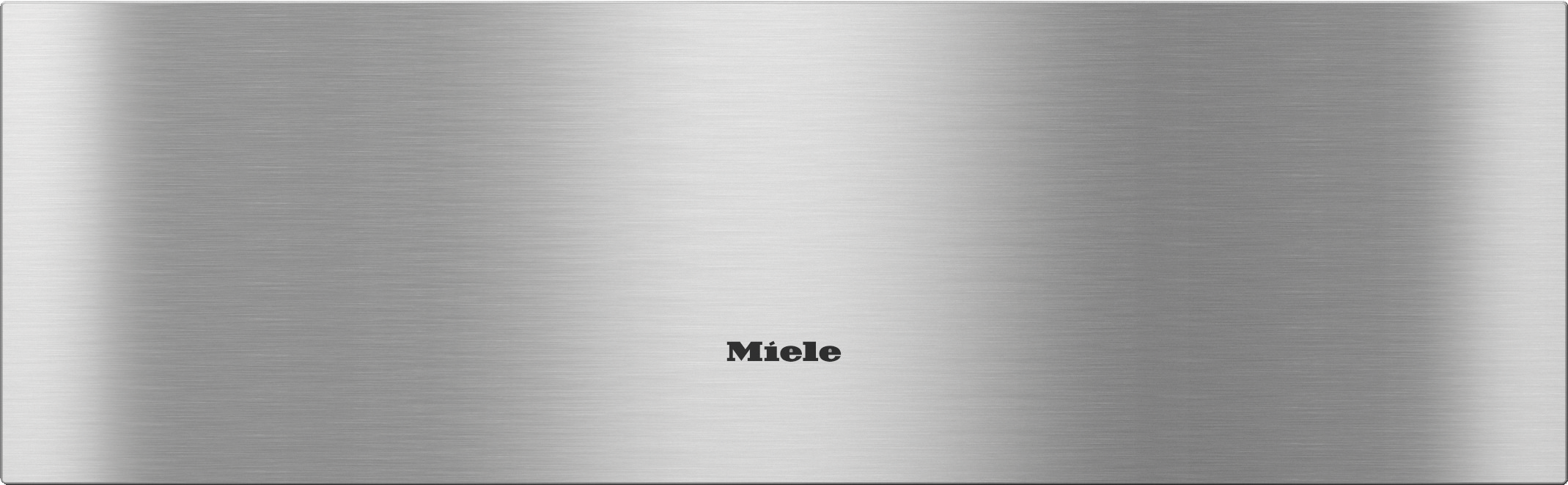

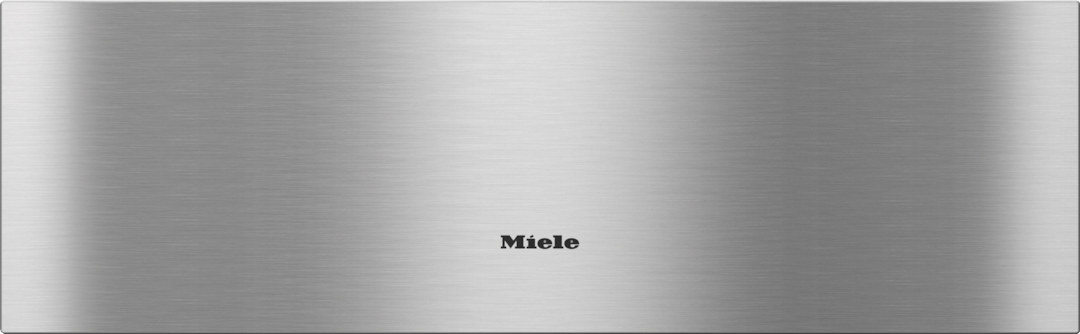

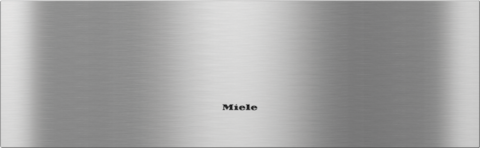

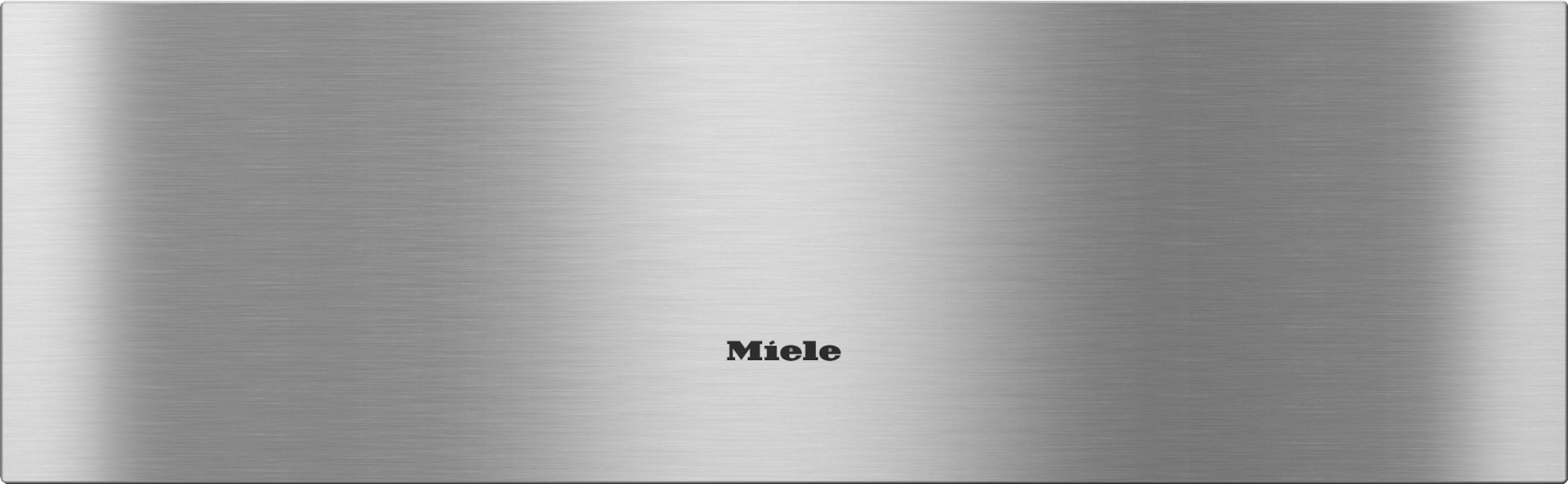

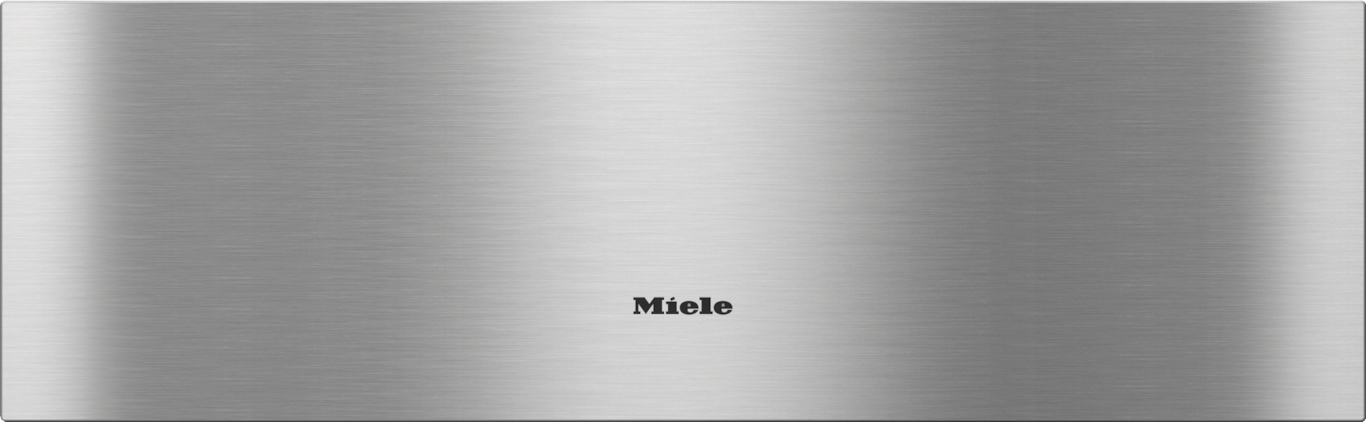

Handleless Gourmet warming drawer, 30" width and 9 3/16" height

ESW 7570 Stainless steel/Clean Touch Steel

for preheating dishware, keeping food warm, and Slow Roasting.
Color:Stainless steel/Clean Touch Steel
sale price$2,899.00


Product details

  • The ultimate in enjoyment –
    Slow Roasting
  • Always at the right temperature –
    4 operating modes
  • Convenient and easy –
    Touch control
    and
    Miele@home
  • Push2open
    – opening the drawer couldn’t be easier
  • Better safe than sorry –
    timer
    with automatic switch-off
  • View manufacturer details:
  • Safety information

Product data sheet

Gourmet drawer
ContourLine
No Handles
Color Stainless steel/Clean Touch Steel
Prewarming of dishware
Keeping food warm
Perfect cooking results at low temperatures
Warm cups
Warm plates
Keeping food warm
Slow roast
Miele@home
Capacity 12 place settings
Push2open mechanism
Fully telescopic runners for easy loading and unloading
Control panel with sensor control
Control panel with text
Timers
Stop programming
Timer function
Sabbath program
Clean Touch Steel surface
Flush control panel
Cool front
Anti-slip mat
Safety cut-out
Temperature in °F (°C) 105-185 (40-85)
Appliance width in in. (mm) 29 3/4 (757)
Appliance height in in. (mm) 9 3/4 (248)
Appliance depth in in. (mm) 23 7/8 (608)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (757) x 9 3/4 (248) x 23 7/8 (608)
Useable interior height in in. (mm) 6 3/4 (170)
Total connected load in kW 1
Voltage in V 120
Frequency in Hz 60
Fuse rating in A 16
Number of phases 1
Connection wire with plug Yes
Plug type NEMA plug: 5–15
Wire length in ft. (m) 6 (2.0)
Non-slip liner 1
Rack for increased capacity 1
EAN 4002516487326

What's included

Non-slip liner (1)
Rack for increased capacity (1)

User convenience

Universal use
Four functions

4 in 1: Warm up cups or plates, keep food warm, or cook at low temperatures.


Intuitive and minimalist
SensorTouch controls

Elegant and easy to clean: A state-of-the-art, flush-mounted touch panel makes the appliance convenient to use.


One touch is all it takes
Push2open

Open in no time: Light pressure on the drawer is all it takes..


Straightforward convenience
Timer function

For your flexibility: The drawer switches off automatically at the end of the programmed time.


Cleverly networked
Appliance networking with Miele@home1,

Make your life smart: thanks to Miele@home you can cleverly network your domestic appliances – for more options.


Practical and ergonomic
Fully telescopic runners

So convenient: You can open the drawer fully so it is easy to load or unload.


Wide range of options
Wide range of applications

The drawer is also ideal for drying fruit and herbs, proofing dough, or melting chocolate.

Convenience features

Less heat for flavorsome results
Slow Roasting

Professional results: Cooking at low temperatures turns every meat dish into a sumptuous delight.

Gourmet versatility

Veal and beef

Slow Roasting gives meat an aromatic flavor and keeps it juicy and succulent.


Lamb and poultry

Slow Roasting ensures gentle cooking of these meats and achieves succulent and tender results.


Fish

Cooking fish gently preserves its delicate structure and locks in vital nutrients – making it healthy and tasty.


Desserts

Dessert provides the perfect end to any meal – a sumptuous meringue, for instance.


Side dishes

Potatoes, pasta, rice, or vegetables – a perfectly cooked side dish rounds off any meal.


Melting chocolate

Whether you’re making cake or muffins – you can melt chocolate at precise temperatures for baking.


Proofing dough

Yeast dough is particularly suitable for bread, rolls, and pizza – it’s a breeze to prepare.


Making yogurt

Make your very own yogurt from scratch – for dessert or to use in baking.


Allowing rice to swell

Soak rice to make it soft and light. Perfect in all variations, particularly puddings.


Dissolving gelatine

Desserts such as panna cotta are prepared to perfection with gelatin.


Defrost

Defrost food gently, with no compromise on quality, to keep it fresh.

Features

Non-slip liner

The mat ensures that cups and plates stand securely in the Gourmet drawer.


A finish for flawless stainless steel surfaces
Clean Touch Steel

No fingerprints on stainless steel: the surface is protected and no special cleaning agents are required.


Only the food gets hot
Touch-cool front

Protection against burns: the appliance stays relatively cool – including on the outside of the door.

Downloads

Operating and Installation instructions
PDF
Downloads
Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000017/200001725/20000172560.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172568.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172572.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172580.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172582.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172586.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172588.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172592.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172594.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172596.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001725/20000172598.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172600.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172609.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC7xxx, EBA7848, H7xxx, Exx7x70 Install drawing, Flush inset, NA
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC7xxx, EBA7848, H7xxx, Exx7x70 Install drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172613.png
Descriptions
H 6x70 BM, ESW 6x85, DGC7x7x, H7x7x, Exx7x70 Fitting Combi, Installation drawing, Flush inset, NA
H 6x70 BM, ESW 6x85, DGC7x7x, H7x7x, Exx7x70 Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172625.png
Descriptions
H 6x00+EBA6808, ESW 6x85, DGC 6x00-1, DGC7x4x, EBA7848, H7x80, Exx7x70 Fitting Combi, Install drawing, Flush inset, NA
H 6x00+EBA6808, ESW 6x85, DGC 6x00-1, DGC7x4x, EBA7848, H7x80, Exx7x70 Fitting Combi, Install drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172627.png
Descriptions
H 6x70, H 6x00+EBA6808, ESW6x85, DGC6x00-1, H7xxx, EBA7848, Exx7x70, Fitting Combi, Install drawing, Flush inset, NA
H 6x70, H 6x00+EBA6808, ESW6x85, DGC6x00-1, H7xxx, EBA7848, Exx7x70, Fitting Combi, Install drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172629.png
Descriptions
H 6x70 BM, ESW 6x85, H7x70, ESW 7x70, EVS7670 Fitting Combi, Installation drawing, Flush inset, NA
H 6x70 BM, ESW 6x85, H7x70, ESW 7x70, EVS7670 Fitting Combi, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172631.png
Descriptions
H 6x60, H 6x00, DGC686x, EBA6808; DGC 676x, ESW 6x85, DGC786x, EBA78x8, H7xxx, Exx7x70, Install draw, Flush inset, NA
H 6x60, H 6x00, DGC686x, EBA6808; DGC 676x, ESW 6x85, DGC786x, EBA78x8, H7xxx, Exx7x70, Install draw, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172633.png
Descriptions
H 6x60 B/BP, DGC 686x AM+EBA 6808; H 6x70BM, ESW6x85, DGC 676x, DGC786x, EBA 7868, H7xxx, Exx 7x70 Install drawing, NA
H 6x60 B/BP, DGC 686x AM+EBA 6808; H 6x70BM, ESW6x85, DGC 676x, DGC786x, EBA 7868, H7xxx, Exx 7x70 Install drawing, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172635.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, H 6x80-2BP, Fitting Combi, H 7x40BM, ESW 7x70, Flush inset, NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, H 6x80-2BP, Fitting Combi, H 7x40BM, ESW 7x70, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172640.png
Descriptions
H 6x80BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H7xxx BM/BP/BPX,BMX, ESW7x70, EVS7670 , Installation drawing, Flush inset, NA
H 6x80BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H7xxx BM/BP/BPX,BMX, ESW7x70, EVS7670 , Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172642.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H 7xxx BP/BM/BPX/BMX, EXX 7x70 Fitting Combi side by side without wall, NA
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, H 7xxx BP/BM/BPX/BMX, EXX 7x70 Fitting Combi side by side without wall, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172646.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, DGC7xxx, EBA 7848, H7x40BM, Exx 7x70, Installation drawing, Flush inset, NA
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1, DGC7xxx, EBA 7848, H7x40BM, Exx 7x70, Installation drawing, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172661.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC 7x4, EBA 7848, H7x4xBM, ESW 7x70, EVS 7670, Flush inset, NA
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, DGC 7x4, EBA 7848, H7x4xBM, ESW 7x70, EVS 7670, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172663.png
Descriptions
H 6x70 BM, H 6x00 BM, EBA 6808, ESW 6x85, DGC 6x00-1, H7xxx, EBA 7848, ESW 7x70, EVS 7670, Flush inset, NA
H 6x70 BM, H 6x00 BM, EBA 6808, ESW 6x85, DGC 6x00-1, H7xxx, EBA 7848, ESW 7x70, EVS 7670, Flush inset, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172667.png
Descriptions
H6560B, H6x60BP, H6x0BM, DGC6xxx AM,EBA; ESW6x85, DGC676x, DGC7xxx, EBA7848, H7xxxBM/BP, ESW 7x70, EVS NA
H6560B, H6x60BP, H6x0BM, DGC6xxx AM,EBA; ESW6x85, DGC676x, DGC7xxx, EBA7848, H7xxxBM/BP, ESW 7x70, EVS NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172669.png
Descriptions
(H6560 B, H6x60 BP, H6x70 BM, DGC686x AM) + EBA6808; ESW6x85, DGC676x, DGC7xxx, EBA7868, H 7x70BM/BMX, ESW, EVS, NA
(H6560 B, H6x60 BP, H6x70 BM, DGC686x AM) + EBA6808; ESW6x85, DGC676x, DGC7xxx, EBA7868, H 7x70BM/BMX, ESW, EVS, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172671.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00 + EBA 6808, H 6x80-2BP, H2880BP, H7xxxBM/BP/BPX, ESW7x70 NA
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00 + EBA 6808, H 6x80-2BP, H2880BP, H7xxxBM/BP/BPX, ESW7x70 NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172691.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001726/20000172695.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172715.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172717.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172719.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172721.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172723.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172727.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172730.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172732.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172745.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172749.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172769.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172771.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172773.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172775.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172777.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172791.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001727/20000172799.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172803.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172811.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172817.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172823.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172827.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172829.png
Descriptions
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
7/8“ - 22* mm - Glas, 15/16“ - 23.3** mm - Edelstahl
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172840.png
Descriptions
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx,H7x40BM)+EBA7848, ESW7x70, EVS7670, Fitting Combi, Proud, NA
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx,H7x40BM)+EBA7848, ESW7x70, EVS7670, Fitting Combi, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172844.png
Descriptions
H6x70BM, ESW6x85, DGC7x7x, H7x70BMX, ESW7x70, EVS7x70, Fitting Combi, Installation drawing, Proud, NA
H6x70BM, ESW6x85, DGC7x7x, H7x70BMX, ESW7x70, EVS7x70, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172856.png
Descriptions
(H6x00BM,DGC6x00-1)+EBA6808, ESW6x85, (DGC7x4x, H7x40BM) + EBA7848, ESW7x70, EVS7670 Fitting Combi, Installation, Proud,
(H6x00BM,DGC6x00-1)+EBA6808, ESW6x85, (DGC7x4x, H7x40BM) + EBA7848, ESW7x70, EVS7670 Fitting Combi, Installation, Proud,
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172858.png
Descriptions
H6x70BM, (H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, H7x70BM, H7x40BM+EBA7848, ESW7x70, Fitting Combi, Installation, Proud
H6x70BM, (H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, H7x70BM, H7x40BM+EBA7848, ESW7x70, Fitting Combi, Installation, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172860.png
Descriptions
H6x70BM, ESW6x85, H7x70BM, ESW7x70, EVS7670, Fitting Combi, Installation drawing, Proud, NA
H6x70BM, ESW6x85, H7x70BM, ESW7x70, EVS7670, Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172862.png
Descriptions
(H6560B, H6x60BP, H6x00BM, DGC686xAM) + EBA6808; DGC676x, ESW6x85, NA7000 Fitting Combi, Installation drawing, Proud, NA
(H6560B, H6x60BP, H6x00BM, DGC686xAM) + EBA6808; DGC676x, ESW6x85, NA7000 Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172864.png
Descriptions
(H 6560 B, H 6x60 BP, DGC 686x AM) + EBA 6808; H 6x70 BM, ESW 6x85, NA7000, Fitting Combi, Installation drawing, Proud
(H 6560 B, H 6x60 BP, DGC 686x AM) + EBA 6808; H 6x70 BM, ESW 6x85, NA7000, Fitting Combi, Installation drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172866.png
Descriptions
H6x80BP, H6x00BM+EBA6808, ESW6x85, DGC6x00-1 + EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
H6x80BP, H6x00BM+EBA6808, ESW6x85, DGC6x00-1 + EBA6808, H6x80-2BP, NA7000 Fitting Combi, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172871.png
Descriptions
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000, Fitting Combi side by side, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172873.png
Descriptions
H6x80BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Fitting Combi side by side without wall, Installation drawing, Proud, NA
H6x80BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Fitting Combi side by side without wall, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172877.png
Descriptions
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx, H7x40BM)+EBA7848 Fitting Combi wide front, Installation drawing, Proud,
(H6x00BM, DGC6x00-1)+EBA6808, ESW6x85, (DGC7xxx, H7x40BM)+EBA7848 Fitting Combi wide front, Installation drawing, Proud,
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172892.png
Descriptions
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, NA7000 Fitting Combi wide front, Installation drawing, Proud, NA
H 6x00 BM + EBA 6808, ESW 6x85, DGC 6x00-1 + EBA 6808, NA7000 Fitting Combi wide front, Installation drawing, Proud, NA
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172894.png
Descriptions
H6x70BM, H6x00BM + EBA6808, ESW6x85, DGC6x00-1 + EBA6808, NA7000 Fitting Combi wide front, Installation drawing, Proud
H6x70BM, H6x00BM + EBA6808, ESW6x85, DGC6x00-1 + EBA6808, NA7000 Fitting Combi wide front, Installation drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001728/20000172898.png
Descriptions
(H6560B, H6x60BP, H6x00BM, DGC6x00-1, DGC686xAM) + EBA; ESW6x85, DGC676x, NA7000 Fitting Combi w. front, drawing, Proud
(H6560B, H6x60BP, H6x00BM, DGC6x00-1, DGC686xAM) + EBA; ESW6x85, DGC676x, NA7000 Fitting Combi w. front, drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172900.png
Descriptions
(H6560 B, H6x60 BP, H6x70 BM, DGC686x AM) + EBA6808; ESW6x85, DGC676x, NA7000, Fitting Combi w. front, drawing, Proud
(H6560 B, H6x60 BP, H6x70 BM, DGC686x AM) + EBA6808; ESW6x85, DGC676x, NA7000, Fitting Combi w. front, drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172902.png
Descriptions
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC6x00 + EBA6808, H6x80-2BP, NA7000, Fitting Combi w. front, drawing, Proud
H 6x80 BP, H 6x00 BM + EBA 6808, ESW 6x85, DGC6x00 + EBA6808, H6x80-2BP, NA7000, Fitting Combi w. front, drawing, Proud
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172922.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172926.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172946.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172948.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172950.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172952.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172954.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172956.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172958.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172961.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172963.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172976.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172980.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172988.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001729/20000172990.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173000.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173002.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173004.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173006.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173008.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173010.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173012.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173015.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001730/20000173017.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175435.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175439.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175441.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175446.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175447.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175452.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175453.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175463.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175464.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175470.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175477.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175479.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175483.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175485.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001754/20000175493.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175501.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175503.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175507.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175509.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175516.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175519.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface, DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175523.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175529.png
Descriptions
DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
DGC: Minimum installation height 36” - 914 mm from floor to the device installation surface
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175534.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175535.png
Descriptions
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
7/8“ - 22* mm - Glass, 15/16“ - 23.3** mm - Stainless steel
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175545.png
Descriptions
DGC786x+EBA7868, H7x6xBP+EBA7848, ESW7x70, EVS7670, Einbau 30 Zoll, Proud, combi, wide front, 650S
DGC786x+EBA7868, H7x6xBP+EBA7848, ESW7x70, EVS7670, Einbau 30 Zoll, Proud, combi, wide front, 650S
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175546.png
Descriptions
DGC7x4x+EBA7848, H7x70BM(X), ESW7x70, EVS7670, Einbau, 30 Zoll, Proud, combi, wide front, XL
DGC7x4x+EBA7848, H7x70BM(X), ESW7x70, EVS7670, Einbau, 30 Zoll, Proud, combi, wide front, XL
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175552.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175558.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175560.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175564.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175566.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175574.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175580.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
https://media.miele.com/images/2000017/200001755/20000175582.png
Descriptions
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation, - Electrical and water supplies are recommended to be placed in adjacent cabinetry., Additional cabinet depth is required when placing the electrical and water supplies behind the appliance., E = Electric connection
POSTSCRIPT
Downloads
  • 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the General Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offers at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
