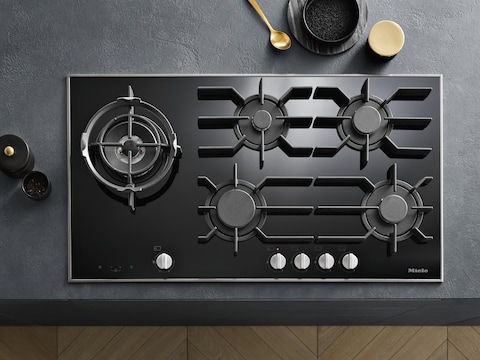

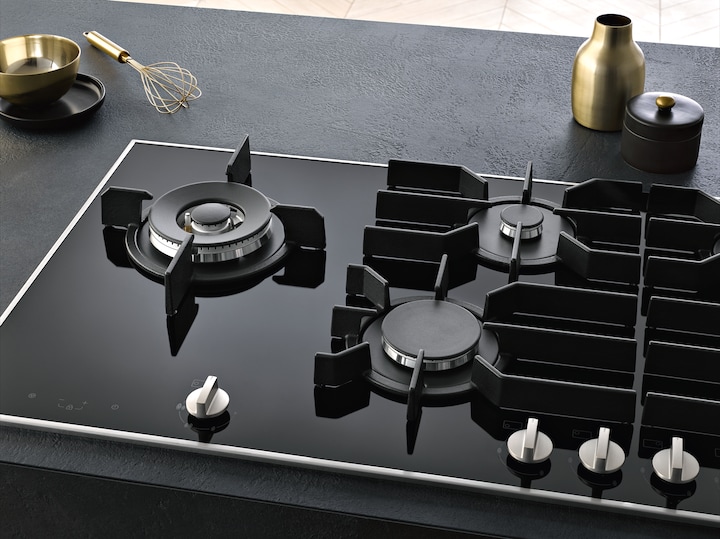

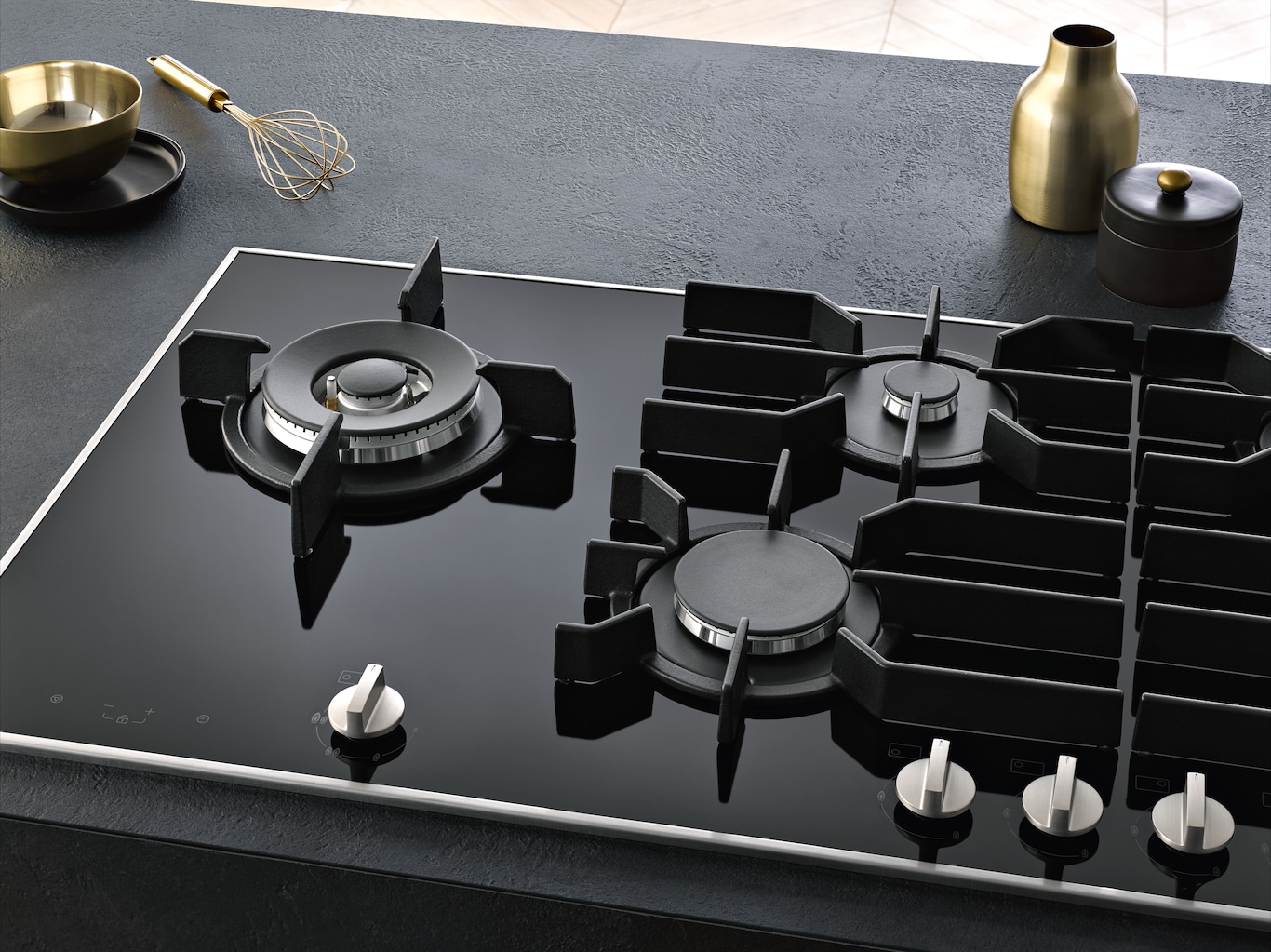

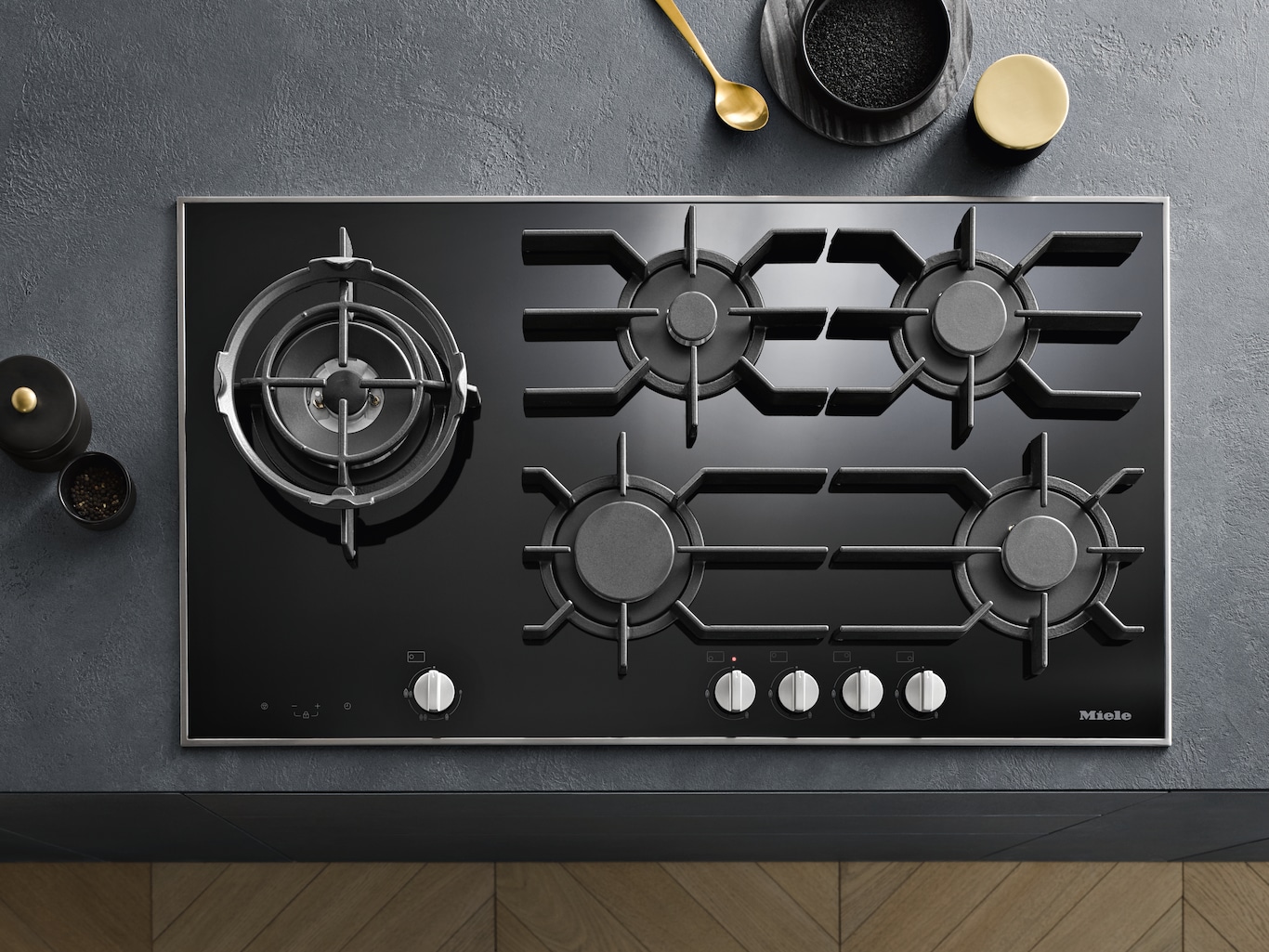

Gas cooktop
KM3054-1 G USA EDST 120/60
with electronic functions for maximum safety and user convenience.sale price$3,199.00
Product details
- Optimal - single-handed operation via rotary dials andQuickStartLoading...
- Elegant design – 37 1/8 (942) in (mm) wide gas cooktop on glass for surface-mounted installation
- Particularly versatile - 5 burners incl. 1 dual wok
- Extremely safe - GasStop&Restart function
- Easy cleaning - ComfortClean dishwasher-safe grates
- View manufacturer details:
- Safety information
Fuel type Gas
Independent of oven
Elegant glass ceramic surface
Cast iron pot rest (matte black enameled)
Loading...
No. of rings 5
Small burner in kW 1.10
Small burner in BTU/h 3750
Normal burner in kW 1.70
Normal burner in BTU/h 5800
Large burner in kW 2.73
Large burner in BTU/h 9300
Dual wok burner in kW 4.84
Dual wok burner in BTU/h 16500
Position left center
Type Dual wok burner
Position rear center
Type Economy burner
Position rear right
Type Standard burner
Position front right
Type Standard burner
Position front center
Type High-speed burner
Operation via knobs
Electronic ignition with one-handed operation
Loading...
QuickStart
Loading...
Easy to clean ceramic glass
Loading...
Dishwasher-save trivets
Loading...
Heat indicator
Operational indicator
GasStop & ReStart
Loading...
Dimensions (H x W x D) in mm 2 1/8 (53) x 37 1/8 (942) x 20 3/4 (526)
Dimensions (W x D) in mm 37 1/8 (942) x 2 1/8 (53) x 20 3/4 (526)
Width in in. (mm) 37 1/8 (942)
Height in in. (mm) 2 1/8 (53)
Depth in in. (mm) 20 3/4 (526)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm) 36 1/8 in (916 mm) x 19 3/4 in (500 mm)
Built-in height with mains connection box in in. (mm) 3 1/8 (78)
Cutout dimensions width in in. (mm) with proud-mounted installation 36 1/8 in (916 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation 19 3/4 in (500 mm)
Weight in lbs. (kg) 48 (22)
Total connected load in kW 12.100
Position of gas connection Hinten rechts
Voltage in V 120
Frequency in Hz 60
Power cord length in ft. (m) 3 (1.2)
Plug type NEMA plug: 5–15
Connection wire
Wok ring
Small trivet
EAN 4002516451501
Connection wire
Wok ring
Small trivet
Efficiently protects and makes cleaning easier
ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.

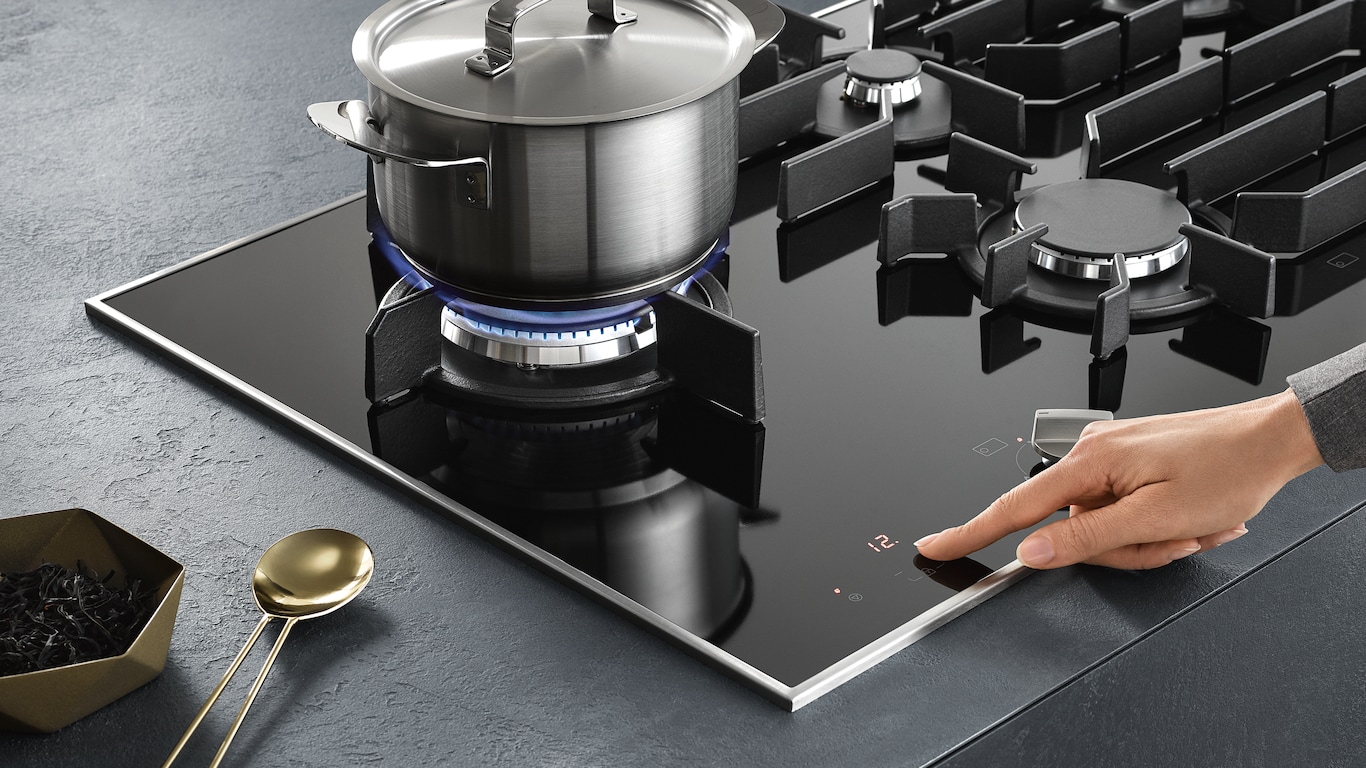

Switch on with a flick of the wrist
QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Automatic reignition for extra safety
GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.
Perfect wok kitchen with gas Cooktops
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
The innovative
Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
ComfortClean Dishwasher-Safe Grates
Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Enamelled grates and grates and burner cap
Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.
Individual design
Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.QuickStart
No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Single-handed electronic ignition
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Comfort handle with integrated controls with knobs
Easy controls to regulate: Convenient power level control via plastic or metal knobs.GasStop and ReStart
Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.Gas cooktops with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KM 3054-1 G (installation drawing)
1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226) POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
