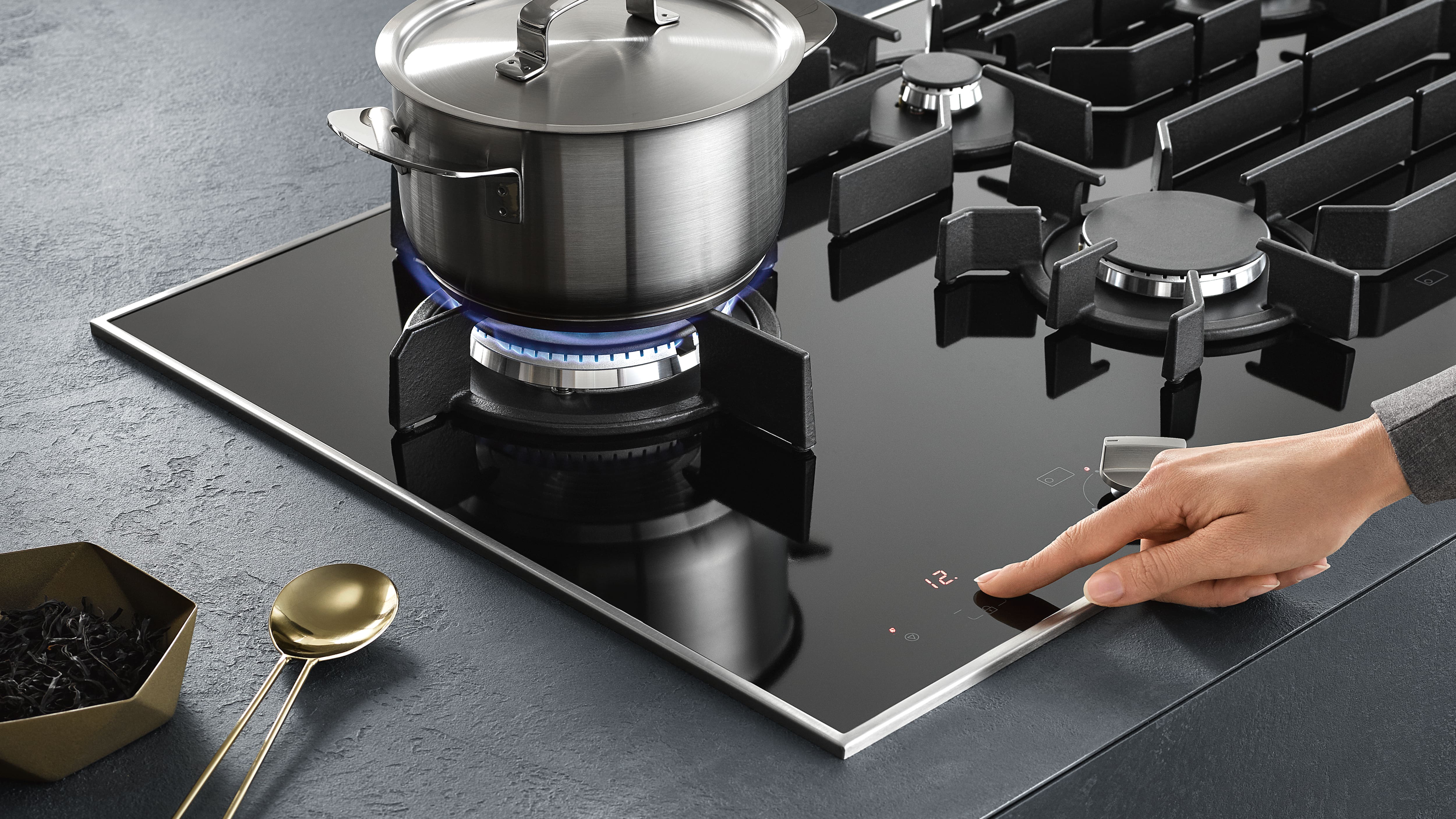

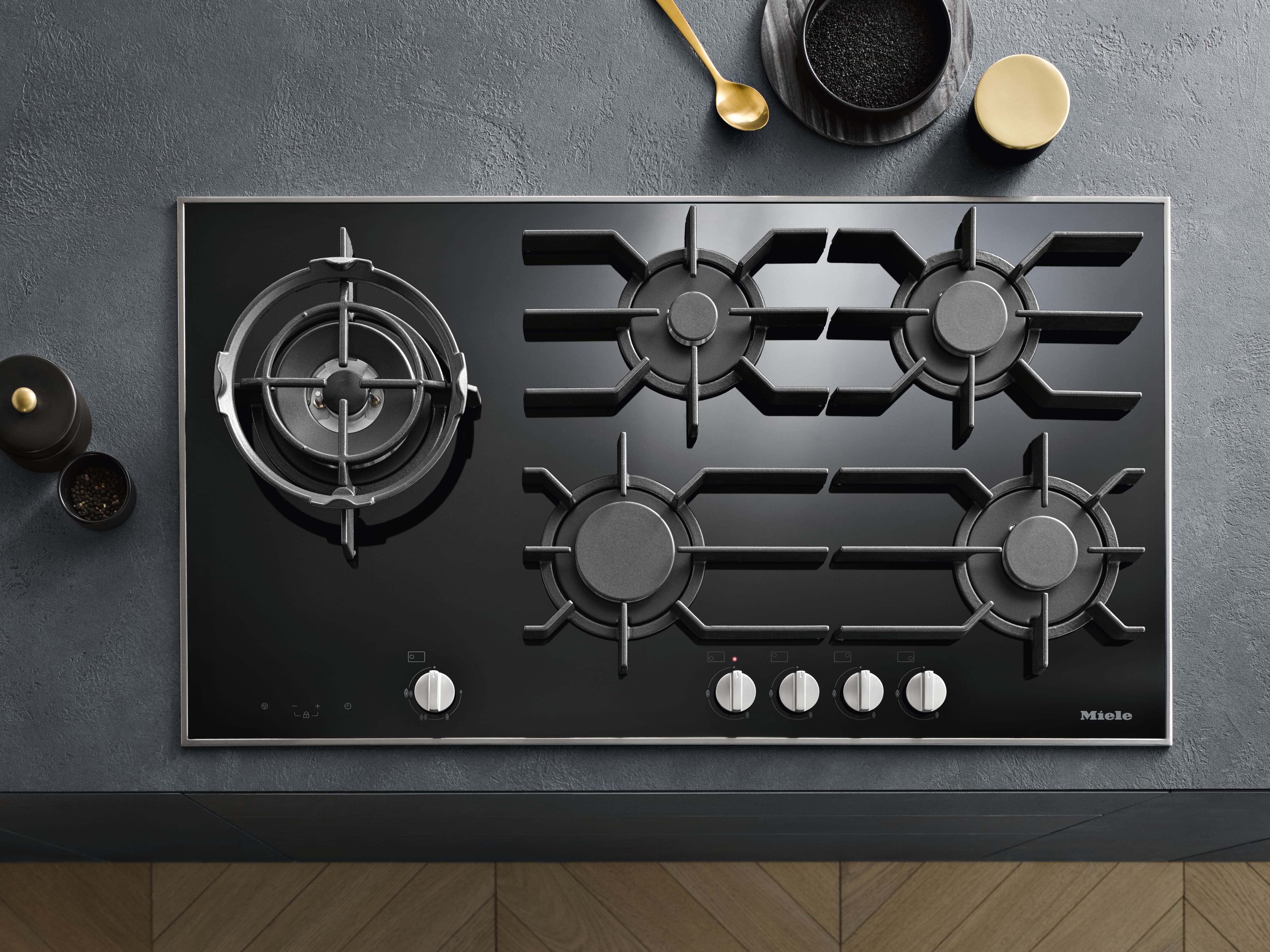

  • Miele - KM 3054-1 – Cooktops - 1
  • Miele - KM 3054-1 – Cooktops - 2
  • Miele - KM 3054-1 – Cooktops - 3
  • Miele - KM 3054-1 – Cooktops - 4
  • Miele - KM 3054-1 – Cooktops - 5
Gas cooktopPlatinum

KM 3054-1

with electronic functions for maximum safety and user convenience.
sale price$3,199.00


Product details

  • Optimal - single-handed operation via rotary dials and
    QuickStart
  • Elegant design – 37 1/8 (942) in (mm) wide gas cooktop on glass for surface-mounted installation
  • Particularly versatile - 5 burners incl. 1 dual wok
  • Extremely safe - GasStop&Restart function
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
KM 3054-1
Manufacturer material number
11766750
EAN number
4002516451501
Marketing class
Platinum
Fuel type
Gas
Independent of oven
Elegant glass ceramic surface
Cast iron pot rest (matte black enameled)
No. of rings
5
Small burner in kW
1.10
Small burner in BTU/h
3750
Normal burner in kW
1.70
Normal burner in BTU/h
5800
Large burner in kW
2.73
Large burner in BTU/h
9300
Dual wok burner in kW
4.84
Dual wok burner in BTU/h
16500
Position
left center
Type
Dual wok burner
Position
rear center
Type
Economy burner
Position
rear right
Type
Standard burner
Position
front right
Type
Standard burner
Position
front center
Type
High-speed burner
Operation via knobs
Electronic ignition with one-handed operation
QuickStart
Easy to clean ceramic glass
Dishwasher-save trivets
Heat indicator
Operational indicator
GasStop & ReStart
Dimensions (H x W x D) in mm
2 1/8 (53) x 37 1/8 (942) x 20 3/4 (526)
Dimensions (W x D) in mm
37 1/8 (942) x 2 1/8 (53) x 20 3/4 (526)
Width in in. (mm)
37 1/8 (942)
Height in in. (mm)
2 1/8 (53)
Depth in in. (mm)
20 3/4 (526)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)
36 1/8 in (916 mm) x 19 3/4 in (500 mm)
Built-in height with mains connection box in in. (mm)
3 1/8 (78)
Cutout dimensions width in in. (mm) with proud-mounted installation
36 1/8 in (916 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation
19 3/4 in (500 mm)
Weight in lbs. (kg)
48 (22)
Total connected load in kW
12.100
Position of gas connection
Hinten rechts
Voltage in V
120
Frequency in Hz
60
Power cord length in ft. (m)
3 (1.2)
Plug type
NEMA plug: 5–15
Connection wire
Wok ring
Small trivet
EAN
4002516451501

What's included

Connection wire
Wok ring
Small trivet
  • Efficiently protects and makes cleaning easier
    Efficiently protects and makes cleaning easier

    ComfortClean Dishwasher-Safe Grates

    Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.

  • Switch on with a flick of the wrist
    Switch on with a flick of the wrist

    QuickStart

    No need to press or hold the control: convenient rotary electronic controls switch the burners on.

  • Automatic reignition for extra safety
    Automatic reignition for extra safety

    GasStop and ReStart

    Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.

  • Perfect wok kitchen with gas Cooktops
    Perfect wok kitchen with gas Cooktops

    Wok burner

    Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.

  • The innovative
    The innovative

    Gas cooktops with electronic controls

    More safety and convenience: Intelligent features make cooking with gas a great choice.

Maintenance

Efficiently protects and makes cleaning easier
Efficiently protects and makes cleaning easier

ComfortClean Dishwasher-Safe Grates

Fast cleaning: Remove the pot rests and wash in the dishwasher. Fast clean-up with dishwasher-safe grates.
Best quality features for a long service life
Best quality features for a long service life

Enamelled grates and grates and burner cap

Nothing lasts longer and is easier to clean: enamelled cast-iron grates and burners with PerfectClean.

Design

A gas cooktop for every kitchen style
A gas cooktop for every kitchen style

Individual design

Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.

User convenience

Switch on with a flick of the wrist
Switch on with a flick of the wrist

QuickStart

No need to press or hold the control: convenient rotary electronic controls switch the burners on.
Comfortably reignite the flame
Comfortably reignite the flame

Single-handed electronic ignition

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Everything under control
Everything under control

Comfort handle with integrated controls with knobs

Easy controls to regulate: Convenient power level control via plastic or metal knobs.

Safety

Automatic reignition for extra safety
Automatic reignition for extra safety

GasStop and ReStart

Safe cooking: Automatic re-ignition for flame failure If unsuccessful, the gas supply is switched off immediately.

Features

Perfect wok kitchen with gas Cooktops
Perfect wok kitchen with gas Cooktops

Wok burner

Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
The innovative
The innovative

Gas cooktops with electronic controls

More safety and convenience: Intelligent features make cooking with gas a great choice.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/de5e58d7-e9d9-4938-9f75-b3c600a9932f/20000085158_HighresDigitalRGB.png
Descriptions
KM 3054-1 G (installation drawing)
1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
