Integrated dishwasher, ADA compliant,

PFD 102 i [120V/208-240V] Without front

for large loads of dishware in households, offices and utility areas.
Color:Without front
sale price$5,245.00


Product details

  • Wash performance: 13 place settings in just 24 min5,
  • 13% less energy consumption
  • Perfect lighting for easy loading -
    BrilliantLight
  • Everything completely dry –
    AutoOpen assisted drying
  • Intuitive to operate thanks to clear fascia panel design
  • View manufacturer details:
  • Safety information

Product data sheet

Model
Integrated dishwasher
Range ProfiLine
Wash system
Fresh water front loader
Number of levels 2
Front Without front
Side walls Galvanised
Control panel color Clean Touch Steel
Minimum front panel weight in lbs (kg) 8 (4) lb (kg)
Maximum front panel weight in lbs (kg) 24 (11) lb (kg)
Suitable for retirement and care homes
Suitable for Bed & Breakfast
Suitable for child care facilities
Suitable for universities and schools
Suitable for offices
Suitable for domestic use
Suitable for small businesses
Suitable for sports clubs
Tested virucidal efficacy
Certified hygiene
Circulation pump, Qmax in gal/min (l/min) 19.8 (75)
Shortest program duration in min. 24
Maximum final rinse temperature in °F (°C) 180 (82)
Cleaning performance, place settings/cycle 13
Service life in wash cycles 12500
Network-enabled with Miele MOVE
Control system
Electronic controls
Program selection Program selectors
Max. delay start in h 24
Countdown indicator
Dishwashing programs [number] 8
Program sequence indicator
Choice of display language
Check filter indicator
Electrical connection 2N AC 120/208-240V, 60HZ
Heater rating in kW 3.500-3.800
Total connected load in kW 3.700-4
Fuse rating in A 30
Length of power cord in ft (m) 5 (1.70)
NEMA plug: 14-30
Electrical connection AC 120V 60HZ
Heater rating in kW 1.300
Total connected load in kW 1.400
Fuse rating in A 15
Cold or hot water [number] 1
Required flow pressure in bar 1-10
Drain hose [DN] 22
Maximum delivery head for drain pump in inches (cm) 39 3/8 (100)
Integrated water softener
Maximum water hardness in gpg (mmol/l) 38.025 (6.50)
Water protection system
Waterproof system
Length of water inlet hose in inches (cm) 59 1/8 (150)
Length of water drain hose in inches (cm) 59 1/8 (150)
External dimensions, net height in inches 31 3/4 (805)
External dimensions, net width in inches 23 9/16 (598)
External dimensions, net depth in inches 22 1/2 (570)
External dimensions, gross height in inches 38 1/4 (970)
External dimensions, gross width in inches 26 7/16 (670)
External dimensions, gross depth in inches 27 3/16 (690)
Usable space in wash cabinet, width in inches (mm) 21 5/16 (540)
Usable space in wash cabinet, height in inches (mm) 20 1/8 (510)
Usable space in wash cabinet, depth of upper basket in inches (mm) 17 3/4 (450)
Usable space in wash cabinet, depth of lower basket in inches (mm) 17 3/4 (450)
In-feed height above floor in inches (mm) 8 5/16 (210)
Required niche width in mm 23 5/8 (600)
Net weight [kg] 102 (46)
Gross weight in lbs. 122 (55)
Maximum floor load in N/m² 1000
Emission sound pressure level in workplace (LpA) 35 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW 0
Normal Plus
Normal
SaniWash
Cold/Pre-wash
Glasses
Plastic
EnergySave/Economy
Intensive
ExtraComfort P baskets
Flexible FlexLine basket design
FlexCare glass holder [number] 2
FlexCare cup rack [number] 1
Cutlery basket
Height-adjustable upper basket
Combinable with APFD 210 bottle basket
Commercial-grade electrical connection
Drying
[ "AutoOpen assisted drying", "Additional drying", "Active condensation drying" ]
Adjustable final rinse temperature
Wi-Fi
1 Combi dispenser/door for powder and liquid media
LED Lighting
EcoFeedback
Child lock
Brilliant GlassCare
Wash cabinet made from high-quality stainless steel
Optical interface
SmartStart
FlexiTimer with EcoStart
CE
Complies with Machinery Directive 2006/42/EC
VDE
EMC radio suppressed
DIN EN 17735
EN 1717
UL
EAN 4002516366928
  • *If the machine can be converted to a different voltage option, additional possible rated load values for electrical connection can be found here. This conversion can be carried out by Miele Service for a fee.
  • Dishwashing professionals for daily large loads of dishes

    Dishwashing professionals for daily large loads of dishes

    For businesses

    These dishwashers are ideally suited for all areas which deal with large amounts of dishware.

  • Brilliant visibility

    Brilliant visibility

    BrilliantLight1,

    Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.

  • For dry dishware in next to no time

    For dry dishware in next to no time

    AutoOpen assisted drying

    Completely dry: The dishwasher door opens automatically at the end of the program.

  • Maximum hygiene assurance

    Maximum hygiene assurance

    Fresh water system

    Constantly high cleaning performance and filtration thanks to repeated water changes.

  • Long service life

    Long service life

    Quality you can rely on

    Durability: Miele Professional dishwashers are tested for a long service life.

  • Effective against viruses – scientifically proven

    Effective against viruses – scientifically proven

    Proven hygiene

    Our dishwashers in the PFD 10x series remove more than 99.9% of all viruses (including coronaviruses).

  • Machine data can be accessed at all times

    Machine data can be accessed at all times

    Network-enabled with Miele MOVE

    All terminal devices can access machine data at all times thanks to networking with Miele MOVE.

User convenience

An eye on the time
An eye on the time

Delay start and time left display

For maximum flexibility, a delay start time of up to 24 hours can be selected.
Brilliant visibility
Brilliant visibility

BrilliantLight1,

Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
Your dishwasher “speaks” multiple languages
Your dishwasher “speaks” multiple languages

Choice of display languages

Multi-talented: set various languages on the display so that you fully understand every piece of information.

Hygiene

Maximum hygiene assurance
Maximum hygiene assurance

Fresh water system

Constantly high cleaning performance and filtration thanks to repeated water changes.
Effective against viruses – scientifically proven
Effective against viruses – scientifically proven

Proven hygiene

Our dishwashers in the PFD 10x series remove more than 99.9%2, of all viruses (including coronaviruses).
Effective against bacteria – scientifically proven
Effective against bacteria – scientifically proven

Proven hygiene

Our dishwashers in the PFD 10x series remove 99.999%3, of most bacteria.

Basket design

Highly versatile
Highly versatile

Cutlery basket

Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
Versatile
Versatile

Height-adjustable upper basket

The height of the upper basket can be adjusted to suit the items being cleaned.
Intelligent basket design for all types of dishware
Intelligent basket design for all types of dishware

FlexLine Baskets

Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Reliable internal cleaning of lumened instruments
Reliable internal cleaning of lumened instruments

Practical bottle basket

Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.

Efficiency

Economical
Economical

Low consumption values

Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Ensures the optimum water hardness level
Ensures the optimum water hardness level

Integrated water softener

The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Professional and effective
Professional and effective

Highly effective filter system

Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Save money intelligently
Save money intelligently

SmartStart

Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
Protects your wallet and the environment
Protects your wallet and the environment

FlexiTimer with EcoStart

Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
Consumption always visible
Consumption always visible

EcoFeedback

Economical: when a program is selected, estimated water consumption values are displayed.

Performance

Dishwashing professionals for daily large loads of dishes
Dishwashing professionals for daily large loads of dishes

For businesses

These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Enhanced performance for large amounts of dishware
Enhanced performance for large amounts of dishware

Commercial electrical connection

Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
For dry dishware in next to no time
For dry dishware in next to no time

AutoOpen assisted drying

Completely dry: The dishwasher door opens automatically at the end of the program.
Gentle cleaning for delicate glassware
Gentle cleaning for delicate glassware

Brilliant GlassCare

Gentle and delicate: Brilliant GlassCare cleans your glassware with care.

Quality

For the protection of personnel in the workplace
For the protection of personnel in the workplace

Conforms to Machinery Directive

Miele commercial machines comply with applicable safety regulations.
A strong combination
A strong combination

Powerful heater pump

For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Safeguarding your home from water damage.
Safeguarding your home from water damage.

Reliable water protection4,

Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Long service life
Long service life

Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.

Connectivity

Machine data can be accessed at all times
Machine data can be accessed at all times

Network-enabled with Miele MOVE

All terminal devices can access machine data at all times thanks to networking with Miele MOVE.
Convenience & efficiency in demanding applications
Convenience & efficiency in demanding applications

Future-proof networking via WiFi

Fully informed with a high-performance network connection.

Matching products and accessories

Int. front panel: W x H, 24 x 24 in

Int. front panel: W x H, 24 x 24 in

Front panels for integrated dishwashers.

$319.00
UltraTabs All in 1, 60 tabs

UltraTabs All in 1, 60 tabs

for best cleaning results in Miele dishwashers.

$39.99
80 detergent tabs
ProCare Shine 12 GC - 80 Tabs

80 detergent tabs

for cleaning heavily soiled dishware, cutlery, and glasses.

$65.00

Downloads

Drilling template
PDF
Downloads
Installation plan
PDF
Downloads
Mounting plan
PDF
Downloads
Product datasheet
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

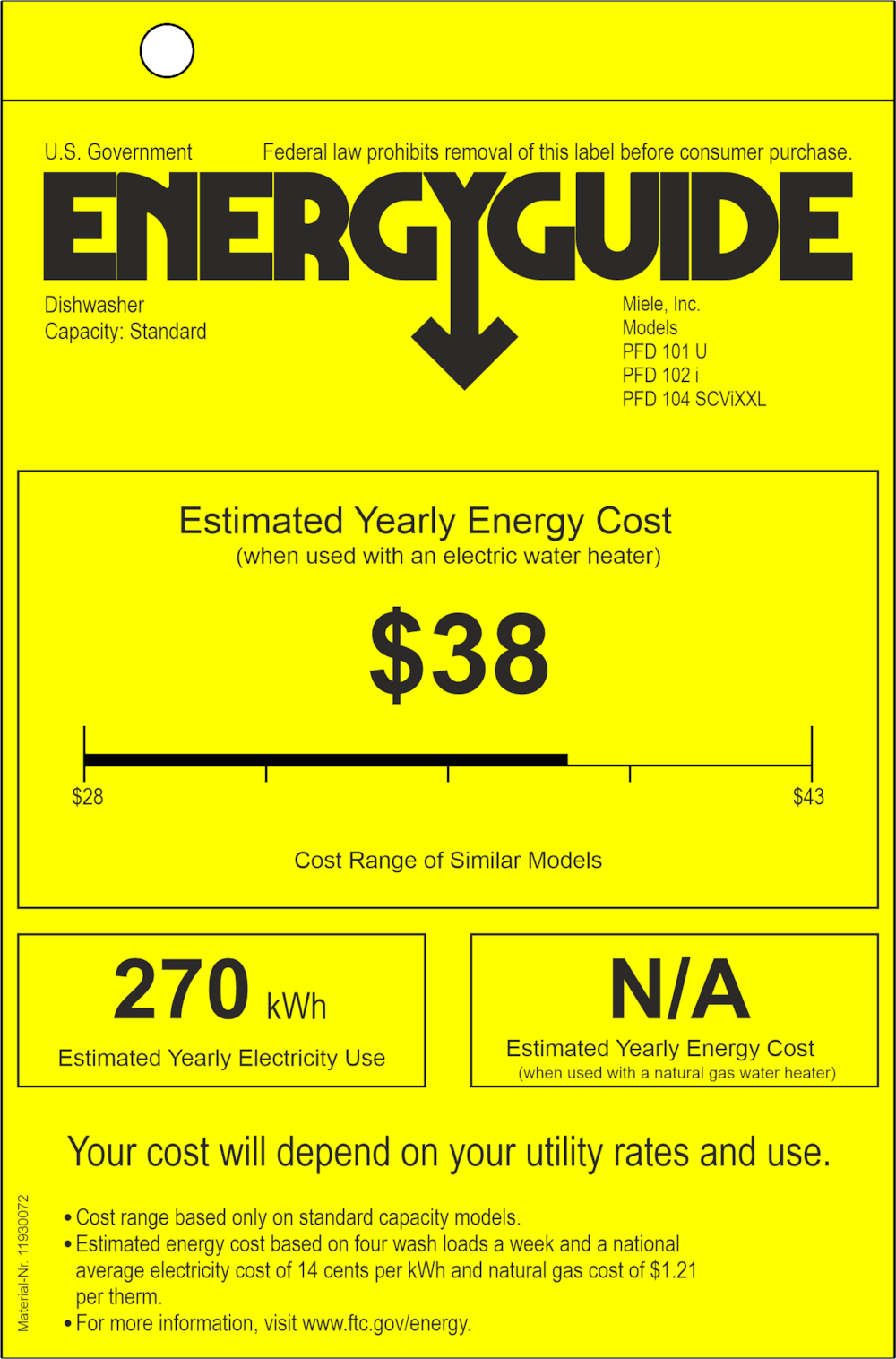

Energy label
PDF
Downloads
PNG
Downloads
Energy label
JPEG
Downloads
Hygiene Certificate
PDF
Downloads
  • 1.European patent EP 2 233 061 B1
  • 2.A description of the relevant methodology can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/PFD10x_Viruswirksamkeit_Testkriterien_Virus_effectiveness_test_criteria_2021-11-25.pdf
  • 3.The hygiene certificate can be found at the following link: https://www.miele.com/media/ex/com/Professional/Pruefberichte_Virussiegel/Zertifikat_gepruefte_Hygiene-kombiniert.pdf
  • 4.For details please refer to our warranty terms and conditions for water protection.
  • 5.Depending on site conditions (temperature of incoming water / power connection) values given may vary.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
