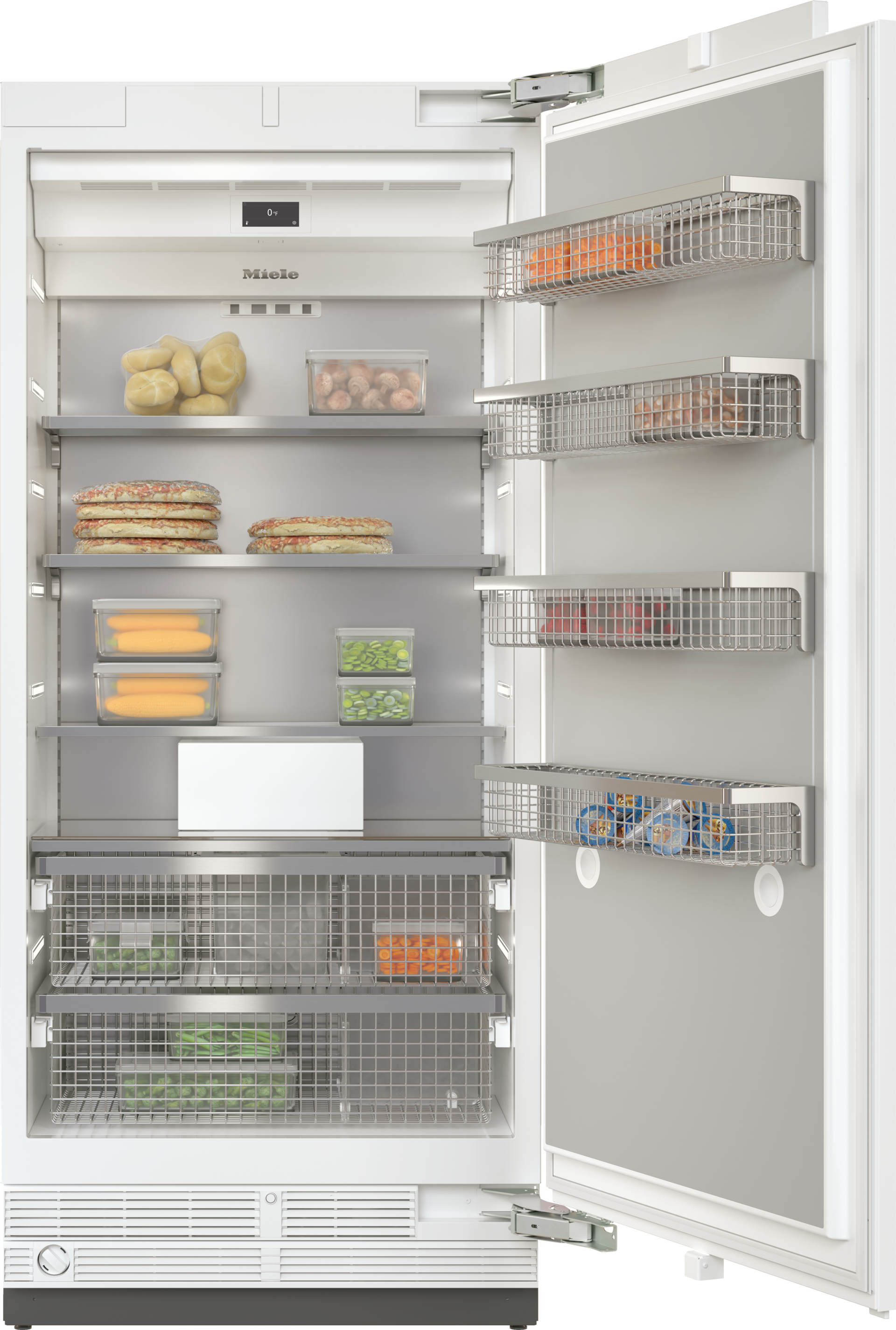

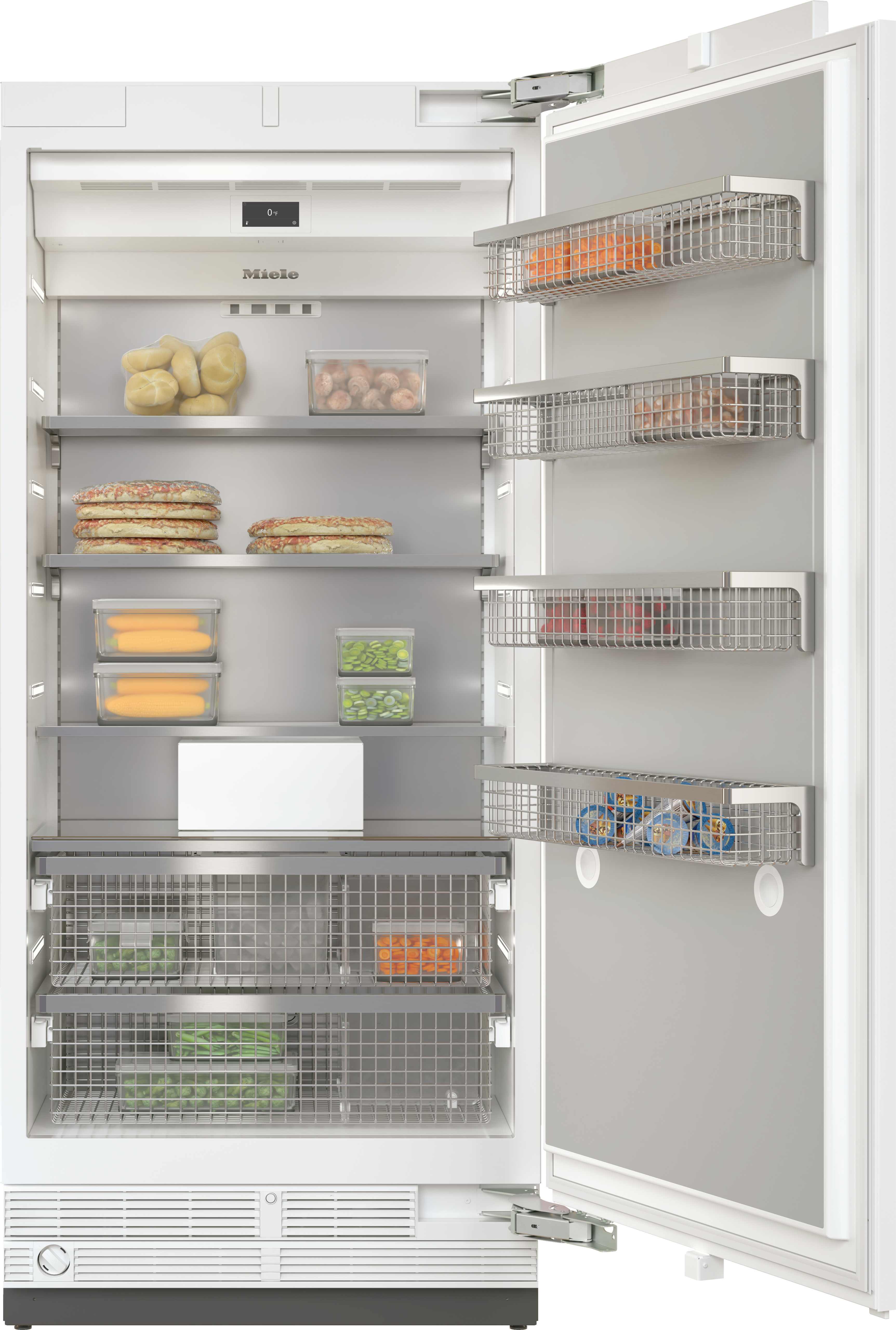

36" MasterCool freezerDiamond

F 2902 Vi

For high-end design and technology on a large scale.
sale price$10,799.00


Product details

  • Push2open
    for convenient door-opening assistance
  • Light floods the interior thanks to LED elements –
    BrilliantLight
  • Fresh ice cubes from the
    IceMaker
    with plumbed water connection
  • Convenient control thanks to color touch display
    MasterSensor
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
F 2902 Vi
Manufacturer material number
11503360
EAN number
4002516323013
Marketing class
Diamond
Freezer
Built-in
Built-in integrated
Door hinge side
right
Convertible hinging
Can be installed side-by-side
Lighting
BrilliantLight
Networking with Miele@home
NoFrost
SoftClose door closing damper
IceMaker with mains water connection
Push2open
FullAccess
EasyClean
MaxLoad hinge
Cooling tips
Cooling modes
IceMaker
Push notifications
RemoteUpdate
Smart Home Integration
Electronic temperature display and control
MasterSensor
SuperFrost
No. of temperature zones
1
Sabbath mode
Eco mode
Door baskets – small
1
Door baskets – large
3
Number of shelves
2
Number of freezer baskets
2
Energy Star Qualified
Lock function
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min.
36 (914)
Niche width in inches (mm), max.
36 (914)
Niche height in inches (mm), min.
84 1/8 (2134)
Niche height in inches (mm), max.
84 1/8 (2134)
Niche depth in in.(mm)
24 7/8 (629)
Appliance dimensions (W x H x D) in inches (mm)
35 3/4 (908) x 83 5/8 (2125) x 23 7/8 (608)
Appliance width in in.(mm)
35 3/4 (908)
Appliance height in in.(mm)
83 5/8 (2125)
Appliance depth in in.(mm)
23 7/8 (608)
Weight in lbs.(kg)
377 (170.8)
Type of mounting
Fixed door
Maximum fridge compartment door front weight in lbs. (kg)
75 (34)
4-star freezer compartment volume in cu. ft. (l)
19.39 (549)
Sound emissions in dB(A) re 1 pW
42
Current consumption in milliampere (mA)
4000
Voltage in V
110 - 120
Fuse rating in A
10
Number of phases
1
Frequency in Hz
60
Wire length in ft (m)
9.8 (3.0)
Replacing bulbs
Customer Service
Available display languages via MultiLingua
[ "eesti", "français", "ελληνιкά", "čeština", "繁體中文", "slovenčina", "latviesu", "slovenščina", "中文", "polski", "français (FR)", "lietuviu", "magyar", "nederlands", "hrvatski", "yкраїнська", "bahasa malaysia", "italiano", "deutsch", "english (GB)", "türkçe", "suomi", "日本語", "dansk", "română", "english (AU)", "english (CA)", "español", "srpski", "english", "العربية", "svenska", "français (CA)", "norsk", "pусский", "português", "english (US)", "한국어" ]
EAN
4002516323013
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Ice cubes for cold drinks
    Ice cubes for cold drinks

    MasterCool™ - IceMaker

    Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

  • Cleverly networked
    Cleverly networked

    Miele@home1,

    Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • Defrosting is a thing of the past
    Defrosting is a thing of the past

    MasterCool – NoFrost

    Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.

  • Perfectly lit
    Perfectly lit

    MasterCool – BrilliantLight

    Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.

  • The perfect solution for a handleless design
    The perfect solution for a handleless design

    MasterCool – Push2open

    This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

User convenience

Cleverly networked
Cleverly networked

Miele@home1,

Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Defrosting is a thing of the past
Defrosting is a thing of the past

MasterCool – NoFrost

Convenient: A sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.
Convenient operation with a tap of a finger
Convenient operation with a tap of a finger

MasterCool – MasterSensor

Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.
Perfectly lit
Perfectly lit

MasterCool – BrilliantLight

Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
The perfect solution for a handleless design
The perfect solution for a handleless design

MasterCool – Push2open

This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.

Convenience features

Ice cubes for cold drinks
Ice cubes for cold drinks

MasterCool™ - IceMaker

Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.

Quality

Safe handling guaranteed
Safe handling guaranteed

MasterCool – MaxLoad hinge

Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.

Smart Extras

  • Get more out of your refrigeration appliance
    Get more out of your refrigeration appliance

    Cooling tips1,

    Get the most out of your refrigeration appliances thanks to tips and advice in the Miele app.

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • Flexible storage for any occasion
    Flexible storage for any occasion

    Cooling modes1,

    Quickly adapt your cooling settings to any situation with preset options.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

  • Smart alerts keep you informed
    Smart alerts keep you informed

    Push notifications1,

    Maintain optimal cooling and ideal conditions with push notifications alerting you to changes.

  • Ice cubes when you need them
    Ice cubes when you need them

    IceMaker1,

    Get fresh ice when you want it by turning the ice maker on and off in the Miele app.

Matching products and accessories

30" MasterCool refrigerator
K 2802 Vi

30" MasterCool refrigerator

For high-end design and technology on a large scale.

$9,699.00
36" MasterCool refrigerator
K 2902 Vi

36" MasterCool refrigerator

For high-end design and technology on a large scale.

$9,999.00
18" MasterCool freezer
F 2412 Vi

18" MasterCool freezer

For high-end design and technology on a large scale.

$8,799.00
24" MasterCool wine refrigerator
KWT 2672 ViS

24" MasterCool wine refrigerator

For high-end design and technology on a large scale.

$10,599.00
30" MasterCool freezer
F 2812 Vi

30" MasterCool freezer

For high-end design and technology on a large scale.

$10,499.00
36" MasterCool FrenchDoor bottom-mount unit
KF 2982 Vi

36" MasterCool FrenchDoor bottom-mount unit

For high-end design and technology on a large scale.

$9,999.00
24" MasterCool freezer
F 2672 Vi

24" MasterCool freezer

For high-end design and technology on a large scale.

$9,849.00
36" MasterCool refrigerator
K 2912 Vi

36" MasterCool refrigerator

For high-end design and technology on a large scale.

$9,999.00
36" MasterCool freezer
F 2912 Vi

36" MasterCool freezer

For high-end design and technology on a large scale.

$10,799.00
24" MasterCool refrigerator
K 2602 Vi

24" MasterCool refrigerator

For high-end design and technology on a large scale.

$9,199.00

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download
Energy label
PDF
Download
PNG
Download
Energy label
JPEG
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000006/200000657/20000065730.png
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
POSTSCRIPT
Download
https://media.miele.com/images/2000015/200001517/20000151717.png
Descriptions
K2902Vi, K2912Vi, F2902Vi, F2912Vi, K2901Vi, K2911Vi, F2901Vi, F2911Vi, inner space, MasterCool, installation drawings
K2902Vi, K2912Vi, F2902Vi, F2912Vi, K2901Vi, K2911Vi, F2901Vi, F2911Vi, inner space, MasterCool, installation drawings
POSTSCRIPT
Download
https://media.miele.com/images/2000016/200001617/20000161754.png
Descriptions
Sideview, MasterCool, Sketch
Installation drawings
POSTSCRIPT
Download
https://media.miele.com/images/2000016/200001626/20000162600.png
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
POSTSCRIPT
Download
https://media.miele.com/images/2000016/200001632/20000163245.png
Descriptions
KFP3605ed/cs, KFP3604ed/cs, Front panel, Fron dimensions, MasterCool, installation drawings
KFP3605ed/cs, KFP3604ed/cs, Front panel, Fron dimensions, MasterCool, installation drawings
POSTSCRIPT
Download
https://media.miele.com/images/2000016/200001632/20000163252.png
Descriptions
F2902Vi, F2912Vi, F2912SF, F2901Vi, F2911Vi, F2911SF, installation, MasterCool, installation drawings (US, CA, BR, MX)
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area
POSTSCRIPT
Download
https://media.miele.com/images/2000018/200001842/20000184291.png
Descriptions
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, F 2462 Vi: 525 mm (20 2/3 inch);, F 2662 Vi: 677 mm (26 2/3 inch);, F 2802 Vi: 829 mm (32 2/3 inch);, F 2902 Vi: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , F 2462 Vi: 237 mm (9 1/3 inch);, F 2662 Vi: 296 mm (11 2/3 inch);, F 2802 Vi: 363 mm (14 1/3 inch), F 2902 Vi: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch)
