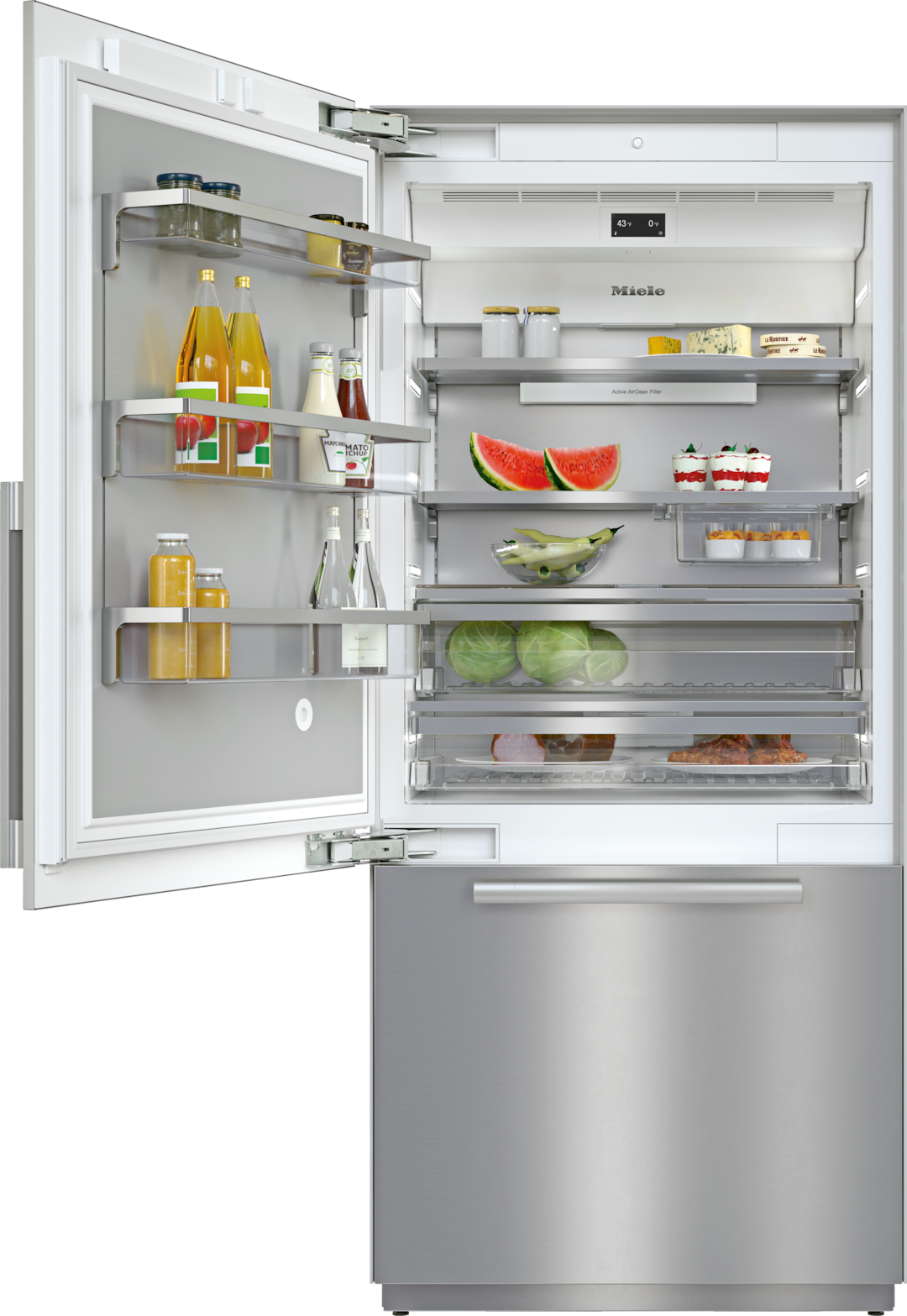

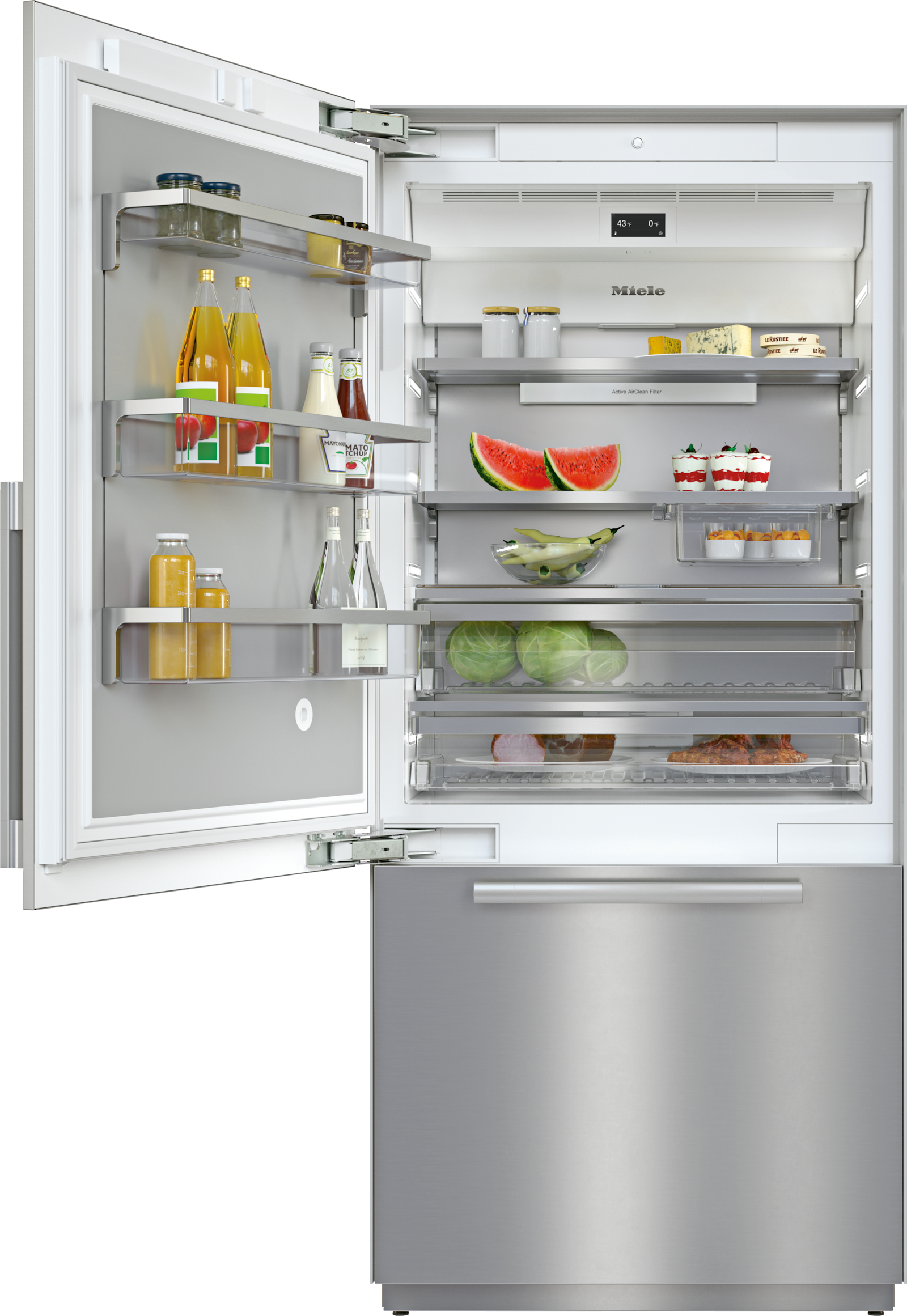

Fridge-freezer
Door hinge side Left
Convertible hinging
NoFrost
SoftClose door closing damper
Loading...
Independent temperature control of fridge and freezer compartments
Holiday mode
Loading...
Eco mode
Eco mode
Loading...

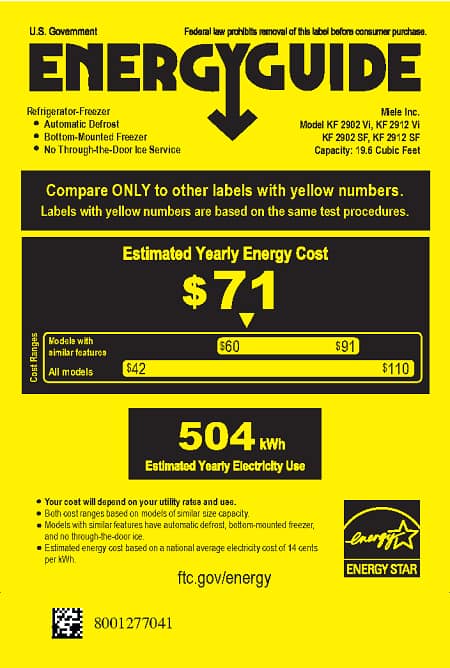

Energy Star Qualified
Niche width in inches (mm), min. 36 (914)
Niche width in inches (mm), max. 36 (914)
Niche height in inches (mm), min. 84 1/8 (2134)
Niche height in inches (mm), max. 84 1/8 (2134)
Niche depth in in.(mm) 24 1/8 (610)
Appliance width in in.(mm) 35 3/4 (908)
Appliance height in in.(mm) 83 3/4 (2125)
Appliance depth in in.(mm) 24 (608)
Weight in lbs.(kg) 494 (224.0)
Type of mounting Fixed door
Total usable capacity in cu. ft. (l) 19.56 (554)
Current consumption in milliampere (mA) 4000
Voltage in V 110-120
Fuse rating in A 10
Number of phases 1
Frequency in Hz 60
Wire length in ft (m) 9 (3.0)
Replacing bulbs Customer Service
Available display languages via MultiLingua [
"français",
"eesti",
"ελληνιкά",
"čeština",
"繁體中文",
"slovenčina",
"latviesu",
"slovenščina",
"中文",
"polski",
"français (FR)",
"lietuviu",
"magyar",
"nederlands",
"hrvatski",
"yкраїнська",
"bahasa malaysia",
"deutsch",
"english (GB)",
"italiano",
"türkçe",
"dansk",
"suomi",
"日本語",
"română",
"english (AU)",
"english (CA)",
"español",
"english",
"srpski",
"العربية",
"svenska",
"français (CA)",
"norsk",
"pусский",
"english (US)",
"português",
"한국어"
]
EAN 4002516321705
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
KF2902Vi, KF2912Vi, KF2901Vi, KF2911Vi, installation, MasterCool, installation drawings
Installation drawings
Descriptions
Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote
A) Appliance door , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 677 mm (26 2/3 inch); , K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 677 mm (26 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 829 mm (32 2/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 829 mm (32 2/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 982 mm (38 2/3 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , K 2611 Vi, KWT 2611 Vi, KWT 2611 SF, KWT 2671 ViS: 296 mm (11 2/3 inch);, K 2612 Vi, KWT 2612 Vi, KWT 2612 SF, KWT 2672 ViS: 296 mm (11 2/3 inch);, K 2811 Vi, K 2811 SF, KF 2811 Vi, KF 2811 SF: 363 mm (14 1/3 inch);, K 2812 Vi, K 2812 SF, KF 2812 Vi, KF 2812 SF: 363 mm (14 1/3 inch);, K 2911 Vi, K 2911 SF, KF 2911 Vi, KF 2911 SF: 428 mm (16 7/8 inch);, K 2912 Vi, K 2912 SF, KF 2912 Vi, KF 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)
Descriptions
KF2902SF, KF2912SF, KF2901SF, KF2911SF, MasterCool, top view, doorway, installation drawings (US, CA)
Installation drawings
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR)
Descriptions
KF2902SF, KF2912SF, KF2901SF, KF2911SF, installation, MasterCool, installation drawings (US, CA)
Installation drawings
Descriptions
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings
Installation drawings
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B
Descriptions
KF2902Vi/SF, KF2912Vi/SF, KF2982Vi/SF, KF2901Vi/SF, KF2911Vi/SF, KF2981Vi/SF, installation, MasterCool
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000mm (not for KON USA), 4. No water/ELT conections permitted in this area Open Source Licence
DownloadsPDF
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
