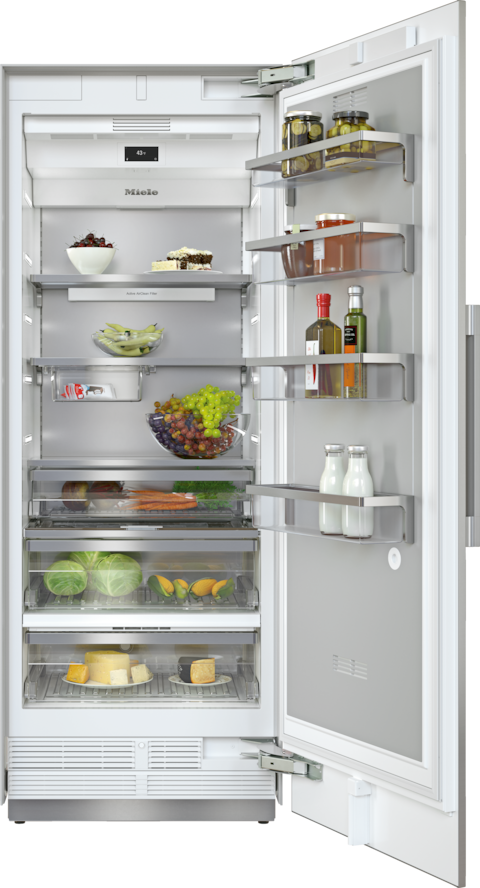

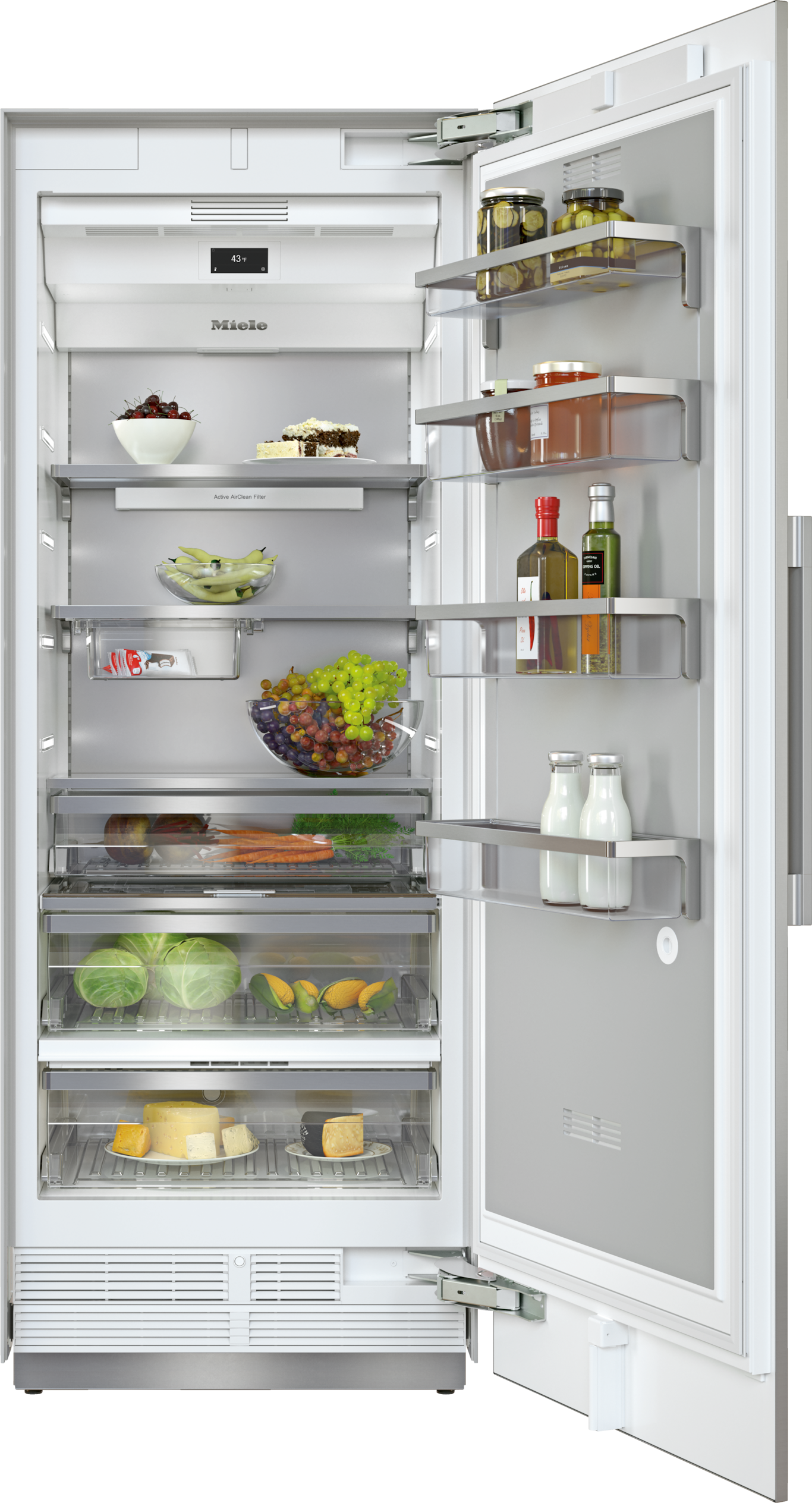

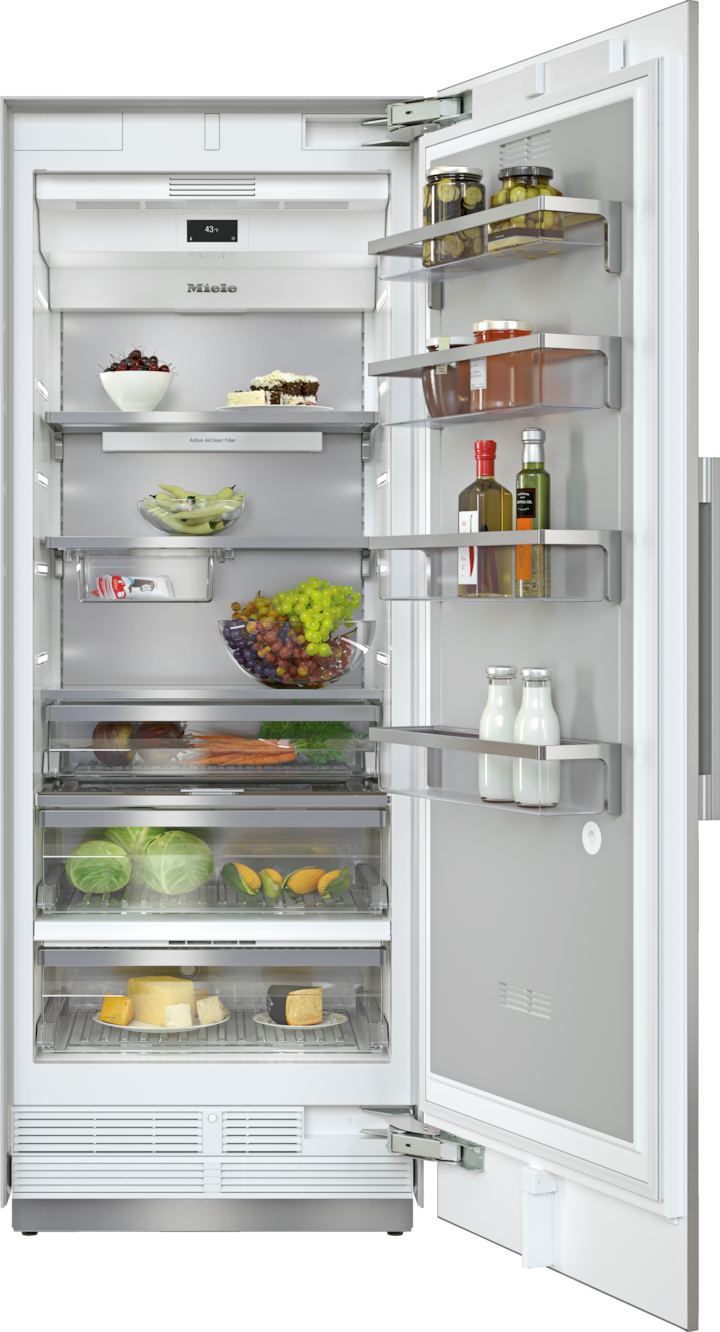

MasterCool™ refrigeratorDIAMOND
K 2802 SF Stainless steel/CleanSteel
For high-end design and technology on a large scale.Color:Stainless steel/CleanSteel
sale price$10,499.00
Product details
- Push2openfor convenient door-opening assistanceLoading...
- Food stays fresh for up to 3 x longer thanks toSmartFreshLoading...
- Light floods the interior thanks to LED elements –BrilliantLightLoading...
- Convenient control thanks to color touch displayMasterSensorLoading...
- View manufacturer details:
- Safety information
Fridge
Built-in
Built-in integrated
Door hinge side right
Convertible hinging
Can be installed side-by-side
Loading...
Front color Stainless steel/CleanSteel
Lighting BrilliantLight
Loading...
Networking with Miele@home
Loading...
Freshness system MasterFresh
Loading...
DynaCool
Loading...
SoftClose door closing damper
Loading...
SelfClose
Push2open
Loading...
FullAccess
EasyClean
MaxLoad hinge
Loading...
Electronic temperature display and control MasterSensor
Loading...
SuperCool
No. of temperature zones 2
Sabbath mode
Eco mode
Eco mode
Loading...
Height-adjustable, full-width tempered glass shelves 2
Number of VeggieBoxes 1
No. of humidity-controlled compartments 2
SlidingShelf
Door rack for tins 1
Inner door racks for bottles 3
Energy Star Qualified
Lock function
Spill-proof glass shelves
Loading...
Acoustic door alarm
Acoustic temperature alarm, freezer section
Optical door alarm
Optical temperature alarm
Niche width in inches (mm), min. 30 (762)
Niche width in inches (mm), max. 30 (762)
Niche height in inches (mm), min. 84 1/8 (2134)
Niche height in inches (mm), max. 84 1/8 (2134)
Niche depth in in.(mm) 24 1/8 (610)
Appliance dimensions (W x H x D) in inches (mm) 29 3/4 (756) x 83 5/8 (2125) x 23 7/8 (608)
Appliance width in in.(mm) 29 3/4 (756)
Appliance height in in.(mm) 83 5/8 (2125)
Appliance depth in in.(mm) 23 7/8 (608)
Weight in lbs.(kg) 398 (180.3)
Type of mounting Fixed door
Fridge compartment volume in cu. ft. (l) 16.77 (475)
Total usable capacity in cu. ft. (l) 16.77 (475)
Current consumption in milliampere (mA) 4000
Voltage in V 110-120
Fuse rating in A 10
Number of phases 1
Frequency in Hz 60
Wire length in ft (m) 9 (3.0)
Replacing bulbs Customer Service
Active AirClean filter
Available display languages via MultiLingua [
"eesti",
"français",
"ελληνιкά",
"čeština",
"繁體中文",
"slovenčina",
"latviesu",
"slovenščina",
"中文",
"polski",
"français (FR)",
"lietuviu",
"magyar",
"nederlands",
"hrvatski",
"yкраїнська",
"bahasa malaysia",
"deutsch",
"english (GB)",
"italiano",
"türkçe",
"dansk",
"日本語",
"suomi",
"română",
"english (AU)",
"english (CA)",
"español",
"srpski",
"english",
"العربية",
"svenska",
"français (CA)",
"norsk",
"pусский",
"português",
"english (US)",
"한국어"
]
EAN 4002516321811
Active AirClean filter
Cleverly networked
Miele@home1,
Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Perfectly lit
MasterCool – BrilliantLight
Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.
Protective storage for long-lasting freshness
MasterCool – MasterFresh
Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.
The perfect solution for a handleless design
MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
MasterCool – Active AirClean filter
Inimitable aroma retained: The combination of active charcoal and natural chitosan effectively prevents odors.MasterCool – MasterFresh
Ideal climate: Food stays fresh for up to 3 times longer due to perfect temperature and humidity.Miele@home1,
Make your life smart: Thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
MasterCool – DynaCool
Storage freedom: A fan ensures a uniform temperature throughout the entire unit.
MasterCool – MasterSensor
Incredibly convenient: A whole range of settings can be made easily with a tap of a finger.MasterCool – BrilliantLight
Soft and attractive: High-quality LED strips offer perfect illumination and a beautiful lighting.MasterCool – Push2open
This appliance integrates perfectly into handleless kitchens, as the door opens by pressing the front.
MasterCool – MaxLoad hinge
Strong and robust: The door hinges are able to withstand high loads and make it easy to open large doors.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 829 mm (32 2/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 829 mm (32 2/3 inch);, K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 982 mm (38 2/3 inch);, K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 363 mm (14 1/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 363 mm (14 1/3 inch), K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 428 mm (16 7/8 inch), K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch) POSTSCRIPT
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR) POSTSCRIPT
Descriptions
KF2802SF, KF2812SF, KF2801SF, KF2811SF, Installation, MasterCool II, installation drawings (US, CA)
KF2802SF, KF2812SF, KF2801SF, KF2811SF, Installation, MasterCool II, installation drawings (US, CA) POSTSCRIPT
Descriptions
K2801SF, K2811SF, K2802SF, K2812SF, MasterCool, installation drawings
K2801SF, K2811SF, K2802SF, K2812SF, MasterCool, installation drawings POSTSCRIPT
Descriptions
MasterCool, top view, doorway, installation drawings
MasterCool, top view, doorway, installation drawings POSTSCRIPT
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B POSTSCRIPT
Descriptions
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area
1. View from the front, 2. Mains connection cable, L = 3000 mm (118 inch), 3. No water/ELT connections permitted in this area POSTSCRIPT
Open Source Licence
DownloadsPDF
- 1.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
