  • Miele - DA 5428 W Puristic Arca Stainless steel – Ventilation Hoods - 1
Wall ventilation hoodPLATINUM

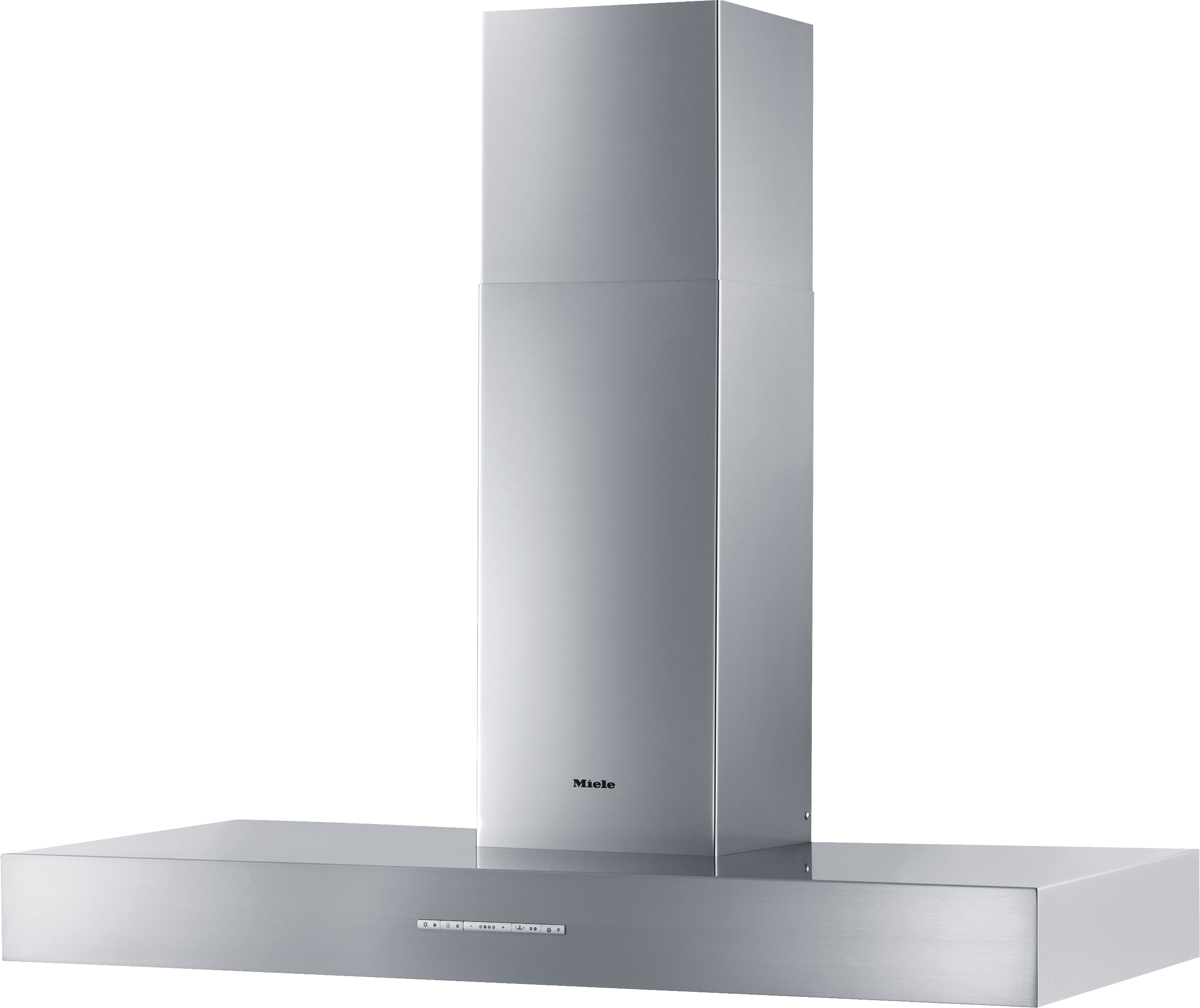

DA 5428 W Puristic Arca Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
Permanently out of stock
View alternative products

Product data sheet

Model number DA 5428 W Puristic Arca
Manufacturer material number 10934860
EAN number 4002516057390
Marketing class
Platinum
Wall ventilation hood
Recirculated mode Exhaust air
Color Stainless steel
Miele@home
Automatic function Con@ctivity 3.0
Con@ctivity Yes
Electronic controls
Operation Light-touch switches with LEDs
Miele@mobile app
Power levels (number excl. Intensive) 3
Booster levels 1
Delayed shutdown for 5 or 15 minutes
Grease filter saturation indicator
Acoustic package
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Number x W 4 x 3 W
Light intensity in Lx 400 lx
Color temperature in K 3000 Kelvin
Dual-action blower
Air throughput in CFM in Booster 489
Safety shut-off
Canopy dimensions (W x H x D) in mm 47 1/8 (1198) x 4 3/4 (120) x 20 1/2 (520)
Overall min. height for vented and external in in. (mm) 29 3/8 (745)
Overall max. height for vented and external in in. (mm) 41 1/2 (1055)
Overall min. height for recirculation in in. (mm) 34 1/2 (875)
Overall max. height for recirculation in in. (mm) 46 5/8 (1185)
Canopy width in in. (mm) 47 1/8 (1198)
Canopy height in in. (mm) 4 3/4 (120)
Depth of hood canopy in in. (mm) 20 1/2 (520)
Minimum height above electric cooktops in mm 24 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 26 (660)
Net weight in lbs. (kg) 83 (37.5)
Length of electrical wire in ft. (m) 2 (0.8)
Standard plug fitted
Plug type US earthed plug
Total connected load in kW 0.362
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Vent connection at top
Diameter of vent connection in in. (mm) 6 (150)
Telescopic chimney
Non-return flap
Reducer from 150 to 125 mm Ø
EAN 4002516057390

What's included

Non-return flap
Reducer from 150 to 125 mm Ø
  • Smart controls

    Smart controls

    Con@ctivity 3.0

    Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

  • Automatic operation for intelligent blower control

    Automatic operation for intelligent blower control

    Con@ctivity

    Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.

  • Easy to use and effective against grease

    Easy to use and effective against grease

    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

  • Performance and convenience as standard

    Performance and convenience as standard

    Silence

    Efficient and quiet: The fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail

    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

User convenience

Automatic operation for intelligent blower control
Automatic operation for intelligent blower control

Con@ctivity

Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Automatic blower run-on
Automatic blower run-on

Delayed shutdown

Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
Countdown time conveniently in view
Countdown time conveniently in view

filter saturation indicator

Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.

Safety

Always on the safe side
Always on the safe side

Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Setup/function

Smart controls
Smart controls

Con@ctivity 3.0

Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

Reducing collar

Reducing collar

For reducing the exhaust air vent cross-section.

$69.00
Silencer connection

Silencer connection

between silencer and connector.

$49.00
MicroCloth kit, 3 pieces
GP MI S 0031 W

MicroCloth kit, 3 pieces

For best cleaning results and safe use.

$17.59
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

$13.19

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000015/200001513/20000151303.png
Descriptions
DA 5428 W(Installation drawing)
1) and 2) Shaded area for vent cut-out
