Insert ventilation hoodPLATINUM
DA 2628 Stainless steel
with energy-efficient LED lighting and backlit controls for easy use.Color:Stainless steel
sale price$3,099.00
Product details
- Customized kitchen design - fully integrated in 46 1/2 (1180) in (mm) width
- Unique user convenience –Con@ctivityLoading...
- Energy-efficient and quiet
- Elegant and efficient - edge vented panel
- View manufacturer details:
- Safety information
Model number DA 2628
Manufacturer material number 10876800
EAN number 4002516024439
Marketing class Platinum
Loading...
Insert ventilation extractor
Recirculated mode Exhaust air
Color Stainless steel
Edge extraction
Miele@home
Con@ctivity Yes
Electronic controls
Operation Light-touch switches with LEDs
Power levels (number excl. Intensive) 3
Booster levels 1
Delayed shutdown for 5 or 15 minutes
Loading...
Grease filter saturation indicator
CleanCover
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Loading...
Number x W 3 x 4,5 W
Light intensity in Lx 700 lx
Color temperature in K 3500 Kelvin
Light dimmer function
Dual-action blower
Air throughput in CFM in Booster 483
Air throughput with Booster level 1 (m³/h) according to EN 61591 482.64 (820)
Safety shut-off
Loading...
Canopy dimensions (W x H x D) in mm 46 1/2 (1180) x 2 1/2 (63) x 11 1/2 (293)
Canopy width in in. (mm) 46 1/2 (1180)
Canopy height in in. (mm) 2 1/2 (63)
Depth of hood canopy in in. (mm) 11 1/2 (293)
Minimum height above electric cooktops in mm 24 (610)
Loading...
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 26 (660)
Loading...
Net weight in lbs. (kg) 34 (15.0)
Length of electrical wire in ft. (m) 4 (1.5)
Standard plug fitted
Plug type NEMA plug: 5–15
Total connected load in kW 0.363
Voltage in V 120
Fuse rating in A 15
Frequency in Hz 60
Number of phases 1
Vent connection at top
Diameter of vent connection in in. (mm) 6 (150)
Non-return flap
Loading...
EAN 4002516024439
Non-return flap
Automatic operation for intelligent blower control
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."
filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Edge vented
Efficient and good-looking: With edge extraction, the grease filters are covered by a panel.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.
Descriptions

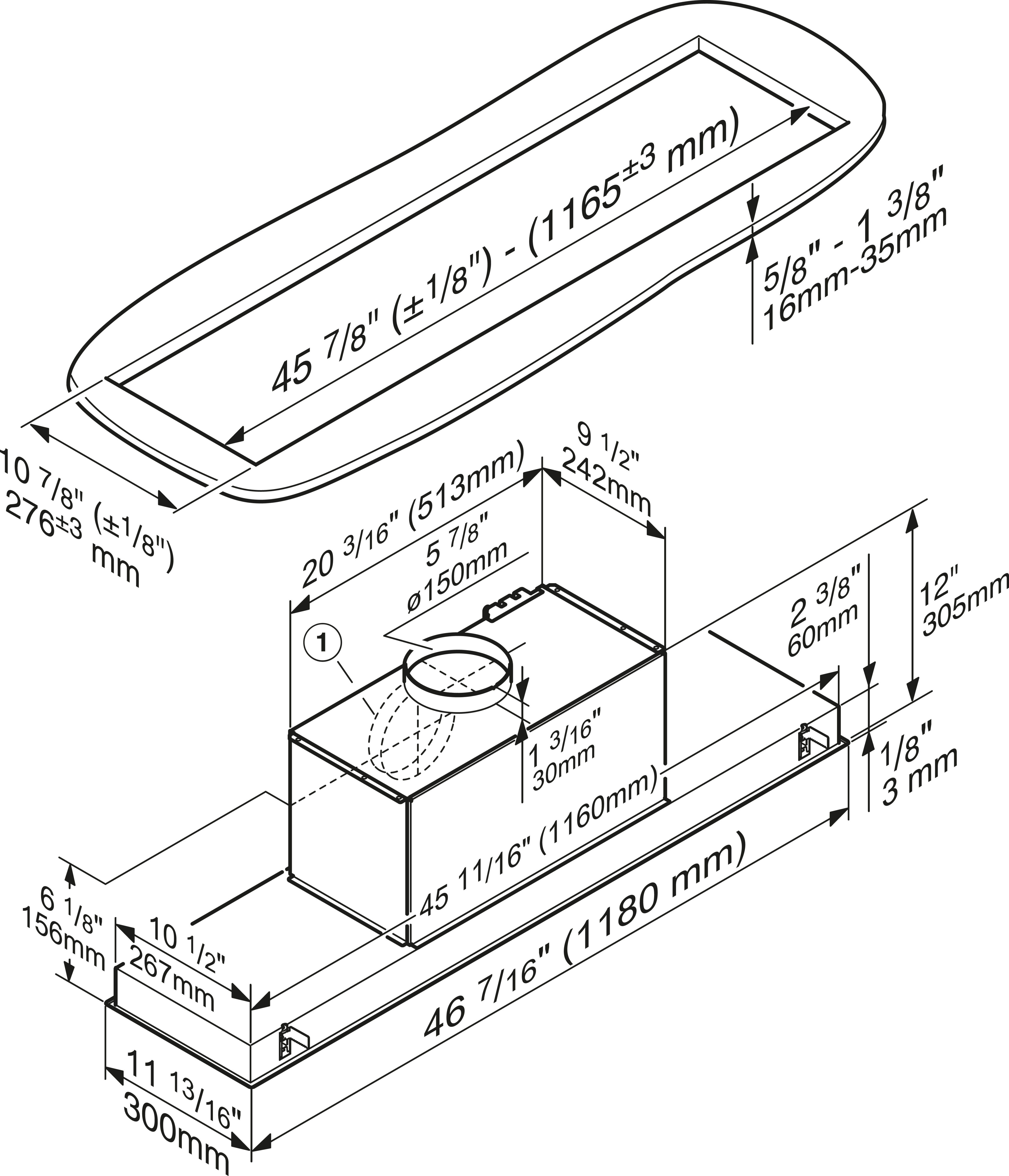

DA 2628, stainless steel - Integrated cooker hood (Installation drawing) - USA
1) Vent connection alternatively to rear POSTSCRIPT
