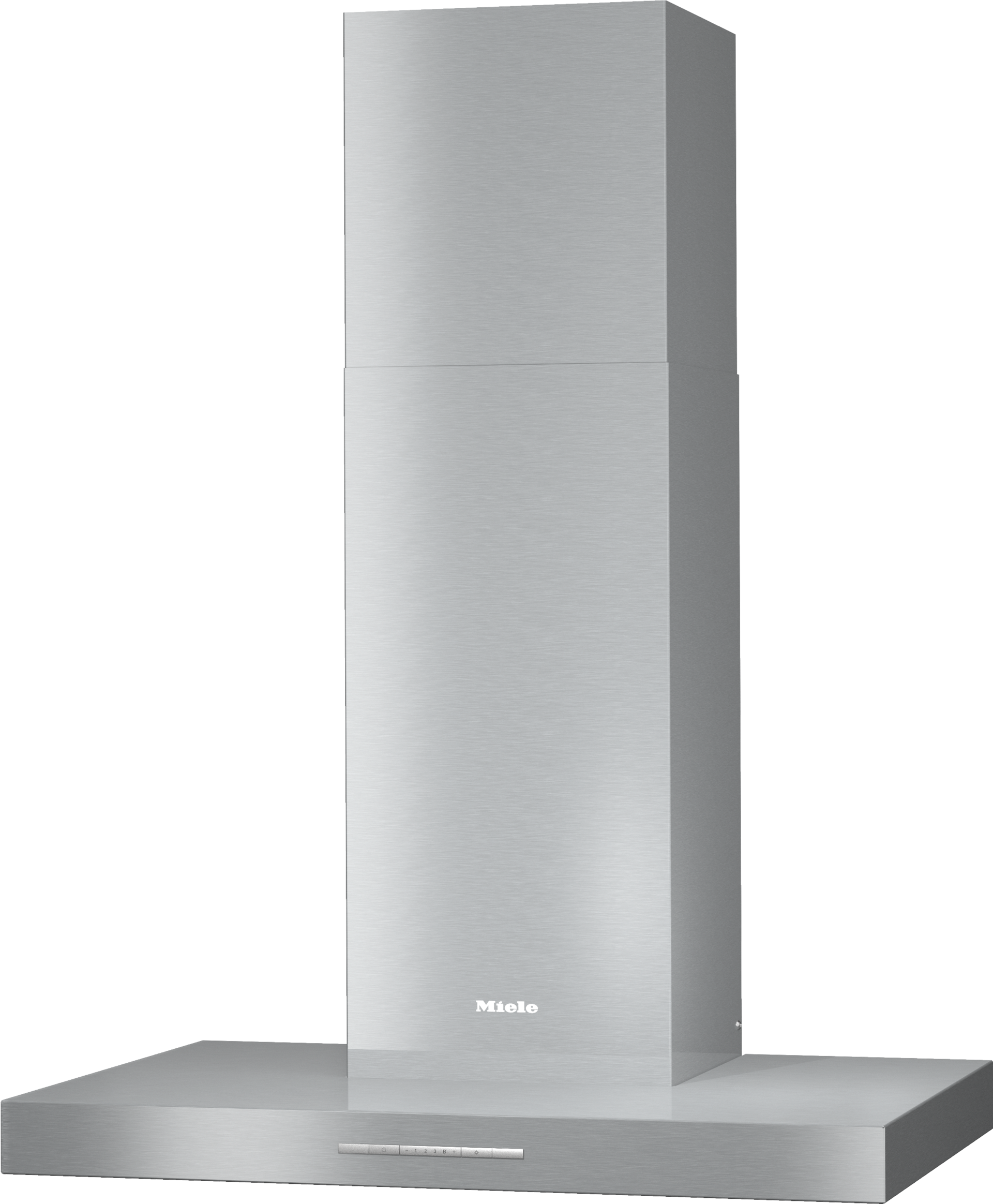

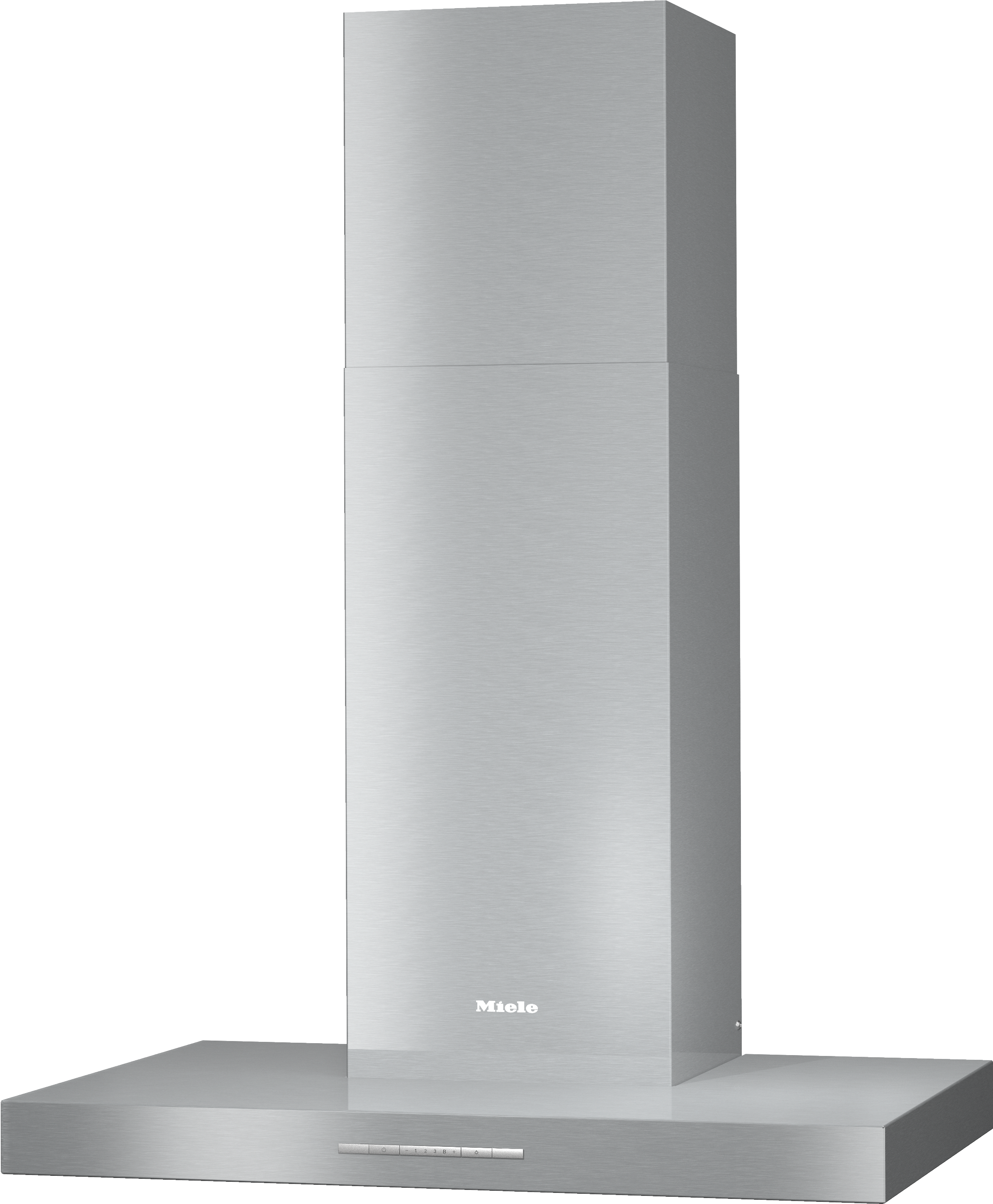

Cooker hoods - PUR 88 W Stainless steel - 1
Cooker hoods - PUR 88 W Stainless steel - 1
30-inch wall-mounted ventilation hood

PUR 88 W Stainless steel

with energy-efficient LED lighting and backlit controls for easy use.
Color:Stainless steel
sale price$1,399.00




Product details

  • Timeless design – stainless steel canopy 29 1/2 (748) in (mm) wide
  • Powerful – 512.06 (870) ft³/min (m3/h) in Booster level
  • Efficient filtration-10-ply stainless steel grease filters
  • Safe and easy to clean -Miele CleanCover
  • Suitable for every home - vented or recirculating
  • Manufactured with great care by
  • Safety information

Product data sheet

Wall ventilation hood
Recirculated modeCan be retrofitted
Recirculation conversion kit (order separately)DUW 20
OdorFree charcoal filter (order separately)DKF 12-900
ColorStainless steel
Electronic controls
OperationLight-touch switches with LEDs
Power levels (number excl. Intensive)3
Booster levels1
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)2
Number x W2 x 3 W
Light intensity in Lx330 lx
Color temperature in K3000 Kelvin
Dual-action blower
Maximum air throughput in cfm according to HVI418
Air throughputValues upon request
Air throughput with Booster level 1 (m³/h) according to EN 61591512.06 (870)
Safety shut-off
Overall min. height for vented and external in in. (mm)27 (685)
Overall max. height for vented and external in in. (mm)39 5/8 (1005)
Overall min. height for recirculation in in. (mm)32 1/8 (815)
Overall max. height for recirculation in in. (mm)44 3/4 (1135)
Canopy width in in. (mm)29 1/2 (748)
Canopy height in in. (mm)2 1/2 (62)
Depth of hood canopy in in. (mm)19 3/4 (500)
Minimum height above electric cooktops in mm24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm26 (660)
Net weight in lbs. (kg)51 (23.0)
Length of electrical wire in ft. (m)4 (1.5)
Standard plug fitted
Total connected load in kW0.356
Voltage in V120
Fuse rating in A15
Frequency in Hz60
Number of phases1
Vent connection at top
Vent connection at top and rear
Diameter of vent connection in in. (mm)6 (150)
Telescopic chimney
Non-return flap
Reducer from 150 to 125 mm Ø
EAN4002515941638

What's included

Non-return flap
Reducer from 150 to 125 mm Ø
Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Safety turn off

Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

Convenience and safety in detail
Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Matching products and accessories

OdorFree Charcoal Filter
DKF 12-900

OdorFree Charcoal Filter

prevents unpleasant odors in the kitchen.

$139.00

Reducing collar

For reducing the exhaust air vent cross-section.

$125.00
Chimney Extension

Chimney Extension

to lengthen the chimney for DA 39x-7, DA 42xx W, DA 5xxx W, DA 6698 W.

$329.00
Recirc. conversion kit for wall hood

Recirc. conversion kit for wall hood

To convert wall mounted ventilation hoods from air vented to recirculation mode.

$109.00
Chimney Extension

Chimney Extension

to lengthen the chimney for DA 39x-7, DA 42xx W, DA 5xxx W, DA 6698 W.

$329.00
Reducing collar

Reducing collar

For reducing the exhaust air vent cross-section.

$42.15
Silencer connection

Silencer connection

between silencer and connector.

$35.00

Downloads

Product sheet
PDF
Downloads
Operating and Installation instructions
PDF
Downloads
Mounting plan
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
rvt
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/images/2000013/200001346/20000134628.png
Descriptions
PUR88W, DAP1727 (Installation drawing) - USA/CDN
1) Extraction, 2) Recirculation, 3) Ventilation grille at top for recirculation, 4+5) Installation cut-out (5 not required for recirculation)
Downloads

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
