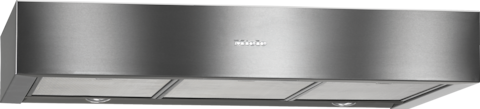

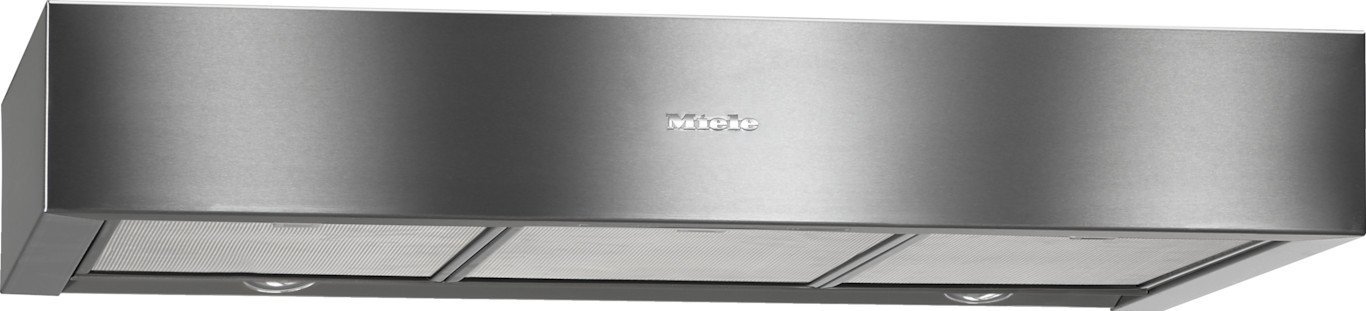

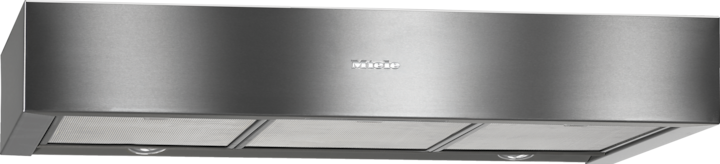

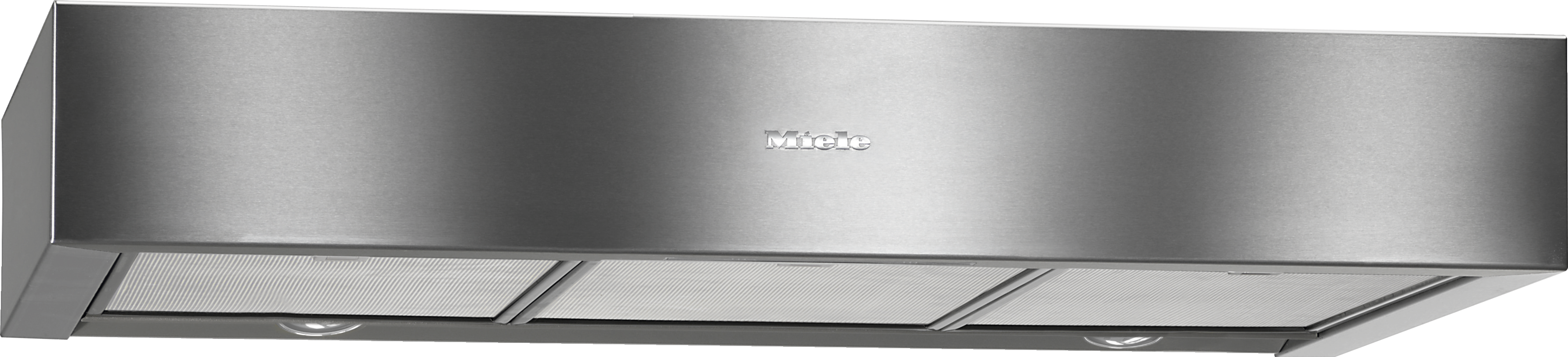

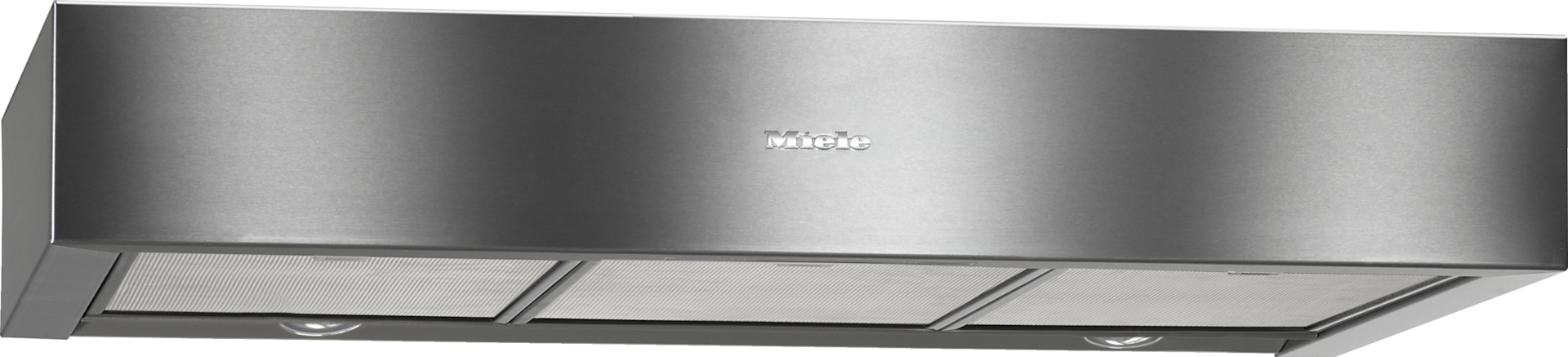

  • Miele - DA 1280 Stainless steel – Ventilation Hoods - 1
30-inch built-under ventilation hoodSilver

DA 1280 Stainless steel

with energy-efficient LED lighting and sliding switch for simple operation.
Color:Stainless steel
sale price$1,199.00


Product details

  • Puristic design – space-saving solution 29 7/8 (760) in (mm) wide
  • Powerful – 320.19 (544) ft³/min (m3/h) in Booster level
  • Efficient filtration-
    10-ply stainless steel grease filters
  • Safe and easy to clean -
    Miele CleanCover
  • Suitable for every home - vented or recirculating
  • View manufacturer details:
  • Safety information

Product data sheet

Model number
DA 1280
Manufacturer material number
10451490
EAN number
4002515774403
Marketing class
Silver
Built-under ventilation hood
Recirculated mode
Can be retrofitted

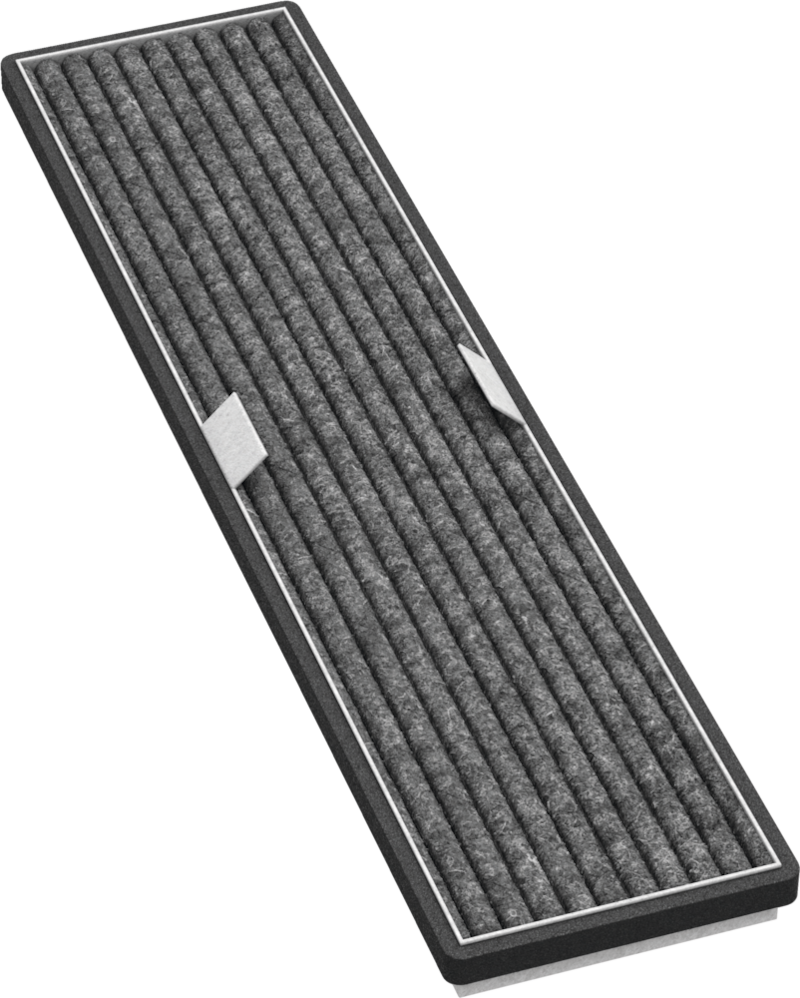

OdorFree charcoal filter (order separately)
DKF18-900
Color
Stainless steel
Recessed knob controls
Slide switch
Operation
Slide switch
Power levels (number excl. Intensive)
3
Booster levels
1
CleanCover
Easy-to-clean canopy interior – CleanCover
Number of dishwasher-safe stainless steel grease filters (10-ply)
3
Number x W
2 x 3 W
Light intensity in Lx
275 lx
Color temperature in K
3000 Kelvin
Single-action blower
Air throughput in CFM in Booster
320
Air throughput with Booster level 1 (m³/h) according to EN 61591
320.19 (544)
Canopy dimensions (W x H x D) in mm
29 7/8 (760) x 4 7/8 (125) x 19 5/8 (500)
Canopy width in in. (mm)
29 7/8 (760)
Canopy height in in. (mm)
4 7/8 (125)
Depth of hood canopy in in. (mm)
19 5/8 (500)
Net weight in lbs. (kg)
29 (12.9)
Length of electrical wire in ft. (m)
4 (1.5)
Standard plug fitted
Plug type
NEMA plug: 5–15
Total connected load in kW
0.286
Voltage in V
120
Fuse rating in A
15
Frequency in Hz
60
Number of phases
1
Vent connection at top
Diameter of vent connection in in. (mm)
6 (150)
Installation template
Non-return flap
Recirculation deflector

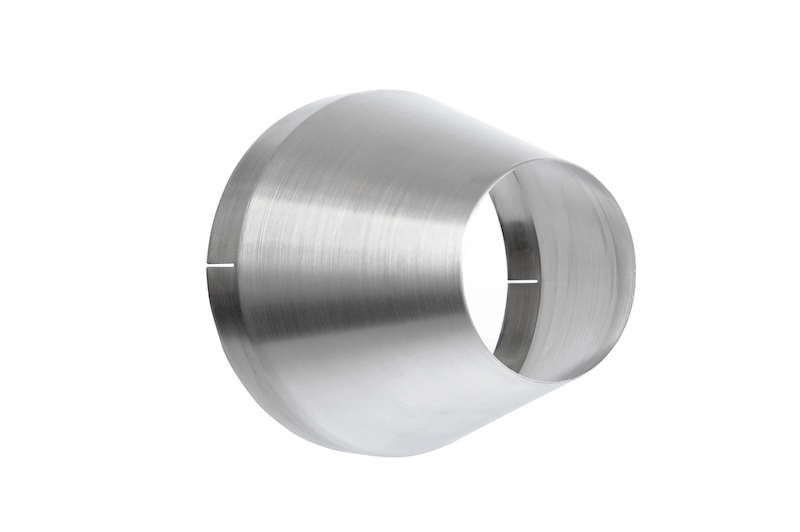

Reducer from 150 to 125 mm Ø
EAN
4002515774403

What's included

Non-return flap
Recirculation deflector
Reducer from 150 to 125 mm Ø
  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless-steel grease filters (10-layer)

    Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless-steel grease filters (10-layer)

Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.

Downloads

Operating and Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts.

https://media.miele.com/dam/80737c9c-90c7-427d-a47d-b3bd0065312e/20000134617_HighresDigitalRGB.png
Descriptions
DA 1180, Stainless steel (installation drawing)
DA 1180, Stainless steel (installation drawing)
