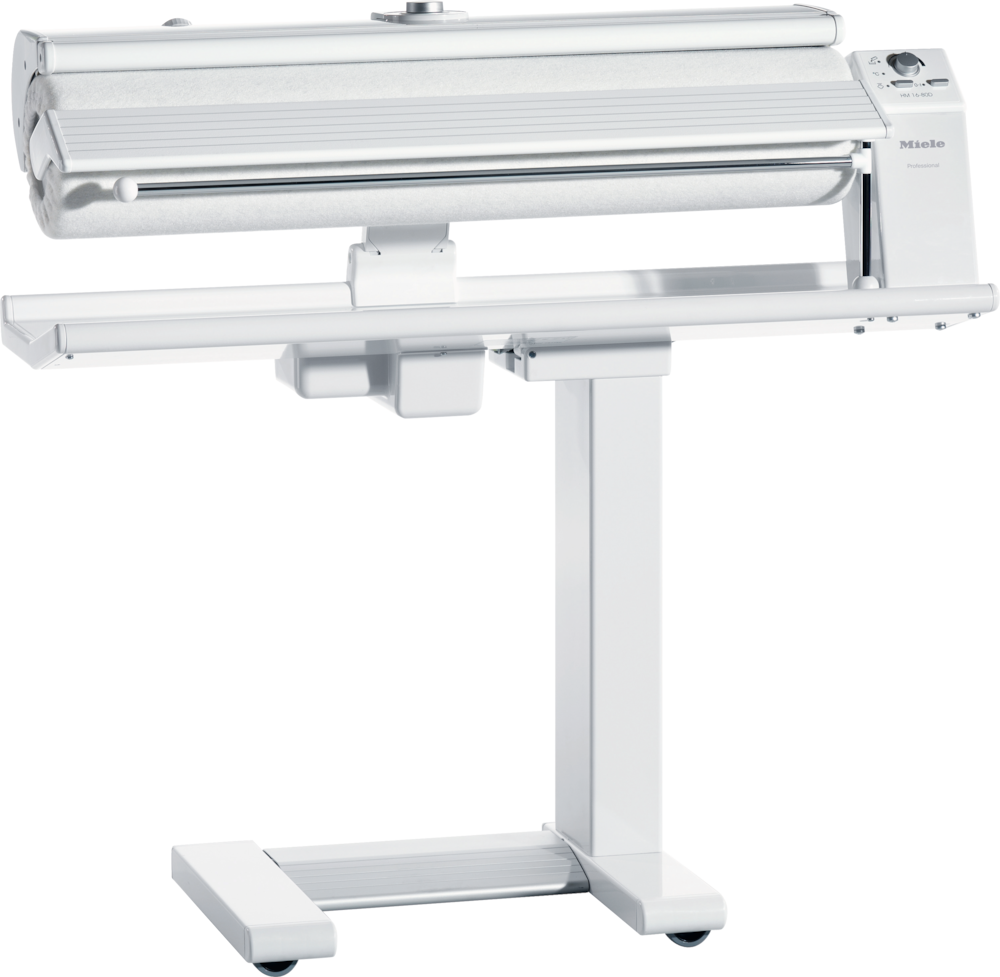

  • Miele - HM16-80 D [EL] – Professional laundry technology - 1
Rotary iron, electric

HM16-80 D [EL]

with steam function for optimum results and maximum convenience.
sale price$4,490.00


Product details

  • Performance 28.6 (13.0) lb/h (kg/h)1, , roller diameter 6 5/16 (160) in (mm), working width 32 11/16 (830) in (mm)
  • Iron comfortably while seated
  • Work at your own pace thanks to
    variable roller speed
  • Durable roller padding -
    aramid needle felt cloth
  • Easy to store -
    fold-away function
  • View manufacturer details:
  • Safety information

Product data sheet

Design
Infeed and outfeed of laundry at the front
Can be set up against a wall
Linie Professional
Outer casing Lotus white
Drum diameter in in.(mm) 6 5/16 (160)
Working width in in.(mm) 32 11/16 (830)
Heater plate material
Aluminium
Padding
Polyester needle-felt cloth
Ironer cover
ARAMID needle-felt cloth
Suitable for the hotel and catering industry
Suitable for retirement and care homes
Suitable for residential homes and apartments
Suitable for commercial laundries
Suitable for off-shore use
Suitable for Marine use
Suitable for camp sites
Suitable for domestic use
Max. ironing performance at 20 % residual moisture in lb/h (kg/h) 28.6 (13.0)
Tested operating hours 2500
Control system Selector dial
Touch display (optional)
Drehwahlschalter
Minimum ironer speed, can be set in ft/min 2
Maximum ironer speed, can be set in ft/min 4.5
Adjustable temperature
In temperature stages
Type of heating Electric
Electrical connection 2AC 208-240V 50-60HZ
Electric heater rating in kW 2.800-3.700
Boiler heater rating in kW 0.85
Total connected load in kW 2.900-3.800
Fuse rating in A 20
NEMA plug: 6-20
External dimensions, height in mm 37 13/16 (959)
External dimensions, width in mm 38 13/16 (985)
External dimensions, depth in mm 15 (380)
External dimensions, gross height in inches 22 1/2 (570)
External dimensions, gross width in inches 44 1/8 (1120)
External dimensions, gross depth in inches 17 3/4 (450)
Net weight in kg 86 (39)
Gross weight in lbs. 100 (45)
Maximum floor load in N 382
Steam function
Free, unsupported roller end
Fold-away function
Automatic finger guard/finger guard
Foot switch
Airing bar
Feed-in board
Laundry return feed
Appliance-independent accessories
CSA-C-US
Complies with Machinery Directive 2006/42/EC
EAN 4002515636459
  • Economical and efficient

    Economical and efficient

    Low consumption values

    Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values.

  • Robust housing

    Robust housing

    Durable roller cover

    The extremely durable ironer covers are particularly long-lasting and heat-resistant.

  • Safety guaranteed

    Safety guaranteed

    Finger guard

    A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry.

  • Best results

    Best results

    Steam function

    Powerful against creases: Quick and uniform steam for perfect ironing results.

  • Perfect under pressure

    Perfect under pressure

    Perfect laundry finish

    Uniform pressure over the entire working width guarantees a perfect laundry finish.

User convenience

Safety guaranteed
Safety guaranteed

Finger guard

A focus on safety: The finger guard is triggered if fingers come too close to the roller when feeding in laundry.
Ironing without limits
Ironing without limits

Free, unsupported roller end

The free roller end simplifies ironing of skirts, shirts and blouses.
Easy to move
Easy to move

Convenient foot switch

The roller is operated via a foot switch. Both hands are free to arrange items.
A perfect finish made easy
A perfect finish made easy

Convenient airing bar

The fold-out airing bar allows crease-free cooling and airing of ironed laundry.
Customized ironing speed
Customized ironing speed

Variable roller speed

Always the perfect speed when ironing - you decide!
Space-saving installation
Space-saving installation

Feed-in and return at the front

When in use, the ironer requires only a minimum amount of space as it can be installed against a wall.
Perfectly positioned
Perfectly positioned

Easy feeding in of laundry

The feed-in board makes it easy to feed the laundry in accurately.
Ultimate flexibility

Convenient return feed

The ironed laundry is automatically returned to the input side.

Efficiency

Economical and efficient
Economical and efficient

Low consumption values

Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values.

Performance

Best results
Best results

Steam function

Powerful against creases: Quick and uniform steam for perfect ironing results.
Perfect under pressure
Perfect under pressure

Perfect laundry finish

Uniform pressure over the entire working width guarantees a perfect laundry finish.
Up to temperature quickly
Up to temperature quickly

Quick-heating aluminum heater plate

The quick-heating aluminum heater plate ensures the ironer is ready to operate in the shortest time possible.

Gentle laundry care

At the ideal temperature
At the ideal temperature

Temperature selection to suit textiles

The temperature can be set according to the type of fabric, residual moisture level and ironing finish required.

Quality

Robust housing
Robust housing

Durable roller cover

The extremely durable ironer covers are particularly long-lasting and heat-resistant.
Fits in the smallest niche
Fits in the smallest niche

Space-saving storage

The appliance only needs 0.2 sq.ft storage space.

Downloads

Product datasheet
PDF
Downloads
Product sheet
PDF
Downloads
Operating instructions/Installation instructions
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads
  • 1.With 20% residual moisture – performance data according to DIN 11 902: The achievable laundry throughput depends on overall conditions such as, for example, the type of laundry and the experience of the operator.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
