Product Information
Inside the Box
- Active AirClean filter

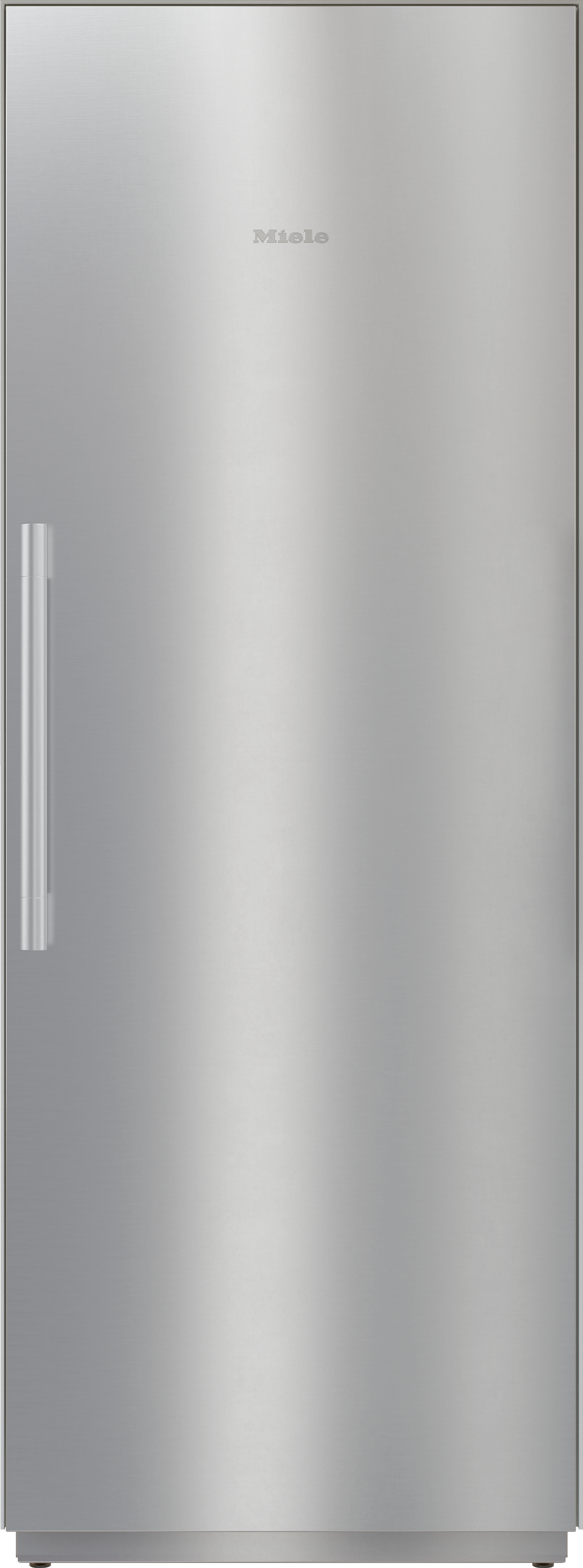

K 2802 SF
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Inside the Box
- Active AirClean filter
Your advantages
MasterCool – BrilliantLight
Perfectly lit
MasterCool – MasterFresh
Protective storage for long-lasting freshness
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool – Active AirClean filter
Provides effective protection against odors
MasterCool – MasterFresh
Protective storage for long-lasting freshness
MasterCool – DynaCool
Perfect food storage
MasterCool – MasterSensor
Convenient operation with a tap of a finger
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool – MaxLoad hinge
Safe handling guaranteed
Product data sheet
| Fridge | • |
| Built-in | • |
| Built-in integrated | • |
| Door hinge side | Right convertible |
| Convertible hinging | • |
| Can be installed side-by-side | • |
| Front color | Stainless steel/CleanSteel |
| Lighting | BrilliantLight |
| Networking with Miele@home | • |
| Freshness system | DynaCool SelfClose BrilliantLight Full Access MaxLoad Schanier Active AirClean Filter Überlaufschutz SlidingShelf MasterFresh EasyClean |
| DynaCool | • |
| SoftClose door closing damper | • |
| SelfClose | • |
| Push2open | • |
| FullAccess | • |
| EasyClean | • |
| MaxLoad hinge | • |
| Electronic temperature display and control | MasterSensor |
| Super Cooling | • |
| No. of temperature zones | 2 |
| Sabbath mode | • |
| Eco mode | • |
| Height-adjustable toughened glass shelves | 2 |
| No. of removable fruit and vegetable drawers | 1 |
| No. of PerfectFresh drawers | 2 |
| SlidingShelf | • |
| Door rack for tins | 1 |
| Inner door racks for bottles | 3 |
| Energy Star Qualified | • |
| Lock function | • |
| Overflow protection | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm, freezer section | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Niche width in inches (mm), min. | 30 (762) |
| Niche width in inches (mm), max. | 30 (762) |
| Niche height in inches (mm), min. | 84 1/8 (2134) |
| Niche height in inches (mm), max. | 84 1/8 (2134) |
| Niche depth in in.(mm) | 24 1/8 (610) |
| Appliance width in in.(mm) | 29 7/8 (756) |
| Appliance height in in.(mm) | 83 3/4 (2125) |
| Appliance depth in in.(mm) | 24 (608) |
| Weight in lbs.(kg) | 398 (180.3) |
| Type of mounting | Fixed door |
| Total usable capacity in cu. ft. (l) | 16.77 (475) |
| Current consumption in milliampere (mA) | 4000 |
| Voltage in V | 110-120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Frequency in Hz | 60 |
| Wire length in ft (m) | 9 (3.0) |
| Replacing bulbs | Customer Service |
| Available display languages via MultiLingua | eesti français ελληνιкά čeština 繁體中文 slovenčina latviesu slovenščina 中文 polski français (FR) lietuviu magyar nederlands hrvatski yкраїнська bahasa malaysia deutsch italiano english (GB) türkçe 日本語 dansk suomi română english (AU) english (CA) español english srpski العربية svenska norsk français (CA) pусский english (US) português 한국어 |
Optional products and accessories
- Product sheetPDF
- Operating and Installation instructionsPDF
- Warranty conditionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- fbxZIP
- rfaZIP
- rvtZIP
- ifcZIP
- dwgZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- PNG
- PNG
- Energy labelPDF
- Energy labelPDF
- JPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
- Open Source LicencePDF
Follow the link and you will find all the resources you need for planning and installing any of our products
K2801SF, K2811SF, K2802SF, K2812SF, MasterCool, installation drawings
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU
AUS
CN) or KSK 2002 (US
CA
MX
BR)
MasterCool, top view, doorway, installation drawings
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width
K 2601 Vi
K 2601 SF
KWT 2601 Vi
KWT 2601 SF
KWT 2661 ViS
KWT 2661 SFS: 677 mm (26 2/3
inch);
K 2602 Vi
K 2602 SF
KWT 2602 Vi
KWT 2602 SF
KWT 2662 ViS
KWT 2662 SFS: 677 mm (26 2/3
inch);
K 2801 Vi
K 2801 SF
KF 2801 Vi
KF 2801 SF: 829 mm (32 2/3 inch);
K 2802 Vi
K 2802 SF
KF 2802 Vi
KF 2802 SF: 829 mm (32 2/3 inch);
K 2901 Vi
K 2901 SF
KF 2901 Vi
KF 2901 SF: 982 mm (38 2/3 inch);
K 2902 Vi
K 2902 SF
KF 2902 Vi
KF 2902 SF: 982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance door to wall (without furniture front and door handle):
K 2601 Vi
K 2601 SF
KWT 2601 Vi
KWT 2601 SF
KWT 2661 ViS
KWT 2661 SFS: 296 mm (11 2/3
inch);
K 2602 Vi
K 2602 SF
KWT 2602 Vi
KWT 2602 SF
KWT 2662 ViS
KWT 2662 SFS: 296 mm (11 2/3
inch);
K 2801 Vi
K 2801 SF
KF 2801 Vi
KF 2801 SF: 363 mm (14 1/3 inch);
K 2802 Vi
K 2802 SF
KF 2802 Vi
KF 2802 SF: 363 mm (14 1/3 inch)
K 2901 Vi
K 2901 SF
KF 2901 Vi
KF 2901 SF: 428 mm (16 7/8 inch)
K 2902 Vi
K 2902 SF
KF 2902 Vi
KF 2902 SF: 428 mm (16 7/8 inch)
E) ONLY valid for SF versions: A + 25 mm (1 inch)
KF2802SF, KF2812SF, KF2801SF, KF2811SF, Installation, MasterCool II, installation drawings (US, CA)
Sideview, MasterCool, Sketch
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002
2. Device A
3. Device B
A = niche device A
B = niche device B
K2801Vi, K2811Vi, K2801SF, K2811SF, installation, MasterCool, *footnote, installation drawings
1. View from the front
2. Mains connection cable
L = 3000 mm (118 inch)
3. No water/ELT connections permitted in this area
