KF 2812 Vi
$8,999.00
Find a dealer

Product Information

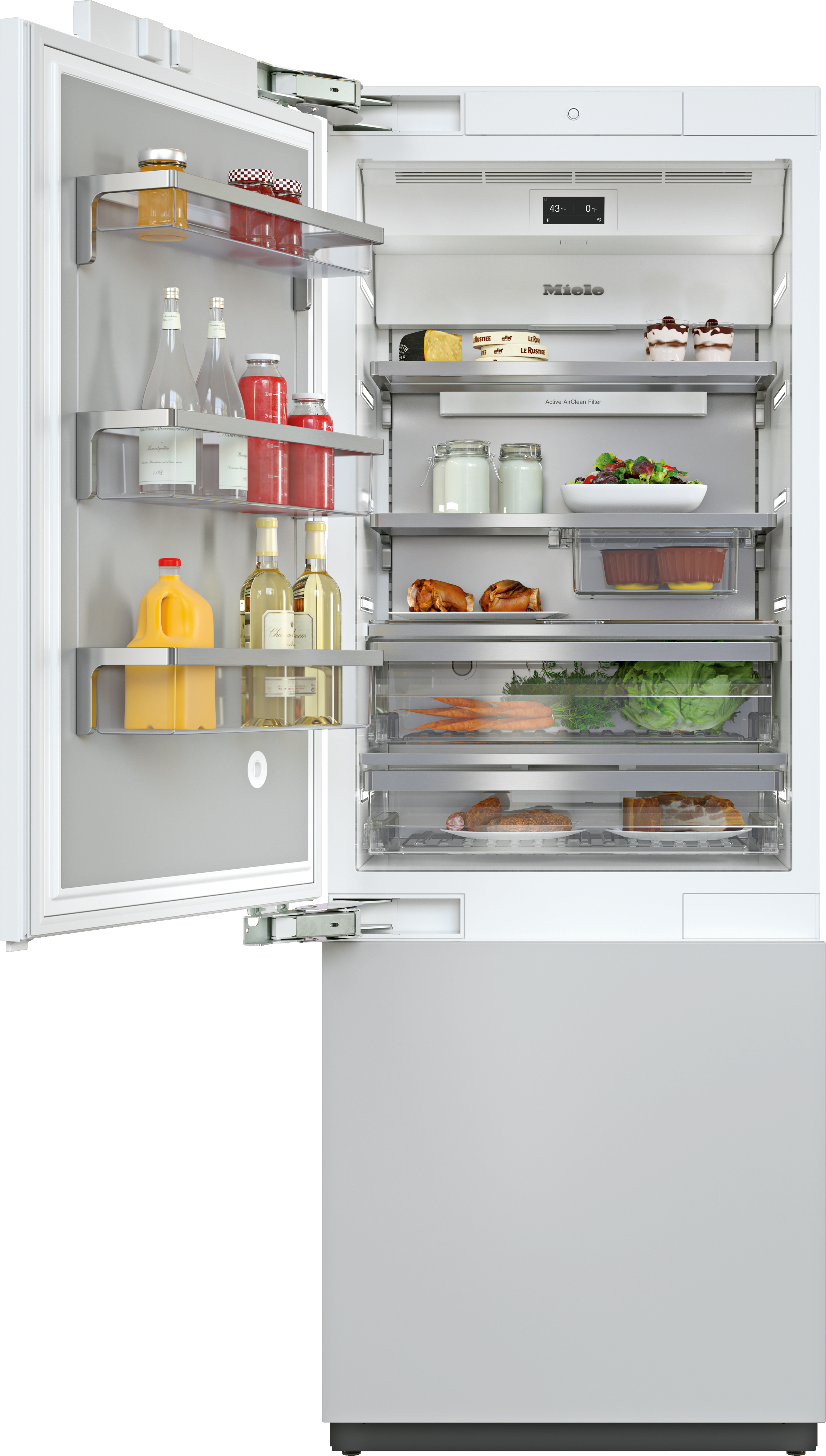

MasterCool™ fridge-freezer For high-end design and technology on a large scale.
  • Push2open for convenient door-opening assistance
  • Food stays fresh for up to 3 x longer thanks to SmartFresh
  • Light floods the interior thanks to LED elements – BrilliantLight
  • Convenient control thanks to color touch display MasterSensor

KF 2812 Vi

MasterCool™ fridge-freezer For high-end design and technology on a large scale.
  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Product Information

MasterCool™ fridge-freezer For high-end design and technology on a large scale.
  • Push2open for convenient door-opening assistance
  • Food stays fresh for up to 3 x longer thanks to SmartFresh
  • Light floods the interior thanks to LED elements – BrilliantLight
  • Convenient control thanks to color touch display MasterSensor

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Appliance width in in.(mm)29 7/8 (756)
Appliance height in in.(mm)83 3/4 (2127)
Appliance depth in in.(mm)24 1/8 (610)

Optional products and accessories

Downloads, CAD, & apps
  • Product sheet
    PDF
  • Operating and Installation instructions
    PDF

Follow the link and you will find all the resources you need for planning and installing any of our products

  • rvt
    ZIP
  • dwg
    ZIP
  • rfa
    ZIP
  • fbx
    ZIP
  • ifc
    ZIP

Follow the link and you will find all the resources you need for planning and installing any of our products

  • PNG
  • Energy label
    PDF
  • JPEG

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

KF2802Vi, KF2812Vi, KF2801Vi, KF2811Vi, Installation, MasterCool II, installation drawings

Descriptions

Opening angle 90°/115°, right side stop, MasterCool (Sketch) with footnote

A) Appliance door

F 2411 Vi

F 2411 SF

F 2471 Vi

F 2471 SF: 525 mm (20 2/3 inch);

F 2412 Vi

F 2412 SF

F 2472 Vi

F 2472 SF: 525 mm (20 2/3 inch);

K 2611 Vi

F 2671 Vi

F 2671 SF

KWT 2611 Vi

KWT 2611 SF

KWT 2671 ViS: 677 mm (26 2/3 inch);

K 2612 Vi

F 2672 Vi

F 2672 SF

KWT 2612 Vi

KWT 2612 SF

KWT 2672 ViS: 677 mm (26 2/3 inch);

K 2811 Vi

K 2811 SF

F 2811 SF

F 2811 Vi

KF 2811 Vi

KF 2811 SF: 829 mm (32 2/3 inch);

K 2812 Vi

K 2812 SF

F 2812 SF

F 2812 Vi

KF 2812 Vi

KF 2812 SF: 829 mm (32 2/3 inch);

K 2911 Vi

K 2911 SF

F 2911 Vi

F 2911 SF

KF 2911 Vi

KF 2911 SF: 982 mm (38 2/3 inch);

K 2912 Vi

K 2912 SF

F 2912 Vi

F 2912 SF

KF 2912 Vi

KF 2912 SF: 982 mm (38 2/3 inch);

B) Furniture front (max. 38 mm) (1 1/2 inch)

C) Door handle

D) Distance from the door to the wall (without furniture front and door handle):

F 2411 Vi

F 2411 SF

F 2471 Vi

F 2471 SF: 237 mm (9 1/3 inch);

F 2412 Vi

F 2412 SF

F 2472 Vi

F 2472 SF: 237 mm (9 1/3 inch);

K 2611 Vi

F 2671 Vi

F 2671 SF

KWT 2611 Vi

KWT 2611 SF

KWT 2671 ViS: 296 mm (11 2/3 inch);

K 2612 Vi

F 2672 Vi

F 2672 SF

KWT 2612 Vi

KWT 2612 SF

KWT 2672 ViS: 296 mm (11 2/3 inch);

K 2811 Vi

K 2811 SF

F 2811 SF

F 2811 Vi

KF 2811 Vi

KF 2811 SF: 363 mm (14 1/3 inch);

K 2812 Vi

K 2812 SF

F 2812 SF

F 2812 Vi

KF 2812 Vi

KF 2812 SF: 363 mm (14 1/3 inch);

K 2911 Vi

K 2911 SF

F 2911 Vi

F 2911 SF

KF 2911 Vi

KF 2911 SF: 428 mm (16 7/8 inch);

K 2912 Vi

K 2912 SF

F 2912 Vi

F 2912 SF

KF 2912 Vi

KF 2912 SF: 428 mm (16 7/8 inch);

E) ONLY valid for SF versions: A + 25 mm (1 inch)

Descriptions

Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)

1) Heating mat KSK 2001 (EU

AUS

CN) or KSK 2002 (US

CA

MX

BR)

Descriptions

KF2801Vi, KF2811SF, KF2811Vi, KF2811SF, KF2802Vi, KF2812SF, KF2812Vi, KF2812SF, MasterCool, installation drawings

1. View from the front

2. Mains Connection cable

L = 3000 mm

3. Water inlet positon

L = 2000mm

4. No water/ELT conections permitted in this area

Descriptions

KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings

Descriptions

Side-by-Side, MasterCool, footnote, installation drawings

1. KSK 2001/2002

2. Device A

3. Device B

A = niche device A

B = niche device B

Descriptions

KFP3015ed/cs, KFP3025ed/cs, KFP3014ed/cs, KFP3024ed/cs, Front panel, Front dimensions, MasterCool, sketch
