Product Information

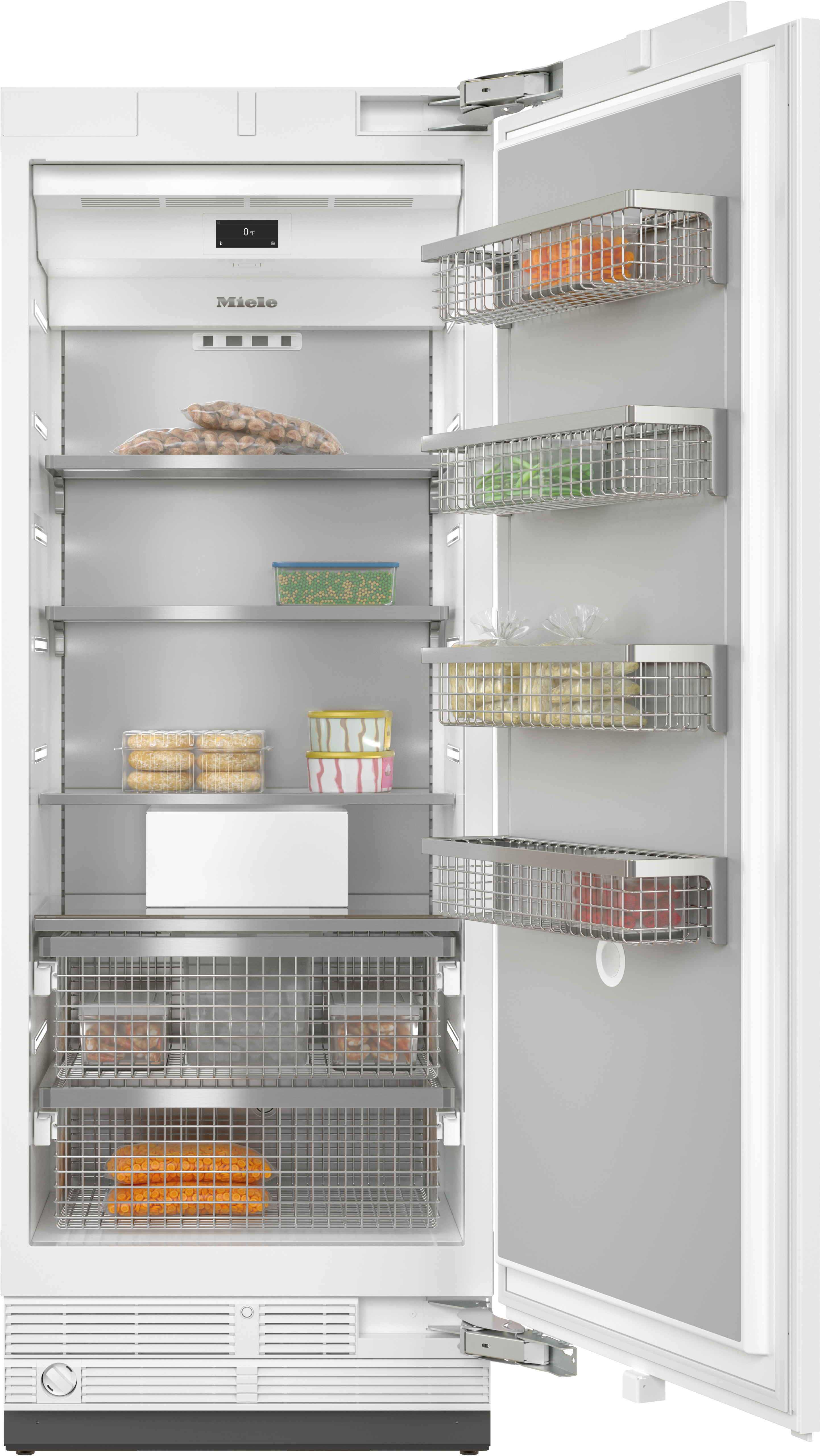

F 2802 Vi
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
Your advantages
MasterCool™ - IceMaker
Ice cubes for cold drinks
MasterCool – NoFrost
Defrosting is a thing of the past
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool – NoFrost
Defrosting is a thing of the past
MasterCool – MasterSensor
Convenient operation with a tap of a finger
MasterCool – BrilliantLight
Perfectly lit
MasterCool – Push2open
The perfect solution for a handleless design
MasterCool™ - IceMaker
Ice cubes for cold drinks
MasterCool – MaxLoad hinge
Safe handling guaranteed
Product data sheet
| Freezer | • |
| Built-in | • |
| Built-in integrated | • |
| Door hinge side | Right convertible |
| Convertible hinging | • |
| Can be installed side-by-side | • |
| Lighting | BrilliantLight |
| Networking with Miele@home | • |
| Freshness system | BrilliantLight Full Access MaxLoad Schanier NoFrost IceMaker mit Frischwasseransch EasyClean |
| NoFrost | • |
| NoFrost | • |
| SoftClose door closing damper | • |
| IceMaker with mains water connection | • |
| Push2open | • |
| FullAccess | • |
| EasyClean | • |
| MaxLoad hinge | • |
| Electronic temperature display and control | MasterSensor |
| SuperFrost | • |
| No. of temperature zones | 1 |
| Sabbath mode | • |
| Eco mode | • |
| Door baskets – small | 1 |
| Door baskets – large | 3 |
| Number of shelves | 2 |
| Number of freezer baskets | 2 |
| Energy Star Qualified | • |
| Lock function | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm, freezer section | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Niche width in inches (mm), min. | 30 (762) |
| Niche width in inches (mm), max. | 30 (762) |
| Niche height in inches (mm), min. | 84 1/8 (2134) |
| Niche height in inches (mm), max. | 84 1/8 (2134) |
| Niche depth in in.(mm) | 24 7/8 (629) |
| Appliance width in in.(mm) | 29 7/8 (756) |
| Appliance height in in.(mm) | 83 3/4 (2125) |
| Appliance depth in in.(mm) | 24 (608) |
| Weight in lbs.(kg) | 341 (154.4) |
| Type of mounting | Fixed door |
| Maximum fridge compartment door front weight in lbs. (kg) | 62 (28) |
| Current consumption in milliampere (mA) | 4000 |
| Voltage in V | 110-120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Frequency in Hz | 60 |
| Wire length in ft (m) | 9 (3.0) |
| Replacing bulbs | Customer Service |
| Available display languages via MultiLingua | français eesti ελληνιкά čeština 繁體中文 slovenčina latviesu slovenščina 中文 polski français (FR) lietuviu magyar nederlands hrvatski yкраїнська bahasa malaysia deutsch english (GB) italiano türkçe dansk 日本語 suomi română english (AU) english (CA) español english srpski العربية svenska français (CA) norsk pусский english (US) português 한국어 |
Optional products and accessories
- Warranty conditionsPDF
- Product sheetPDF
- Operating and Installation instructionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- dwgZIP
- ifcZIP
- fbxZIP
- rfaZIP
- rvtZIP
Follow the link and you will find all the resources you need for planning and installing any of our products
- Energy labelPDF
- PNG
- JPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
- Open Source LicencePDF
Follow the link and you will find all the resources you need for planning and installing any of our products
F2812Vi, F2813Vi, F2802Vi, F2811Vi, F2801Vi, MasterCool, inner space, installation drawings
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU
AUS
CN) or KSK 2002 (US
CA
MX
BR)
F2802Vi, F2812Vi, F2813Vi, F2812SF, F2801Vi, F2811Vi, F2811SF, installation, MasterCool, installation drawings
1. View from the front
2. Mains Connection cable
L = 3000 mm (118 inch)
3. Water inlet positon
L = 2000 mm (not for KON USA)
4. No water/ELT conections permitted in this area
Sideview, MasterCool, Sketch
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002
2. Device A
3. Device B
A = niche device A
B = niche device B
KFP3005ed/cs, KFP3004ed/cs, Front panel, Front dimensions, MasterCool II, installation drawings
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width
F 2462 Vi: 525 mm (20 2/3 inch);
F 2662 Vi: 677 mm (26 2/3 inch);
F 2802 Vi: 829 mm (32 2/3 inch);
F 2902 Vi: 982 mm (38 2/3 inch);
B) Furniture front (max. 38 mm) (1 1/2 inch)
C) Door handle
D) Distance door to wall (without furniture front and door handle):
F 2462 Vi: 237 mm (9 1/3 inch);
F 2662 Vi: 296 mm (11 2/3 inch);
F 2802 Vi: 363 mm (14 1/3 inch)
F 2902 Vi: 428 mm (16 7/8 inch)
E) ONLY valid for SF versions: A + 25 mm (1 inch)
