M 2241 SC
$1,699.00
Find a dealer

Product Information

Built-in microwave oven, 24" width  with sensor controls on the side for convenient operation.
  • 7-segment display with sensor controls – EasySensor
  • Perfect defrosting and cooking – Automatic Programs
  • Food remains at serving temperature – keep warm function
  • Compact 0.92 cu. ft. oven capacity
  • Popcorn and drinks at the touch of a button

M 2241 SC

Built-in microwave oven, 24" width  with sensor controls on the side for convenient operation.
  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Product Information

Built-in microwave oven, 24" width  with sensor controls on the side for convenient operation.
  • 7-segment display with sensor controls – EasySensor
  • Perfect defrosting and cooking – Automatic Programs
  • Food remains at serving temperature – keep warm function
  • Compact 0.92 cu. ft. oven capacity
  • Popcorn and drinks at the touch of a button

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in microwave oven
Neutral design
SideControl
Appliance colorObsidian black
Keep-warm function
MasterChef automatic programsYes
Microwave solo operation
DisplayEasySensor
Popcorn function
Drinks functions
Timers
Time of day display
Minute minder
Programmable cooking time
Minute Plus button
Individual settings
Stainless-steel oven cavity
System lock
Safety switch
Child lock "Door" in display
Cavity volume in cu.ft (l)0.92 (26)
23 1/2 (595)<NBSP/>x<NBSP/>17 7/8 (452) x<NBSP/>15 7/8 (401)
Door hinge sideLeft
Oven interior lighting1 LED spot
Cavity height in in. (cm)8 1/4 (20.7)
Turntable diameter in in. (cm)12 7/8 (32.5)
Electronically controlled microwave power
Microwave power levels1-7
Maximum microwave output in W900
Niche width min. in inches (mm)22 1/4 (562)
22 1/4 (562)-22 3/8 (568) x 17 3/4 (450)-17 7/8 (452) x 550
Niche width max. in inches (mm)22 3/8 (568)
Niche height min. in inches (mm)17 3/4 (450)
Niche height max. in inches (mm)17 7/8 (452)
Niche depth in in. (mm)550
Appliance width in in. (mm)23 1/2 (595)
Appliance height in in. (mm)17 7/8 (452)
Appliance depth in in. (mm)15 7/8 (401)
Weight in lbs. (kg)40 (18.0)
Niche-independent venting
Total connected load in kW1.40
Power Rating in V120
Frequency in Hz60
Number of phases1
Fuse rating in A10
Connection wire with plug
Length of power cord in in. (m)1.60
Downloads, CAD, & apps
  • Product sheet
    PDF
  • Warranty conditions
    PDF
  • Operating and Installation instructions
    PDF

Follow the link and you will find all the resources you need for planning and installing any of our products

  • fbx
    ZIP
  • rfa
    ZIP
  • ifc
    ZIP
  • dwg
    ZIP
  • rvt
    ZIP

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions

M2241SC, Installation, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

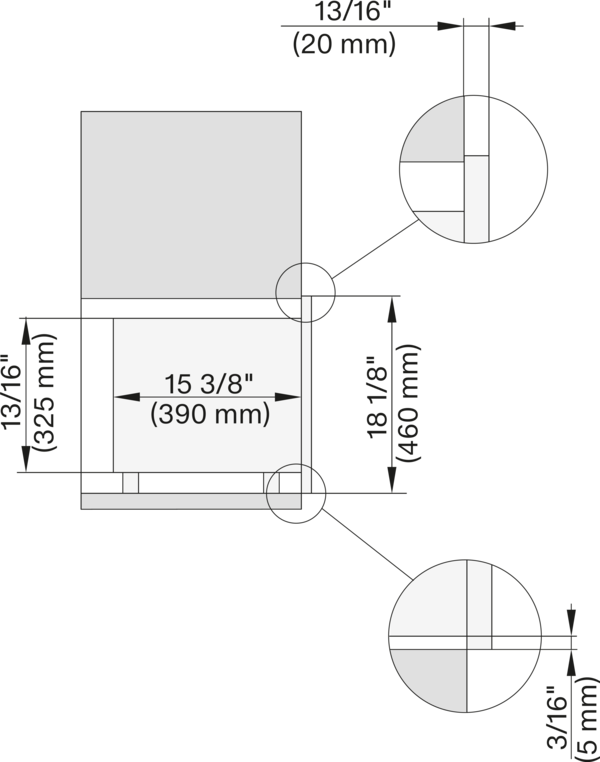

M2241SC, Seitenansicht, 30 Zoll, Flush, inset - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M2241SC, Seitenansicht, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M2241SC, Einbau, 30 Zoll, Flush, inset - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M2241SC, Einbau, 30 Zoll, Flush, inset, breite Front - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M2241SC, Einbau, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

Descriptions

M2241SC, Einbau, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA

Descriptions

M2241SC, Installation, 30 Zoll, Flush, inset - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Installation, 30 Zoll, Flush, inset, breite Front - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Seitenansicht, 30 Zoll, Proud, Oberschrank - Skizze - NA

7/8“ - 22* mm – Glass

15/16“ - 23.3** mm – Stainless steel

Descriptions

M2241SC, Installation, 30 Zoll, Flush, inset, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Einbau, 30 Zoll, Proud - Skizze - NA

Descriptions

M2241SC, Installation, 30 Zoll, Flush, inset, breite Front, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Einbau, 30 Zoll, Proud, breite Front - Skizze - NA

Descriptions

M2241SC, Einbau, 30 Zoll, Proud, Oberschrank - Skizze - NA

Descriptions

M2241SC, Einbau, 30 Zoll, Proud, breite Front, Oberschrank - Skizze - NA

Descriptions

M2241SC, Installation, 30 Zoll, Proud - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Installation, 30 Zoll, Proud, breite Front - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

M2241SC, Installation, 30 Zoll, Proud, Oberschrank - Skizze - NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

! - Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection
