DGC 7640 AM
$5,399.00
Find a dealer

Product Information

24" Compact Combi-Steam Oven XL for steam cooking, baking, roasting with roast probe + menu cooking.

Inside the Box

  • Universal tray with PerfectClean HUBB 71 (1)
  • Wire rack with PerfectClean HBBR 71 (1)
  • PerfectClean FlexiClip telescopic runners HFC 71 (pair) (1)
  • Removable side racks with PerfectClean (pair) (1)
  • Perforated stainless-steel cooking containers (1)
  • Solid stainless steel cooking containers (1)
  • Descaling tablets (2)
  • Wired food probe (1)

DGC 7640 AM

24" Compact Combi-Steam Oven XL for steam cooking, baking, roasting with roast probe + menu cooking.
  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Product Information

24" Compact Combi-Steam Oven XL for steam cooking, baking, roasting with roast probe + menu cooking.

Inside the Box

  • Universal tray with PerfectClean HUBB 71 (1)
  • Wire rack with PerfectClean HBBR 71 (1)
  • PerfectClean FlexiClip telescopic runners HFC 71 (pair) (1)
  • Removable side racks with PerfectClean (pair) (1)
  • Perforated stainless-steel cooking containers (1)
  • Solid stainless steel cooking containers (1)
  • Descaling tablets (2)
  • Wired food probe (1)

Your advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Combi-steam oven
PureLine
Appliance colorClean Touch Steel
Rapid PreHeat
Preheating

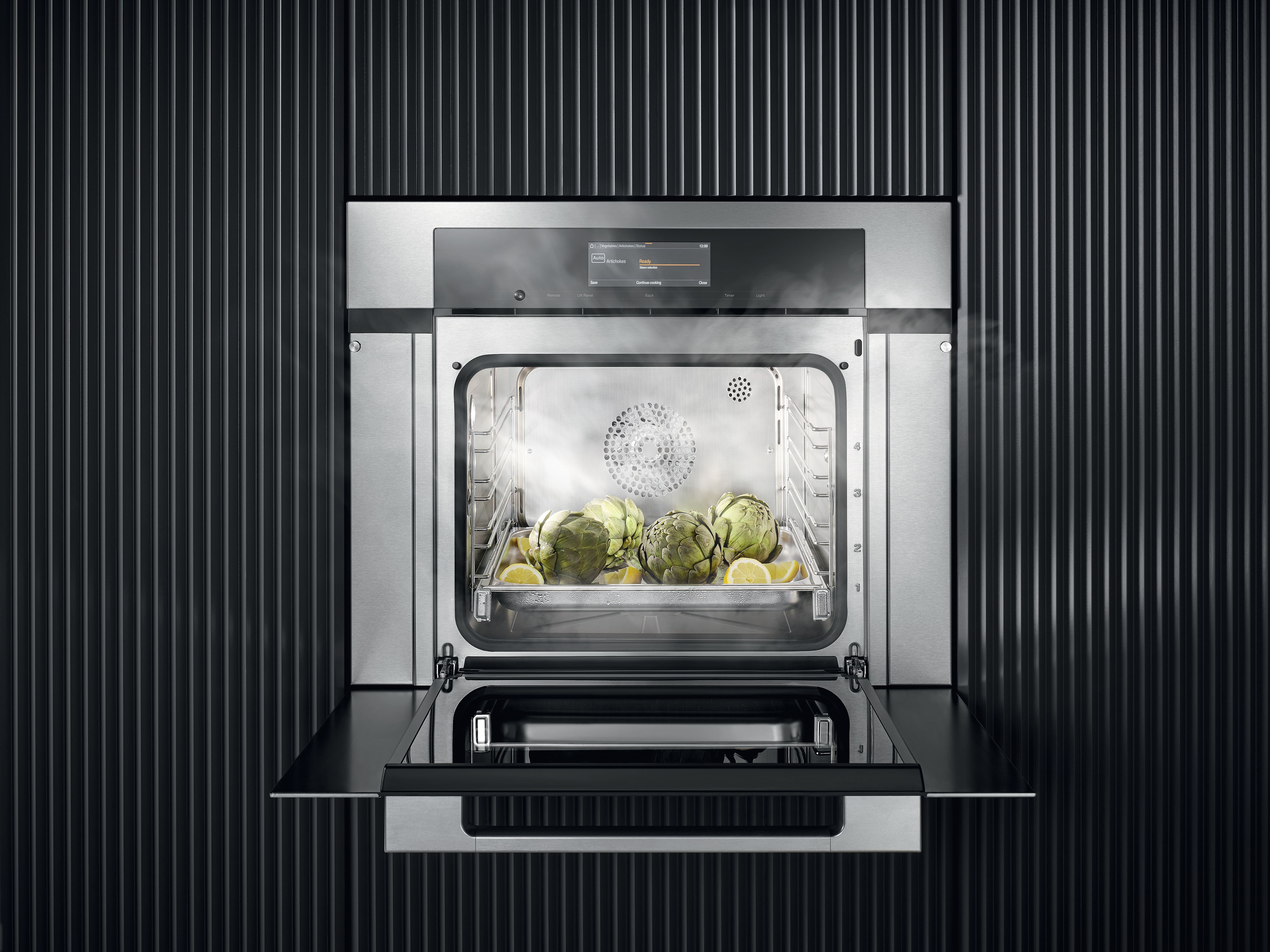

External steam generation
Climate sensor
Individual humidity settings in combination cooking
Menu cooking without transfer of taste
Miele Mix & Match
Roast probewired
Automatic programs with individual setting of the cooking result

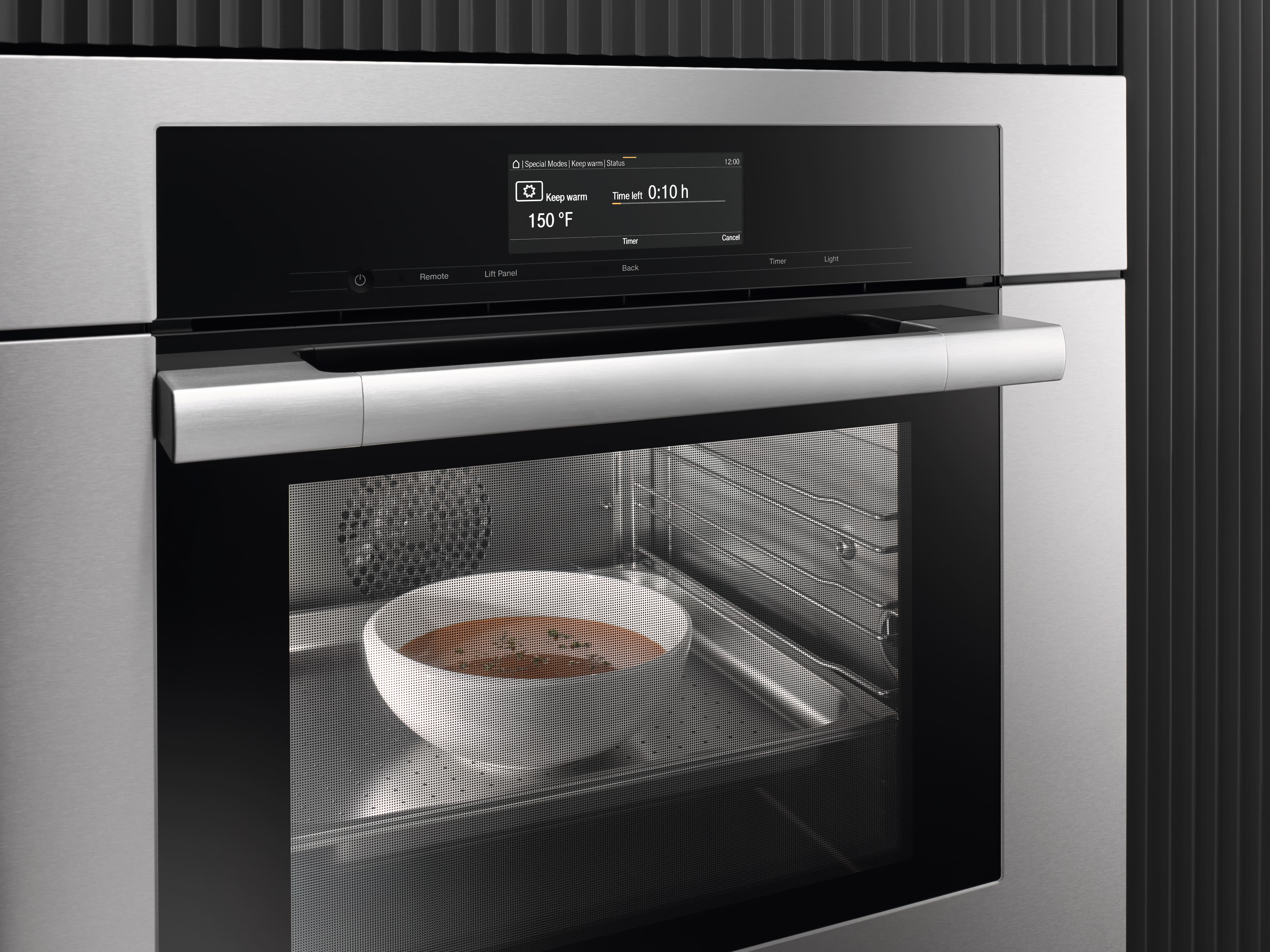

Keep-warm function

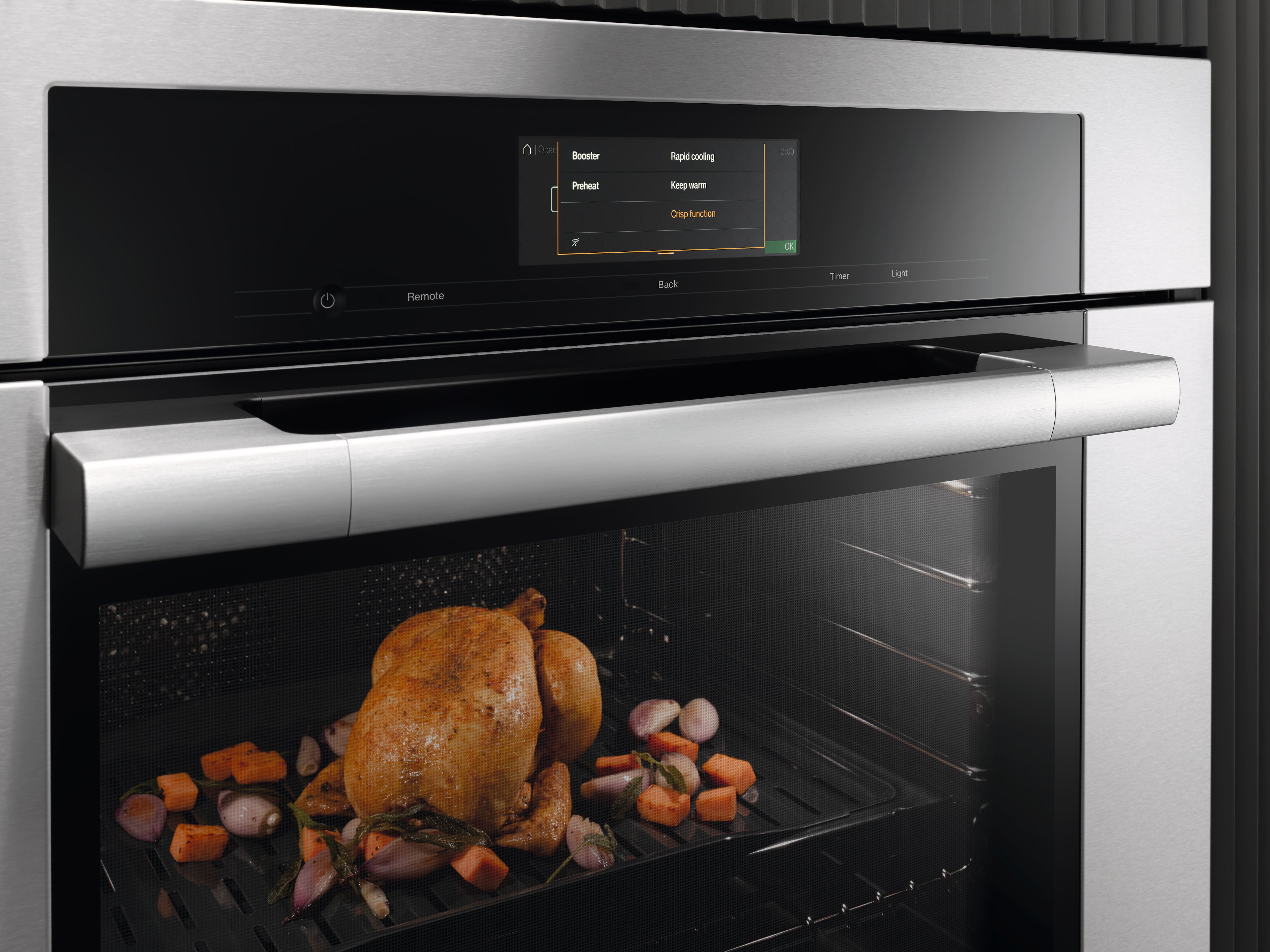

Crisp Function
Defrost
MasterChef automatic programs
Country-specific automatic programs

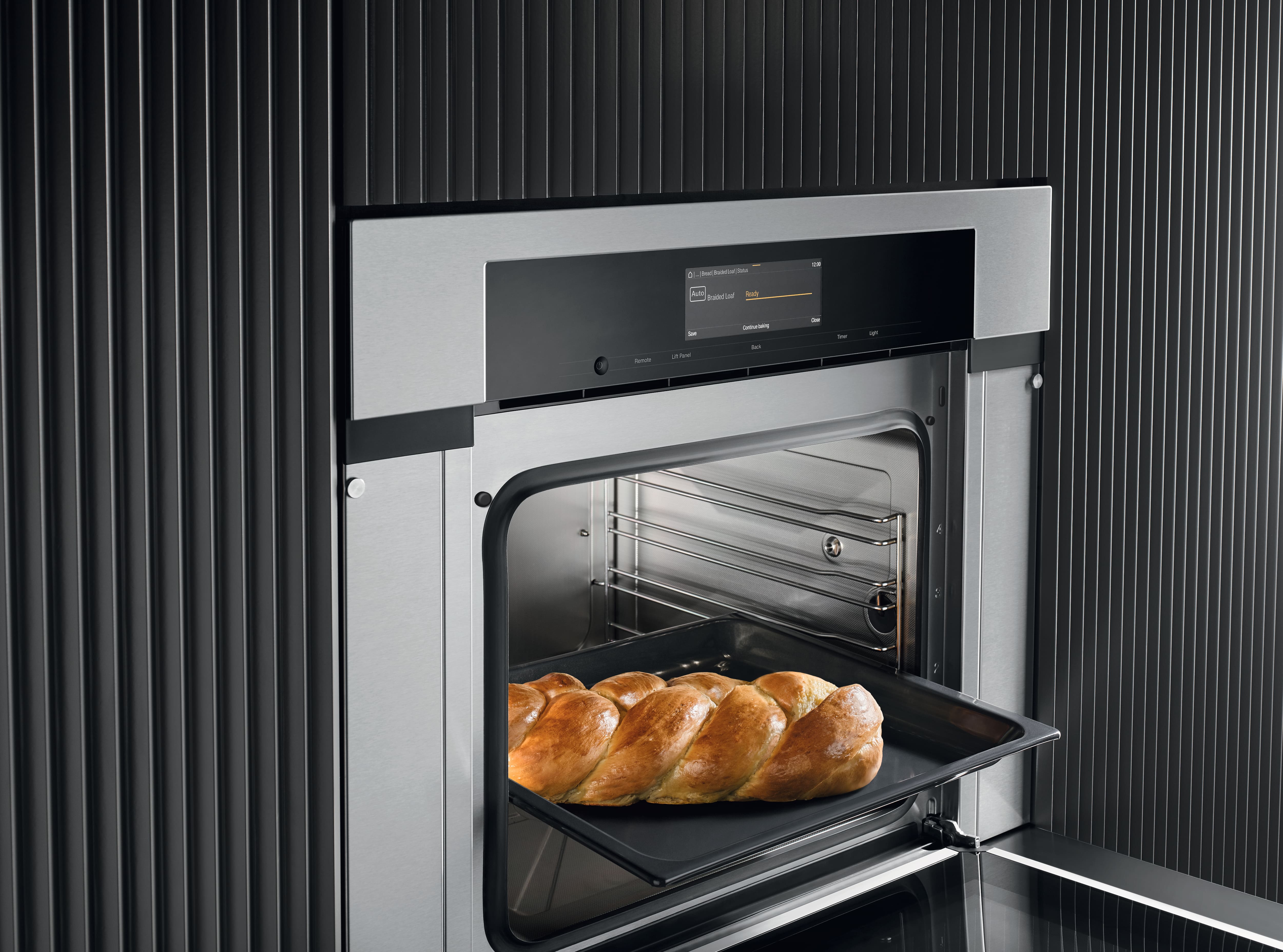

Combi cooking
Combi-Steam
Combi-Steam with Convection Bake
Combi-Steam with Surround
Combi-Steam with Maxi Broil
Steam cooking
Sous-vide
Reheating
Roast with moisture
Broiling operating modes
Maxi Broil
Broil
Convection Bake
Convection Roast
Intensive Bake
Intensive
Cake plus
Humidity Plus
Surround
Browning
Bake
Convection Roast
Convection Broil
Warm-up cookware
Special Modes
Networking with Miele@home

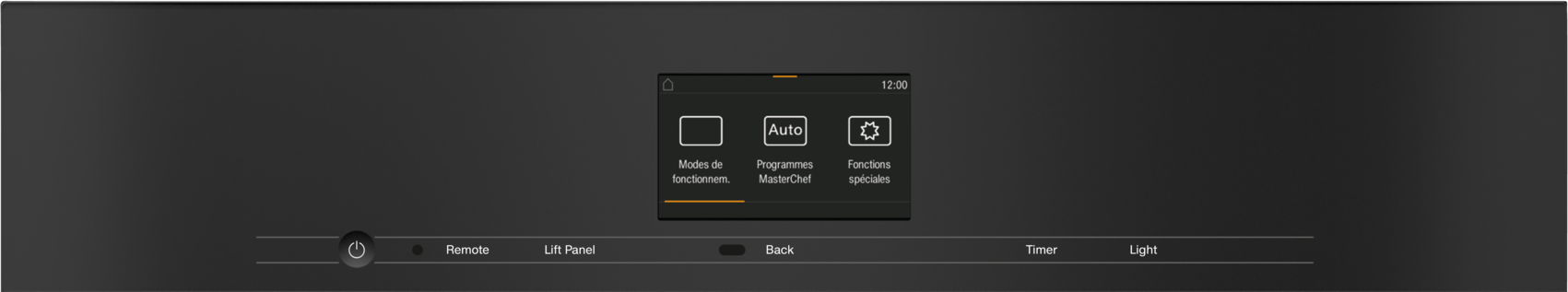

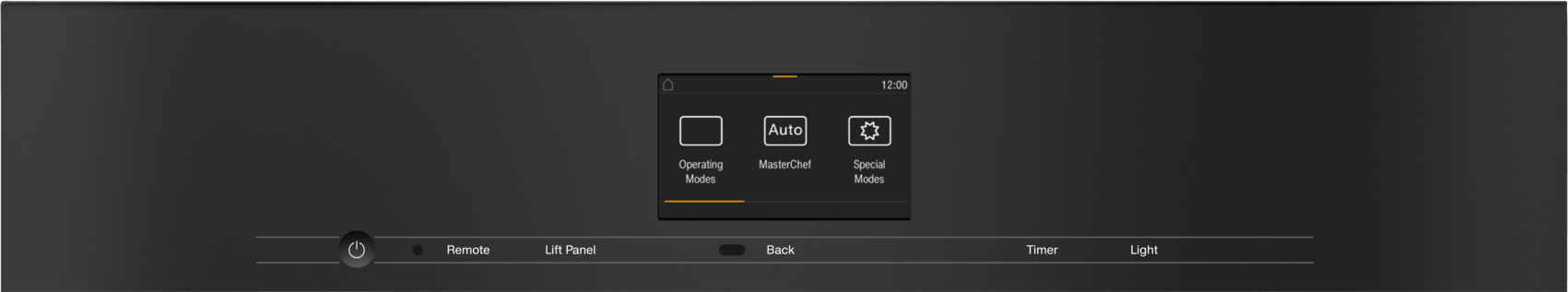

DisplayM Touch S Display
Clear text on control panel
MotionReact proximity sensor

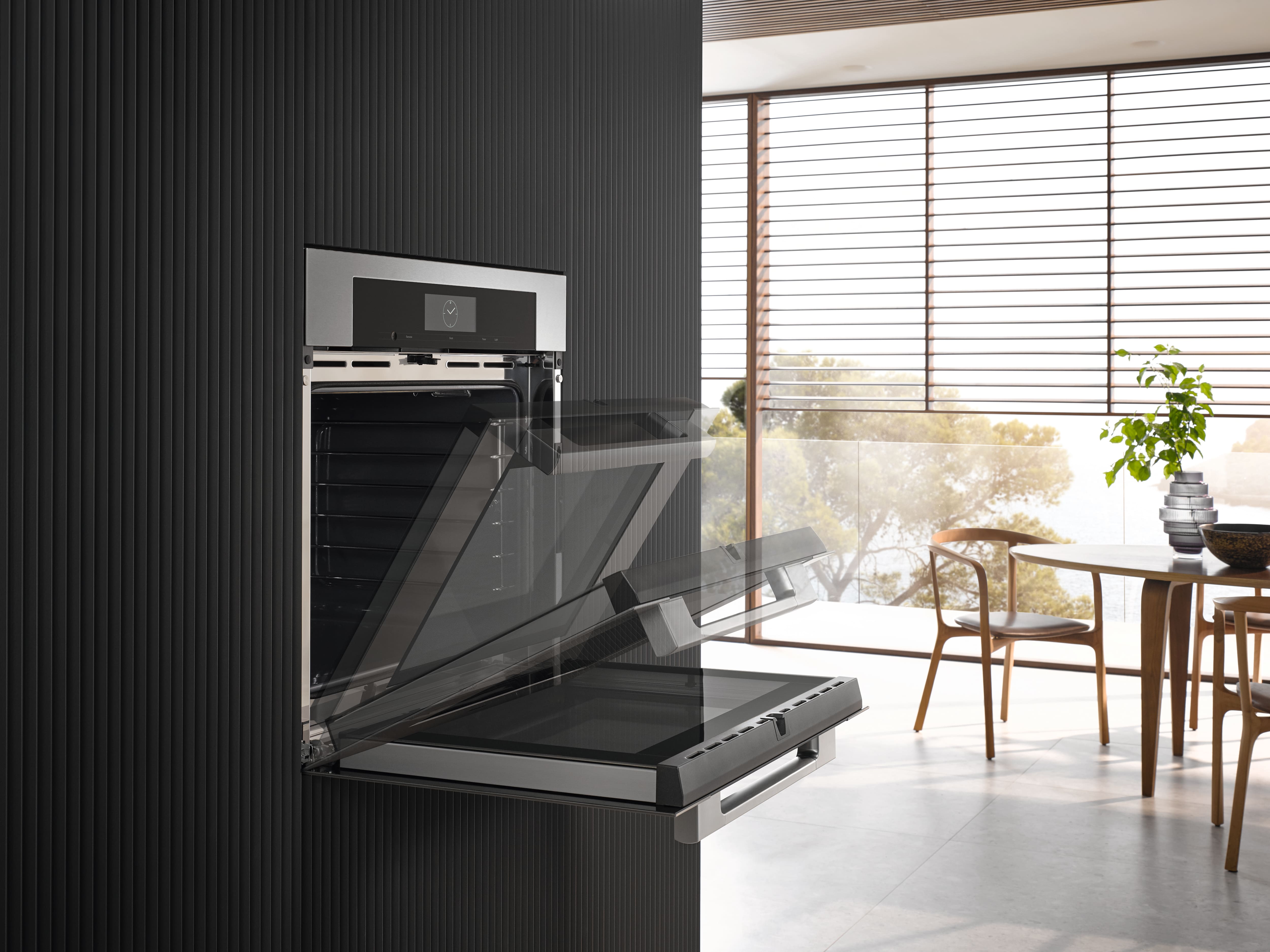

SoftOpen
SoftClose
MultiLingua
MyMiele
Show me how

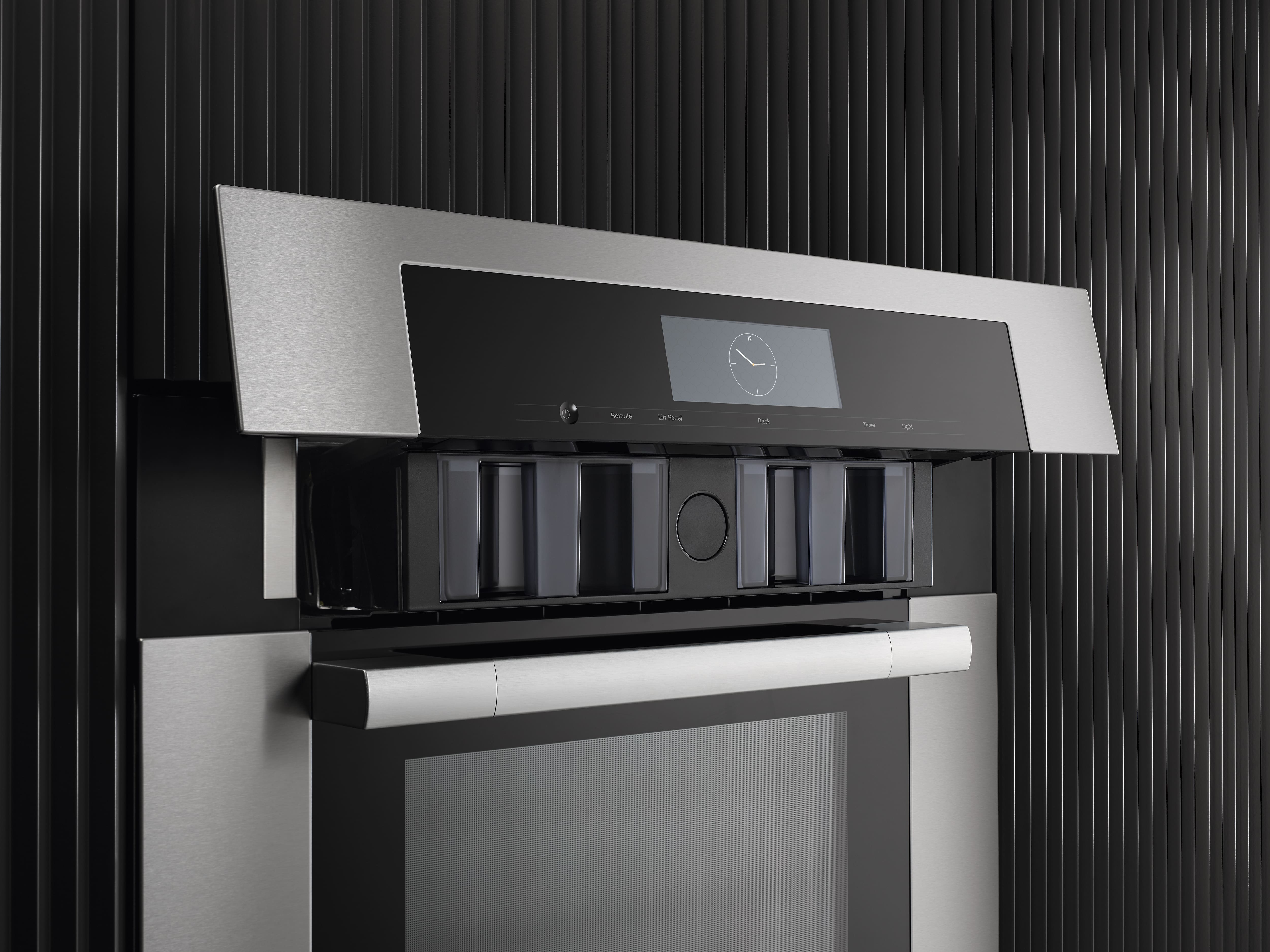

Motorized lift-up control panel with SoftClose

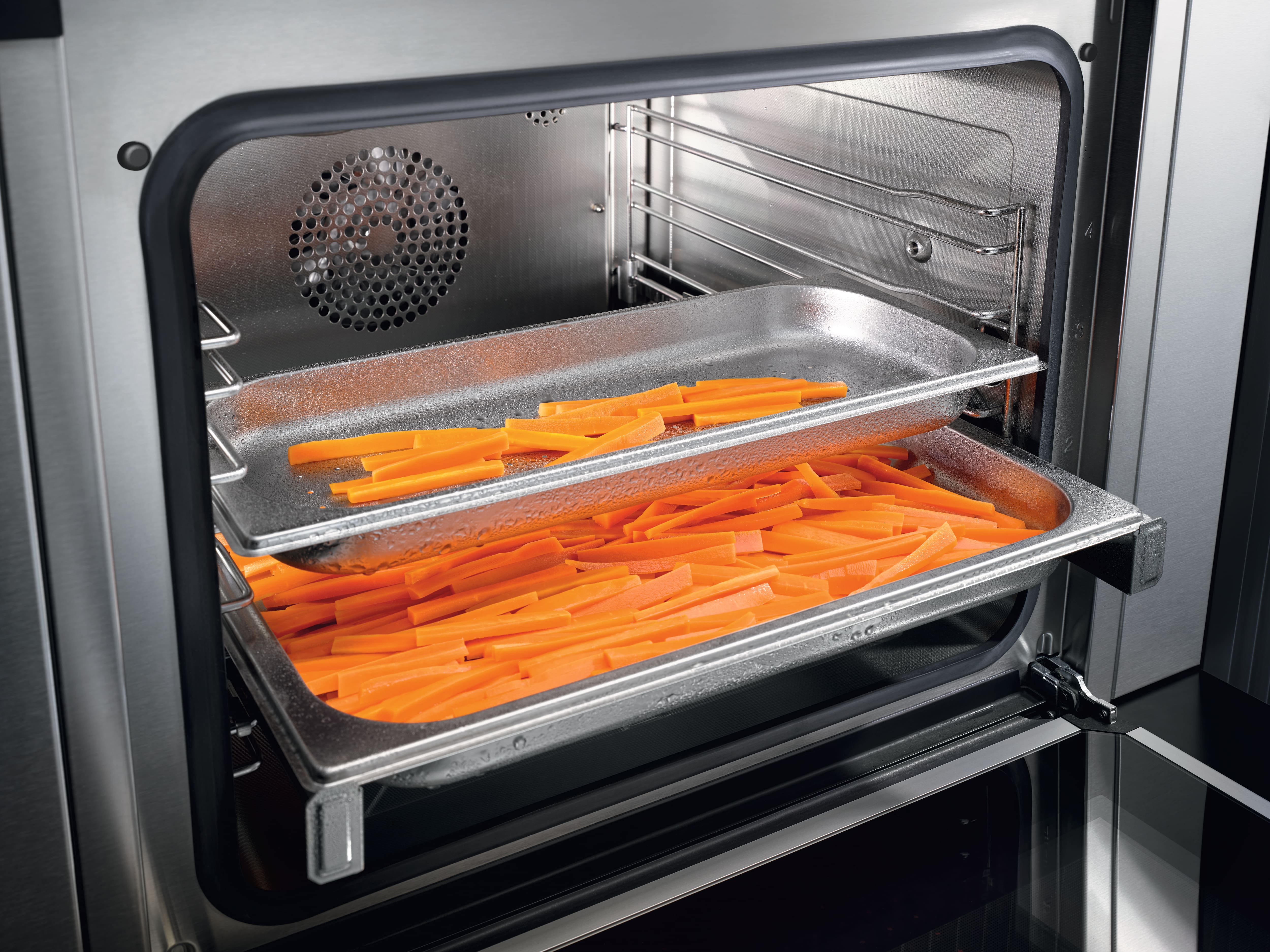

Quantity-independent cooking
Steam cooking on up to 3 levels at the same time
Automatic menu cooking
Steam reduction before end of programme

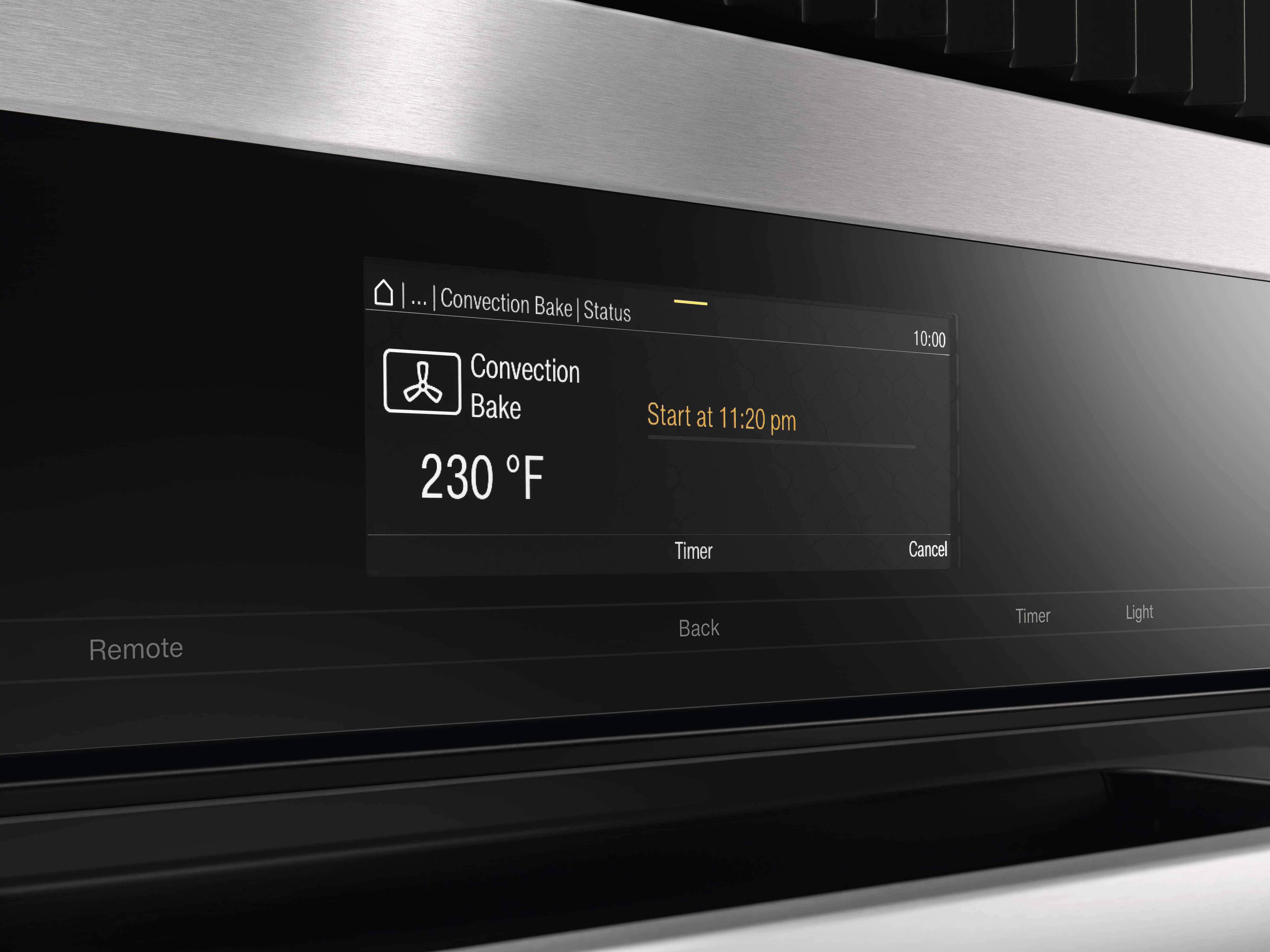

Timers
Time of day display
Date display
Minute minder
Programming start of cooking duration
Programming end of cooking duration
Programmable cooking time
Actual temperature display
Desired temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Clean Touch Steel surface

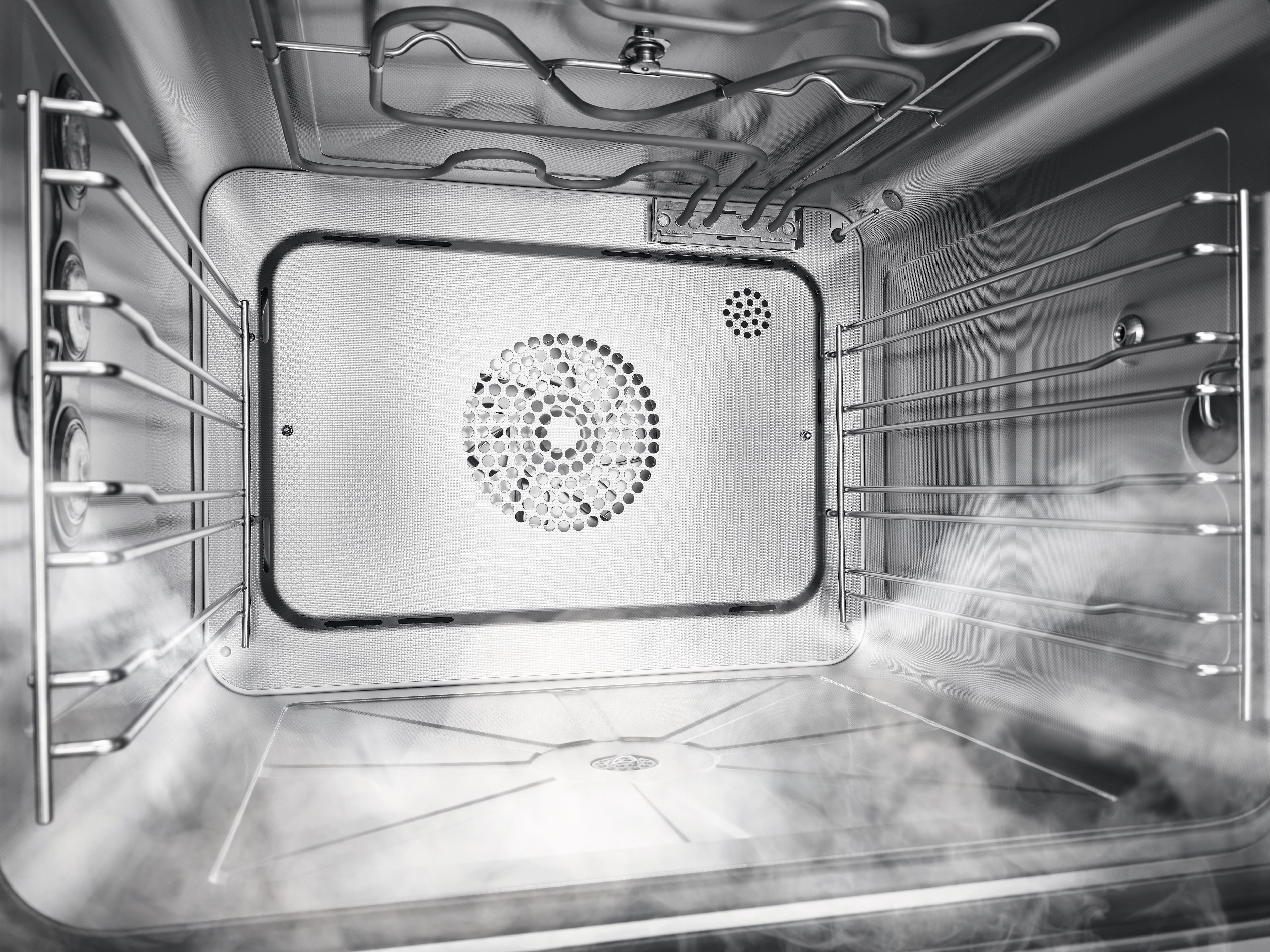

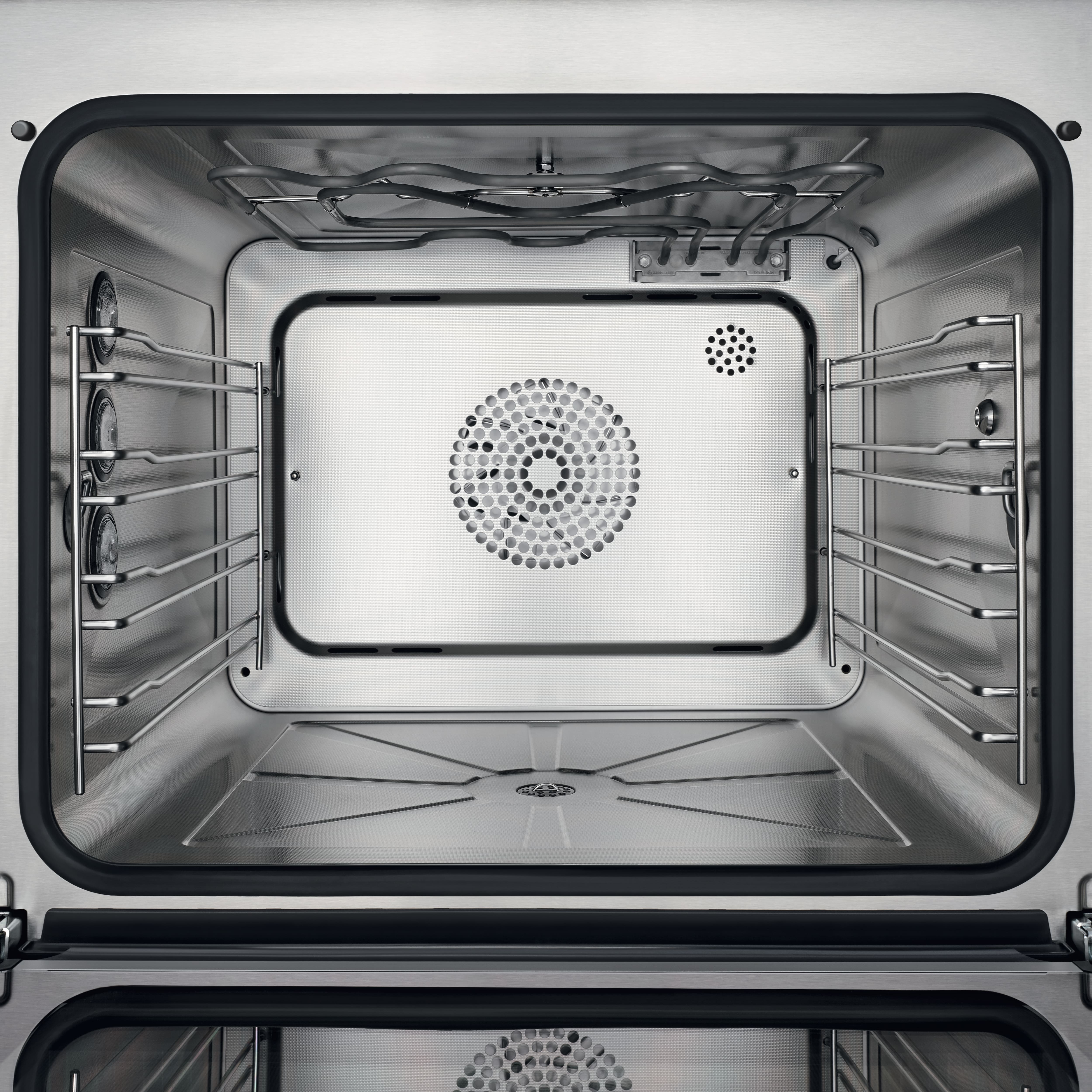

Stainless steel oven compartment with linen-weave pattern and PerfectClean finish
Foldable broil heater element
External steam generator
Maintenance programs
Soak program
Rinse program
Cavity drying program
Quick-release side racks
Removable side racks
Descaling
CleanGlass door
DualSteam
Fresh water container volume in l1.40
Fresh-water container tank behind motorized lift-up control panel with SoftClose
Condensate container behind motorized lift-up control panel with SoftClose
Drain filter
Appliance cooling system and cool touch front
Cooling system with cool touch front
Safety cut-out
Safety shut-off
System lock
Vapor cooling system
Sensor lock
No. of rack levels3
Labeling of rack levels
Door hinge sideBottom

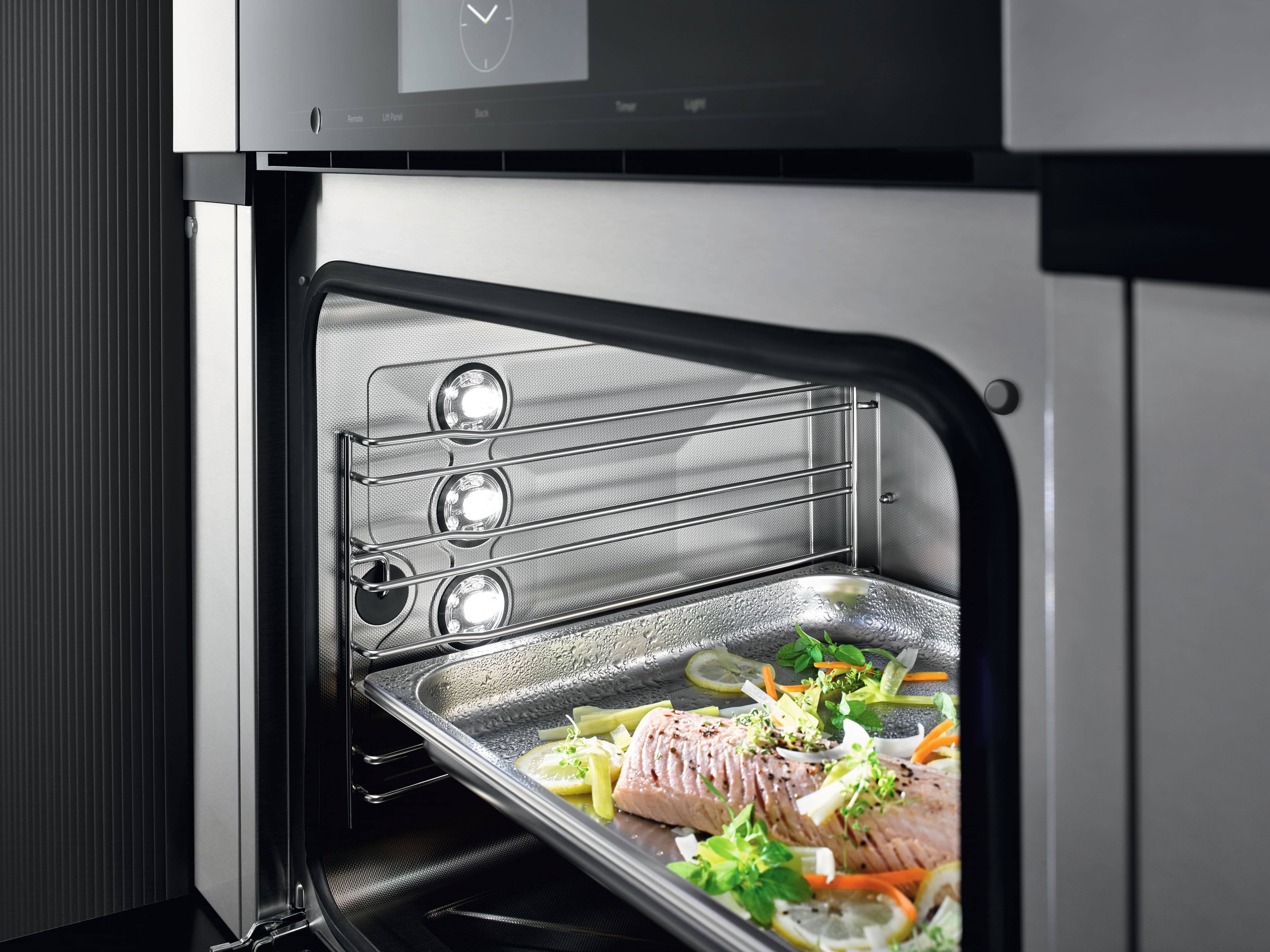

Oven interior lightingBrilliantLight
Oven mode temperatures in °F (°C)85-450 °F (30-230 °C)
Niche dimensions (W x H x D) in inches (mm)560-568 x 450-452 x 555
Niche width min. in inches (mm)560
Niche width max. in inches (mm)568
Niche height min. in inches (mm)450
Niche height max. in inches (mm)452
Niche depth in in. (mm)555
Appliance dimensions (W x H x D) in inches (mm)23 1/2 (595) x 18 (456) x 22 1/2 (569)
Weight in lbs. (kg)91 (41.2)
Total connected load in kW2.80-3.70
Power Rating in V0
Usable voltage range in V240/208
Frequency in Hz60
Fuse rating in A20
Number of phases2
Connection wire with plug
Length of power cord in in. (m)2
Replacing bulbsCustomer Service
Universal tray with PerfectClean HUBB 711
Wire rack with PerfectClean HBBR 711
PerfectClean FlexiClip telescopic runners HFC 71 (pair)1
Wired food probe1
Removable side racks with PerfectClean (pair)1
Perforated stainless-steel cooking containers1
Solid stainless steel cooking containers1
Descaling tablets2
Available display languages via MultiLinguafrançais
ελληνιкά
čeština
繁體中文
slovenčina
slovenščina
中文
polski
magyar
nederlands
hrvatski
yкраїнська
bahasa malaysia
deutsch
italiano
türkçe
日本語
dansk
suomi
română
español
english
srpski
العربية
svenska
norsk
pусский
português
한국어

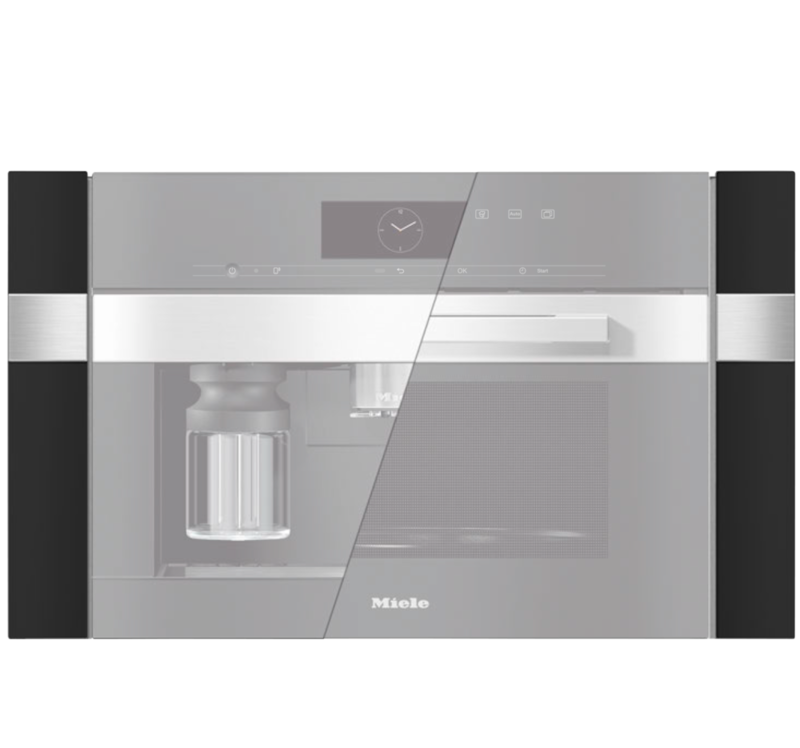

Optional products and accessories

Downloads, CAD, & apps
  • Warranty conditions
    PDF
  • Operating and Installation instructions
    PDF
  • Product sheet
    PDF

Follow the link and you will find all the resources you need for planning and installing any of our products

  • rvt
    ZIP
  • ifc
    ZIP
  • fbx
    ZIP
  • rfa
    ZIP
  • dwg
    ZIP

Follow the link and you will find all the resources you need for planning and installing any of our products

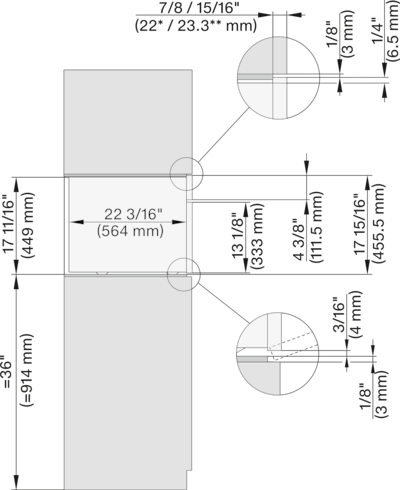

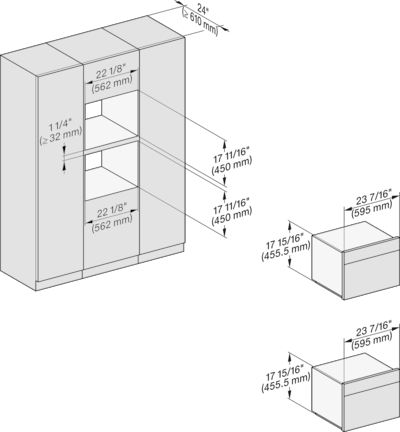

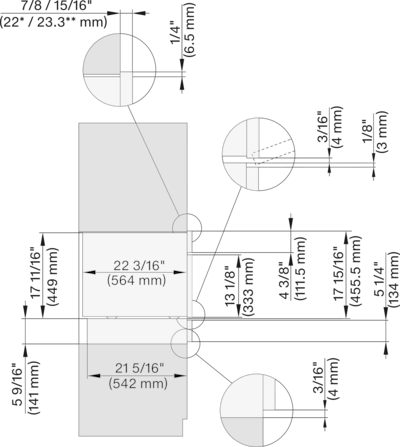

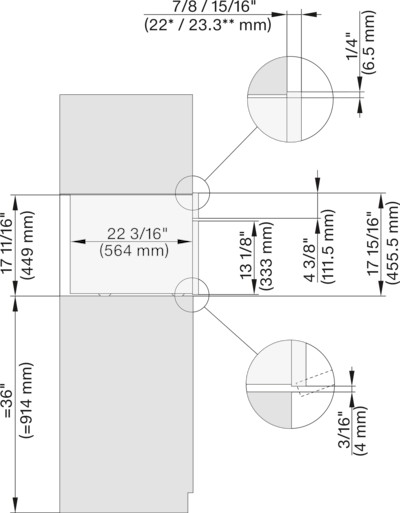

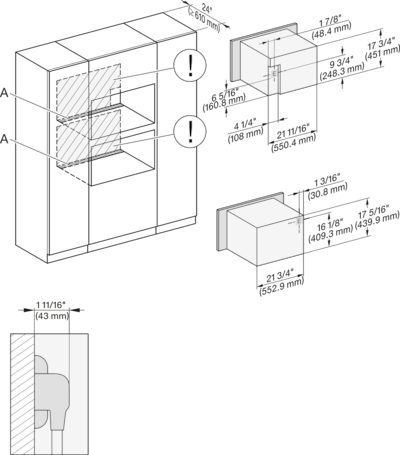

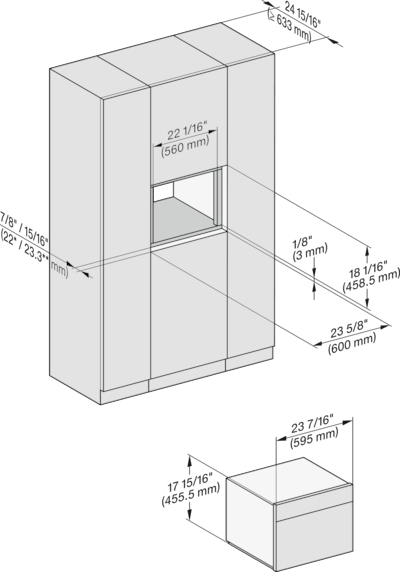

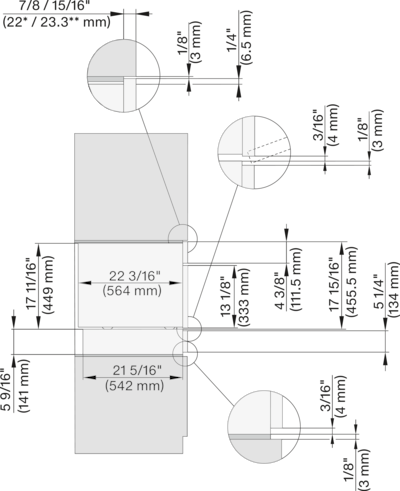

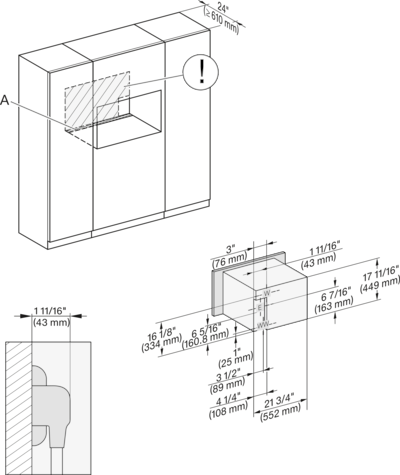

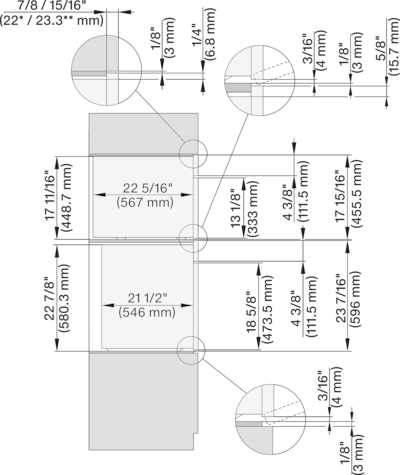

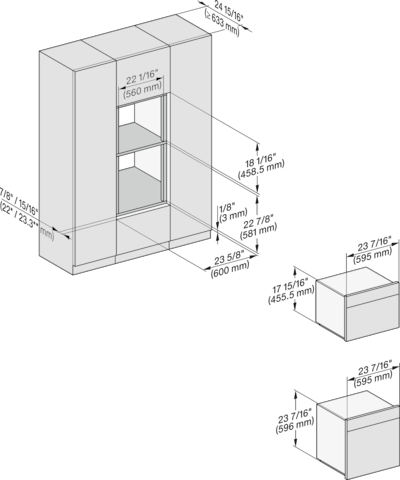

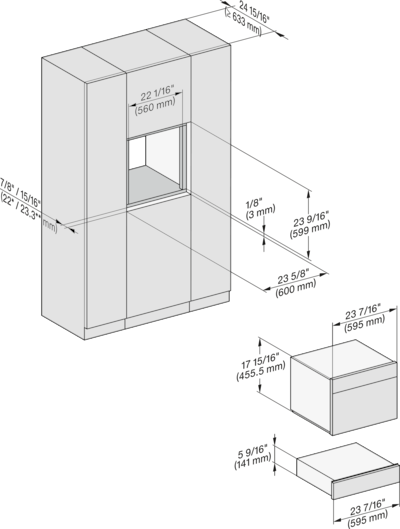

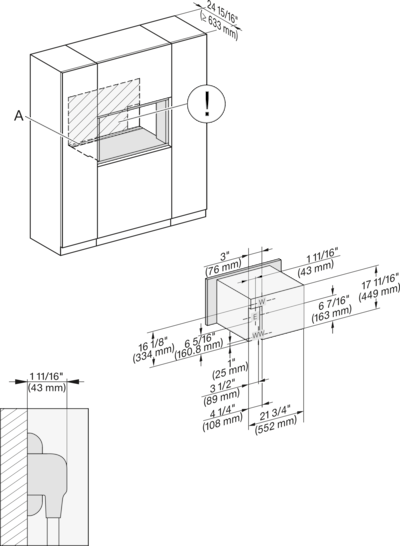

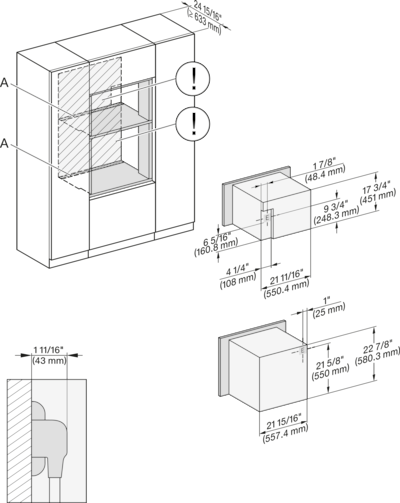

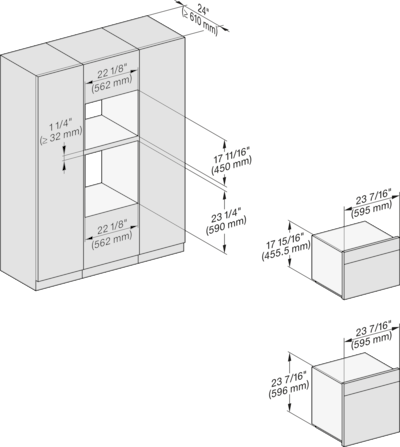

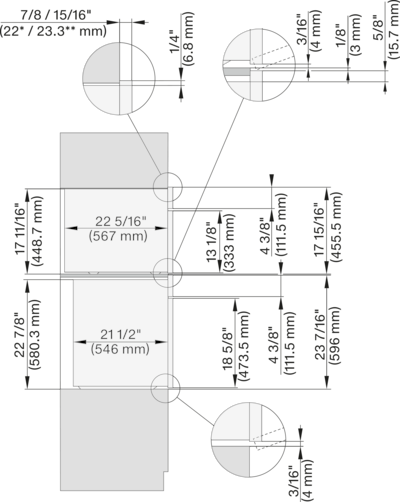

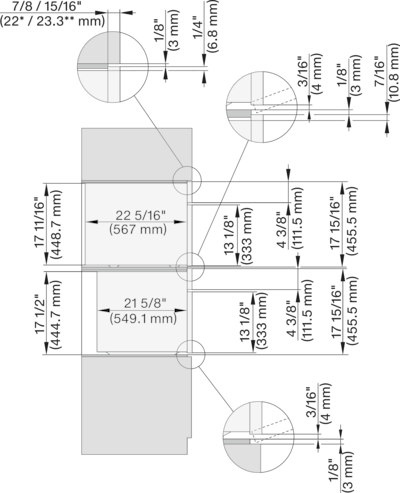

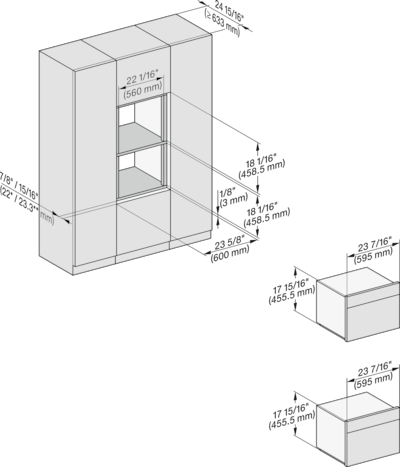

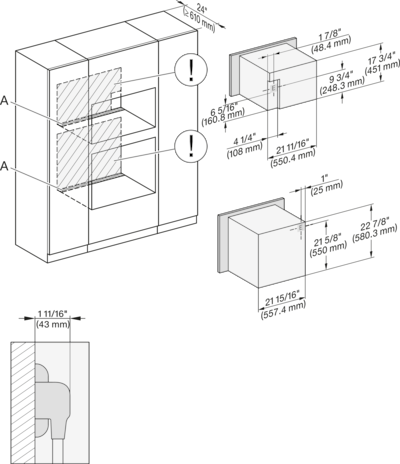

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts.
Descriptions

Swivel range Flush inset DGC XL, installation drawing, NA

Descriptions

side view 30 inch Flush inset DGC XL, installation drawing, NA

Descriptions

side view 30 inch Proud DGC XL, installation drawing, NA

Descriptions

installation 30 inch Flush inset DGC XL, installation drawing, NA

Descriptions

installation Proud 450S, installation drawing, NA

Descriptions

installation 30 inch Flush inset wide front DGC XL, installation drawing, NA

Descriptions

installation Flush inset wide front 450S, installation drawing, NA

Descriptions

swivel range Proud DGC XL, installation drawing, NA

Descriptions

installation Proud wide front 450S, installation drawing, NA

Descriptions

installation 30 inch Proud DGC XL, installation drawing, Na

Descriptions

installation 30 inch Proud wide front DGC XL, installation drawing, NA

Descriptions

DGC 6x00-1 + EBA 6808, H 6x00 BM + EBA 6808, DGC7xxx, H7xxx, EBA7848 Combi, Installation drawing, Flush inset, NA

Descriptions

DGC6x00-1+EBA 6808, H 6560B+EBA 6808, H 6x60 BP+EBA6808, DGC7xxx, H7xxx, EBA78x8 Combi, Install. drawi., Flush inset, NA

Descriptions

DGC 6x00-1 + EBA6808, H 6x00 BM+EBA 6808, DGC7x4x(+EBA7848), H7x40BM(+EBA7848),Combi, Installation drawing, Proud, NA

Descriptions

DGCxxxx-1+EBAx8x8, H6560B+EBA6808, HxxxxBP+EBAx8x8, Combi, Installation Drawing, Proud, Flush inset, NA

Descriptions

DGC7x40, ESW7x10, EVS7010, side view, 30 Zoll, Proud, combi,XL

Descriptions

DGC7x4x, ESW7x10, EVS7010, side view, 30 Zoll, Flush inset, combi, XL

Descriptions

DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 450S

Descriptions

DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, Proud, combi, XL, 650S

Descriptions

DGC7x4x, H7x40BM, Einbau, 30 Zoll, Flush inset, combi 450S

Descriptions

DGC7x4x(+EBA7848), H7x40BM(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front XL, 450S

Descriptions

DGC7x40, DGC7485, H7x40BM, ESW7x10, EVS7010, Einbau 30 Zoll, Flush inset, combi, 450S

Descriptions

DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zoll, Proud, combi, wide front, 650S

Descriptions

DGC7x4x, H7x40BM, H7x6xBP, Einbau, 30 Zoll Flush inset, combi, 650S, 450S

Descriptions

DGC7x4x, DGC7485, H7x40BM, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S

Descriptions

DGC7xxx, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Flush inset, combi, wide front, 450S

Descriptions

DGC7xxx, H7x40BM, H7x6xBP, Einbau, 30 Zoll, Flush inset, combi, wide front, 650S, 450S

Descriptions

DGC7xxx+EBA7848, H7x40BM (+EBA7848), Installation, 30 Zoll, Flushinset, combi, XL, 450S

Descriptions

DGC7x4x(+EBA7848), H7x6xBP(+EBA7848), Installation, 30 Zol, Flush inset, combi, XL, 650S

Descriptions

DGC7x40(+EBA7848), H7x40BM(+EBA7848), H7840+EBA6808, Installation, 30 Zoll, flush inset, combi, wide front, XL, 450S

Descriptions

DGC7x4x(+EBA7848), H7x6x(+EBA7848), Installation, 30 Zoll, flush inset, combi, wide front, XL, 650S

Descriptions

DDGC7xxx, H7x40BM, Einbau, 30 Zoll, Proud, combi, 450S

Descriptions

DGC7xxx, H7x40BM, ESW7x10, EVS, Einbau, 30 Zoll, Proud, combi, 450S

Descriptions

DGC7xxx, H7x4xBM, H7x6xBP, Einbau, 30 Zoll, Proud, combi, 650S, 450S

Descriptions

DGC7x4x, H7x40BM, Einbau, 30 Zoll, Proud, combi, wide front, 450S

Descriptions

DGC7x4x, H7x40BM, ESW7x10, EVS7010, Einbau, 30 Zoll, Proud, combi, wide front, 450S

Descriptions

DGC7x4x, H7x40Bm, H7x6xBP, Einbau, 30 Zoll, Proud, combi, wide front, 650S, 450S

Descriptions

Handle DGC74xx, DGC76xx, DGC78xx, PureLine - NA7000 - Installation drawing

Descriptions

installation Flush inset 450S, installation drawing, NA
