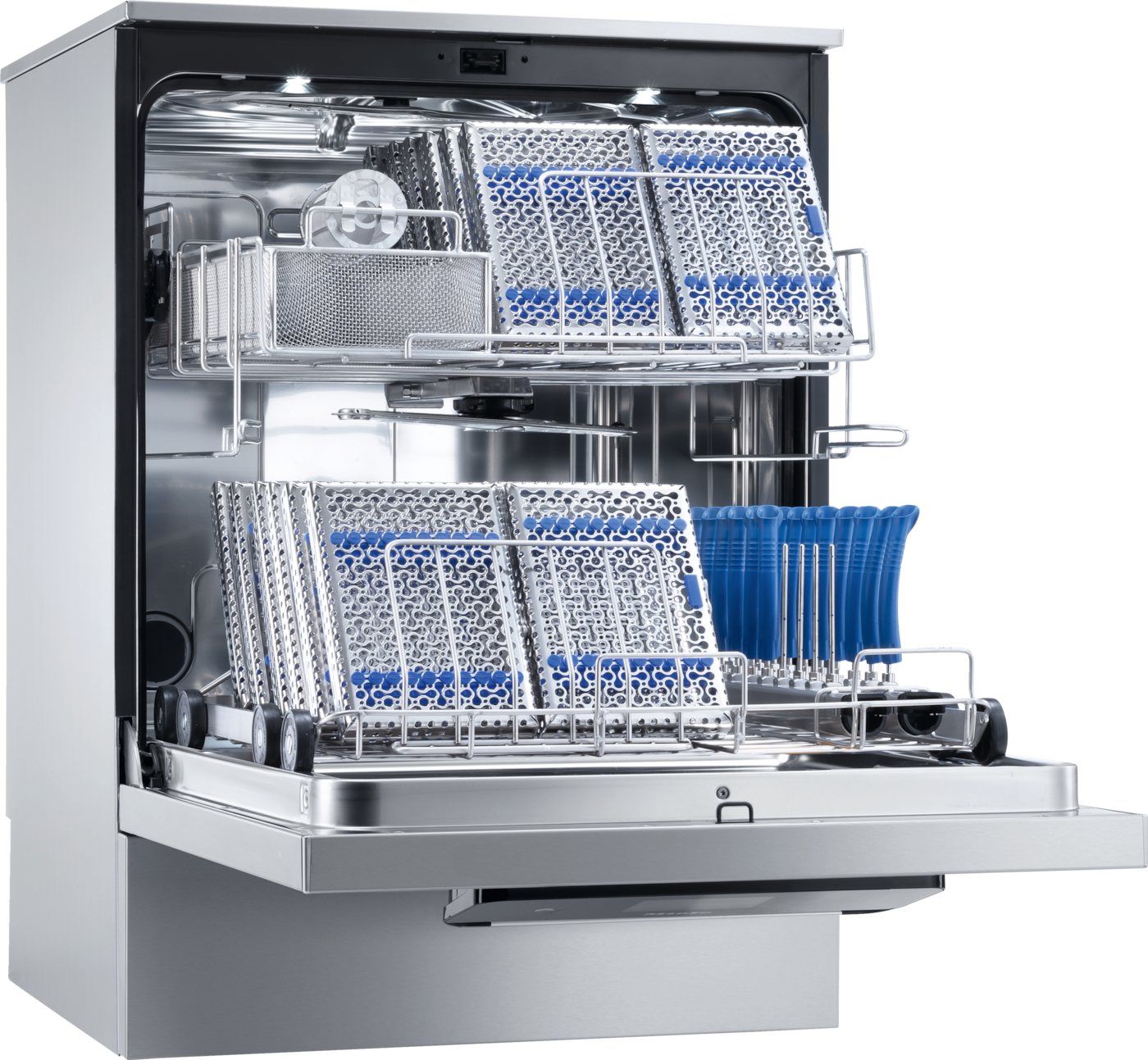

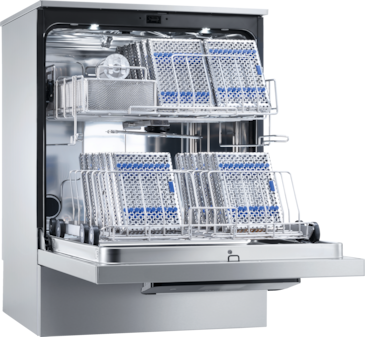

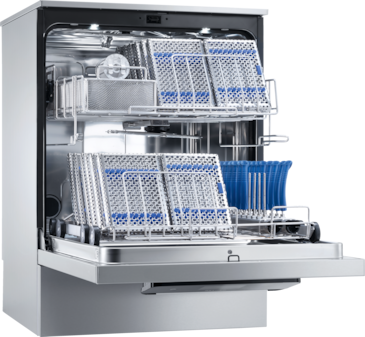

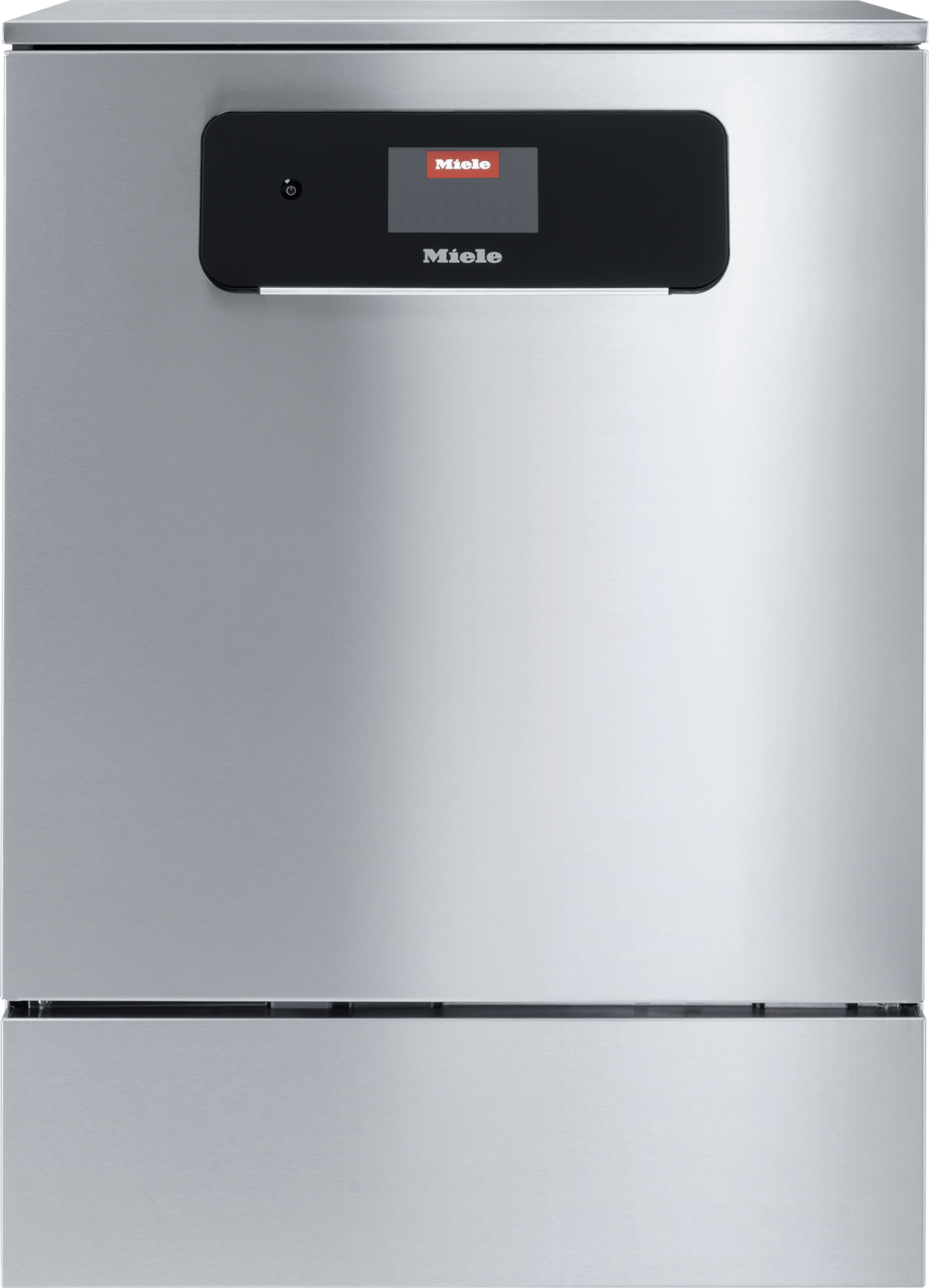

PWA 8672 [U DS5 2AC208V/60HZ]
Washer With liquid dispensing and AutoOpen function.
- Shortest program runtime: 25 min

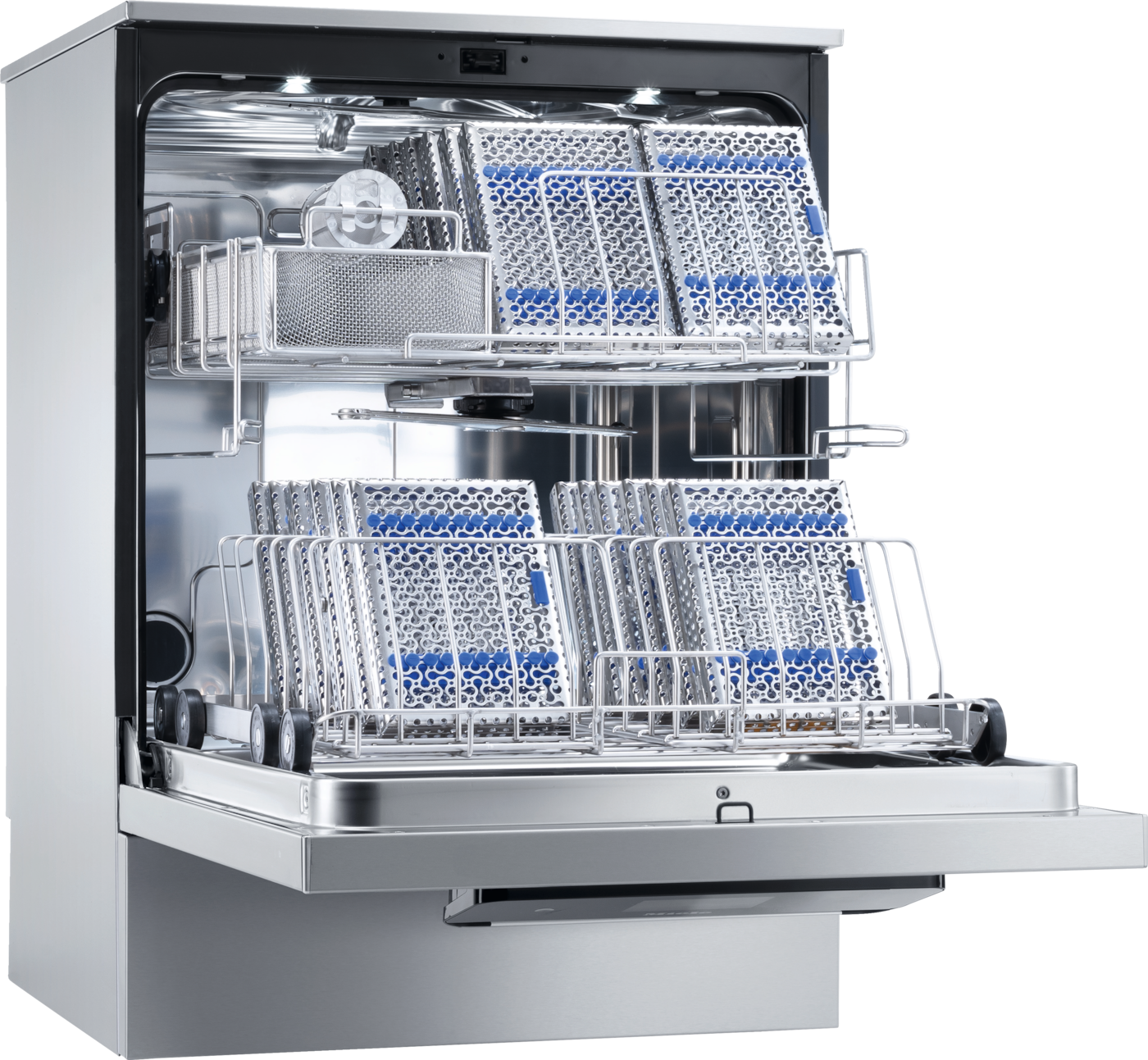

- Capacity/cycle: e.g., up to 24 medium sized cassettes
- Performance/cycle: e.g., 12 Large sized Cassettes, 24 medium sized cassettes
- Maximum user convenience with M Touch Flex full-touch color displayM Touch Flex controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. - Connectivity as standard via Wi-Fi
Product benefits
AutoOpen function*German Patent DE 102 007 008 950 B4
Convenient drying support

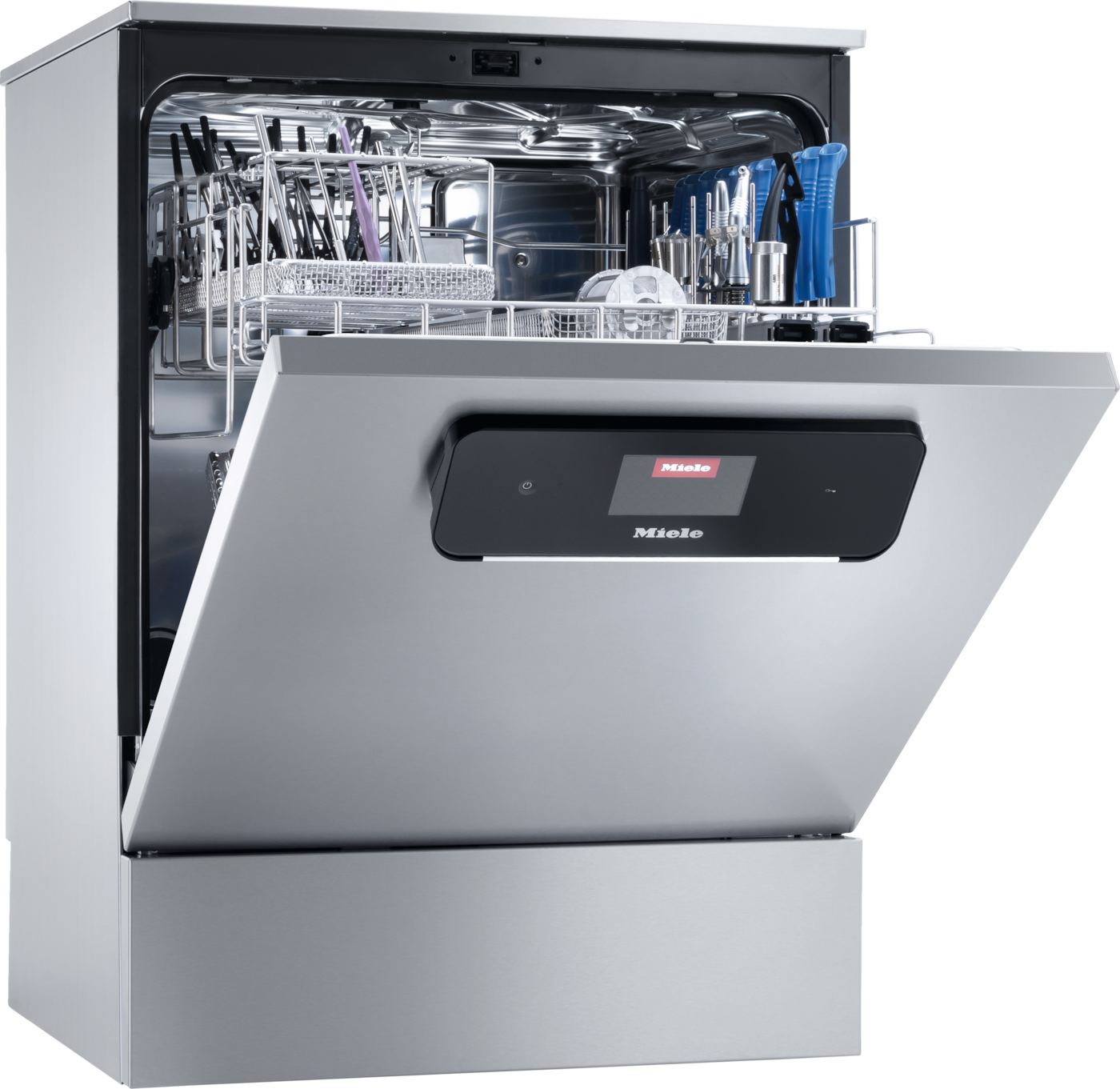

Quick drying: At the end of the reprocessing program the machine door opens automatically.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
AutoOpen function*German Patent DE 102 007 008 950 B4
Convenient drying support
Quick drying: At the end of the reprocessing program the machine door opens automatically.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.

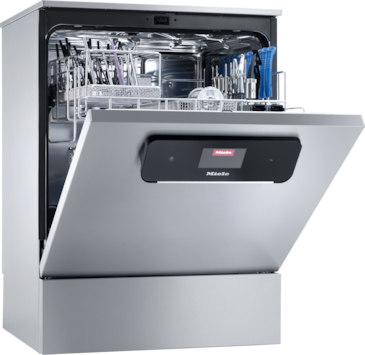

Clear text display
Text display
Everything at a glance: The display shows everything as clear text in the country-specific language.
Cycle approval directly via the display
Making everyday life easier
Cycles can be approved directly on the machine, simplifying many everyday processes.

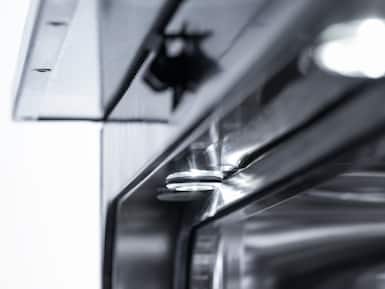

AutoClose*European patent EP 1 733 675 B1
Automatically closing door

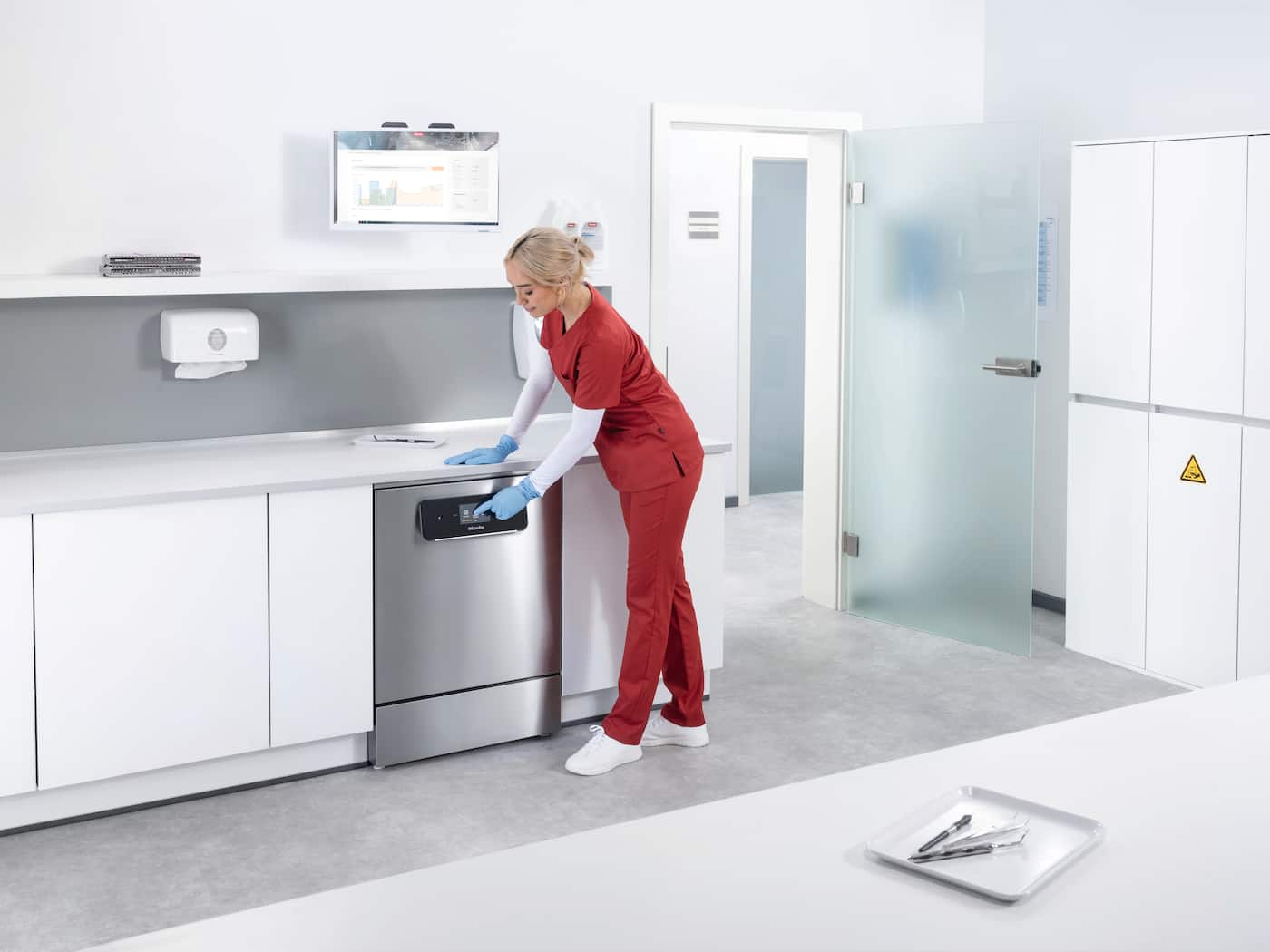

A light touch is all it takes: With AutoClose the door closes on its own.

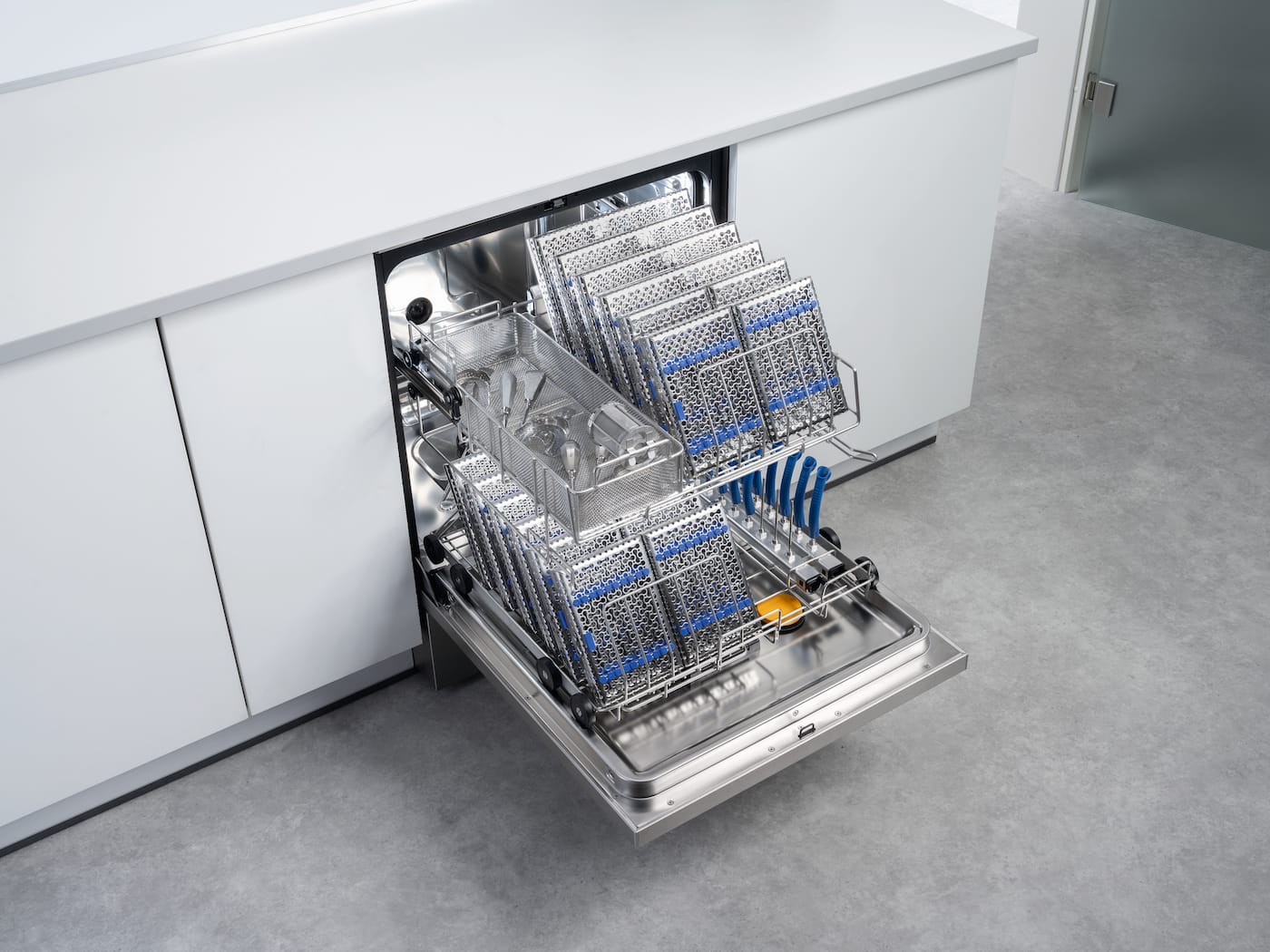

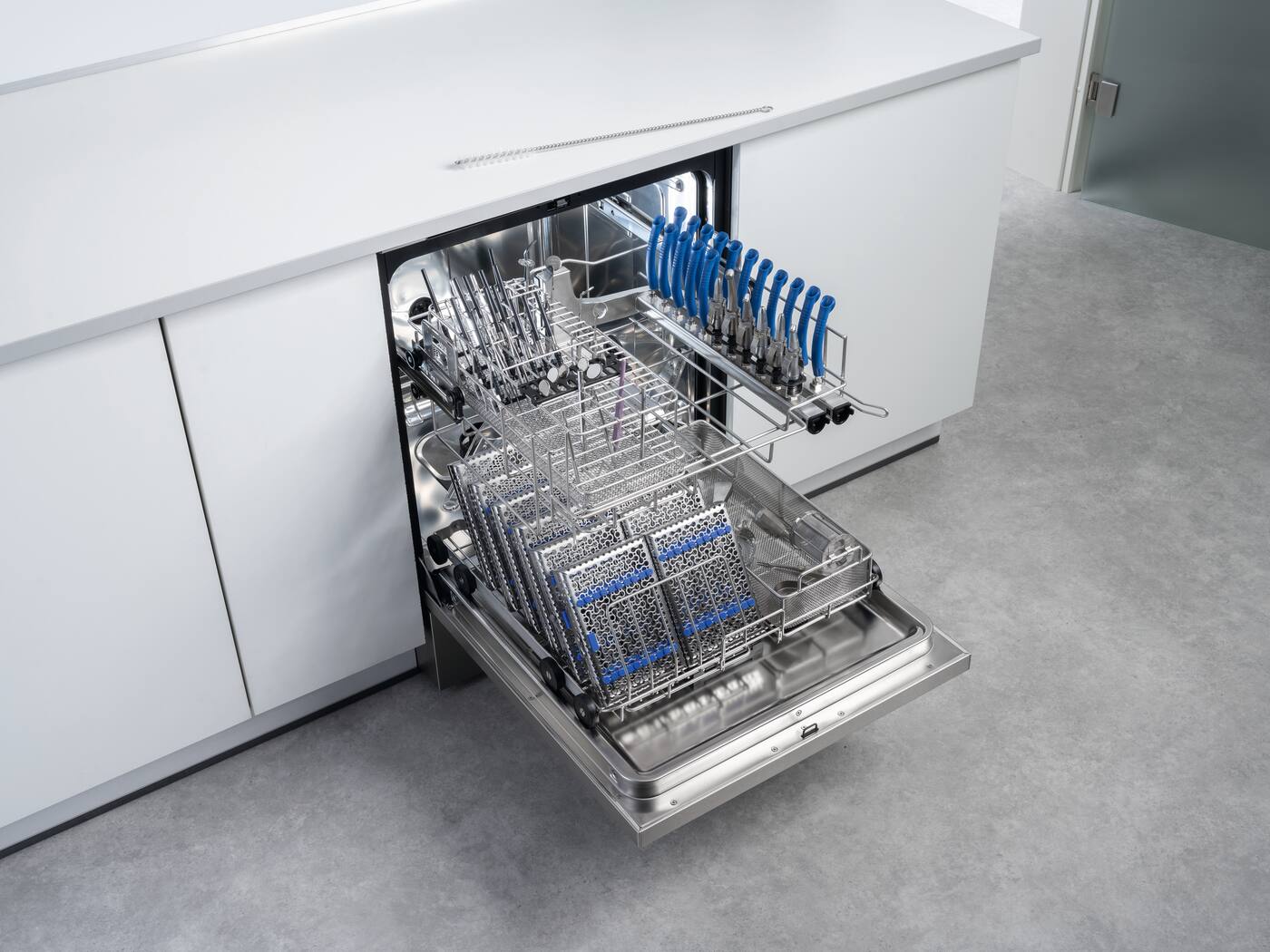

Large selection of components
Reprocess flexibly
Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options.

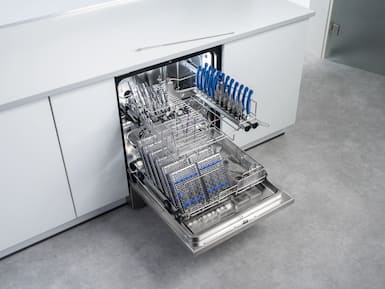

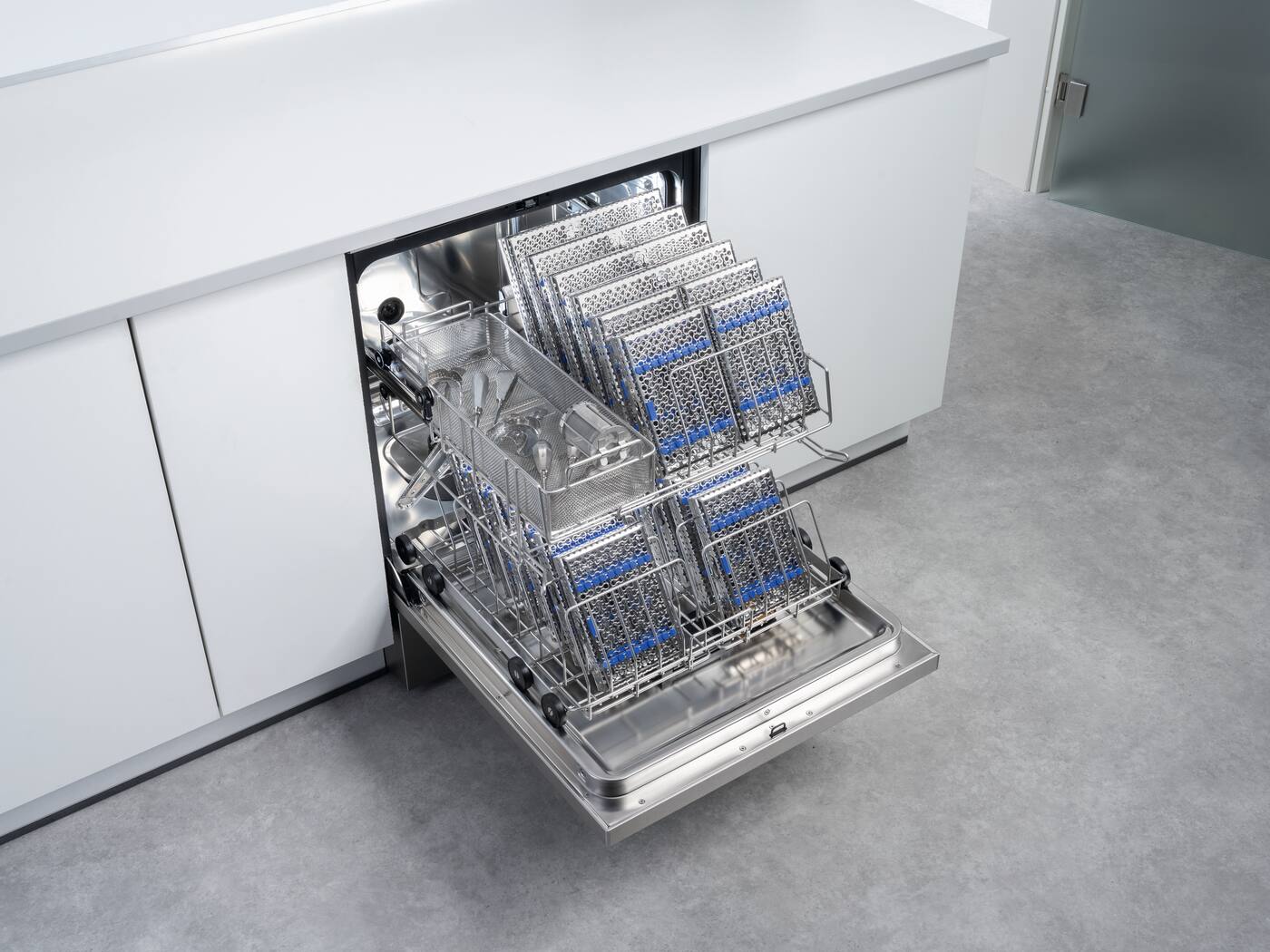

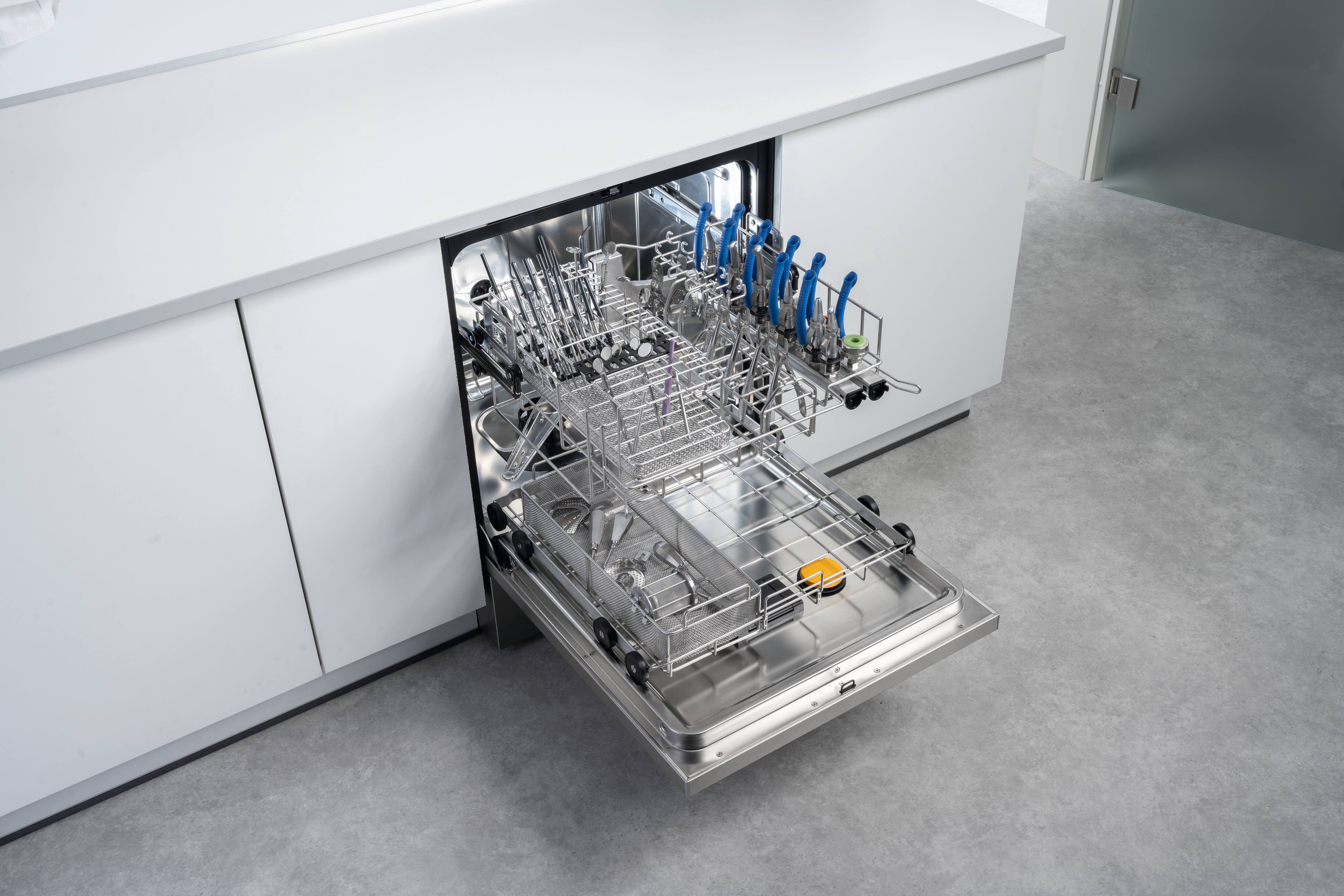

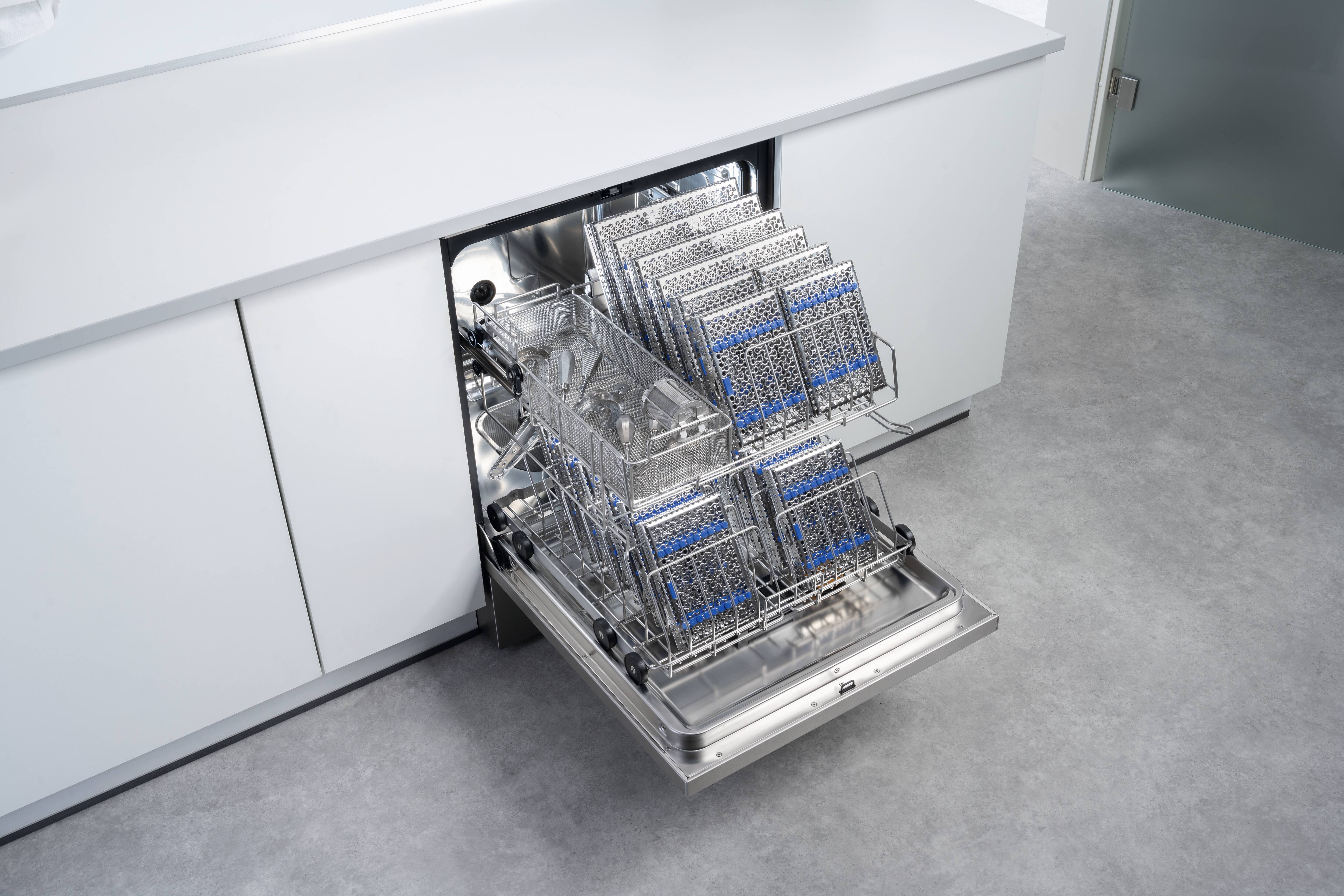

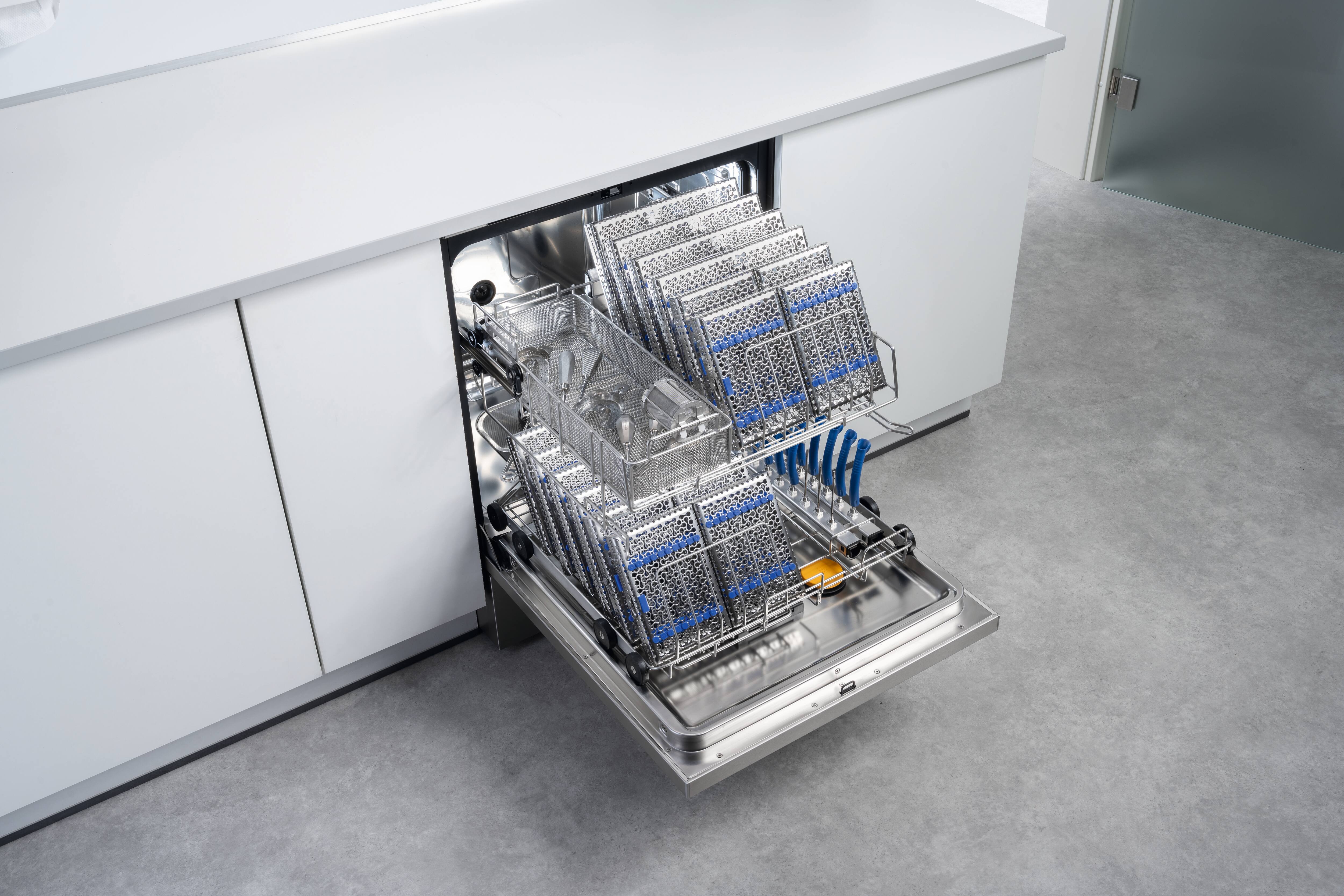

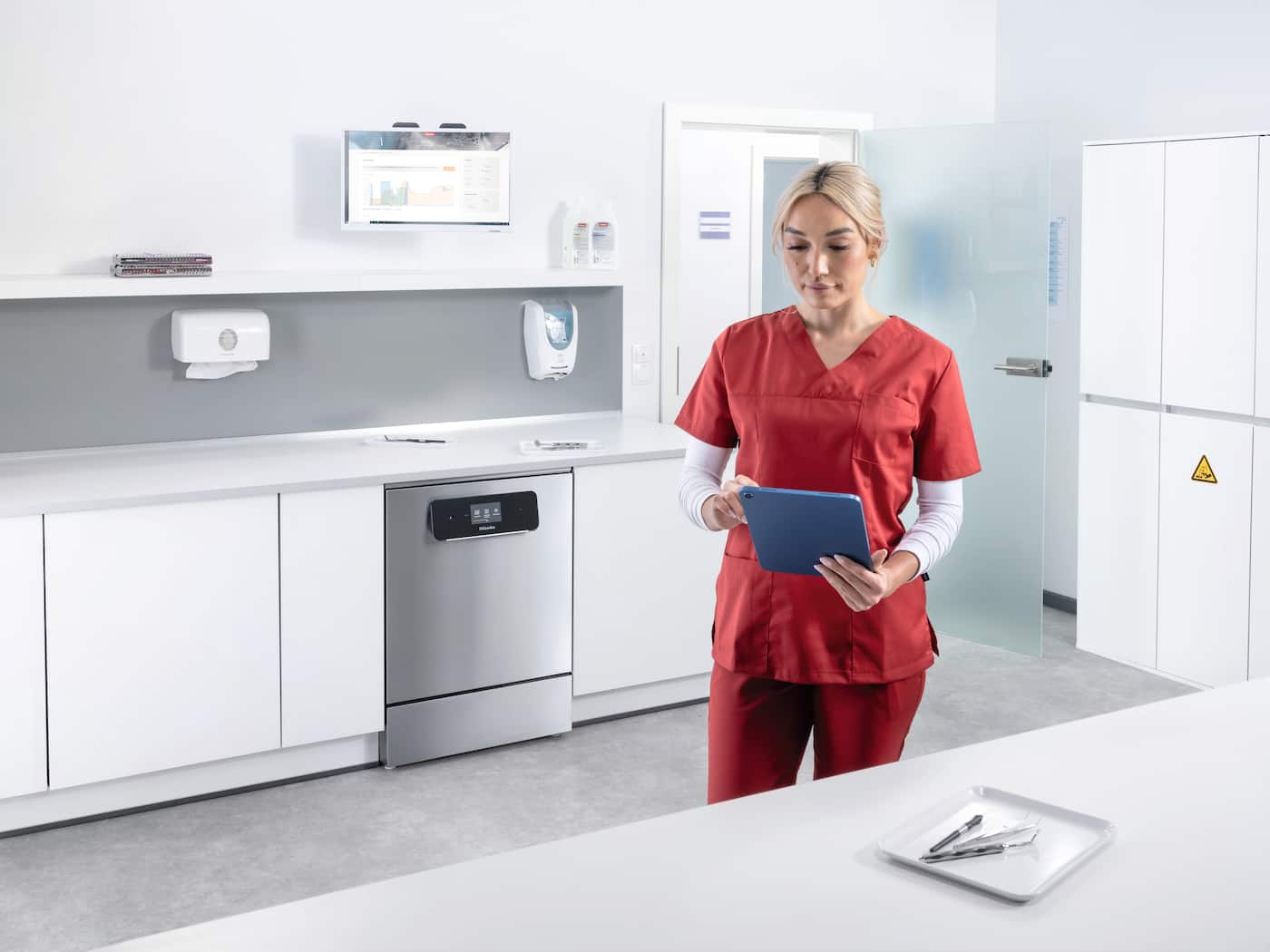

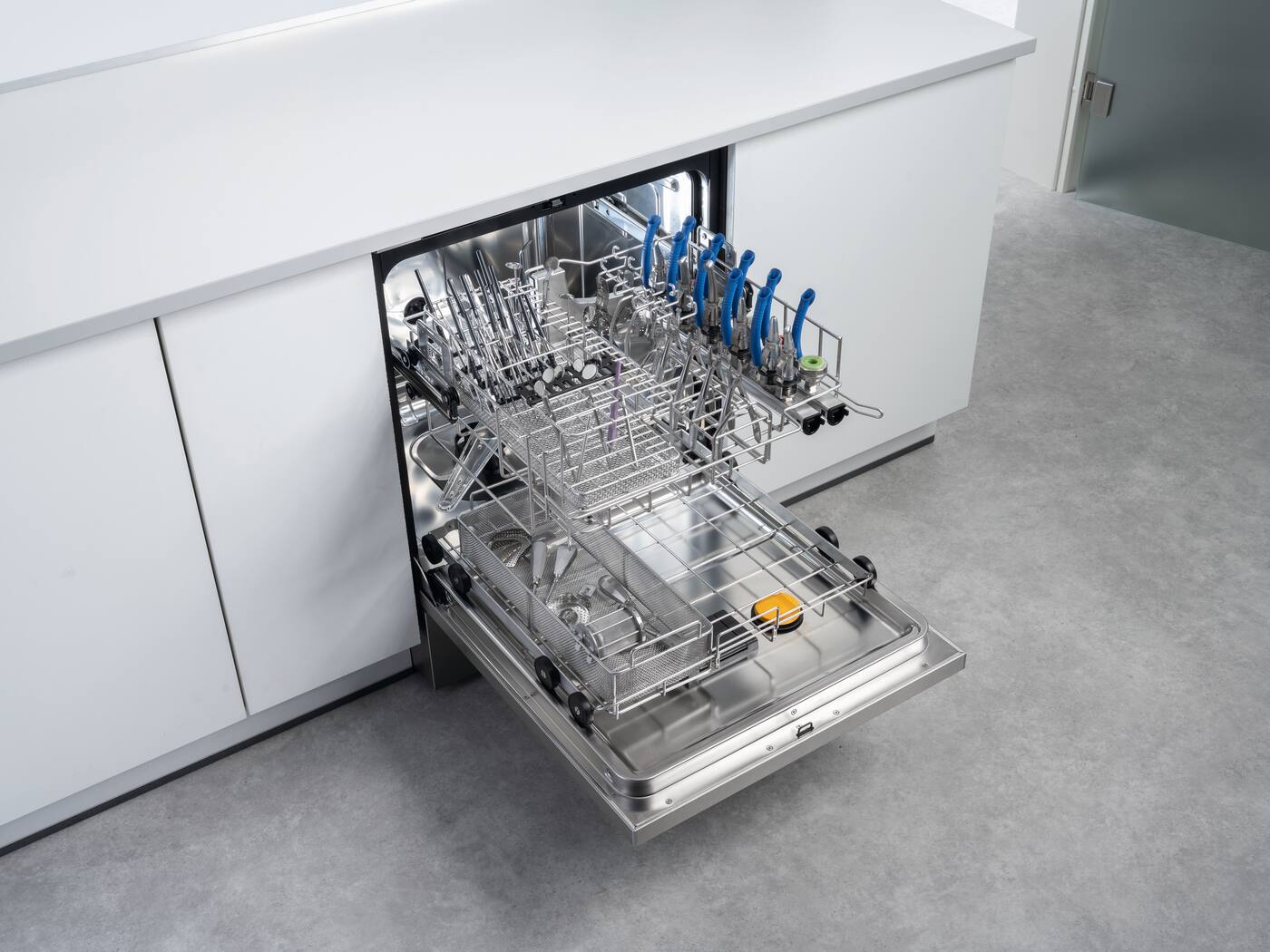

Can be built under a worktop
For a consistent look
The machine can be easily integrated under a worktop.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PWA 8672 [U DS5 2AC208V/60HZ]
EAN 4002516884781 / Article number 62867202NAM / Material number 12800830
EAN 4002516884781 / Article number 62867202NAM / Material number 12800830
| Model | Freestanding appliance, can be built-under, slim |
|---|---|
| Line | ExploreLine |
| Outer casing | Stainless Steel |
| Control panel color | Black |
| lid | Without lid |
| Can be built-under | |
| Number of wash levels | 2 |
| AutoClose – Automatic door lock | AutoClose* A light touch is all it takes: With AutoClose the door closes on its own.European patent EP 1 733 675 B1 |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| Suitable for dentist’s offices |
|---|
| Surgical saliva extractors per cycle [number] | 44 |
|---|---|
| Lumened instruments per cycle [number] | 44 |
| Transmission instruments per cycle [number] | 44 |
| Medium Cassettes (8x6”) | 18 |
| Large Cassettes (8x11”) | 18 |
| Circulation pump, Qmax in gal/min (l/min) | 132.1 (500) |
|---|---|
| Shortest program cycle time (cleaning and disinfection) in min. | 25 |
| Maximum final rinse temperature in °F (in °C) | 158 (70) |
| Usable wash cabinet volume in l | 5.12 (145) |
| Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behavior, maintenance, and care of the machine. | 15000 |
| Miele MOVE Connect (option) |
|---|
| Control system | M Touch Flex |
|---|---|
| Cycle approval directly via the display | |
| Max. delay start in h | 24 |
| Programmability | programmable |
| Programs [number] | 5 |
| Free program slots [number] | 5 |
| Time-left display | |
| Program-cycle display | |
| Choice of display languages |
| Electrical connection | 2 AC 208V 60HZ |
|---|---|
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 30 |
| Length of power cord in ft (m) Note The length refers to the supply lead on the outside of the appliance. | 6 (1.9) |
| Electrical connection | 3 AC 208V 60HZ |
|---|---|
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 20 |
| Cold water [number] | 1 |
|---|---|
| Hot water [number] Efficient hot water connection Connection to the warm water supply saves a lot of time and energy. | 1 |
| Required flow pressure in kPa Note on highly purified water variants This value applies to cold, hot, and fully demineralized water; however, it does not apply to the DI water intake for the highly purified water variants as a feed pump is used in this case. | 200-1000 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness (cold water/hot water) in gpg (mmol/l) | 62.595 (10.7) |
| Drain pump [DN] | 0.866 (22) |
| Water protection system Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically. | Waterproof system |
| External dimensions, net height in inches | 32 5/16 (820) |
|---|---|
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 23 9/16 (598) |
| External dimensions, gross height in inches Note Including packaging | 36 1/4 (920) |
| External dimensions, gross width in inches Note Including packaging | 26 7/16 (670) |
| External dimensions, gross depth in inches (mm) Note Including packaging | 29 3/16 (740) |
| Wash cabinet, usable height in inches | 20 1/2 (520) |
| Wash cabinet, usable width in inches | 20 7/8 (530) |
| Wash cabinet, depth of upper basket in inches | 18 11/16 (474) |
| Wash cabinet, depth of lower basket in inches | 20 1/2 (520) |
| Net weight in lbs | 149.914 (68) |
| Gross weight in lbs Note Including packaging | 169.756 (77) |
| Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 1220 |
| Emission sound pressure level in the workplace Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | ≤70 dB(A) re 20 µPa |
|---|---|
| Heat dissipation into the room in MJ/h Heat output into the room During operation ,warm air is vented into the room. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature. | 0.5 |
| 1 door dispenser for rinse aid | |
|---|---|
| 1 dispenser pump for liquid cleaning agent | |
| 1 dispenser pump for neutralizing agent | |
| Suction wand for media canisters 10–20 L (optional) | |
| Convenient suction wand DC5 | |
| Volume-flow control | |
| Spray pressure monitoring | |
| Spray arm monitoring | |
| How-to sequences | |
| Interface for process documentation (optional) | |
| Multi-component filter system | |
| Variable-speed heating pump | The heart of perfect results In the individual programs the speed of the pump and thus the wash pressure is adjusted in line with the relevant requirements – high pressure facilitates the removal of stubborn soiling, whilst low pressure guarantees the complete wetting of all the wash items. As a result, the consumption of water and energy remains particularly low with optimum wash pressure at all times. |
| Load carrier – direct coupling | |
| AutoOpen | AutoOpen function* Quick drying: At the end of the reprocessing program the machine door opens automatically.German Patent DE 102 007 008 950 B4 |
| Door salt container | |
| Optical interface for Customer Service | |

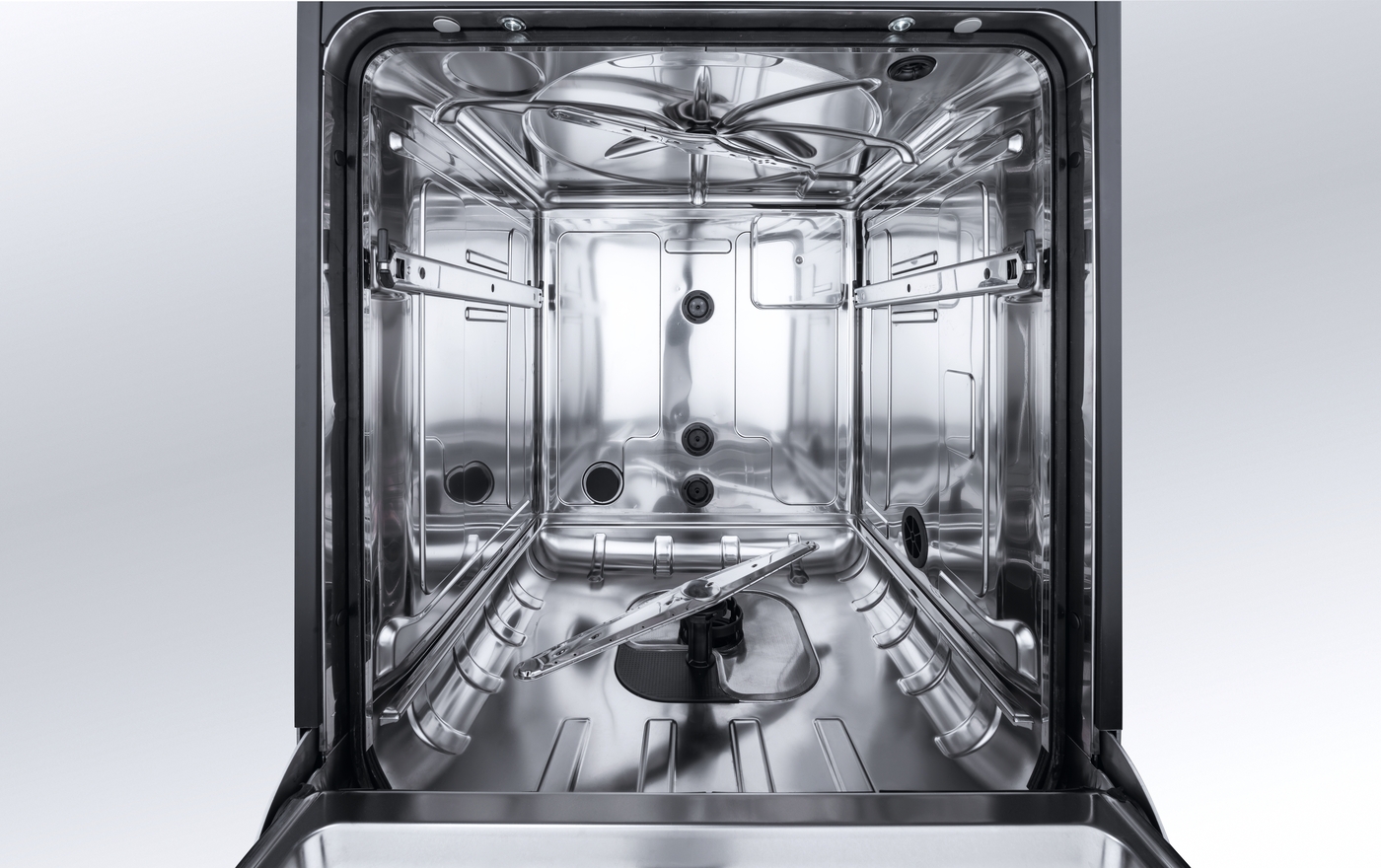

| Wash cabinet seamlessly welded using laser technology | |
| Heating elements outside the wash cabinet | |
| Wash cabinet made of high-quality stainless steel (1.4301/304) | |
| Extensive components (option) |
| IP safety class according to EN 60529: IP 21 | |
|---|---|
| EN 61010-1 | |
| EN 61010-2-040 | |
| EU medical device class IIb | |
| FDA, Health Canada, Medical Device class II |
