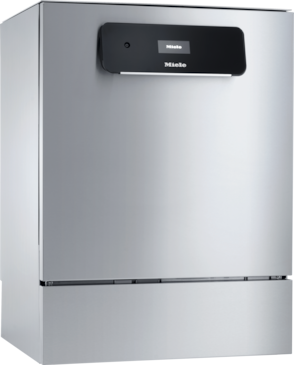

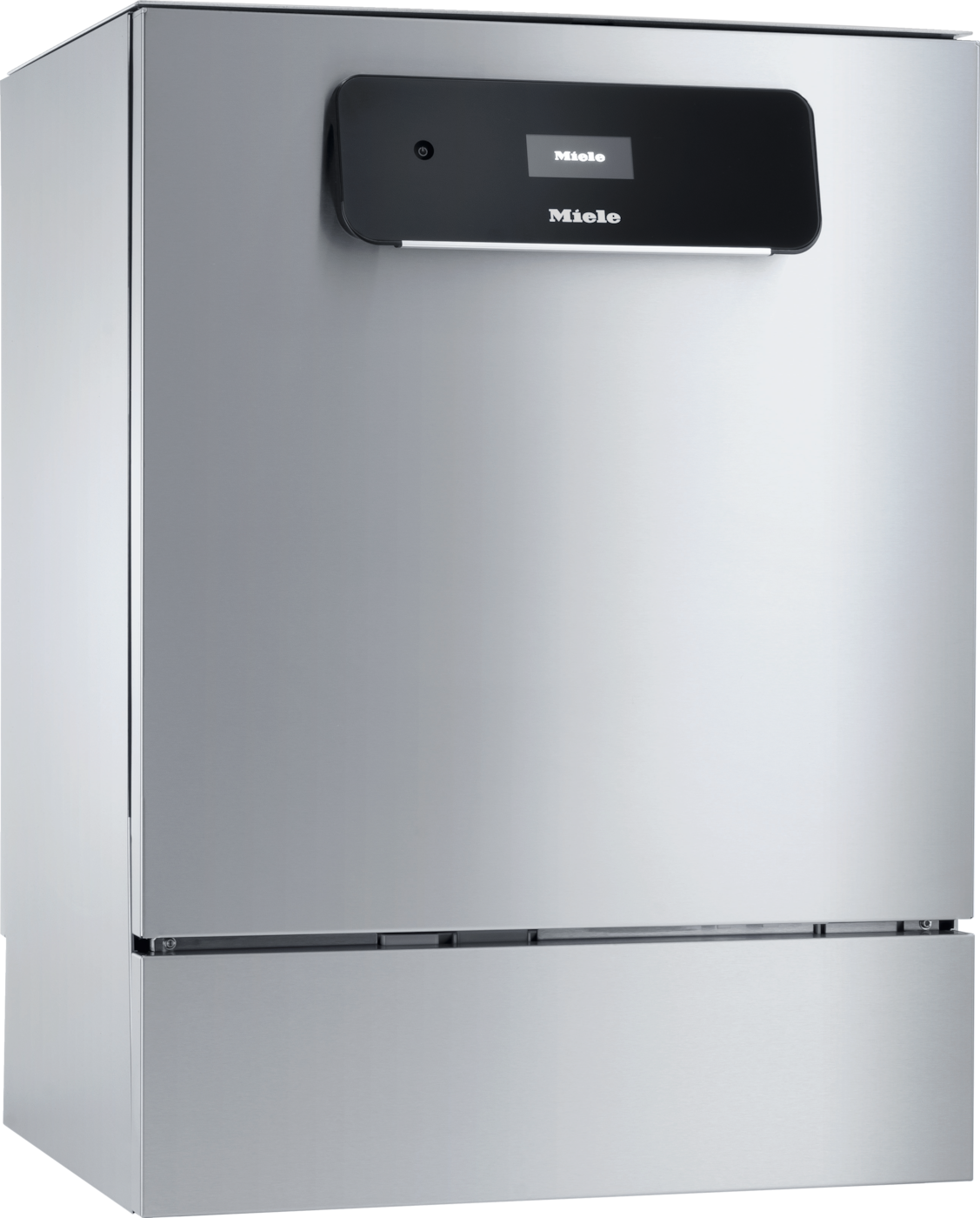

PLW 8604 [U 3AC208V/60HZ]
Laboratory glassware washer with DI water supply.
- Performance/cycle, e.g., 64 narrow-neck/laboratory glassware w/ injector nozzlesFurther loading options
At the same time it is possible to clean other laboratory glassware in the upper basket. - Flexible and simple – modular load carriers & SimpleLoad systemFlexible use of load carriers
The flexible load carriers from Miele Professional offer an extremely wide range of loading options. With a low number of load carriers combined with additional modules and inserts, the load carriers can be flexibly adapted to the wash items in just a few steps, optimizing both costs and the amount of space required.SimpleLoad
The SimpleLoad system makes reprocessing laboratory glassware considerably faster, simpler, and more efficient. The biggest advantage of the new system is that wash items can be positioned over nozzles both more simply and faster as it is no longer necessary to adjust the height of the holders thanks to the smart combination of nozzles and holding frames. This makes it easy to position items correctly. - Excellent user convenience with touch display – M Touch BasicM Touch Basic controls
Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. - Dispense process chemicals easily: Powder dispenser in the door
- Connectivity as standard via Wi-FiComplete documentation
The machine is delivered with a Wi-Fi communication module as standard, which is able to establish a secure state-of-the-art network connection. The module supports the connection of compatible process documentation software solutions and network printers. - With DI water connection – final rinse with demineralized water
Product benefits
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Clear text display
Text display
Everything at a glance: The display shows everything as clear text in the country-specific language.
Large selection of components
Reprocess flexibly
Flexible and comprehensive components for optimum cleaning performance and a variety of reprocessing options.
Can be built under a worktop
For a consistent look
The machine can be easily integrated under a worktop.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PLW 8604 [U 3AC208V/60HZ]
EAN 4002516883531 / Article number 62860424NAM / Material number 12797800
EAN 4002516883531 / Article number 62860424NAM / Material number 12797800
| Model | Freestanding appliance, can be built-under, slim |
|---|---|
| Line | ExploreLine |
| Outer casing | Stainless Steel |
| Control panel color | Black |
| lid | Without lid |
| Can be built-under | |
| Number of wash levels | 2 |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| Narrow-neck glassware per cycle [number] | 64 |
|---|---|
| Test tubes per cycle [number] | 98 |
| Vials per cycle [number] | 98 |
| Laboratory flasks per cycle [number] | 64 |
| Circulation pump, Qmax in gal/min (l/min) | 132.1 (500) |
|---|---|
| Maximum final rinse temperature in °F (in °C) | 158 (70) |
| Usable wash cabinet volume in l | 5.12 (145) |
| Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behavior, maintenance, and care of the machine. | 15000 |
| Electrical connection | 3 AC 208V 60HZ |
|---|---|
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 20 |
| Length of power cord in ft (m) Note The length refers to the supply lead on the outside of the appliance. | 6 (1.9) |
| Electrical connection | 2 AC 208V 60HZ |
|---|---|
| Electric heater rating in kW | 5.4 |
| Total rated load in kW | 6.2 |
| Fuse rating in A | 30 |
| Cold water [number] | 1 |
|---|---|
| DI water [number] DI water supply Thanks to the connection for fully demineralized (DI water), these washer-disinfectors and thermal disinfectors facilitate optimum reprocessing results. Rinsing with fully demineralized water also protects valuable wash items from deposits and corrosion. | 1 |
| Required flow pressure in kPa Note on highly purified water variants This value applies to cold, hot, and fully demineralized water; however, it does not apply to the DI water intake for the highly purified water variants as a feed pump is used in this case. | 200-1000 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness (cold water/hot water) in gpg (mmol/l) | 62.595 (10.7) |
| Drain pump [DN] | 0.866 (22) |
| Water protection system Waterproof System (WPS) Protection against flooding: In the event of problems, the system stops water intake automatically. | Waterproof system |
| External dimensions, net height in inches | 32 5/16 (820) |
|---|---|
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 23 9/16 (598) |
| External dimensions, gross height in inches Note Including packaging | 36 1/4 (920) |
| External dimensions, gross width in inches Note Including packaging | 26 7/16 (670) |
| External dimensions, gross depth in inches (mm) Note Including packaging | 29 3/16 (740) |
| Wash cabinet, usable height in inches | 20 1/2 (520) |
| Wash cabinet, usable width in inches | 20 7/8 (530) |
| Wash cabinet, depth of upper basket in inches | 18 11/16 (474) |
| Wash cabinet, depth of lower basket in inches | 20 1/2 (520) |
| Net weight in lbs | 149.914 (68) |
| Gross weight in lbs Note Including packaging | 169.756 (77) |
| Maximum floor load in N/m² Maximum floor bearing capacity Maximum floor bearing capacity states the maximum weight (N) that can be placed on the supporting surface on which the appliance is installed. This maximum load bearing capacity is the result of adding up the weight of the machine, the load and the water in it, as well as the dynamic forces that occur during operation. | 1200 |
| Emission sound pressure level in the workplace Emissions - sound pressure at workplace The emission sound pressure level provides a value for the noise emission created by the machine. Miele Professional machines have an extremely low sound pressure level. | ≤70 dB(A) re 20 µPa |
|---|---|
| Heat dissipation into the room in MJ/h Heat output into the room During operation ,warm air is vented into the room. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature. | 1.44 |
| Short | |
|---|---|
| Medium | |
| Long | |
| Cold water rinse | |
| DI water rinse |
| Wi-Fi | |
|---|---|
| External dispenser modules |
| IP safety class according to EN 60529: IP 21 | |
|---|---|
| EN 61010-1 | |
| EN 61010-2-040 | |
| Machinery Directive 2006/42/EC |
