DAR 1260
$2,899.00

DAR 1260

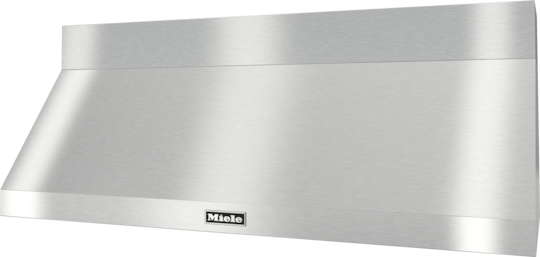

Wall ventilation hood for perfect combination with Ranges and Rangetops.
  • Professional design - stainless steel hood, 60 (1524) in (mm) wide
  • Perfect illumination - LED ClearView lighting
  • Dishwasher-safe - 4 high-quality stainless steel grease filters
  • Safe and easy to clean - Miele CleanCover
  • Auto-vent safety sensor – protects against overheating

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • Non-return flap

Product data sheet

Construction type
Wall ventilation hood
Required accessories
Blower
Duct cover
Operating modes
Recirculated modeair extraction
External operation possible
Control panel
Rotary knob
Power levels (number excl. Intensive)3
Intensive setting
Temperature sensor
Cleaning convenience
Easy to clean canopy interior CleanCover
Dishwasher-safe grease collection channel
Filter system
Number of dishwasher-safe stainless steel baffle filters 4
Lighting
LED
Number x W4 x 3 W
Blower options (to be purchased separately)
DRIB XXL internal blower in CFM (m³)1869
DREB XXL external blower in CFM (m³)1869
Technical data
Canopy width in in.(mm)60 (1524)
Canopy width in inches59 15/16
Canopy height in in.(mm)18 (457)
Canopy depth in in.(mm)24 1/8 (611)
Net weight in lbs. (kg)117 (53.0)
Length of electrical wire in ft (m)2 (0.8)
Standard plug fitted
Overall height for extraction mode and external mo617-1,067
Total connected load in kW0.81
Voltage in V120
Fuse rating in A15
Number of phases1
Installation notes
Vent connection at top
Diameter of vent connection in in.(mm)9 7/8 (250)
Optional accessories
Chimney cover⁴ (H: 152 mm)DRDC 6006
Chimney cover⁴ (H: 305 mm)DRDC 6012
Chimney cover⁴ (H: 457 mm)DRDC 6018
Chimney cover⁴ (H: 610 mm)DRDC 6024
DRRV 1200
Active charcoal filterNein
Show all technical details
Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
