DGC 6800-1
Steam oven with full-fledged oven function and XL cavity combines two cooking techniques - steam and convection.
Your exclusive advantages
Combination cooking
Versatility for perfect roasting and baking results
Crispy outside, succulent inside: Combination of hot air and steam for perfect results.
XL cavity
Allows you to be creative
Ample space: Prepare complete meals simultaneously for up to 10 people; enough room for poultry or a whole fish.
Exclusive to Miele
Motorized control panel
More than simply a control
Convenient: The panel opens at the touch of a button to reveal the water container and the Roast probe.
Exclusive to Miele
MultiSteam
Perfection just as you like it
Success guaranteed: fast and even distribution of steam in the cabinet and around cooking containers.
Exclusive to Miele
Steam oven with fully-fledged oven function
Steam oven w. oven function and combination cooking
Many functions in one appliance: Perfect cooking, roasting & baking results with unlimited combinations.
Features depend on model – images are only examples and used for explanation purposes
Maintenance (1)
Exclusive to Miele
PerfectClean
Unique non-stick finish
Fast cleaning: Cleaning is extremely easy as hardly any food residue sticks to surfaces.
User convenience (10)
XL cavity
Allows you to be creative
Ample space: Prepare complete meals simultaneously for up to 10 people; enough room for poultry or a whole fish.
Exclusive to Miele
Motorized control panel
More than simply a control
Convenient: The panel opens at the touch of a button to reveal the water container and the Roast probe.
MasterChef automatic programs/MasterChef Plus
Especially for baking and roasting
Choose from over 200 easy-to-use programs: Whether it is bread, cakes or meat – everything is cooked automatically.
Halogen lighting
Good light for good results
Food always visible at a glance: halogen lighting provides optimum light and visibility in the oven cabinet.
Exclusive to Miele
A variety of accessories with PerfectClean finish
Unique non-stick finish
First class features: The multi-purpose tray, FlexiClip and combination rack have excellent non-stick properties.
Timer Function
Leave time management to your combi steam oven
Always on time: The start time, finish time and duration of the cooking process are easy to select.
Exclusive to Miele
Keeping warm function
Automatically keeps finished dishes hot
Prevents food from cooling down quickly: food is automatically kept warm for 15 minutes after the program end.
Exclusive to Miele
Condensate container
Great space management for a large compartment
Pleasant room climate: excess steam is collected in the condensation container.
Favorites
Save frequently used settings
For favorite dishes: Simply select operating mode, temperature and duration and save settings for repeated use.
Sous-vide cooking
Cooking in a vacuum
The ultimate taste sensation: meat, vegetables, fruit or fish that have been cooked in a vacuum.
Special features (8)
Combination cooking
Versatility for perfect roasting and baking results
Crispy outside, succulent inside: Combination of hot air and steam for perfect results.
Exclusive to Miele
Automatic menu cooking
Cook three different dishes simultaneously
A complete menu: "Menu cooking" automatically determines temperature, cooking duration and adding food sequence.
Electronic climate control
Oxygen sensors monitor and regulate the moisture
Ideal microclimate: the climate sensor ensures perfect cooking results.
Exclusive to Miele
MultiSteam
Perfection just as you like it
Success guaranteed: fast and even distribution of steam in the cabinet and around cooking containers.
Exclusive to Miele
Steam oven with fully-fledged oven function
Steam oven w. oven function and combination cooking
Many functions in one appliance: Perfect cooking, roasting & baking results with unlimited combinations.
Quantity-independent cooking
The same cooking duration for different weights
The cooking duration is always the same: Whether 100 oz or 2 lbs - the cooking time for the food stays the same.
Roast probe
Everything is perfectly cooked and close at hand.
No supervision needed: The countdown indicator gives information on when meat/fish has been cooked to perfection.
Cooking on 3 levels
Perfect results times three
Saving time and electricity: Cook fish, veg and meat simultaneously and enjoy each one without flavor transfer.
Oven cabinets (1)
Stainless steel oven interior
Completely enclosed and smooth
Professional and low-maintenance: all Miele steam oven interiors are made from stainless steel only.
Gourmet versatility (2)
Side dishes
Simply indispensable: Potatoes, rice and pasta are an extremely nutritious part of any meal.
Sous-vide cooking
The ultimate taste sensation: meat, vegetables, fruit or fish that have been cooked in a vacuum.
Safety (2)
Cooling system with touch-cool fronts
Pleasantly cool surfaces
Maximum protection: All surfaces on and around the appliance remain relatively cool, providing protection against burns.
Safety functions
Automatic switch-off for maximum safety
Your guardian angel: If you forget to switch off the appliance, the safety switch-off steps in for you.
Operating modes (13)
Combi Steam with Convection Bake
Perfect results: Additional moisture guarantees excellent results for bread, bread rolls, meat, etc.
Combi Steam with Surround
Perfect from the top and bottom: ideal for baking bread.
Combi Steam with Broil
Particularly crispy and succulent: fish and meat with a high fat content are well suited for this operating mode.
Convection Bake
Superbly light and fluffy: Ideal for gentle baking and roasting on up to three levels.
Surround
Multi-purpose, classic function: perfect results on all traditional baking and roasting dishes.
Intensive
Crispy bases, tasty toppings: Whether pizza, quiche or fruit flan - crispy underneath and succulent on top.
Gentle Bake
Perfect finish: The final touch - ideal for gratins, glazing and browning
Bake
Individual requirements: For dishes which need to be cooked in a bain marie or browned from below.
Convection Broil
Crispy on the outside, succulent inside: Ideal for chicken, duck, joints, rolled meat and many other meat dishes.
Humidity Plus
Forever better: Special baking program, developed for choux pastry, pretzels and sponge mixtures.
Special Modes
Fulfil your own exceptional desires. user convenience with various special programs such as drying fruit.
Sabbath program
Program food up to 72 hours in advance: The unique Sabbath program allows long-term planning.
Maxi Broil
Versatile function for indoors: For grilling steaks, sausages, kebabs, flash-fried meat and much more.
Product data sheet
Construction type and design
| Combination steam oven | • |
| PureLine | • |
| Appliance color | Brilliant white |
Convenience features
| Rapid PreHeat | • |
| External steam generation | • |
| Climate sensor | • |
| Individual humidity settings in combination cooking | • |
| Menu cooking without transfer of taste | • |
| Roast probe | • |
| Automatic programs with individual setting of the cooking result | • |
| Keep-warm function | • |
Operating modes
| Defrost | • |
| Combi cooking | • |
| Steam cooking | • |
| Sous-vide | • |
| Reheating | • |
| Broil | • |
| Convection Bake | • |
| Intensive Bake | • |
| Cake plus | • |
| Surround | • |
| Browning | • |
| Bake | • |
| Convection Roast | • |
| Special modes | • |
Appliance networking
| RemoteService | No |
User convenience
| Display | M Touch |
| MultiLingua | • |
| MyMiele | • |
| Show me how | • |
| Motorized lift-up control panel with SoftClose | • |
| Quantity-independent cooking | • |
| Steam cooking on up to 3 levels at the same time | • |
| Automatic menu cooking | • |
| Steam reduction before end of programme | • |
| Polyphonic acoustic signals | • |
| Time of day display | • |
| Date display | • |
| Minute minder | • |
| Actual temperature display | • |
| Audible signal when desired temperature is reached | • |
| Default temperature | • |
| Favorites | • |
| Sabbath program | • |
| Individual settings | • |
Cleaning convenience
| Stainless-steel cavity with linen-weave finish | • |
| External steam generator | • |
| Maintenance programs | • |
| Soak program | • |
| Rinse program | • |
| Cavity drying program | • |
| Quick-release side racks | • |
| Automatic descaling | • |
| CleanGlass door | • |
Steam technology and Water supply
| MultiSteam | • |
| Fresh water container volume in l | 1.40 |
| Lightweight water container | • |
| Condensate container behind motorized lift-up control panel with SoftClose | • |
| Drain filter | • |
| Drain filter | • |
Safety
| Appliance cooling system and cool touch front | • |
| Safety cut-out | • |
| System lock | • |
| Vapor cooling system | • |
Technical data
| XL cavity | • |
| Cavity volume in cu.ft (l) | 1.84 (52) ft³ (l) |
| No. of rack levels | 3 |
| Labeling of rack levels | • |
| Door hinge side | Bottom |
| Niche width min in in. (mm) | 560 |
| Niche width max in in. (mm) | 22 3/8 (568) |
| Niche height min in in. (mm) | 17 11/16 (450) |
| Niche height max in in. (mm) | 17 13/16 (452) |
| Niche depth in in. (mm) | 22 3/8 (567) |
| Appliance width in in. (mm) | 23 1/2 (595) |
| Appliance height in in. (mm) | 18 (456) |
| Appliance depth in in. (mm) | 22 5/8 (572) |
| Weight in lbs. (kg) | 92 (41.6) |
| Total connected load in kW | 2.80-3.70 |
| Power Rating in V | 0 |
| Usable voltage range in V | 240/208 |
| Frequency in Hz | 60 |
| Number of phases | 2 |
| Fuse rating in A | 20 |
| Length of power cord in in. (m) | 2 |
Inside the Box
- PerfectClean universal baking tray (1)
- PerfectClean baking and roasting rack (1)
- Perforated stainless-steel cooking container (2)
- Unperforated stainless-steel cooking containers (1)
Optional products and accessories
Downloads, CAD, & apps
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions
DGC 6000 XL in a tall unit with oven (Installation drawing) - USA
* Appliances with glass front
** Appliances with metal front
1) Steam oven
2) Niche
3) Pass-through for the power cord
4) Recommended postiion for electrical Connection
5) Power cord
6) Oven
Descriptions
DGC 6000 XL in a tall unit, CLST (Installation drawing) - USA
* Appliances with glass front
** Appliances with metal front
1) Steam oven
2) Niche
3) Pass-through for the power cord
4) Recommended postiion for electrical Connection
5) Power cord
Descriptions
DGC 6000 XL in a floor unit, CLST (Installation drawing) - USA
* Appliances with glass front
** Appliances with metal front
1) Steam oven
2) Niche
3) Pass-through for the power cord
4) Recommended postiion for electrical Connection
5) Power cord
Descriptions

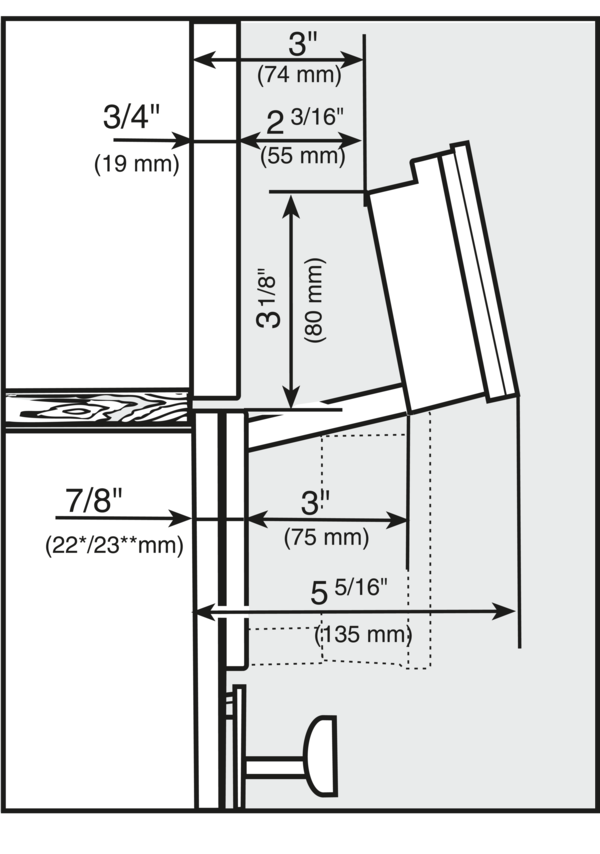

DGC 6000 XL (detailed installation drawing of open control panel) - USA
