KMR 1124 G
$3,499.00

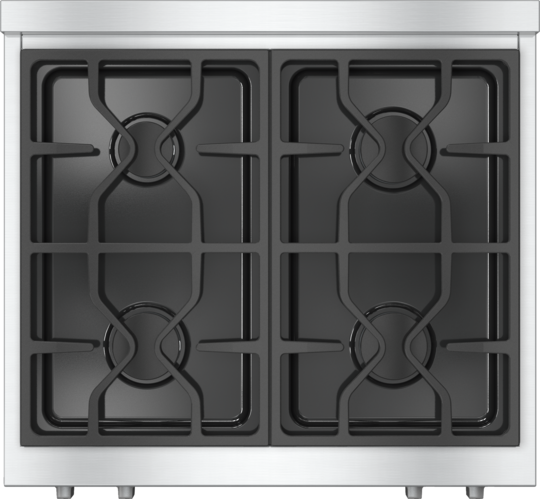

KMR 1124 G

RangeTop with 4 burners for professional applications
  • Professional design - 30 (762) in (mm) wide in stainless steel with Clean Touch Steel™ finishing
  • Direct control - metal knobs with light ring
  • Easy cleaning - ComfortClean dishwasher-safe grates
  • Broad performance spectrum – burner w. up to 19,500 BTU (5.7 kW)
  • Convenient and safe - automatic re-ignition for all burners

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Heating type
Fuel typeYes
Design
CasingStainless steel
Front panelCleanSteel
Genuine metal knobs
Cast iron pot rests (matte black enameled)
Ring features
Number of gas burners 4
Ring
Positionfront left
TypeUltra high-speed burner
Max. rating in W5700
Ring
Positionrear left
TypeHigh-speed burner
Max. rating in W3700
Ring
Positionrear right
TypeUltra high-speed burner
Max. rating in W5700
Ring
Positionfront right
TypeUltra high-speed burner
Max. rating in W5700
Ring
True Simmer function
Cleaning convenience
Dishwasher-safe trivets
Single-piece cooktop surround
Safety
Automatic re-ignition
Technical data
Dimensions (width) in in. (mm)30 (762)
Dimensions (height) in in. (mm)7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose25 5/8 (650)
Weight in lbs. (kg)99 (45)
Total connected load in kW0.02
Voltage in V120
Fuse rating in A10
Number of phases1
Power cord length in in. (m)3 (1.2)
Show all technical details
Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

KMR1xxx (Installation drawing)

1) Maximum depth of top cabinet 13" (330 mm)

2) Minimum distance to bottom edge of top cabinet 18" (457 mm)

3) Distance between the top edge of the countertop and the top edge of the support base 7.5" (190.5 mm)

4) Minimum distance to combustible surfaces 10" (254 mm)

5) Support base. It must have a Minimum thickness of 3/4" (19.05 mm). At the rear right f the Support base

a cut-out of 5 1/8" x 7 1/8" (130 mm x 80 mm) (gas Connection) is provided

and

at the rear left

a cut-out of 4 6/8" x 1 9/16" (120 mm x 40 mm (electrical Connection).

Only for KMR 1124

A) Width of cabinet opening min. 30" (762 mm)

B) If combustible materials are present

an additionaal Minimum distance of 6" (150 mm) (each side) is required. Make sure that the local codes are observed. 6" + a) + 6" (150 mm + A) + 150 mm)

C) Minimum distance between the top of the cooking area and the bottom of an unprotected combustible surface. 37 " (940 mm)

Minimum distance between the top of the cooking area and the bottom of the Miele rangehood (DAR model with DRxB XL blower).

For all other rangehoods

please consult the manufacturers specifications for required distances.

Descriptions

KMR1124 (Installation drawing)

1) Side view

2) Front view

3) Rear view

4) Gas Connection

5) Electrical connection

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
