View in 360°View in AR
Product Information
PerfectCool freezer for perfect side-by-side combination in the 70 in niche.
Inside the Box
- Freezer packs
- Ice cube trays
FNS 37492 iE

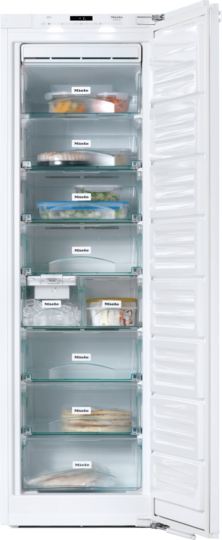

PerfectCool freezer for perfect side-by-side combination in the 70 in niche.
- Subject to technical changes; no liability accepted for the accuracy of the information given.
Product Information
PerfectCool freezer for perfect side-by-side combination in the 70 in niche.
Inside the Box
- Freezer packs
- Ice cube trays
Your advantages
Special features (1)
IceMaker
Ice cubes for cold drinks
Fresh ice, fully automatically: produces up to 100 ice cubes per day with ease thanks to plumbed water connection.
User convenience (2)
NoFrost
Defrosting is a thing of the past
No more defrosting: the circulation cooling system prevents ice from developing, saving the hassle of defrosting.
SoftClose
Appliance door closes softly
Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
Product data sheet
Appliance category
| Freezer | • |
Design
| Built-in | • |
| Built-in integrated | • |
| Door hinge side | Left |
| Convertible hinging | • |
| Can be installed side-by-side | • |
Design
| Tinted glass door | No |
| Freezer compartment lighting | LED |
User convenience
| Required Accessories | XKS 3000 Z XKV 3000 KF XKS 3130 W |
| NoFrost | • |
| VarioRoom | • |
| SoftClose door closing damper | • |
| IceMaker with plumbed water connection | • |
Control
| Electronic temperature display and control | TouchControl |
| SuperFrost | • |
| No. of temperature zones | 1 |
| Sabbath mode | • |
Fridge/fridge zone
| No. of shelves | 6 |
Freezer/freezer zone
| Number of freezer drawers | 8 |
| of which on runners | 5 |
Efficiency and sustainability
| Energy Star Qualified | • |
Safety
| Lock function | • |
| Acoustic door alarm | • |
| Acoustic temperature alarm, freezer section | • |
| Acoustic temperature alarm | • |
| Optical door alarm | • |
| Optical temperature alarm | • |
| Power cut indication for freezer compartment | • |
Technical data
| Niche width in inches (mm), min. | 22 1/8 (560) |
| Niche width in inches (mm), max. | 22 7/8 (578) |
| Niche height in inches (mm), min. | 69 7/8 (1772) |
| Niche height in inches (mm), max. | 70 1/2 (1788) |
| Niche depth in in.(mm) | 21 3/4 (550) |
| Appliance width in in.(mm) | 22 1/8 (559) |
| Appliance height in in.(mm) | 69 3/4 (1770) |
| Appliance depth in in.(mm) | 21 1/2 (544) |
| Weight in lbs.(kg) | 173 (78.4) |
| Type of mounting | Fixed door |
| Total usable capacity in cu. ft. (l) | 7.77 (220) |
| Storage time in case of fault in h | 14 |
| Current consumption in milliampere (mA) | 2300 |
| Voltage in V | 115 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Frequency in Hz | 60 |
| Wire length in ft (m) | 6 (2.1) |
| Replacing bulbs | Customer Service |
Standard accessories
| Freezer packs | • |
| Ice cube trays | • |
Optional products and accessories
Downloads, CAD, & apps
- Product sheetPDF
- Operating and Installation instructionsPDF
Follow the link and you will find all the resources you need for planning and installing any of our products
- PNG
- Energy labelPDF
- Energy labelJPEG
Follow the link and you will find all the resources you need for planning and installing any of our products
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!
Descriptions
FNS37492iE, KFN37692iDE, KFSN37692iDE, Water connection placement 2013 (installation drawings)
Descriptions
FNS37492iDE (installation drawings)
