CS1028 G USA EDST 120/60
$1,499.00

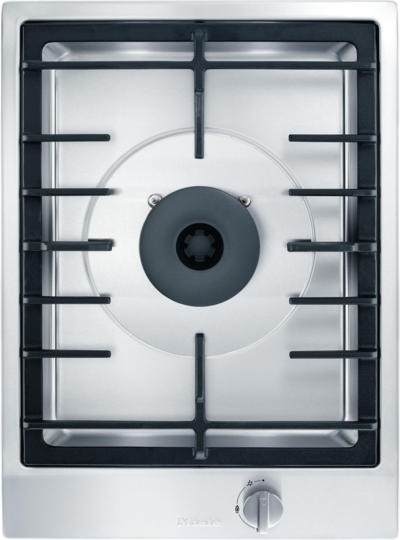

CS1028 G USA EDST 120/60

CombiSets with one burner
  • Professional design - 14 15/16 (380) in (mm) wide stainless steel trough
  • Particularly brilliant performance - mono wok with up to 8 kW
  • Simple controls -single-handed operation via rotary dial control
  • Extremely safe - GasStop function
  • Particularly high-quality - enamelled cast-iron grates

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • Connection wire

Product data sheet

Type of heating
Fuel typeGas
Design
Stainless steel trough
Miele logo embossed in stainless steel
Cast iron pot rest (matte black enameled)
Ring features
No. of rings1
Ring
PositionCentered
TypeDual wok burner
Max. rating in W6000
Control panel
Operation via knobs
Electronic ignition with one-handed operation
Safety
GasStop
Technical data
Width in in. (mm)14 15/16 (380)
Height in in. (mm)5 7/8 (150)
Depth in in. (mm)20 1/2 (520)
Built-in height with mains connection box in in. (mm)3 11/16 (94)
Cutout dimensions width in in. (mm) with proud-mounted installation14 5/16 (364)
Cutout dimensions depth in in. (mm) with proud-mounted installation19 11/16 (500)
Weight in lbs. (kg)22 (10)
Total connected load in kW0.02
Voltage in V120
Frequency in Hz60
Power cord length in in. (m)6 (2.0)
Show all technical details
Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

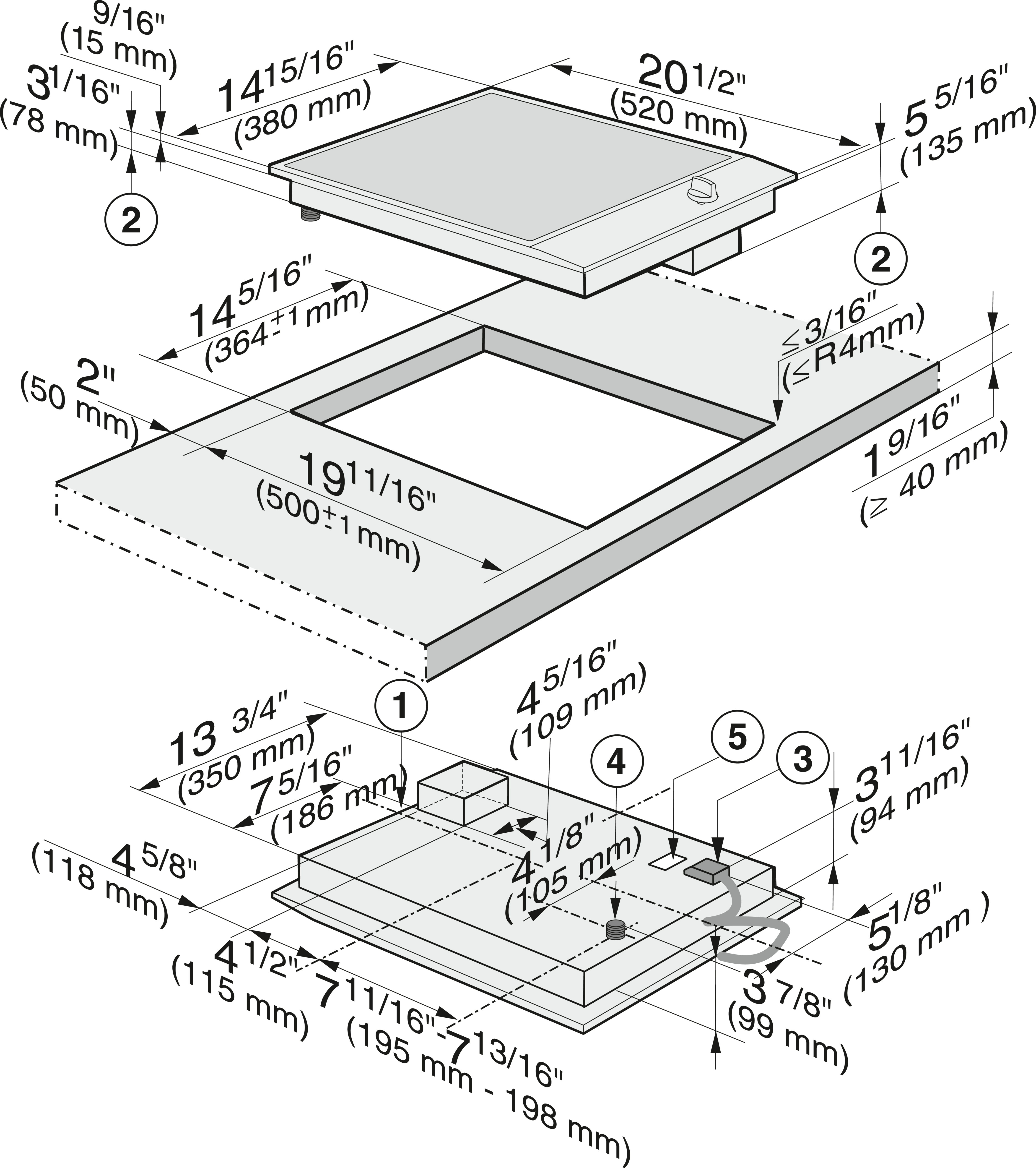

CS 1028 G (Installation drawing) - USA

1) Appliance front

2) Installation height

3) Power supply box with Connection cable

L = 78 3/4" (2000 mm)

4) Gas Fitting

5) Rating label

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
