CVA 6401
$3,499.00

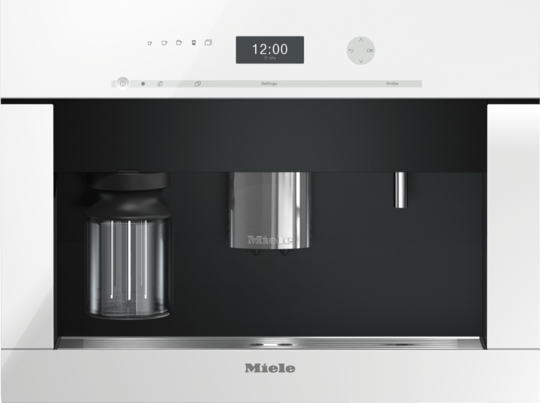

CVA 6401

Built-in coffee machine with bean-to cup system and OneTouch for Two prep. for perfect coffee enjoyment.

Want maximum peace of mind for your new Miele product? The Miele Extended Warranty Service Certificate allows you to extend the warranty period for your Miele product up to a maximum of 5 years. Discover more
Miele Extended Warranty Service Certificate
You can also select or edit your Miele Extended Warranties in your cart as part of the ordering process.

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • Glass milk container
  • Descaling tablets
  • Cleaning tablets
  • Milk pipework cleaner
  • Coffee spoon for ground coffee
  • Test strips to test water hardness

Product data sheet

Construction type and design
Built-in bean-to-cup coffee machine
PureLine
ContourLine
ColorBrilliant white
Consumer benefits
AromaticSystem
OneTouch preparation
One Touch and OneTouch for Two
Programmable User profile 10
Grinding grade selectable
Additional coffee types in ground coffee form possible
Ground quantity programmable
Water quantity programmable
Water temperature programmable
Amount of milk can be programmed
Amount of milk froth can be programmed
Pre-brewing programmable
Control panel
Control panelDirectSensor
Height adjustment of infinitely adjustable central spout min in in.(cm)3 3/8 (8.3)
Height adjustment of infinitely adjustable central spout max in in.(cm)6 1/2 (16.5)
ComfortDoor
Hidden door handle
MultiLingua
Bean container capacity, total in oz (g)17.64 (500)
Capacity of water container in fl oz (l)77.77 (2.3)
Capacity of waste container in servings15
Easily accessible containers
Time-of-day display
Date display
Programmable switch-on time
Programmable switch-off time
Programmable stand-by time
Clock battery backup in h150
Beverages
Espresso, single
Espresso, double
Coffee, single
Coffee, double
Long coffee, single
Long coffee, double
Cappuccino, single
Cappuccino, double
Latte macchiato, single
Latte macchiato, double
Hot milk, single
Latte macchiato, double
Milk froth, single
Milk froth, double
Caffè latte, single
Caffè latte, double
Hot water, single
Coffee pot
Efficiency and sustainability
Energy-saving Eco mode option
Cleaning convenience
Automatic rinsing of the milk pipework from the water container
Convenient cleaning programs
Auto-Off function
ComfortClean
Removable milk pipework
Removable brew unit
Adjustable water hardness
Safety
System lock
Technical data
Niche width min in in.(mm)22 1/16 (560)
Niche width max in in.(mm)22 6/16 (568)
Niche height min in in.(mm)17 11/16 (448)
Niche height max in in.(mm)17 49/64 (452)
Niche depth in in.(mm)21 5/8 (500)
Appliance width in in.(mm)23 7/16 (595)
Applicance height in in.(mm)17 15/16 (452)
Appliance depth in in.(mm)19 (480)
Depth with door open in in.(cm)41 3/4 (106.0)
Total connected load in kW1.45
Voltage in V120
Fuse rating in A15
Number of phases1
Length of electrical wire in ft (m)5 (1.8)
Show all technical details

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

  • 1 . Patent: DE 2594172 B1
  • Subject to technical changes; no liability accepted for the accuracy of the information given.
