H 6670 BM
$3,799.00
Find a dealer

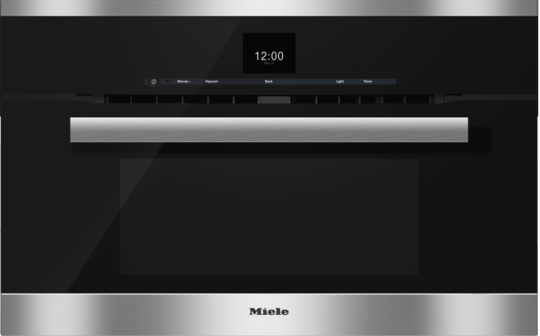

H 6670 BM

30 Inch Speed Oven with combi-modes and Roast probe for precise-temperature cooking.

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in wall speed oven
PureLine
Appliance colorClean Touch Steel
Rapid PreHeat
Roast probe
Defrost
MasterChef automatic programsNo
Auto roast
Gentle Bake
Maxi Broil
Convection Bake
Intensive Bake
Slow roast
Microwave
Combi Auto Roast
Micro Broil
Combi Bake
Combi Broil
Surround
Bake
Convection Roast
Special modes
RemoteServiceNo
Control panelSensorTronic
MultiLingua
Popcorn function
Time of day display
Date display
Minute minder
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Recommended microwave power
Minute Plus button
Individual settings
Favorites
Sabbath program
Residual heat utilization
Stainless steel front with Clean Touch Steel surface
Stainless-steel cavity with linen surface structure
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Cavity volume in cu.ft (l) 1.52 (43)
No. of rack levels 3
Electronically controlled microwave power
Microwave power levels in W80/150/300/450/600/850/1000
Niche width min in in. (mm)28 5/8 (724)
Niche width max in in. (mm)28 5/8 (724)
Niche height min in in. (mm)18 5/8 (470)
Niche height max in in. (mm)18 5/8 (472)
Niche depth in in. (mm)24 1/8 (610)
Appliance width in in. (mm)29 7/8 (757)
Appliance height in in. (mm)18 7/8 (479)
Appliance depth in in. (mm)22 5/8 (574)
Weight in lbs. (kg)94.8 (43.0)
Total connected load in kW4,00
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Number of phases1
Fuse rating in A30
Connection wire with plug
Length of power cord in in. (m)1.80

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

(DGC 6x00-1; DGC 686x AM; H6xx0 BM/BP) + EBA 6808; H 6x8x BP/BP2/-2BP, DGC7xxx, H2880BP, H7x8xBP(2), H6885 BP

H6660BP

1 22 1/16" / 560 mm

2 17 1/2" / 444 mm

3 1 5/8" / 42 mm

4 1 3/8" / 35 mm

5 1 3/16" / 39 mm

6 2 3/4" / 70 mm

DGC6600-1

DGC6800-1

DGC6805-1

H6200BM

H6600BM

22 1/16" / 560 mm

17 1/2" / 444 mm

1 5/8" / 42 mm

1 3/8" / 35 mm

1 3/16" / 39 mm

2 3/8" / 60 mm

DGC6860AM

DGC6865AM

22 1/16" / 560 mm

17 1/2" / 444 mm

1 5/8" / 42 mm

1 3/8" / 35 mm

1 3/16" / 39 mm

2 3/4" / 70 mm

H6280BP

H6281BP

H6680BP

H6880BP

H6880-2BP

22 1/16" / 560 mm

17 1/2" / 444 mm

1 5/8" / 42 mm

1 3/8" / 35 mm

1 11/16" / 43 mm

2 3/4" / 70 mm

H6880BP2

H6880-2BP2

H6670BM

H6870BM

22 1/16" / 560 mm

17 1/2" / 444 mm

1 5/8" / 42 mm

1 3/8" / 35 mm

1 5/8" / 42 mm

2 3/8" / 60 mm

DGC7xxx & H2880BP & H7x8xBP(2) & H6885 BP

1 19 11/16" / 500 mm

2 17 1/2" / 444 mm

3 1 7/8 " / 47 mm

4 15/16" / 24 mm

5 1 1/4 " / 32

5 mm

DGC7440

DGC7640

DGC7840

DGC7845

DGC7860

DGC7865

DGC7440 + EBA7808

DGC7640 + EBA7808

DGC7840 + EBA7808

DGC7845 + EBA7808

DGC7860 + EBA7808

DGC7865 + EBA7808

H7240BM

H7640BM

H7840BM

H7240BM + EBA7808

H7640BM + EBA7808

H7840BM + EBA7808

H7262BP

H7660BP

H7262BP + EBA7808

H7660BP + EBA7808:

1 15 3/4“ / 400 mm

2 14 3/16“ / 360 mm

3 1 7/8“ / 47 mm

4 15/16“ / 24 mm

5 1 1/4“ / 32

5mm

Descriptions

H 6x80 BP, H 6x70 BM, ESW 6x85, H 6x80-2BP, NA7000 Fitting Combi w. front side by side without wall, drawing, Proud, NA

Descriptions

H6x80(2)BP, H6x70BM, ESW6x80, DGC7x7x(X), H7x70BM(X), H7x80BP, ESW7x80, Combi, Installation drawing, Proud, Flush inset,

7/8“ - 22* mm - Glas

15/16“ - 23.3** mm - Edelstahl

Descriptions

H6x80 BP, H6x70BM, ESW6x85, H6x80-2BP, NA7000, Installation Combi w. front side by side without wall, drawing, Proud, NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

Descriptions

H6x80 BP, H6x70 BM, ESW6x85, H6x80-2BP, H2x80BP, H 7x80 BP/BPX, ESW 7x70, EVS 7670 , Flush inset, NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
