HR 1924-2 LP
$7,499.00
Find a dealer

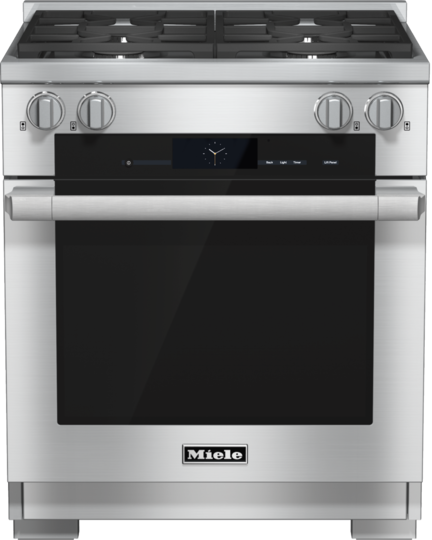

HR 1924-2 LP

30 inch range Dual Fuel with M Touch controls, Moisture Plus and M Pro dual stacked burners
  • Multicolored TFT touch display with clear text - M Touch
  • Plenty of space for cooking - four powerful burners
  • Perfect baking and roasting results - Moisture plus
  • Ergonomic and easy operation - motorized lift-up control panel
  • Precise cooking temperature – Wireless Precision Probe

  • Subject to technical changes; no liability accepted for the accuracy of the information given.

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Dual fuel
Gas typeNatural gas
Range
Appliance width in inches30
Defrost
MasterChef automatic programs Yes
MasterChef Plus automatic programsYes
Auto roast
Gentle bake
Maxi Broil
Broil
Convection Bake
Intensive
Moisture plus
Slow roast
Surround
Browning
Bake
Convection Roast
Special modes
Appliance colorClean Touch Steel
Oven displayM Touch
Wireless Precision Probe
Crisp function
Number of gas burners4
Number of TrueSimmer burners x power in BTU1 x 12.500
Number of high burners x power in BTU3 x 19.500
True Simmer function
GasStop
Precision knobs
Illuminated knob
ComfortSwivel handle
Motorized lift-up control panel
Sabbath program
MultiLingua
MyMiele
Time of day display
Date display
Minute minder
Time buffer in h
Automatic switch-off
Programmable cooking time
Actual temperature display
Default temperatures
Acoustic signal when desired temperature is reached
FavoritesYes
Individual settings
Timed bursts of steam
CleanGlass door
Door contact switch
SoftClose oven door/ SoftOpen
Oven cavity volume in cu. ft. (l)4.59 (130) ft³ (l)
No. of halogen lamps2
TwinPower hot air fans
Energy-saving lighting circuit
Residual heat utilization
Stainless-steel front with partial Clean Touch Steel finish
Oven with self-cleaning program
AirClean catalyzer
Broil element can be lowered
ComfortClean dishwasher-safe grates
Cooktop surfaceBlack enamel
Appliance cooling system with cool touch front
Safety cut-out
System lock
Door contact switch
Door lock during self cleaning
Appliance width in inches29 15/16
Appliance width in in.(mm)30 (762)
Appliance height min in in.(mm)37 1/8 (942)
Appliance height max in in.(mm)38 5/8 (980)
Appliance depth in in. (depth) with bullnose27 1/2 (698)
Power Rating in V120
Convertible voltage in V240/208
Fuse rating in A30
Number of phases1
Fresh water connection for Moisture Plus
Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

HR19x4, HR193x, HR195x (installation drawing)

(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)

Descriptions

H1xxx installation drawings

1 29 11/16" / 754 mm

2 23 3/4" / 603

6 mm

3 2 5/8" / 66

5 mm

4 1 11/16" / 43 mm

5 1 11/16" / 42

5 mm

Descriptions

HR1924 (installation drawing)

(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)

Descriptions

HR1924 (installation drawing)

(x) = Toe-kick height adjustment 5" - 6 1/2" (127 mm - 165.1 mm)

Descriptions

HR1924 (installation drawing)

E = Electric Connection

W = Water connection

G = Gas connection
