H 6780-2 BP2
$8,999.00
Find a dealer

H 6780-2 BP2

30 Inch Convection Oven - The multi-talented Miele for the highest demands.

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in wall oven
ContourLine
Appliance colorClean Touch Steel
Rapid PreHeat
Crisp function
Defrost
MasterChef automatic programsNo
Auto roast
Gentle Bake
Maxi Broil
Broil
Convection Bake
Intensive Bake
Moisture Plus
Slow roast
Surround
Browning
Bake
Convection Roast
Special modes
RemoteServiceNo
Control panel M Touch
ComfortSwivel handle
MultiLingua
Time bursts of steam
Polyphonic acoustic signals
Timers
Time of day display
Date display
Minute minder
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Favorites
Sabbath program
Individual settings
Residual heat utilization
Clean Touch Steel surface
Self-cleaning
AirClean Catalyzer
Catalyzer
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door lock during self cleaning
Cavity volume in cu.ft (l) 4.59 (130)
No. of rack levels 6
Labeling of rack levels
TwinPower hot air fans
Niche width min in in. (mm)28 5/8 (724)
Niche width max in in. (mm)28 5/8 (724)
Niche height min in in. (mm)51 1/8 (1298)
Niche height max in in. (mm)51 1/8 (1298)
Niche depth in in. (mm)24 1/8 (610)
Appliance width in in. (mm)28 3/8 (720)
Appliance height in in. (mm)50 7/8 (1290)
Appliance depth in in. (mm)23 5/8 (597)
Weight in lbs. (kg)341.28 (154.8)
Total connected load in kW11,00
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Number of phases1
Fuse rating in A50
Connection wire
Connection wire with plug

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

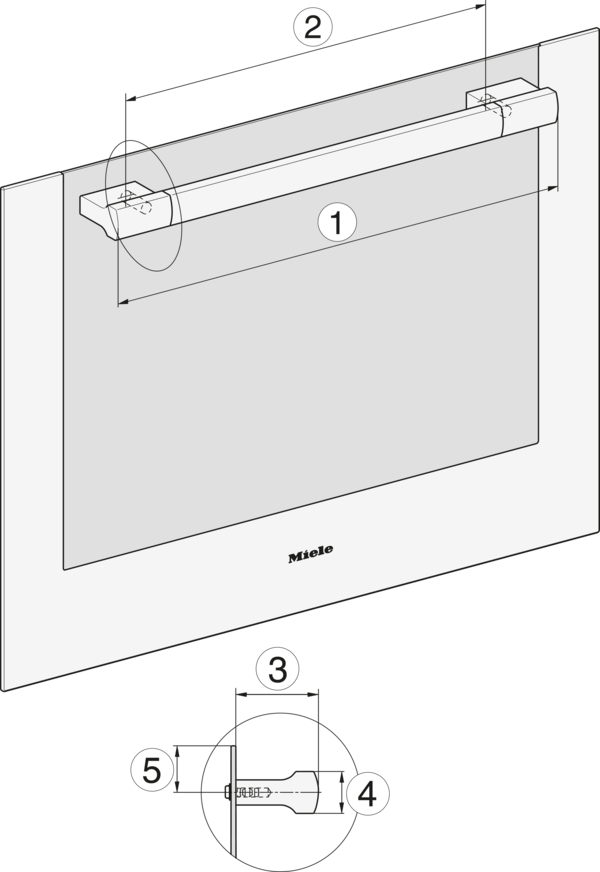

H 6xx0 BM + EBA 6808; H 6x80 BP/-2BP/BP2/-2BP2, DGC7xxx, H7x7xBM, H7x8xBP(2)

fixed

H6180BP

H6100BM

H6700BM

1 22 1/16" / 560 mm

2 17 1/2" / 444 mm

3 2 5/16" / 59 mm

4 1 3/8" / 35 mm

5 1 11/16" / 43 mm

turnable

H6580BP

H6780BP

H6780-2BP

H6780BP2

H6780-2BP2

H6570BM

H6770BM

22 1/16" / 560 mm

17 1/2" / 444 mm

1 11/16" / 69 mm

1 3/8" / 35 mm

1 11/16" / 43 mm

DGC7370

DGC7570

DGC7770

DGC7775

DGC7580

DGC7585

DGC7780

DGC7785

H7170BM

H7570BM

H7770BM

H7180BP

H7580BP

H7585BP

H7780BP

H7780BP2:

1 21 1/8" / 536 mm

2 17 1/2" / 444 mm

3 2 1/2 " / 64 mm

4 1 3/8" / 35 mm

5 1 7/16 " / 37 mm

Descriptions

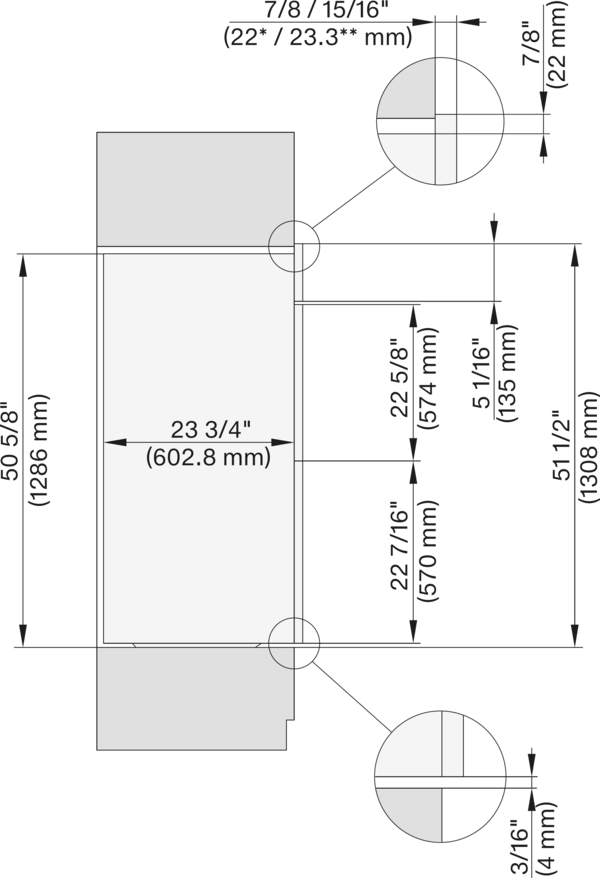

H 6x80 BP2, H 6x80-2BP2, H7x80BP2, side view, installation drawing, Proud, NA

7/8" - 22* mm - Glas

15/16" - 23.3** mm - Edelstahl

Descriptions

H 6x80 BP2, H 6x80-2BP2, H7x80BP2wide front installation, installation drawing, Proud, NA

A - Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power cord and ventilation

- Electrical and water supplies are recommended to be placed in adjacent cabinetry.

Additional cabinet depth is required when placing the electrical and water supplies behind the appliance.

E = Electric connection

W = Water connection

Descriptions

H 6x80 BP2, H 6x80-2BP2, H7x80BP2, fitting wide front, installation drawing, Proud, NA

7/8" - 22* mm - Glas

15/16" - 23.3** mm - Edelstahl

  • 1 . EP 1 985 983 B1
  • Subject to technical changes; no liability accepted for the accuracy of the information given.
