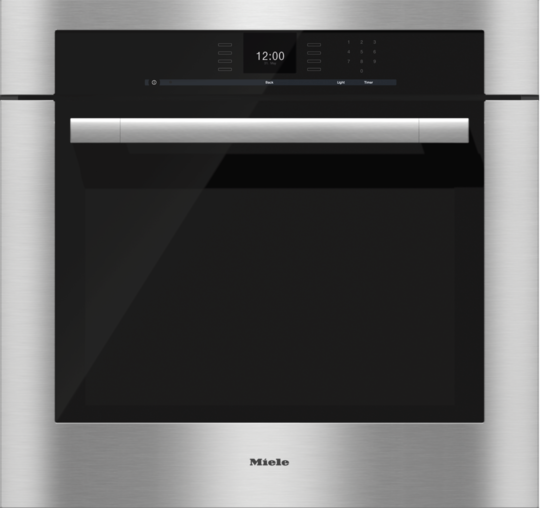

H 6580 BP

H 6580 BP

30 Inch Convection Oven with touch controls and MasterChef programs for perfect results.
  • TFT clear text display with touch operation - SensorTronic
  • Perfect results with ease - - MasterChef Programs
  • Minimal cleaning effort - Self-cleaning
  • Easy handling thanks to FlexiClip fully telescopic runners
  • Plenty of room and versatility

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • Side racks self clean ready
  • Universal baking tray with PerfectClean
  • Connection wire with plug

Product data sheet

Construction type
Built-in wall oven
Appliance colorClean Touch Steel
Control panelSensorTronic
Convenience features
Precise temperature regulation75 – 575 °F
Roast probe
Operating modes
MasterChef automatic programsMore than 100
Auto roast
Gentle bake
Maxi Broil
Convection Bake
Intensive bake
Slow roast
Convection Broil
Special modes
Control panel
ComfortSwivel handel
Search function automatic program
Time of day display
Date display
Minute minder
Time buffer in h200
Start-stop programming
Automatic switch-off
Programmable cooking time
Entry via number keypad
Actual temperature display
Default temperatures
Acoustic signal when desired temperature is reached
Sabbath program
Individual settings
CleanGlass door
Silhouette handle
Door contact switch
Door hinge sideBottom
Oven compartment volume in cu.ft (l)4.59 (130)
No. of rack levels6
Labeling of rack levels
No. of halogen lamps 2
TwinPower hot air fan
Cleaning convenience
Stainless steel front with Clean Touch Steel surface
Unheated catalyzer
Efficiency and sustainability
Energy-saving lighting circuit
Residual heat utilization
Rapid PreHeat
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door contact switch
Door lock during self cleaning
Technical data
Niche width min in in. (mm)28 5/8 (724)
Niche width max in in. (mm)28 5/8 (724)
Niche height min in in. (mm)28 3/8 (718)
Niche height max in in. (mm)28 3/8 (718)
Niche depth in in. (mm)24 1/8 (610)
Appliance width in in. (mm)28 3/8 (720)
Appliance height in in. (mm)28 (711)
Appliance depth in in. (mm)23 5/8 (597)
Weight in lbs. (kg)184.53 (83.7)
Voltage in V120
Frequency in Hz60
Fuse rating in A30
Number of phases1
Voltage convertible in V240/208
Show all technical details

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

  • 1 . Patent: DE 10 2006 015 444 B4
  • Subject to technical changes; no liability accepted for the accuracy of the information given.
