H 6200 BM AM
$2,399.00
Find a dealer

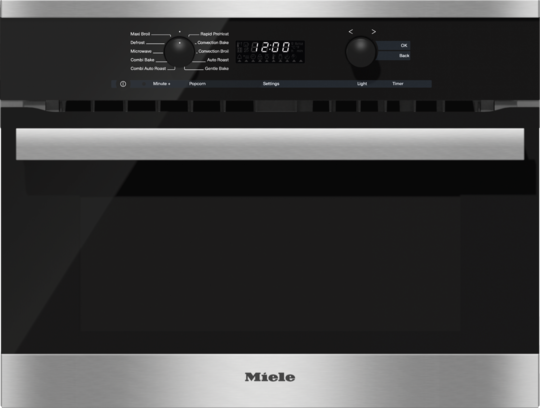

H 6200 BM AM

24 Inch Speed Oven With electronic clock/timer and combination modes for quick, perfect results.

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Product data sheet

Built-in wall speed oven
PureLine
Appliance colorClean Touch Steel
Retractable rotary controls
Rapid PreHeat
Keep-warm function
Defrost
MasterChef automatic programsNo
Auto roast
Gentle Bake
Broiling operating modes
Maxi Broil
Convection Bake
Microwave
Combi Auto Roast
Combi Bake
Convection Roast
RemoteServiceNo
Control panelDirectSelect
Popcorn function
Timers
Time of day display
Minute minder
Programmable cooking time
Actual temperature display
Audible signal when desired temperature is reached
Default temperature
Recommended microwave power
Minute Plus button
Individual settings
Clean Touch Steel surface
Stainless-steel cavity with linen surface structure
Foldable broil heater element
CleanGlass door
Appliance cooling system and cool touch front
Safety cut-out
System lock
Cavity volume in cu.ft (l) 1.52 (43)
No. of rack levels 3
Electronically controlled microwave power
Microwave power levels in W80/150/300/450/600/850/1000
Niche width min in in. (mm)22 1/8 (560)
Niche width max in in. (mm)22 3/8 (568)
Niche height min in in. (mm)17 3/4 (450)
Niche height max in in. (mm)17 7/8 (452)
Niche depth in in. (mm)21 3/4 (550)
Appliance width in in. (mm)22 1/8 (559)
Appliance height in in. (mm)17 5/8 (446)
Appliance depth in in. (mm)21 3/8 (542)
Weight in lbs. (kg)94.8 (43.0)
Total connected load in kW2,20
Power Rating in V120
Voltage in V240/208
Frequency in Hz60
Number of phases1
Fuse rating in A30
Connection wire with plug
Length of power cord in in. (m)2.00

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

H 6000 BM - 45 cm (Installation drawing) - USA

A =

H61xx: 2 5/16" (59 mm)

H62xx: 1 5/8" (42 mm)

H65xx: 2 3/4" (69 mm)

H66xx: 1 5/8" (42 mm)

H67xx: 2 3/4" (69 mm)

H68xx: 1 5/8" (42 mm)

B =

Speed oven with glass front: 1/16" (2.2 mm)

Speed oven with metal front: 1/16" (1.2 mm)

Descriptions

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

Descriptions

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

Descriptions

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
