H 6100 BM AM
$2,299.00

H 6100 BM AM

24 Inch Speed Oven With electronic clock/timer and combination modes for quick, perfect results.
  • Turn dial operation with display – DirectSelect
  • Easy cleaning – cavity with linen-weave pattern & PerfectClean
  • Quick preparation - combined microwave modes
  • Fresh popcorn at your fingertips thanks to the Popcorn button

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • PerfectClean baking and roasting rack
  • Glass tray
  • Connection wire with plug

Product data sheet

Construction type
Built-in wall speed oven
Design
ContourLine
Appliance colorClean Touch Steel
Control panelDirectSelect
Retractable knobs
Convenience features
Precise temperature regulation75 – 475 °F
Power levels80/150/300/450/600/850/1000
Electronically controlled microwave power
Keep-warm function
Operating modes
Defrost
Auto roast
Gentle bake
Maxi Broil
Convection Bake
Microwave
Combi Auto Roast
Combi Bake
Convection Broil
Control panel
Popcorn function
Time of day display
Minute minder
Time buffer in h200
Start-stop programming
Automatic switch-off
Programmable cooking time
Actual temperature display
Default temperatures
Acoustic signal when desired temperature is reached
Recommended microwave output for each operating mode
Minute Plus button
Individual settings
Door
CleanGlass door
Door contact switch
Door hinge sideBottom
Cavity
Oven compartment volume in cu.ft (l)1.52 (43)
No. of rack levels3
No. of halogen lamps 1
Cleaning convenience
Stainless steel front with Clean Touch Steel surface
Stainless-steel oven compartment with linen structure and PerfectClean
Efficiency and sustainability
Rapid PreHeat
Safety
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door contact switch
Technical data
Niche width min in in. (mm)22 1/8 (560)
Niche width max in in. (mm)22 3/8 (568)
Niche height min in in. (mm)17 3/4 (450)
Niche height max in in. (mm)17 7/8 (452)
Niche depth in in. (mm)21 3/4 (550)
Appliance width in in. (mm)22 1/8 (559)
Appliance height in in. (mm)17 5/8 (446)
Appliance depth in in. (mm)21 3/8 (542)
Weight in lbs. (kg)94.8 (43.0)
Total connected load in kW2,20
Voltage in V120
Frequency in Hz60
Fuse rating in A30
Number of phases1
Voltage convertible in V240/208
Show all technical details

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

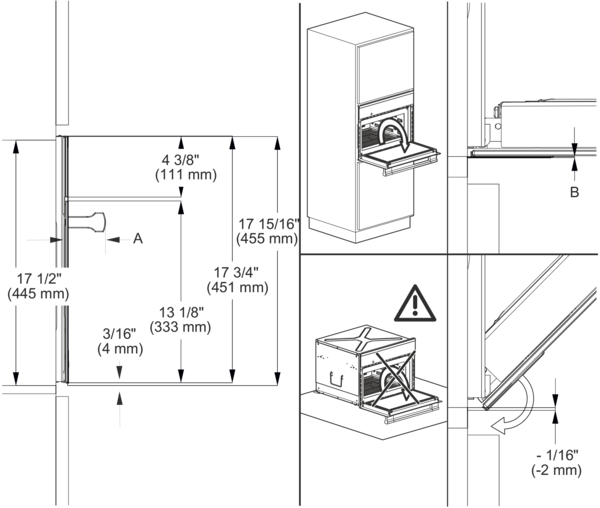

H 6000 BM - 45 cm (Installation drawing) - USA

A =

H61xx: 2 5/16" (59 mm)

H62xx: 1 5/8" (42 mm)

H65xx: 2 3/4" (69 mm)

H66xx: 1 5/8" (42 mm)

H67xx: 2 3/4" (69 mm)

H68xx: 1 5/8" (42 mm)

B =

Speed oven with glass front: 1/16" (2.2 mm)

Speed oven with metal front: 1/16" (1.2 mm)

Descriptions

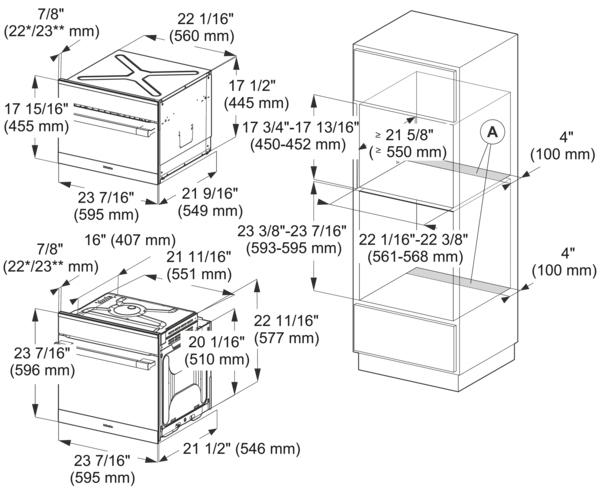

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

Descriptions

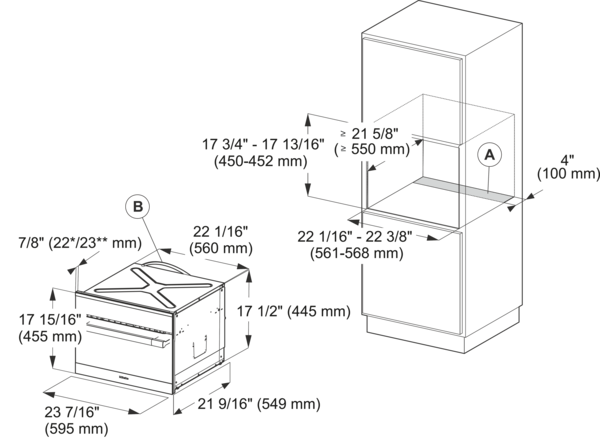

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

Descriptions

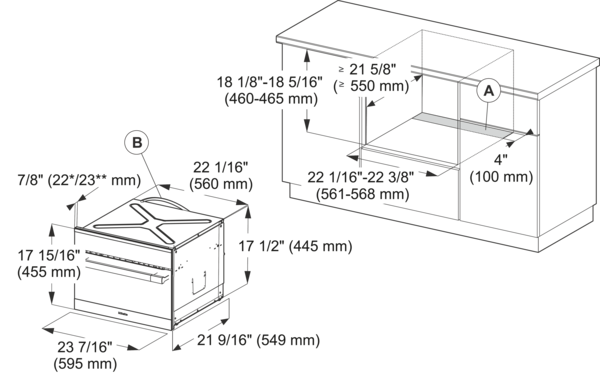

H 6000 BM - 45 cm (Installation drawing) - USA

A = Cut-out (4" x 22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B = Power cord with plug

* Oven with glass front

** Oven with metal front

  • 1 . Patent: EP 1 345 474 B1
  • Subject to technical changes; no liability accepted for the accuracy of the information given.
