ESW 6114
- Ultimate enjoyment with Low temperature cooking
Low-temperature cooking
For perfect results: With low temperatures, meat recipes automatically become specialities.
Features depend on model. Images are only examples and used for explanation purposes
- Versatile use thanks to four operating modes
Four operating modes
Multi-purpose use: Heat cups and plates, keep dishes warm or cook at low temperatures.
Features depend on model. Images are only examples and used for explanation purposes
- Convenient and easy – Touch control
Touch controls
Simply convenient: Operation is via a flush touch panel which is easy to clean.
Features depend on model. Images are only examples and used for explanation purposes
- Easiest handling - Push2Open
Push2open mechanism
Easy to open: slight pressure is sufficient to activate this function.
Features depend on model. Images are only examples and used for explanation purposes
- Safe is safe - Timer function with automatic switch off
Timer
Heat guaranteed: All built-in food warming drawers feature a 4-hour timer which switches off automatically.
Features depend on model. Images are only examples and used for explanation purposes
Your exclusive advantages
Touch controls
The most advanced technology behind glass
Timer
For worry-free enjoyment
Four operating modes
For dishware and dishes
Touch controls
The most advanced technology behind glass
Timer
For worry-free enjoyment
Non-slip liner
For exceptional convenience
Freely adjustable temperature control
For perfect enjoyment
Capacity
For a festive table
Inside the Box
Product data sheet
Gourmet drawer  Gourmet warming drawerAs well as the benefits of a crockery warming drawer, the gourmet warming drawer offers the additional option of keeping cooked food warm. It can also be used to cook meat and other dishes to perfection with the "low temperature cooking" function. This extremely versatile heated drawer complements a conventional oven or steam oven perfectly. Features depend on model. Images are only examples and used for explanation purposes | • |
| Color | Clean Touch Steel |
| Control panel with sensor controls | • |
| Control panel with text | • |
| No handles | • |
| Prewarming of dishware | • |
| Keeping food warm | • |
Precise electronic temperature control from 104 °F to 185 °F  Freely adjustable temperature controlIndividual and precise control: "depending on requirements and taste, temperature can be precisely controlled." Features depend on model. Images are only examples and used for explanation purposes | • |
Warming cups Four operating modesMulti-purpose use: Heat cups and plates, keep dishes warm or cook at low temperatures. Features depend on model. Images are only examples and used for explanation purposes | • |
Warming plates Four operating modesMulti-purpose use: Heat cups and plates, keep dishes warm or cook at low temperatures. Features depend on model. Images are only examples and used for explanation purposes | • |
Keeping food warm Four operating modesMulti-purpose use: Heat cups and plates, keep dishes warm or cook at low temperatures. Features depend on model. Images are only examples and used for explanation purposes | • |
Slow roast Low-temperature cookingFor perfect results: With low temperatures, meat recipes automatically become specialities. Features depend on model. Images are only examples and used for explanation purposes | • |
Fully telescopic runners for easy loading and unloading  Fully telescopic runnersSimply practical: the drawer can be pulled out completely for easy loading and unloading. Features depend on model. Images are only examples and used for explanation purposes | • |
Push2open mechanism Push2open mechanismEasy to open: slight pressure is sufficient to activate this function. Features depend on model. Images are only examples and used for explanation purposes | • |
Stop programming/Timer function TimerHeat guaranteed: All built-in food warming drawers feature a 4-hour timer which switches off automatically. Features depend on model. Images are only examples and used for explanation purposes | • |
Capacity  Capacity"Lots of guests, a lot of dishware:" "depending on the model, dishware for up to 12 persons can be pre-heated." Features depend on model. Images are only examples and used for explanation purposes | 6 place settings |
Stainless steel front with Clean Touch Steel surface  Clean Touch Steel™FrontCleaning made easy: the high-quality surface finish makes cleaning the appliances extremely easy. Features depend on model. Images are only examples and used for explanation purposes | • |
Flush control panel  Touch controlsSimply convenient: Operation is via a flush touch panel which is easy to clean. Features depend on model. Images are only examples and used for explanation purposes | • |
Cool front  Cool frontMaximum protection: All surfaces on and around the appliance remain relatively cool, providing protection against burns. Features depend on model. Images are only examples and used for explanation purposes | • |
Safety cut-out  Safety turn offYour guardian angel: If you forget to switch the appliance off, the safety switch-off function will do it for you. Features depend on model. Images are only examples and used for explanation purposes | • |
Non-slip liner  Non-slip linerAll items are safely positioned: dishware does not slide around when the drawer is opened or closed. Features depend on model. Images are only examples and used for explanation purposes | • |
| Appliance width in in. (mm) | 23 1/2 (595) |
| Appliance height in in. (mm) | 5 5/8 (141) |
| Appliance depth in in. (mm) | 22 1/2 (570) |
| Useable interior height in in. (mm) | 3 1/4 (80) |
| Oven cavity volume in cu. ft. (l) | 0.71 (20) ft³ (l) |
| Total connected load in kW | 0.70 |
| Voltage in V | 120 |
| Frequency in Hz | 60 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Wire length in ft. (m) | 6 (2.0) |
| Connection wire with plug | • |
Follow the link and you will find all the resources you need for planning and installing any of our products
Descriptions

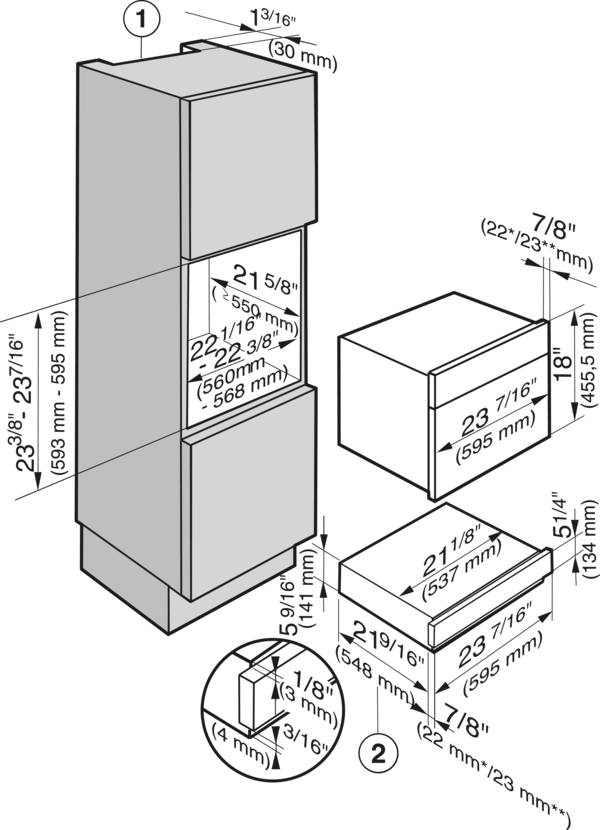

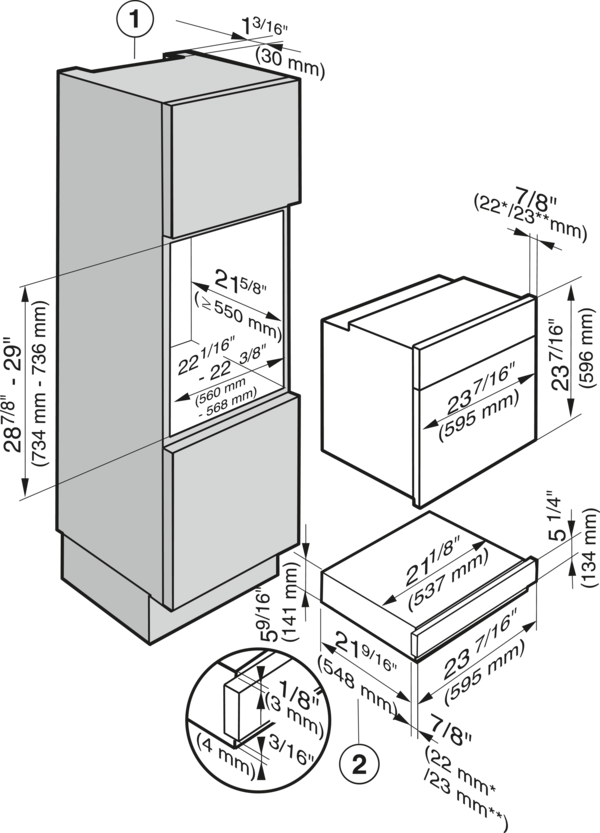

ESW 6114, ESW 6214 with H 6xxx BM, H 6xxx BP, M 61xx, M 62xx, 45 cm high (Installation drawing) - USA
1) Vent cut-out for when appliance is installed in combination with a self cleaning oven
2) Installation dimensions with plug power cord L = 7' 2 5/8" (2200 mm)
* Appliances with glass front
** Appliances with metal front
Descriptions

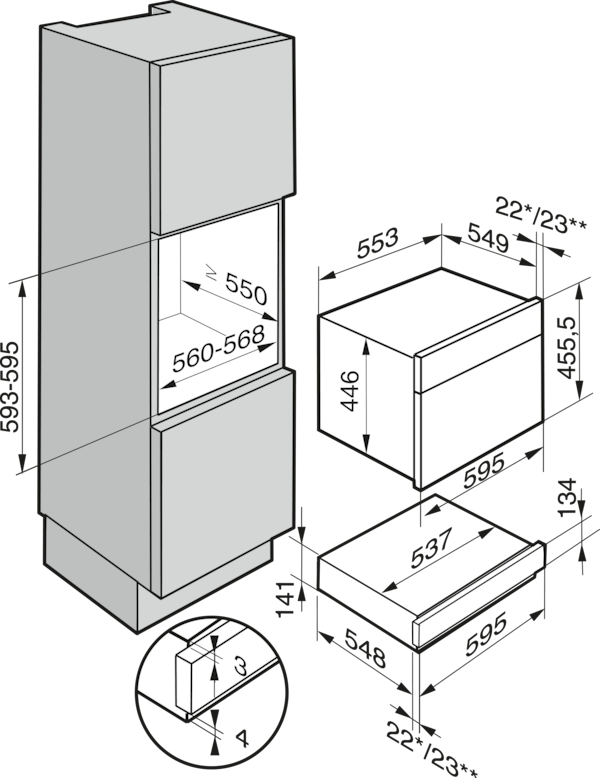

ESW 6114, ESW 6214 (Installation drawing)
* appliances with glass front
** Appliances with metal front
Descriptions

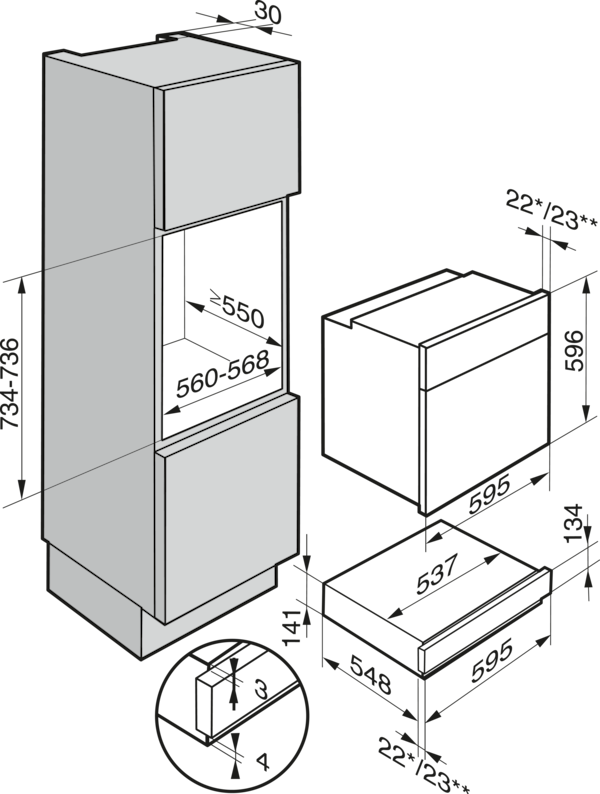

ESW 6114, ESW 6214 (Installation drawing)
* appliances with glass front
** Appliances with metal front
Descriptions

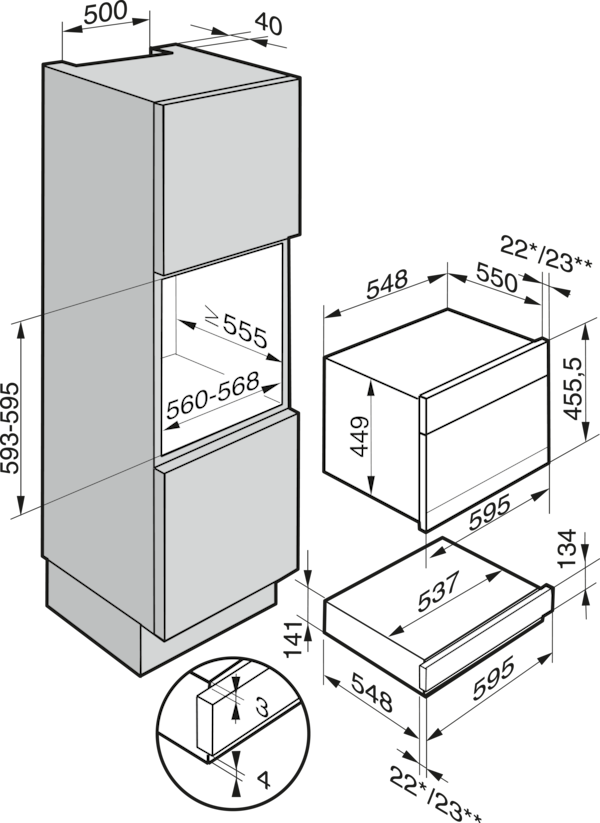

ESW 6114, ESW 6214 CLST (Installation drawing)
* Appliances with glass front
** Appliances with metal front
Descriptions

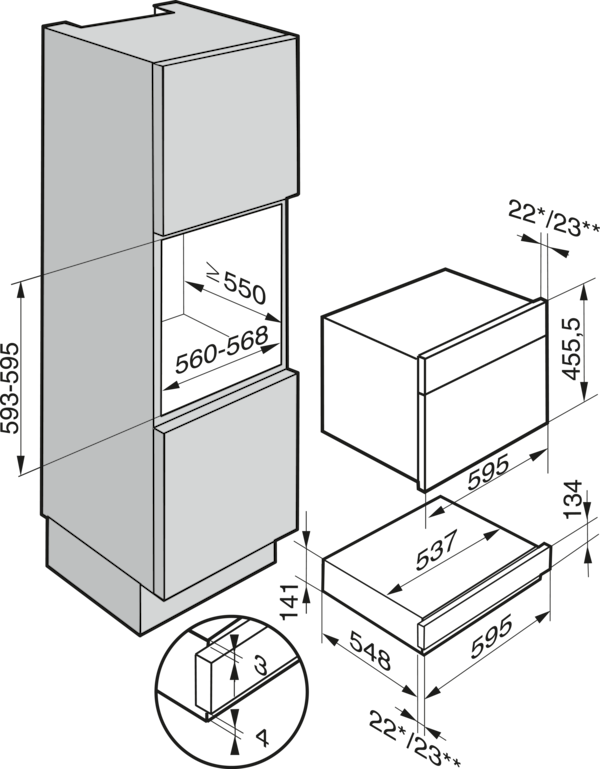

ESW 6114, ESW 6214 (Installation drawing)
* appliances with glass front
** Appliances with metal front
Descriptions

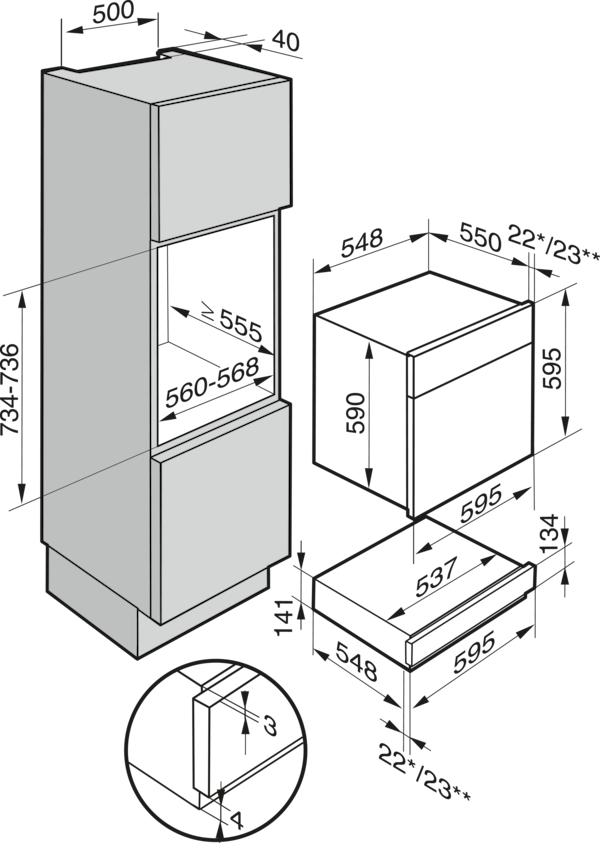

DGC 6000, ESW 6*-14, CLST (installation drawing)
* Appliances with glass front
** Appliances with metal front
Descriptions

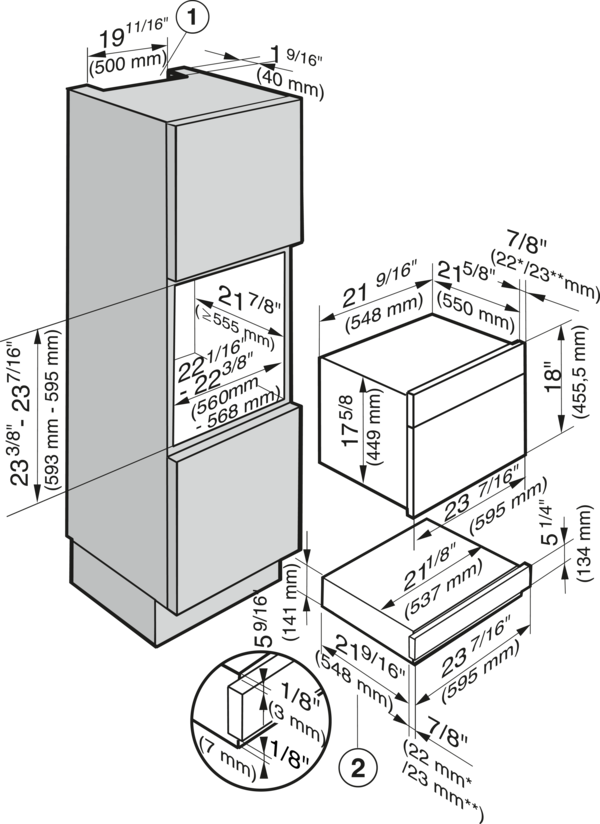

ESW 6114, ESW 6214 with H 6xxx B(P), HxxxxB(P) 60 cm high (Installation drawing) - USA
1) Vent cut-out for when appliance is installed in combination with a self cleaning oven
2) Installation dimensions with plug power cord L = 7' 2 5/8" (2200 mm)
* Appliances with glass front
** Appliances with metal front
Descriptions

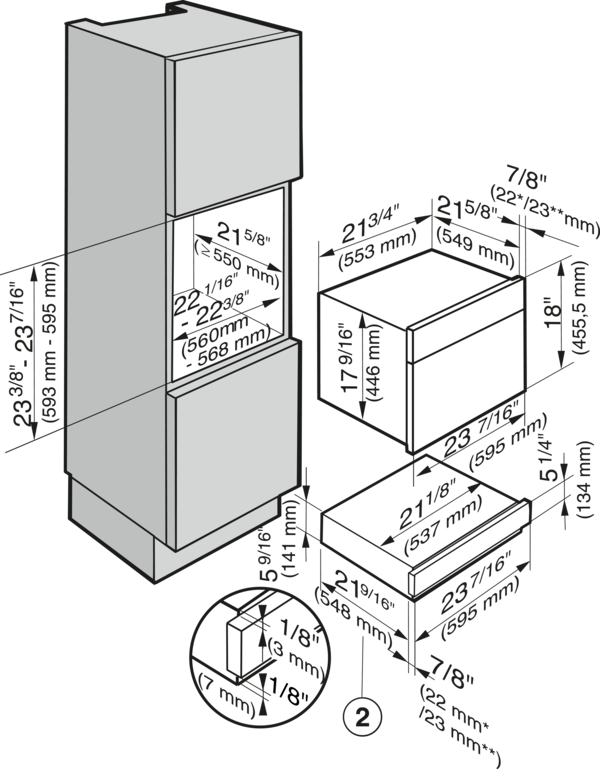

ESW 6114, ESW 6214 with DGC 6500/6600/6800 (Installation drawing) - USA
1) Vent cut-out for when appliance is installed in comibnation with a combination steam cooker with oven
2) Installation dimensions with plug power cord L = 7' 2 5/8" (2200 mm)
* Appliances with glass front
** Appliances with metal front
For DGC 6805
cut-outs are required for the water supply and drain hoses (see the DGC 6805 Installation instructions).
Descriptions
ESW 6114, ESW 6214 mit DG 6x00 / DG 6x0x (Installation drawing) - USA
2) Installation dimensions with plug power cord L = 7' 2 5/8" (2200 mm)
* Appliances with glass front
** Appliances with metal front
Descriptions
ESW 6114, ESW 6214 with DGC 6500/6600/6800 (Installation drawing)
* appliances with glass front
** Appliances with metal front
- Subject to technical changes; no liability accepted for the accuracy of the information given.
