H 6560 B AM
$2,999.00

H 6560 B AM

24 Inch Convection Oven with AirClean catalyzer and Roast probe for precise cooking.
  • TFT clear text display with touch operation - SensorTronic
  • Achieve perfect results with ease – Automatic programs
  • Particularly easy to clean - PerfectClean finish
  • Precise temperature roasting - Roast probe
  • Lots of room and versatility

Your exclusive advantages

Features depend on model – images are only examples and used for explanation purposes

Inside the Box

  • Universal baking tray with PerfectClean
  • Baking tray with PerfectClean
  • PerfectClean baking and roasting rack
  • Side racks with PerfectClean
  • Connection wire with plug

Product data sheet

Construction type
Built-in wall oven
Design
ContourLine
Appliance colorClean Touch Steel
Control panelSensorTronic
Convenience features
Precise temperature regulation75 – 575 °F
Roast probe
Operating modes
Defrost
MasterChef automatic programsMore than 100
Auto roast
Gentle bake
Maxi Broil
Convection Bake
Intensive bake
Slow roast
Surround
Browning
Bake
Convection Broil
Special modes
Control panel
MultiLingua
Time of day display
Date display
Minute minder
Time buffer in h200
Start-stop programming
Automatic switch-off
Programmable cooking time
Entry via number keypad
Actual temperature display
Default temperatures
Acoustic signal when desired temperature is reached
Favorites
Sabbath program
Individual settings
Door
CleanGlass door
Door contact switch
Door hinge sideBottom
Cavity
Oven compartment volume in cu.ft (l)2.97 (84)
No. of rack levels5
Labeling of rack levels
No. of halogen lamps 2
Cleaning convenience
Stainless steel front with Clean Touch Steel surface
Efficiency and sustainability
Energy-saving lighting circuit
Residual heat utilization
Rapid PreHeat
Safety
Appliance cooling system and cool touch front
Safety cut-out
System lock
Door contact switch
Technical data
Niche width min in in. (mm)22 1/16 (560)
Niche width max in in. (mm)22 3/8 (568)
Niche height min in in. (mm)23 3/8 (593)
Niche height max in in. (mm)23 7/16 (595)
Niche depth in in. (mm)21 5/8 (550)
Appliance width in in. (mm)21 7/8 (554)
Appliance height in in. (mm)22 7/8 (579)
Appliance depth in in. (mm)21 5/8 (547)
Weight in lbs. (kg)92.59 (42.0)
Total connected load in kW4,20
Voltage in V120
Frequency in Hz60
Fuse rating in A30
Number of phases1
Voltage convertible in V240/208
Show all technical details

Optional products and accessories

Downloads, CAD, & apps

Follow the link and you will find all the resources you need for planning and installing any of our products

Follow the link and you will find all the resources you need for planning and installing any of our products

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorized experts. In the event of queries, please call us for some no-obligation advice!

Descriptions

H 6000 E/B, 60 cm (Installation drawing) - USA

A= Cut-out (4"x22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B= Power cord with plug

* Oven with glass front

** Oven with metal front

Descriptions

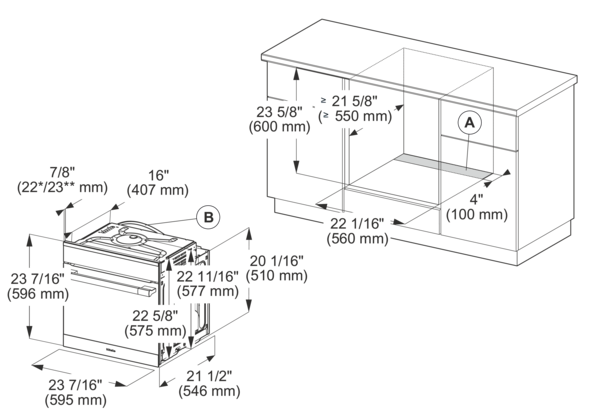

H 6000 E/B, 60 cm (Installation drawing) - USA

A= Cut-out (4"x22" / 100 mm x 560 mm) in the bottom of the cabinet for power cord and Ventilation

B= Power cord with plug

* Oven with glass front

** Oven with metal front

  • Subject to technical changes; no liability accepted for the accuracy of the information given.
